Electronic Suspension Control (ESC) Module Connector End View C2 (w/F45)

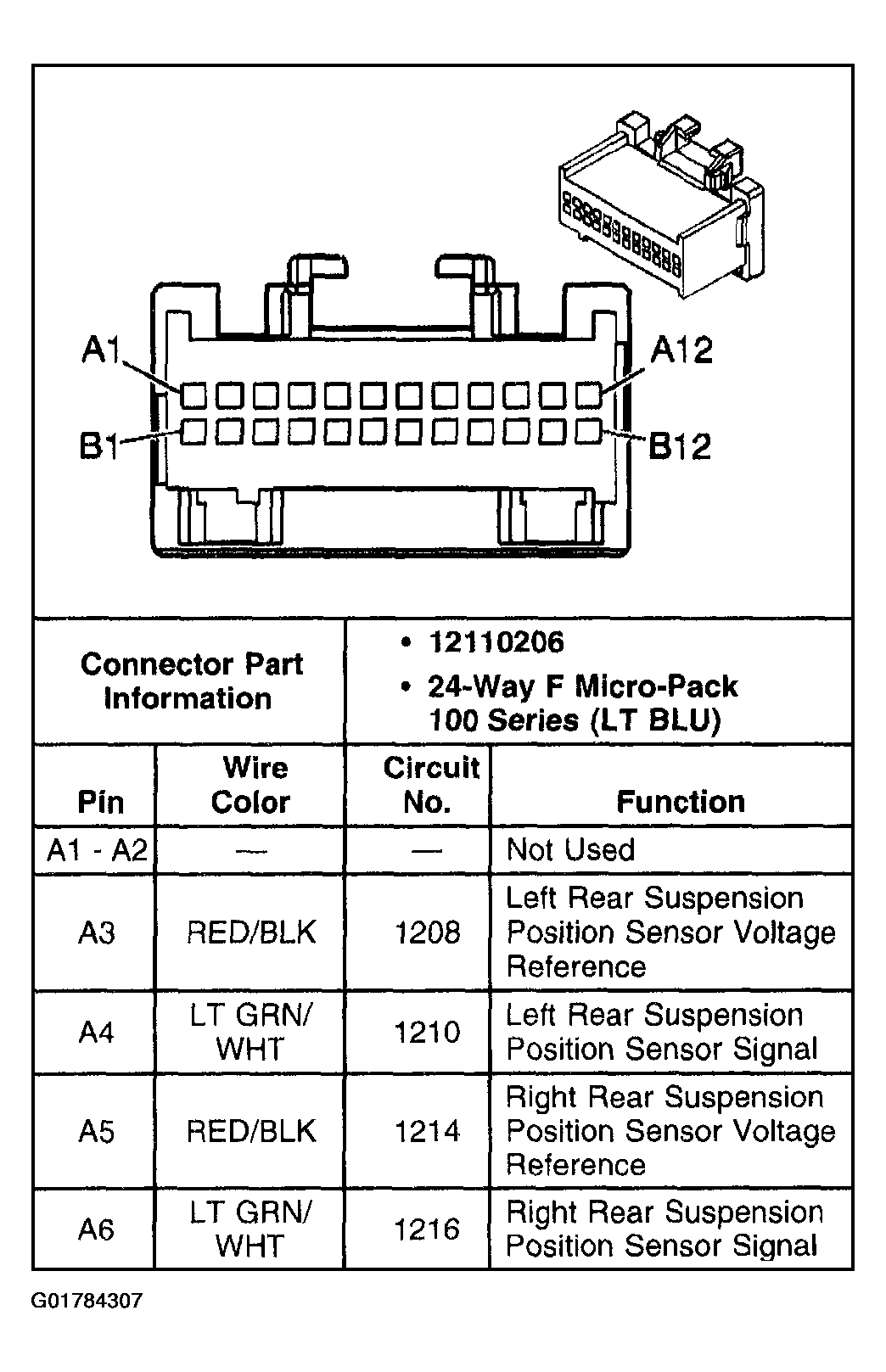

Fig 1: Electronic Suspension Control (ESC) Module C2 (w/F45)

G01784307

Courtesy of GENERAL MOTORS CORP.
