Engine Electrical Connector End Views

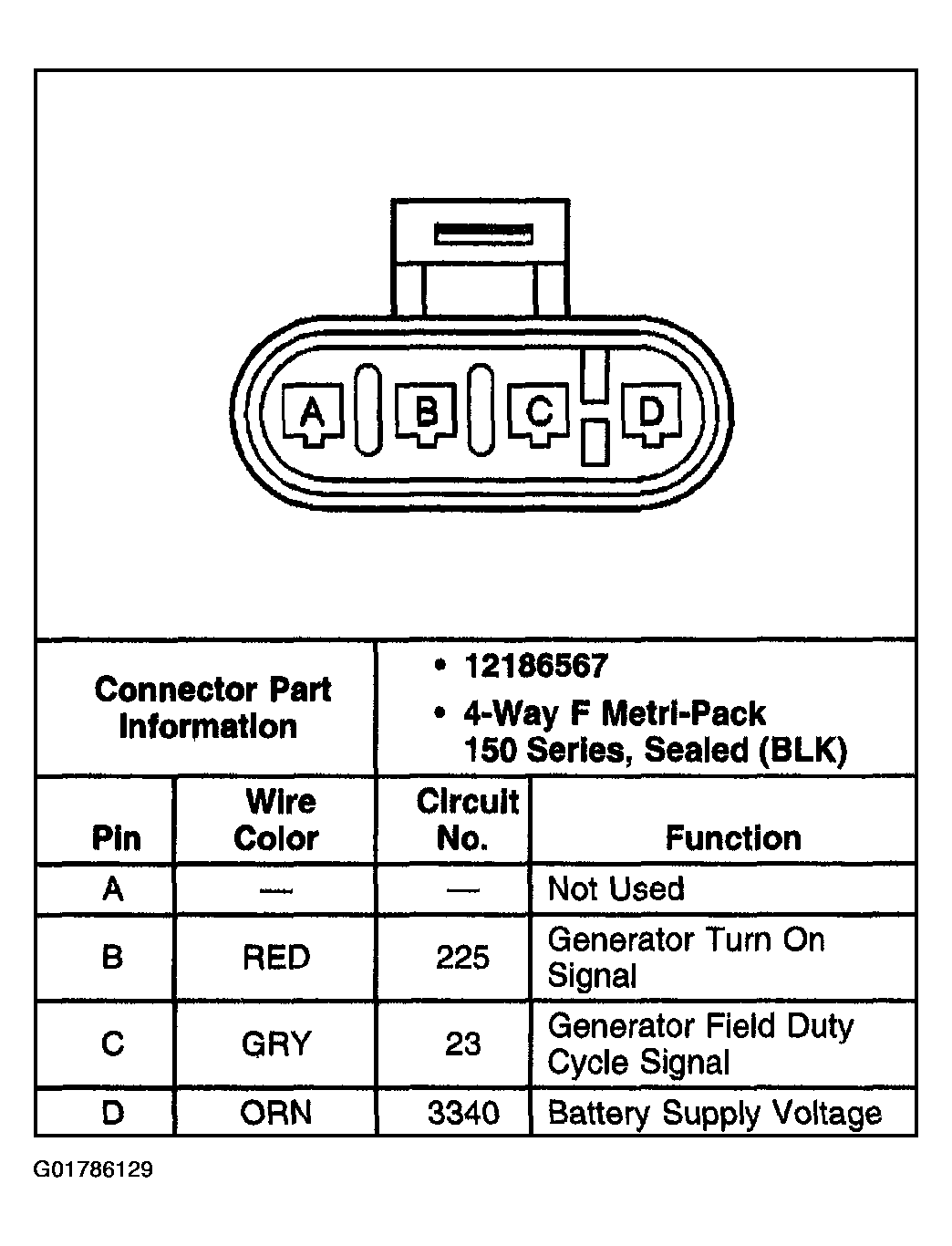

Fig 1: Identifying Generator

G01786129

Courtesy of GENERAL MOTORS CORP.
