Engine Oil Pressure (EOP) Switch Connector End View

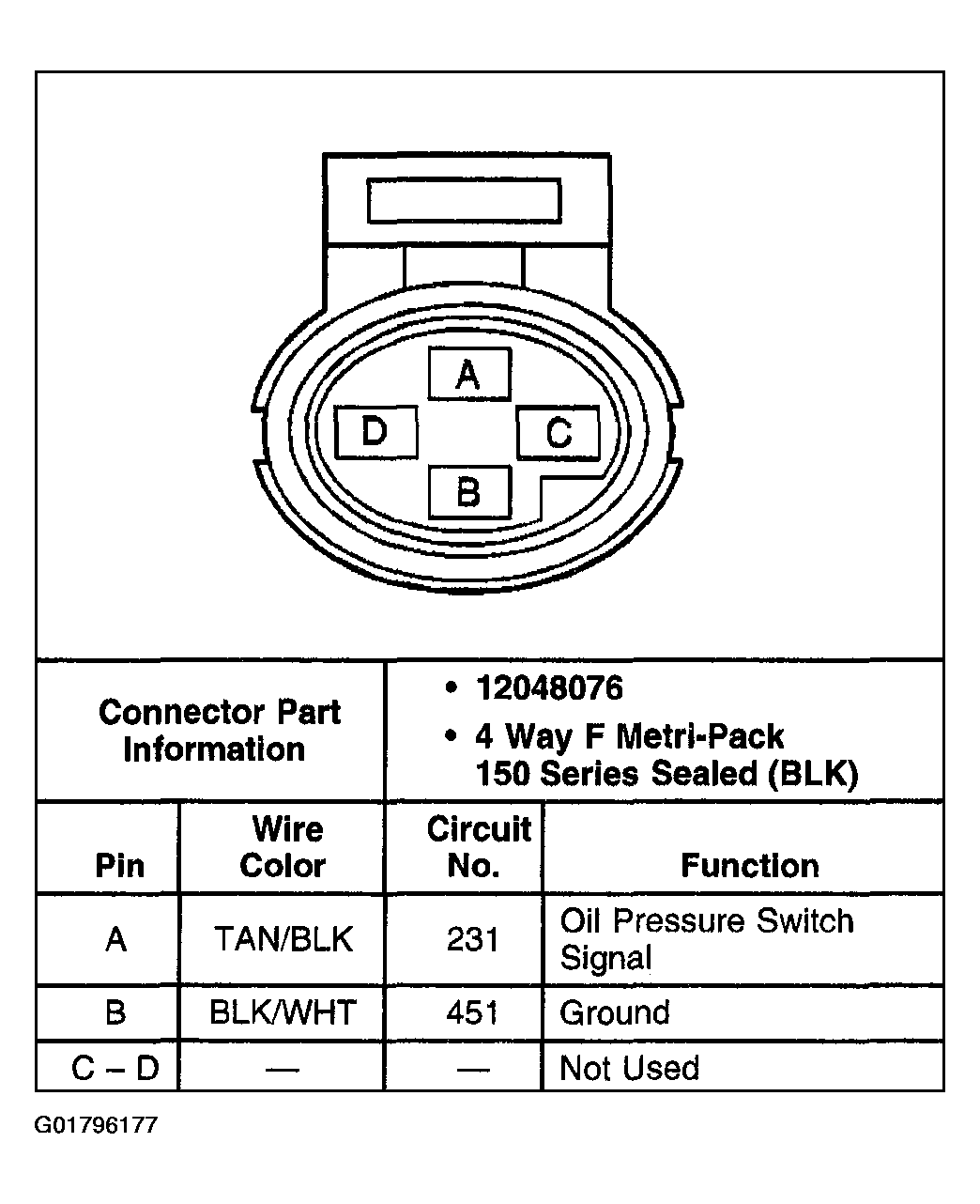

Fig 1: Engine Oil Pressure (EOP) Switch

G01796177

Courtesy of GENERAL MOTORS CORP.
