Door Lock/Indicator Schematics

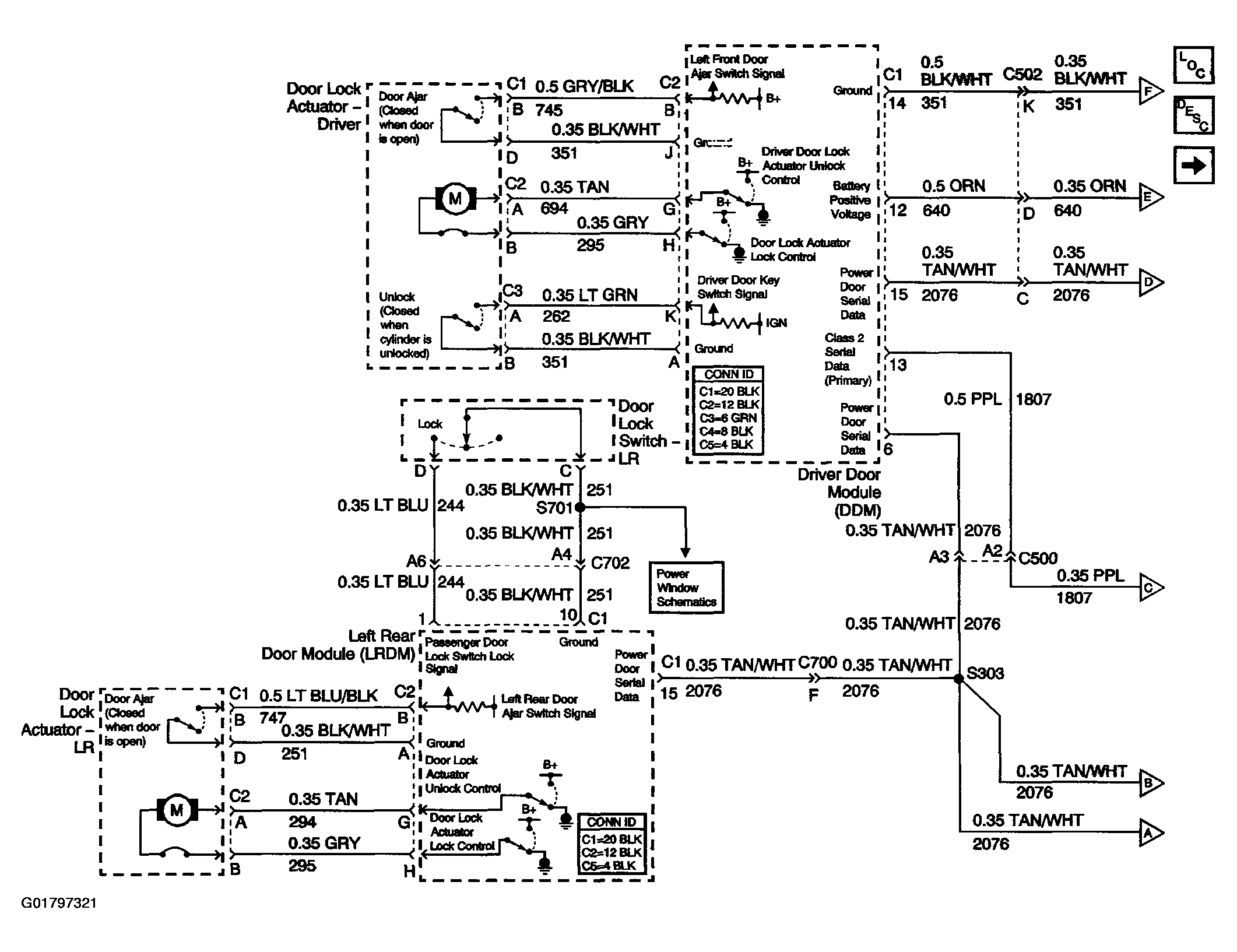

Fig 1: Door Lock/Indicator Schematics (Driver and LR Doors)
G01797321Courtesy of GENERAL MOTORS CORP.

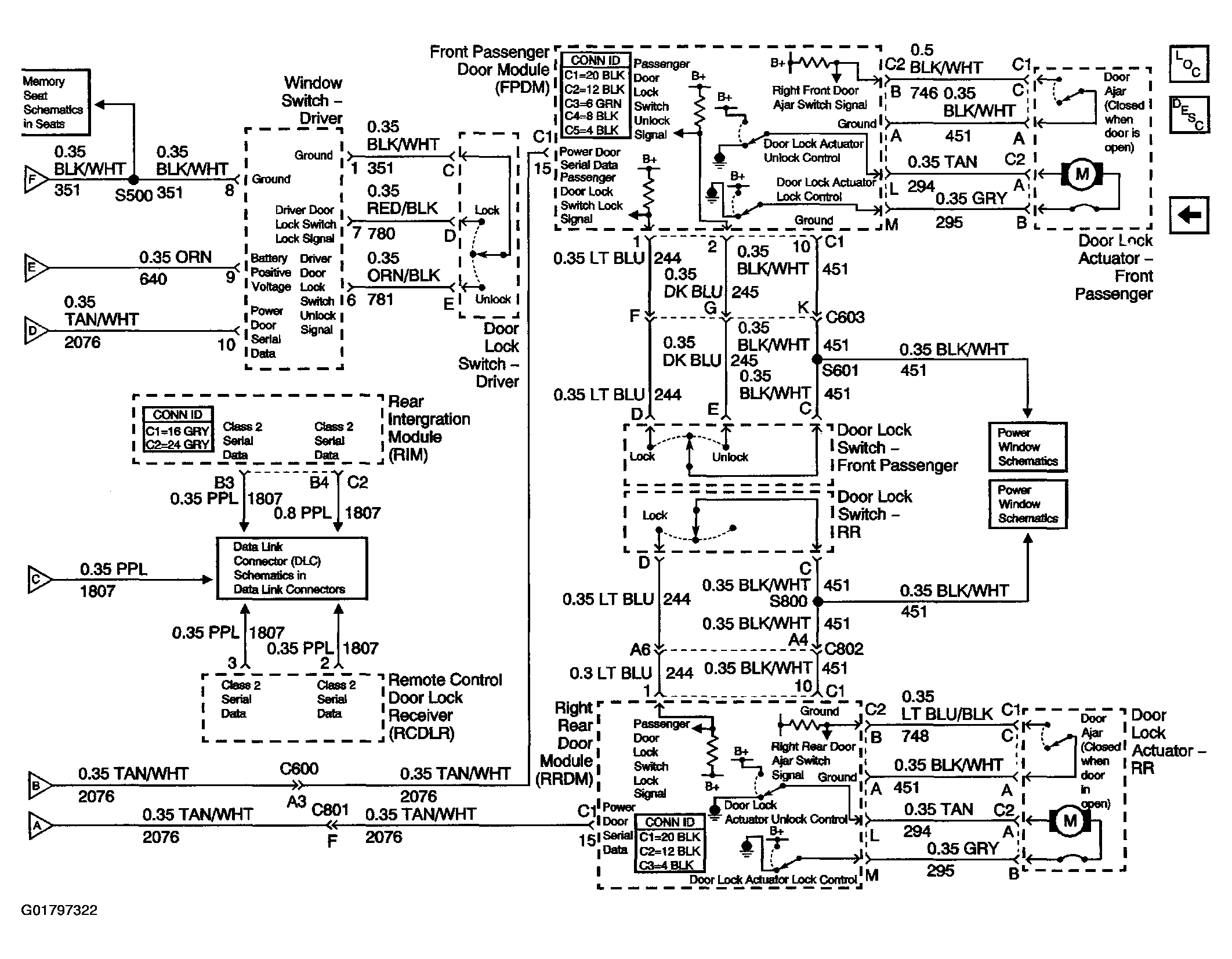

Fig 2: Door Lock/Indicator Schematics (Front Passenger & RR Doors)
G01797322Courtesy of GENERAL MOTORS CORP.
