Power Steering Gear Disassembled View (670 Gear)

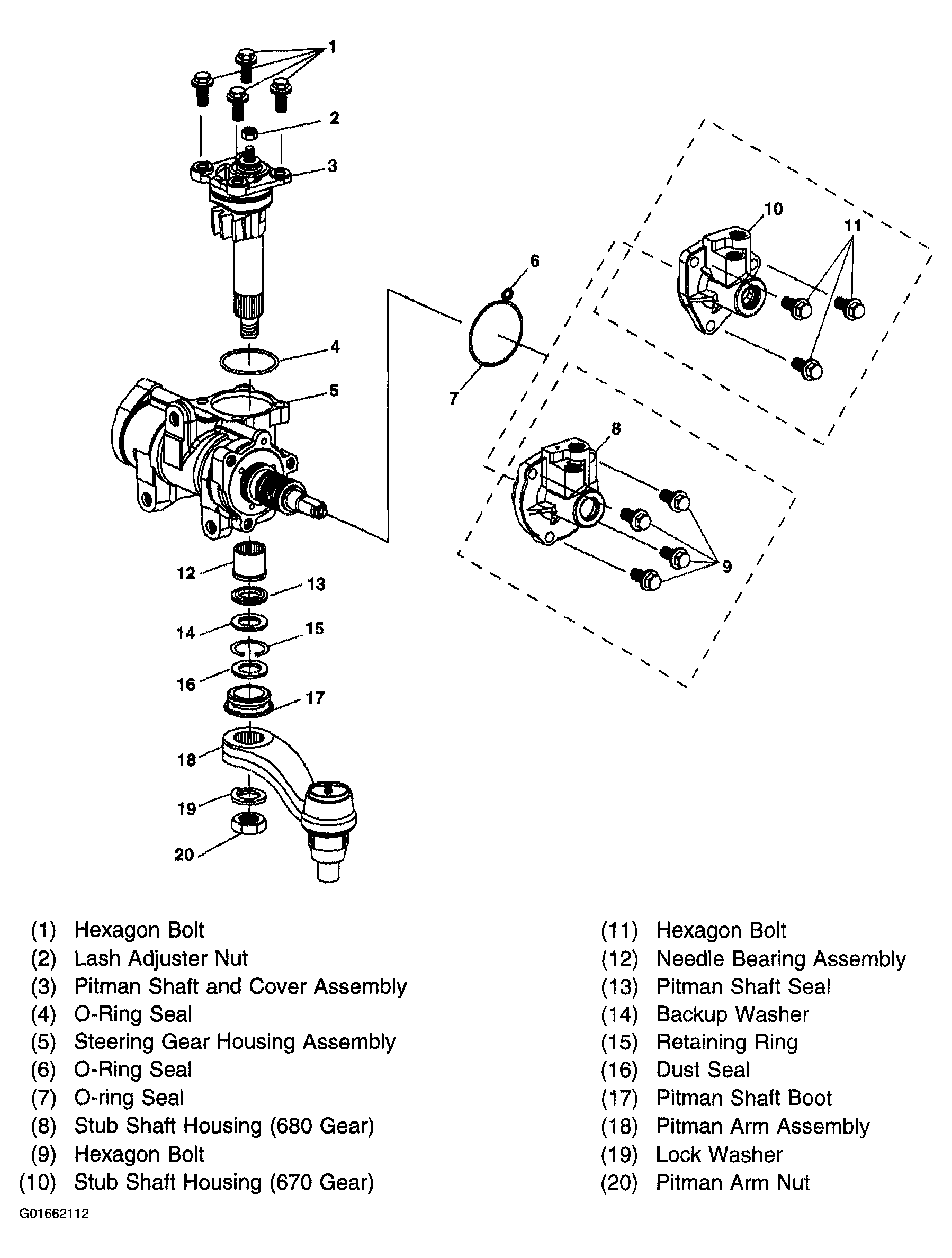

Fig 1: Identifying Right Hand Power Steering Gear

G01662112

Courtesy of GENERAL MOTORS CORP.
