Driver Information Center (DIC) Connector End View

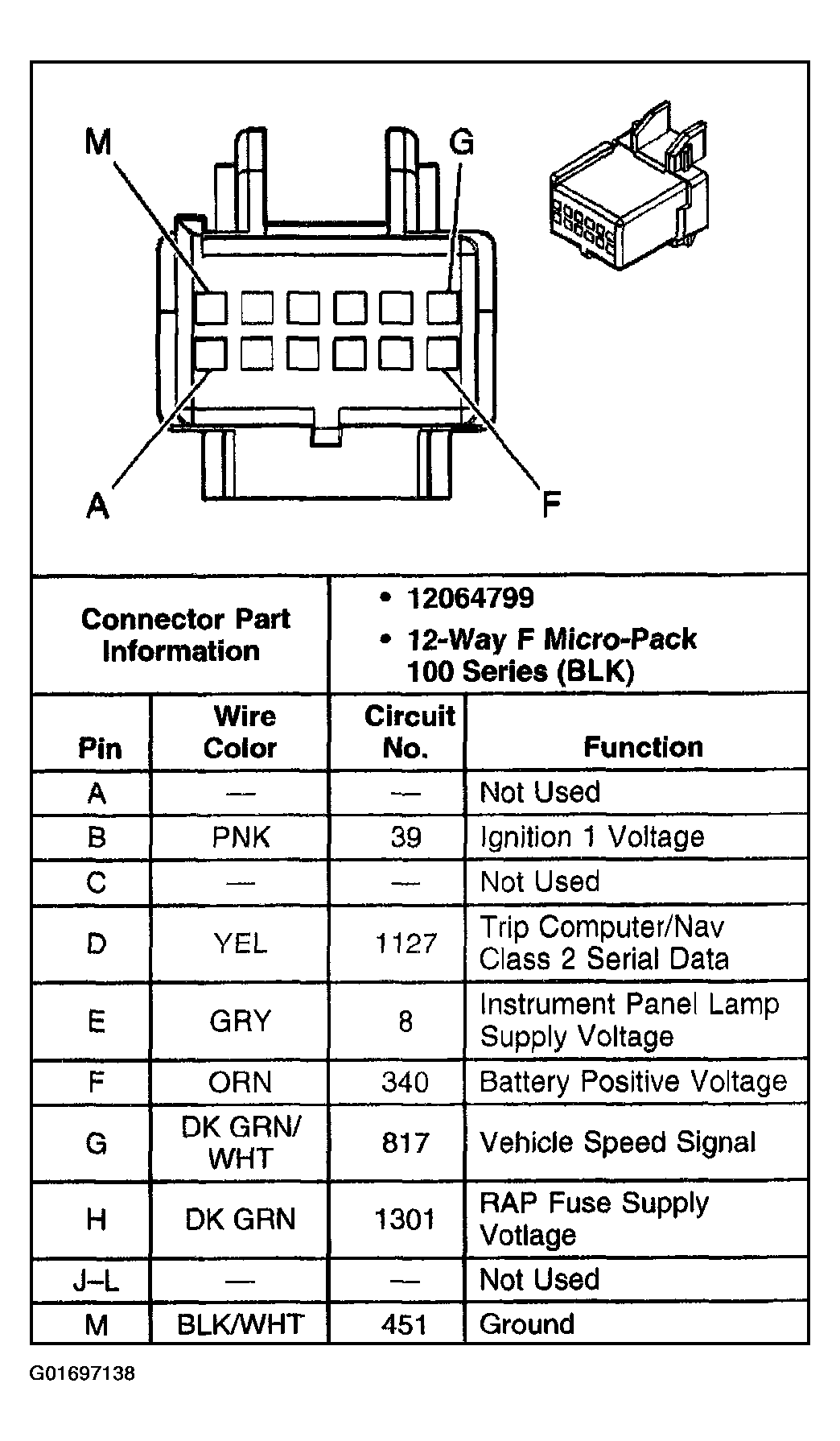

Fig 1: Driver Information Center (DIC) Connector End View

G01697138

Courtesy of GENERAL MOTORS CORP.
