Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Yukon, 2002 Chevrolet Tahoe, and 2002 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel steering control module from the bracket.
  2. Remove the bolts retaining the bracket (2) to the frame.
  3. Remove the bracket (2) from the vehicle.

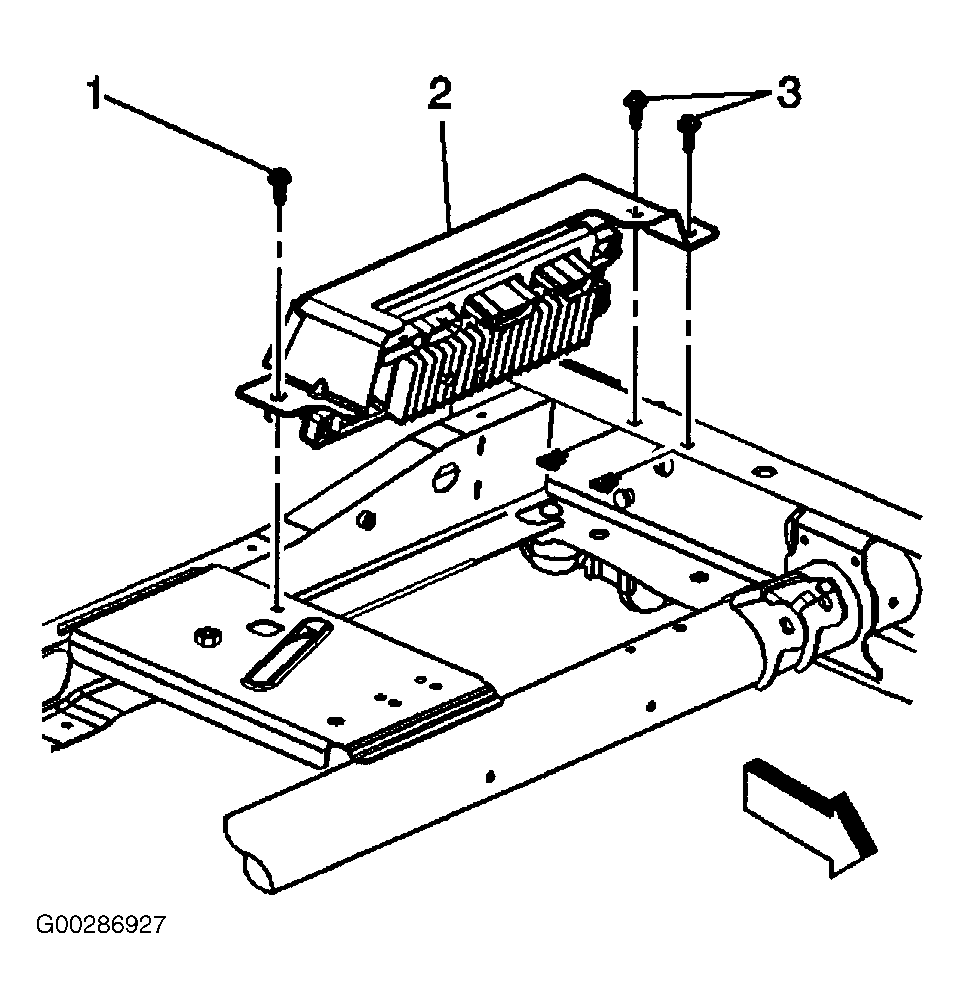

Fig 1: Locating Steering Control Module Bracket
G00286927Courtesy of GENERAL MOTORS CORP.
