Identifying Transmission Fluid Temperature Sensor Connector End View (Harness Side)

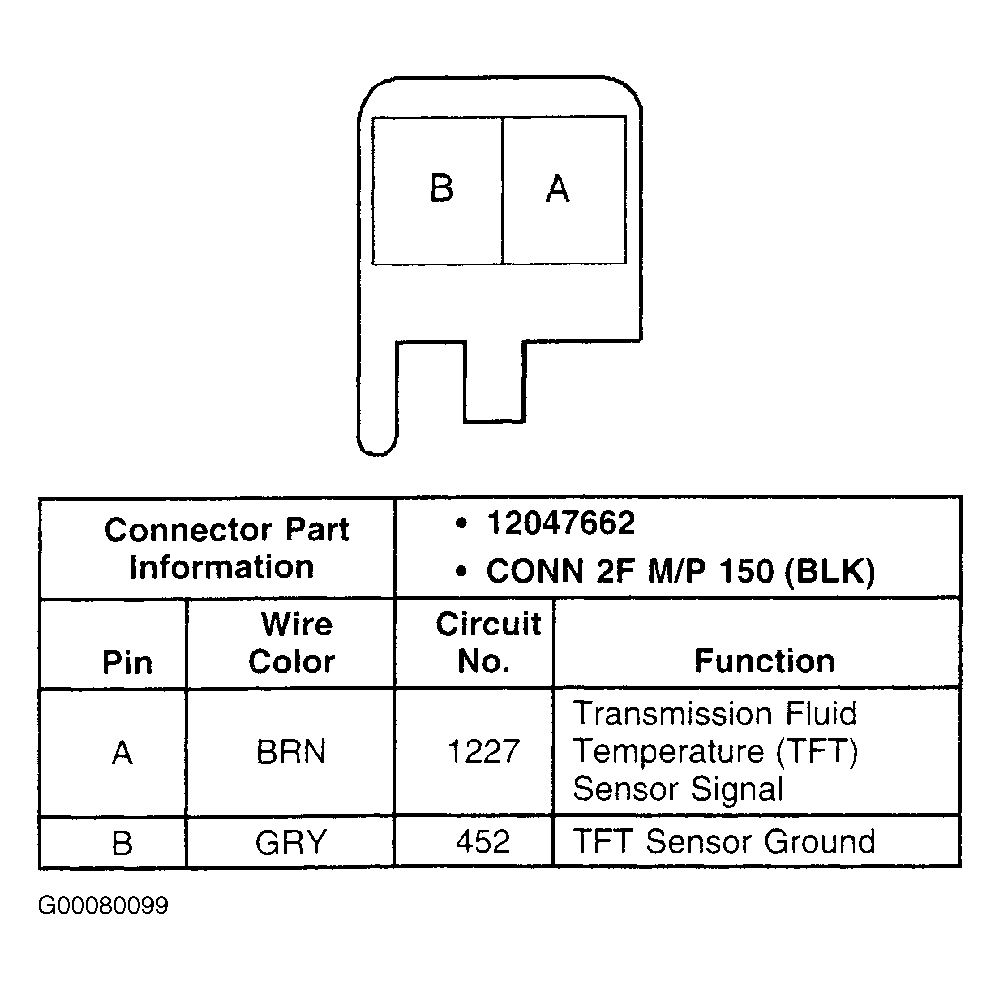

Fig 1: Identifying Transmission Fluid Temperature Sensor Connector End View (Harness Side)
G00080099Courtesy of GENERAL MOTORS CORP.
