Removal Procedure

  1. Remove the door handle bezel. Refer to Handle Bezel Replacement - Inside .
  2. Remove the window handle, if equipped. Refer to Window Handle Replacement .
  3. Remove the power accessory switch panel. Refer to Power Accessory Switch Panel Replacement .
  4. Remove the upper extension of the trim panel. Refer to Trim Panel Replacement - Upper Extension .
  5. Remove the manual lock lever from the trim panel using a flat bladed tool.
  6. Remove the trim panel screws.

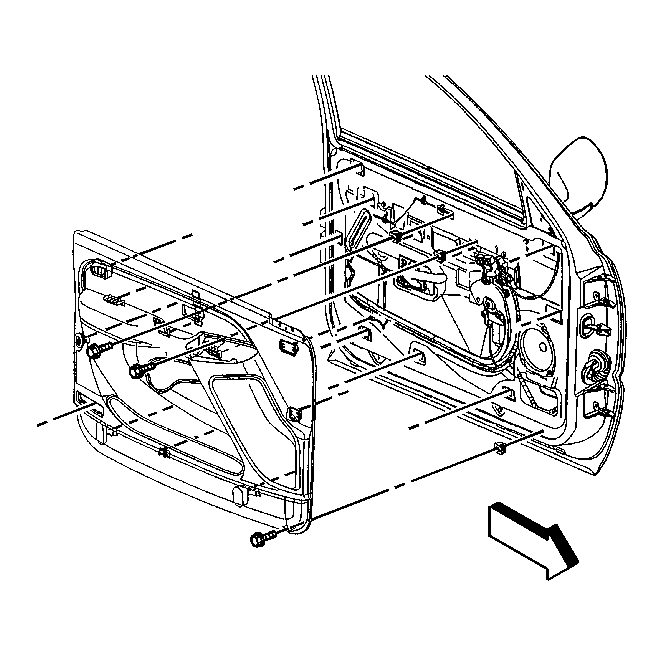

    7. Fig 1: Side Front Door Trim Panel
    GM348452Courtesy of GENERAL MOTORS CORP.
  7. Remove the courtesy lamp, if equipped. Refer to COURTESY LAMP/REFLECTOR REPLACEMENT - DOOR .
  8. Remove the trim panel from the door. Carefully slide the trim panel up in order to release the retainers from the door.
  9. Disconnect the electrical connectors.
