Removal Procedure
- Open the door.

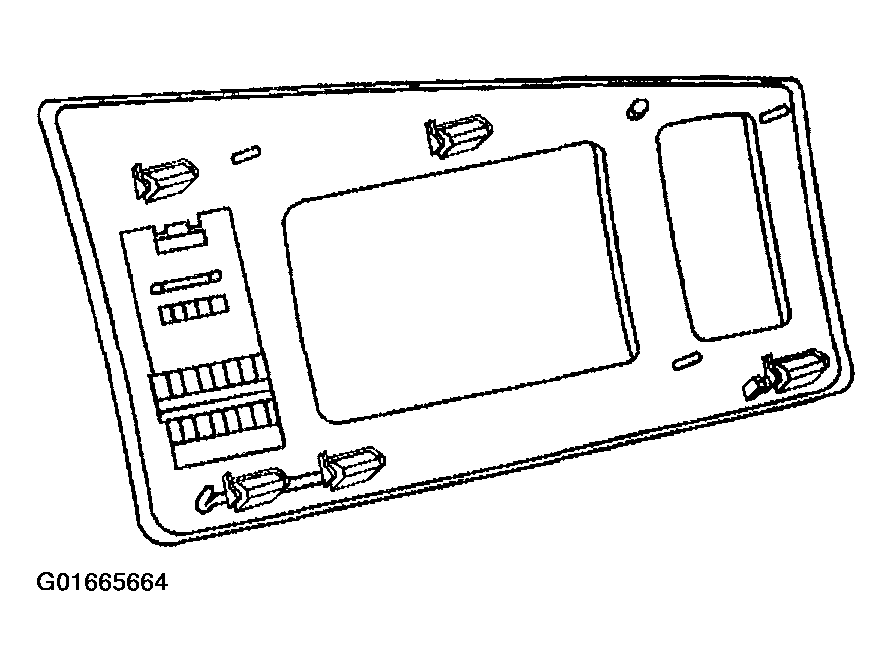

- Carefully disengage the trim plate from the trim panel.
- Disconnect the electrical connector from the lock switch.
- Disengage the retainers on the backside of the switch.
- Remove the door lock switch from the trim plate.
Courtesy of GENERAL MOTORS CORP.
