Removal Procedure

  1. Place a drain pan under the vehicle.
  2. Remove the power steering pressure hose (1) from the power steering pump (2).

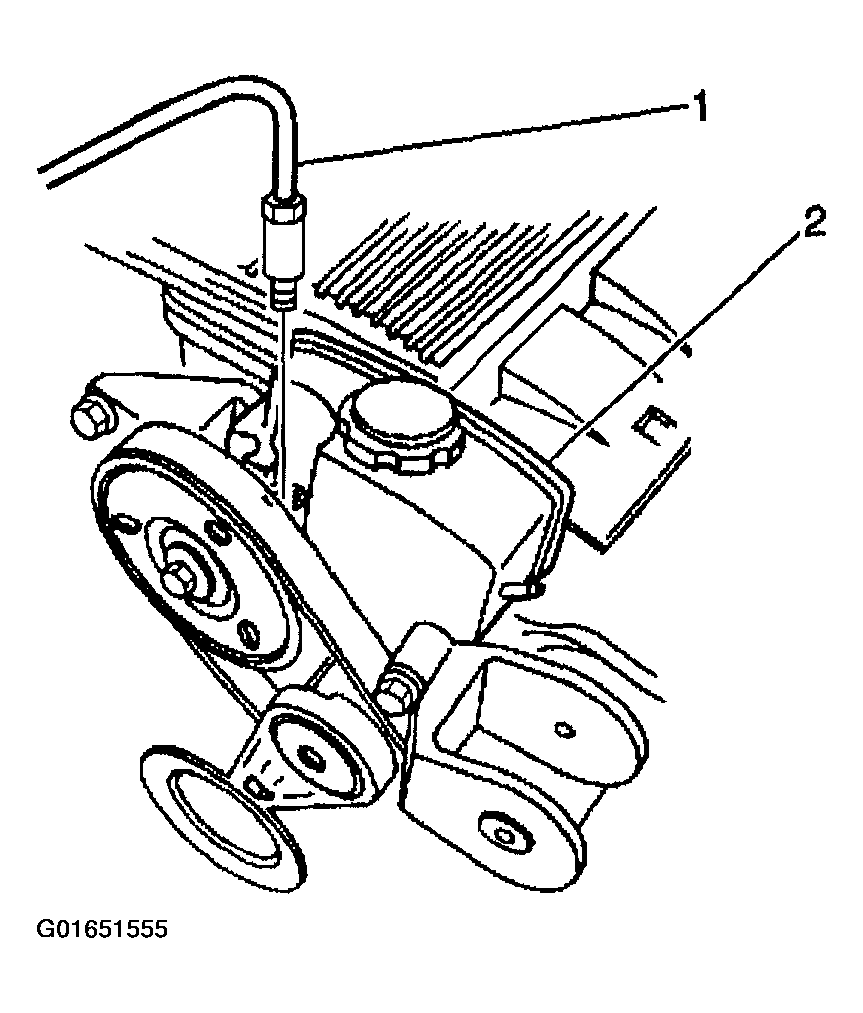

    Fig 1: Removing Power Steering Pressure Hose From Power Steering Pump
    G01651555Courtesy of GENERAL MOTORS CORP.
  3. Remove the power steering pump fitting (5) from the power steering pump.
  4. Remove the power steering flow control valve (3) from the power steering pump.
    Fig 2: Removing Power Steering Pump Fitting & Flow Control Valve
    G01651556Courtesy of GENERAL MOTORS CORP.
