Power Steering Pump Disassembled View

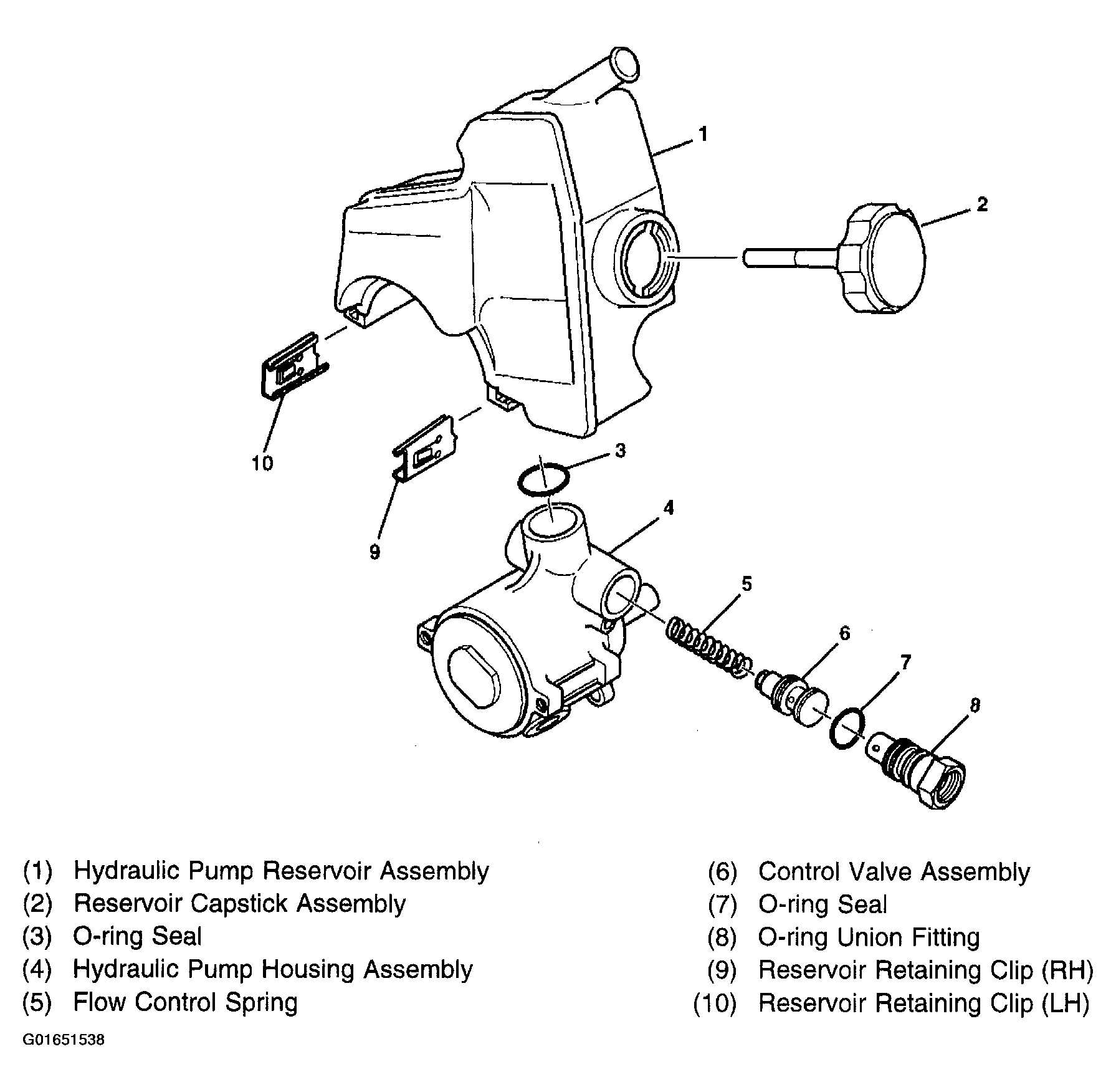

Fig 1: Power Steering Pump - TC Series

G01651538

Courtesy of GENERAL MOTORS CORP.
