Continuously Variable Road Sensing Suspension (CVRSS) Module Connector End View C2

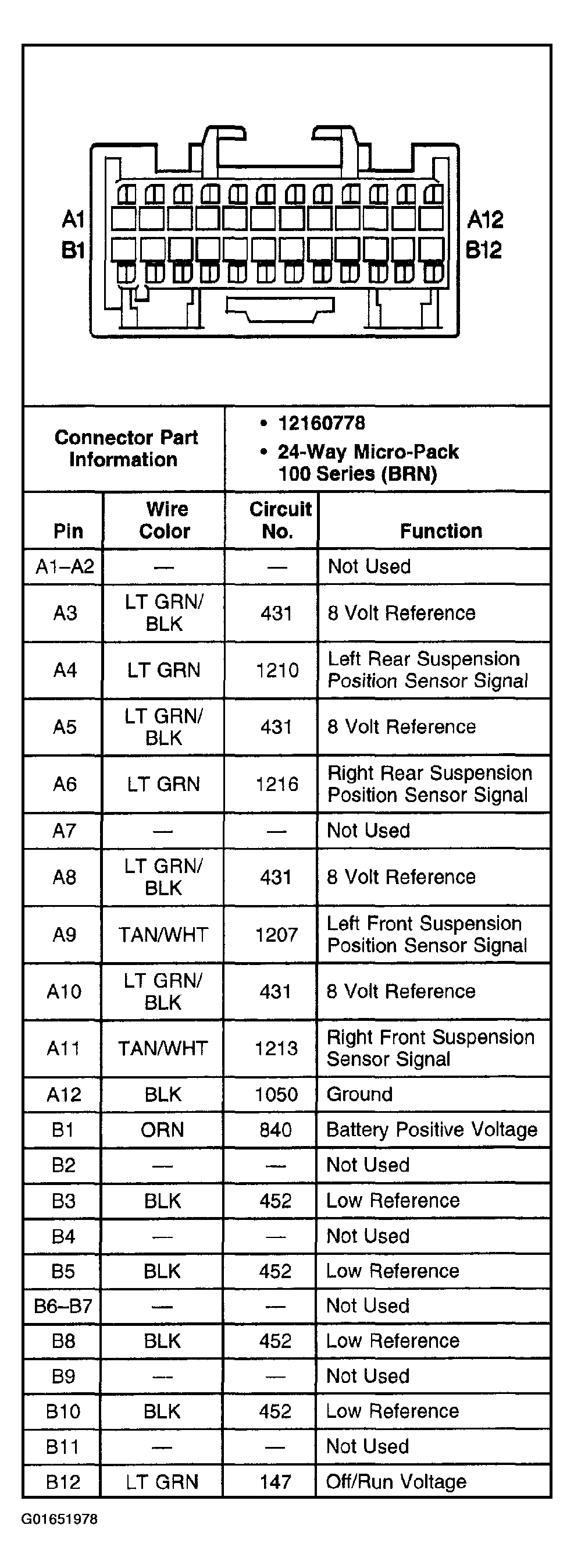

Fig 1: Continuously Variable Road Sensing Suspension (CVRSS) Module Connector C2

G01651978

Courtesy of GENERAL MOTORS CORP.
