Removal Procedure
- Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
- Always route the replacement cable the same way as the original cable.
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
- Remove the intake manifold. Refer to INTAKE MANIFOLD REMOVAL (ELDORADO)
in Engine Mechanical-4.6L.

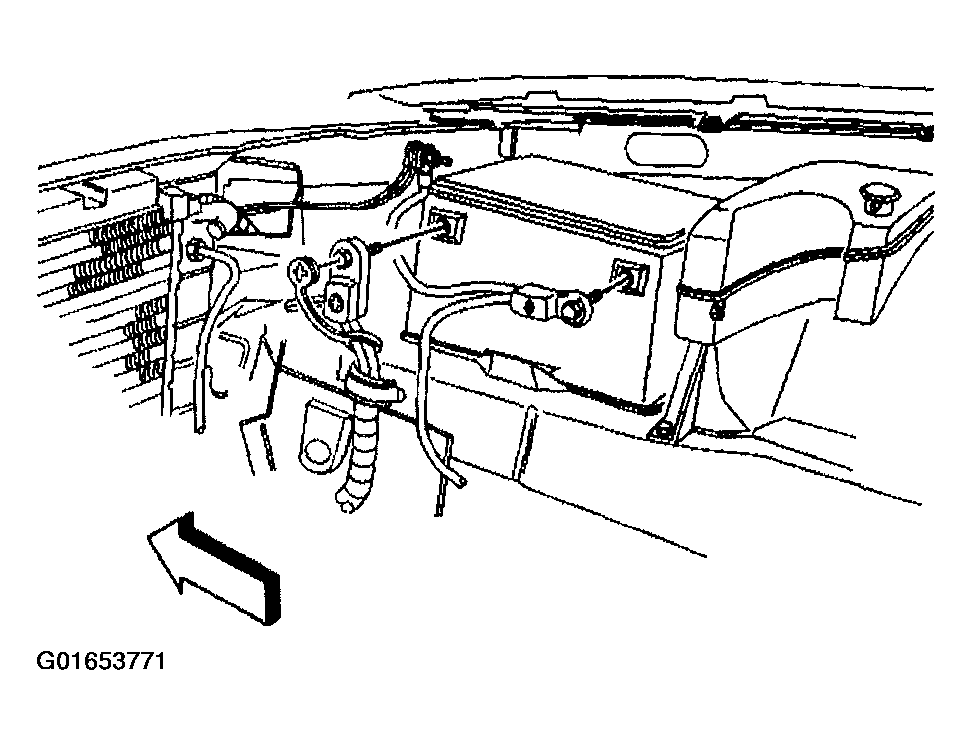

- Disconnect the battery positive cable from the starter.
- Disconnect the battery positive cable from the battery.
Courtesy of GENERAL MOTORS CORP.

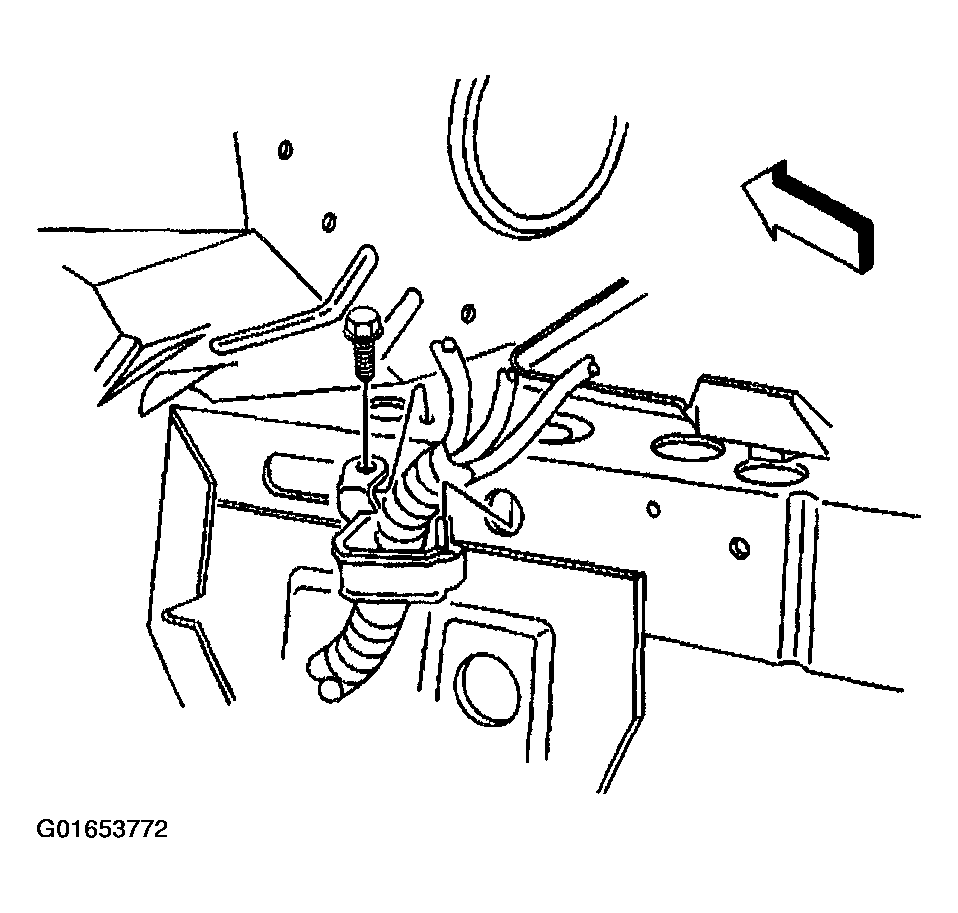

- Remove the bolt attaching the cable harness retainer to the body rail.
Courtesy of GENERAL MOTORS CORP.

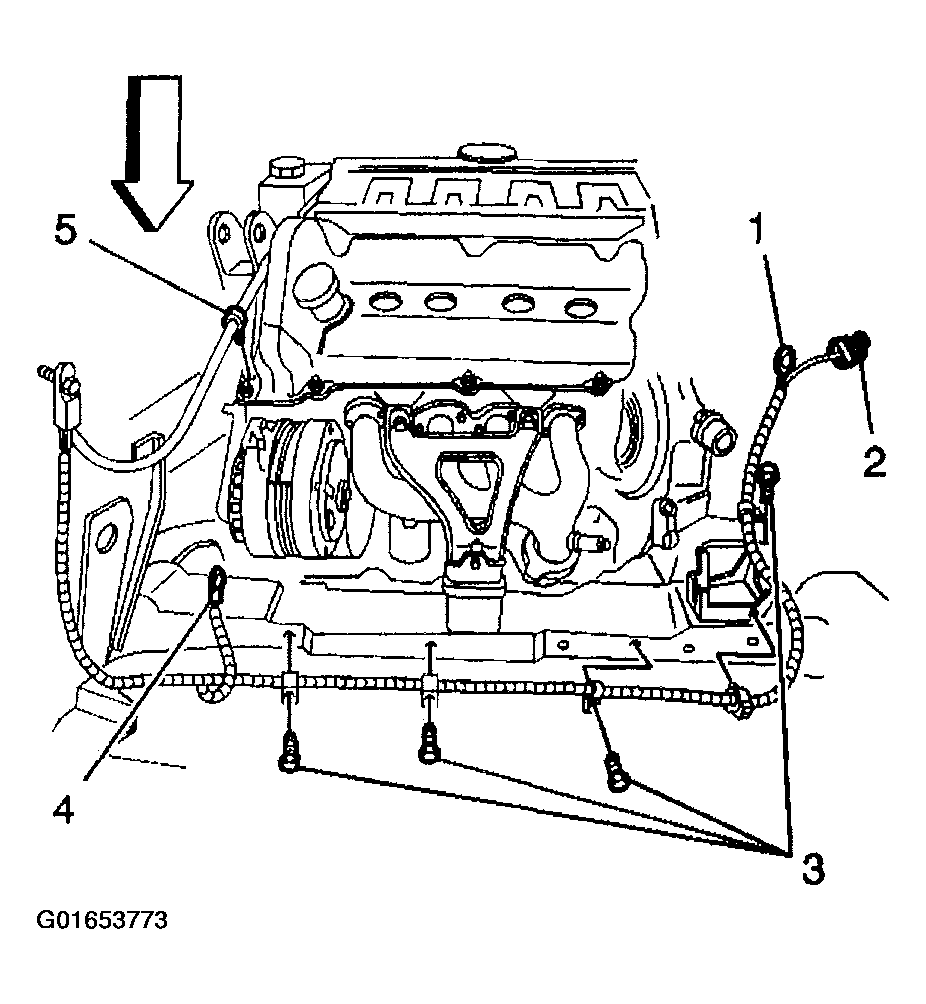

- Disconnect the cable harness clip (5) from the camshaft cover.
- Remove the engine splash shield. Refer to SPLASH SHIELD REPLACEMENT - ENGINE
in Body Front End.
- Remove the generator output BAT terminal nut and disconnect the battery positive lead (4) from the generator.
- Remove the bolts (3) attaching the cable harness clips to the engine frame.
- Disconnect the positive battery cable (1) from the underhood fuse block.
- Remove the battery positive cable from the vehicle.
Courtesy of GENERAL MOTORS CORP.
