Removal Procedure

Important:

• Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
• Always route the replacement cable the same way as the original cable.

1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
2. Remove the right front gusset. Refer to GUSSET REPLACEMENT - RIGHT in Body Front End.
3. Remove the nut securing the battery negative cable to the engine.

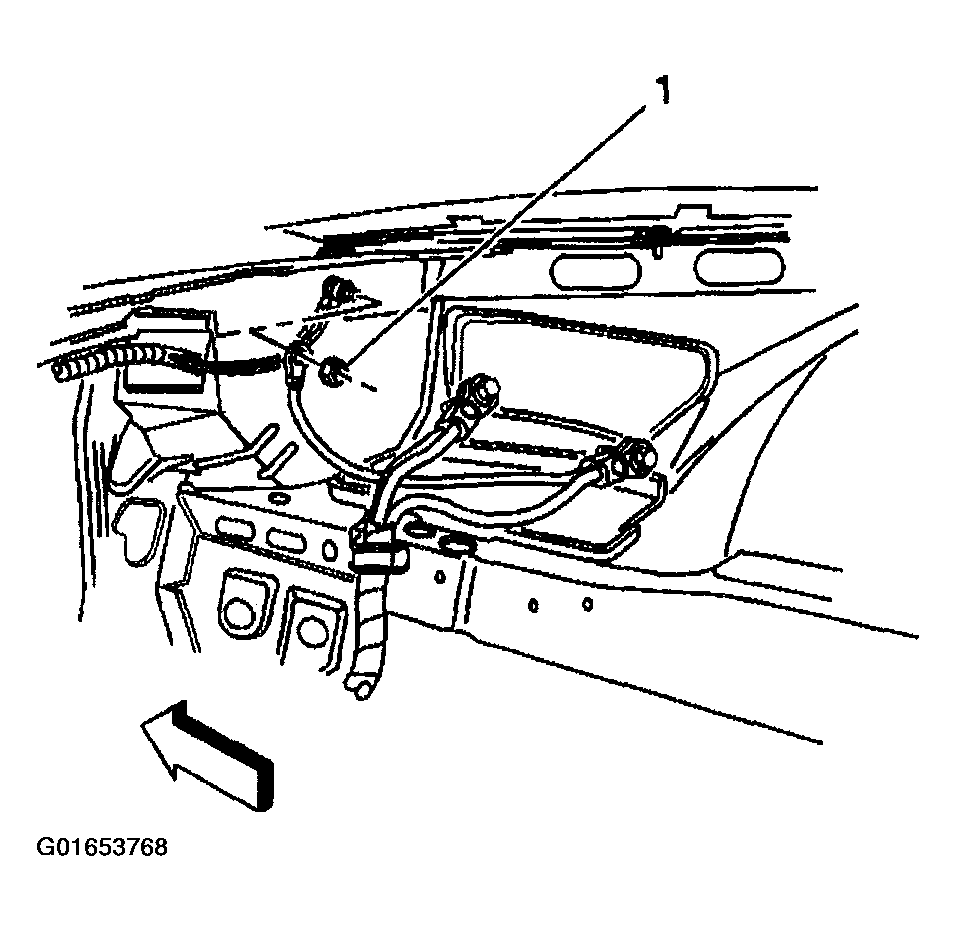

   Fig 1: Nut Securing Battery Negative Cable To Side Rail

   Courtesy of GENERAL MOTORS CORP.
4. Remove the nut (1) securing the battery negative cable to the side rail.
5. Remove the battery negative cable from the vehicle.
   Fig 2: Battery Negative Cable

   Courtesy of GENERAL MOTORS CORP.
