Sunroof Switch Connector End View

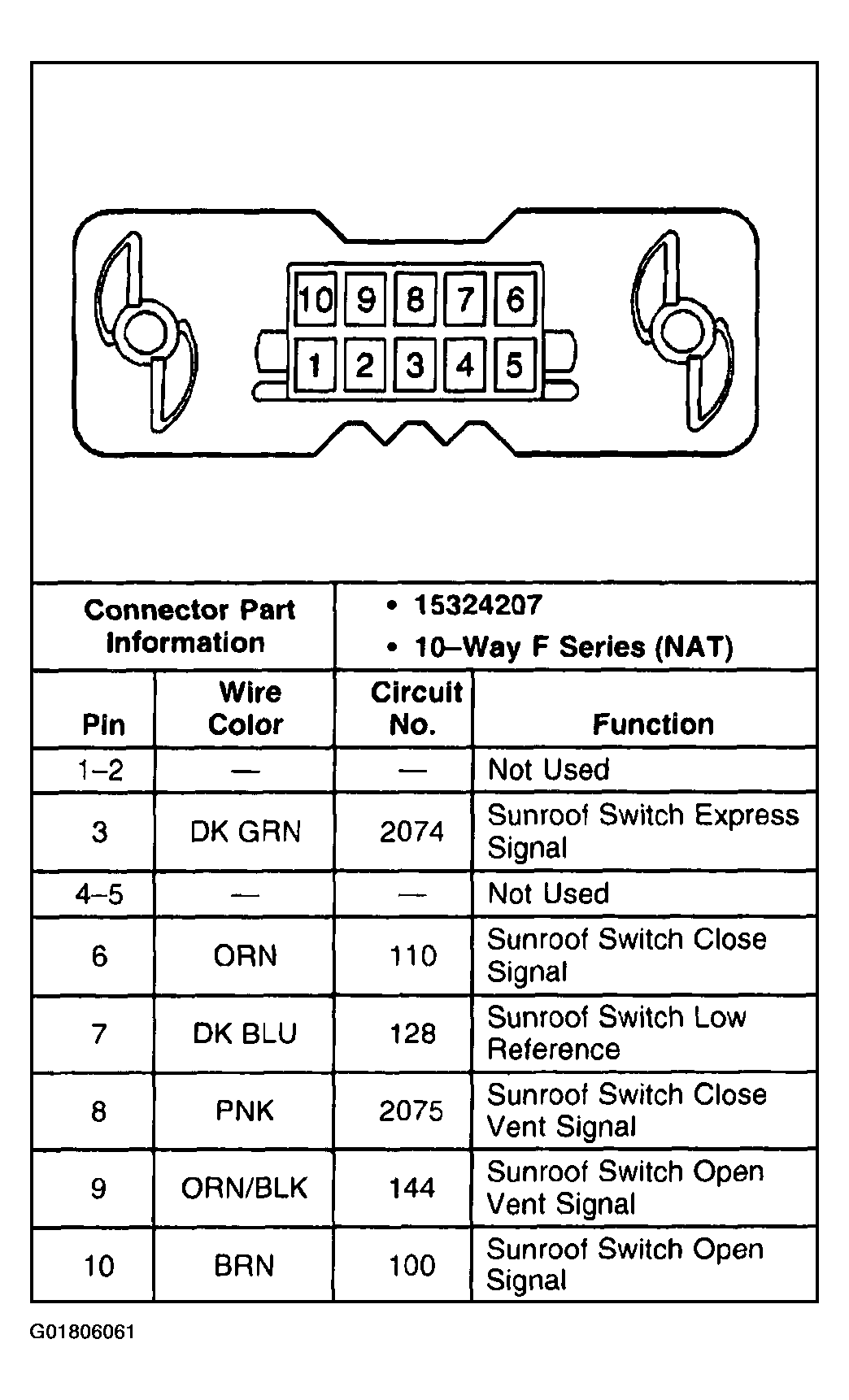

Fig 1: Sunroof Switch

G01806061

Courtesy of GENERAL MOTORS CORP.
