Steering Column Module C4 Connector End View - Tilt/Telescope Switch

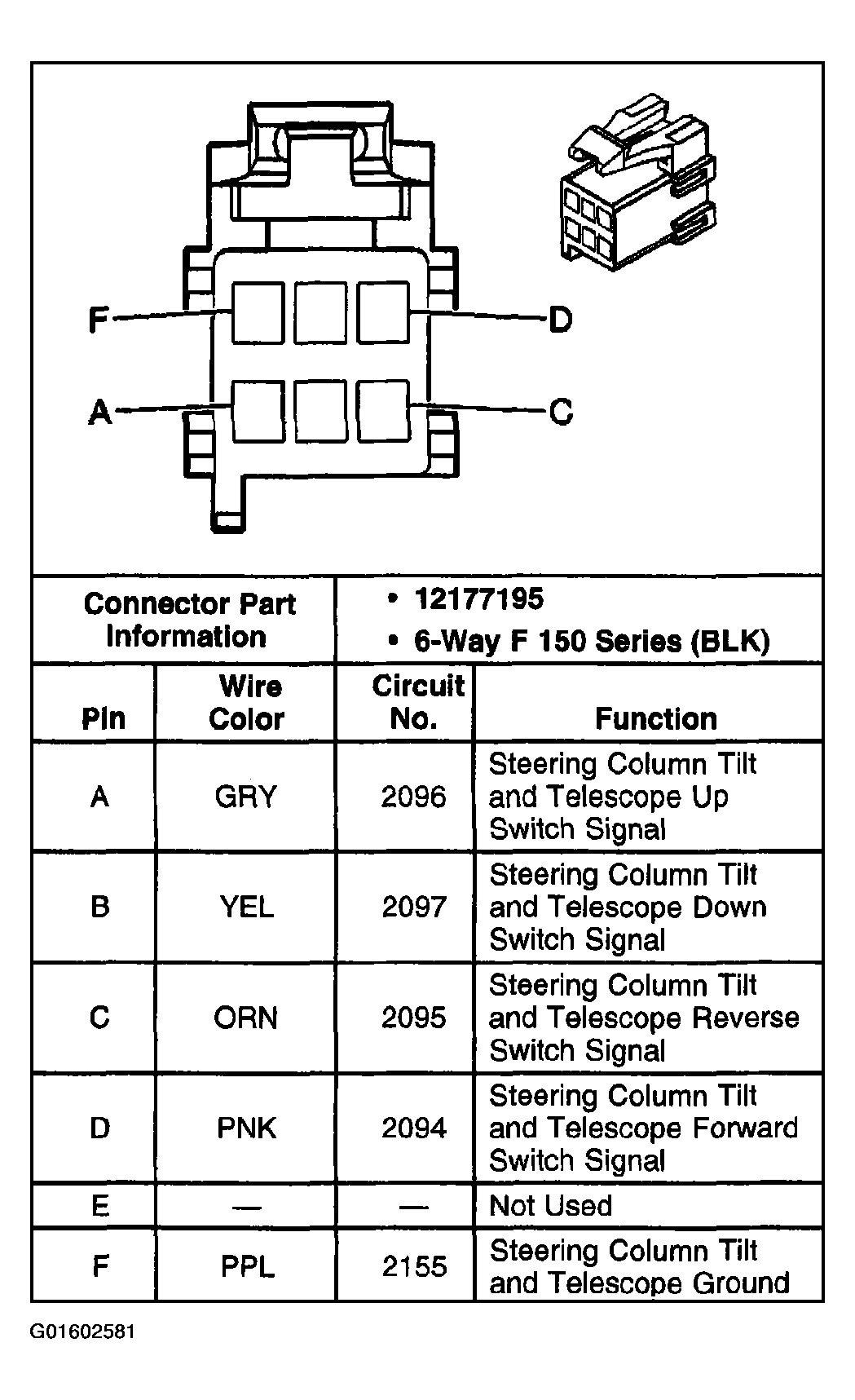

Fig 1: Steering Column Module C4 - Tilt/Telescope Switch

G01602581

Courtesy of GENERAL MOTORS CORP.
