Steering Column Module C3 Connector End View - Telescope Actuator

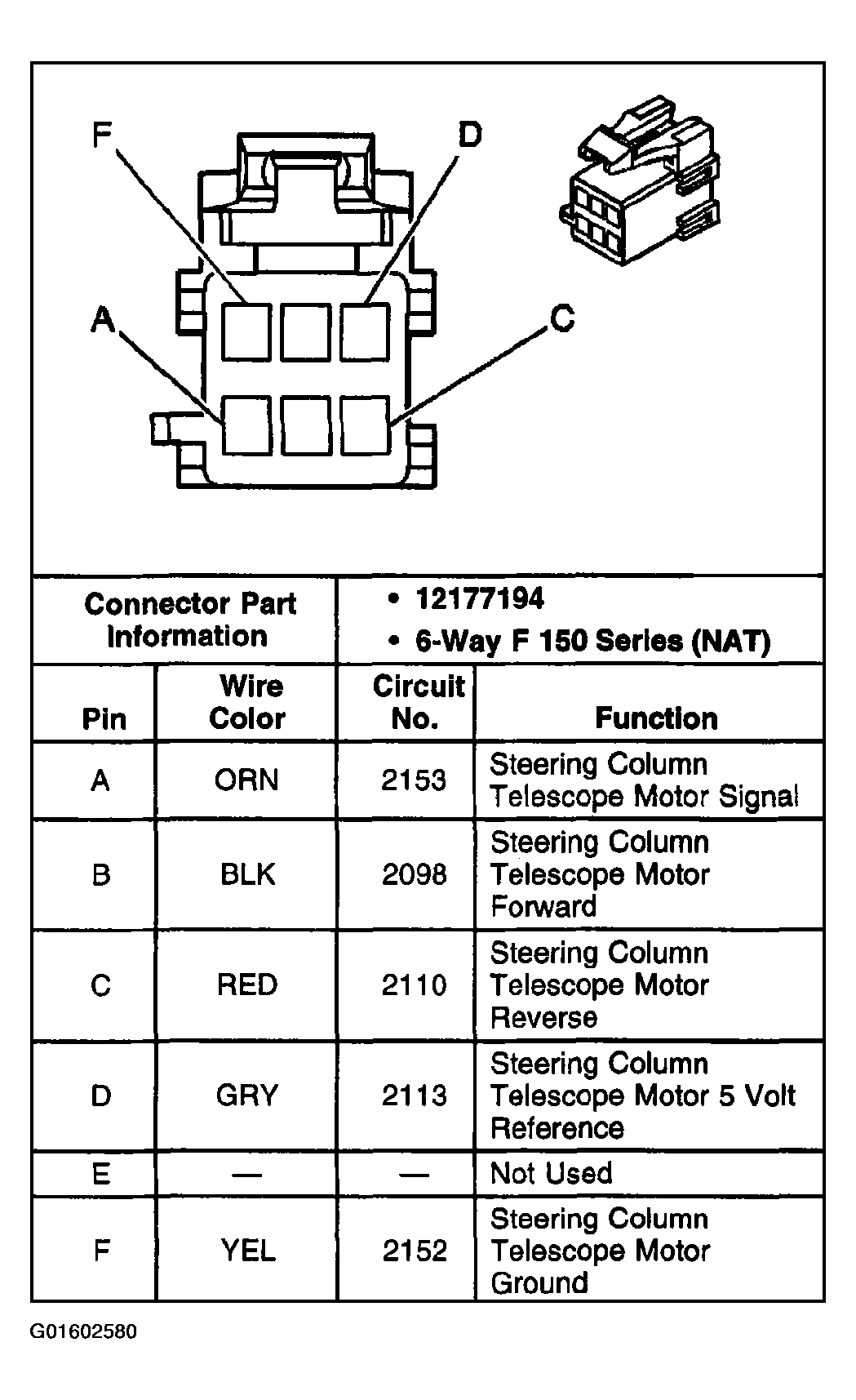

Fig 1: Steering Column Module C3 - Telescope Actuator

G01602580

Courtesy of GENERAL MOTORS CORP.
