Speaker Connector End View - Front I/P Midrange

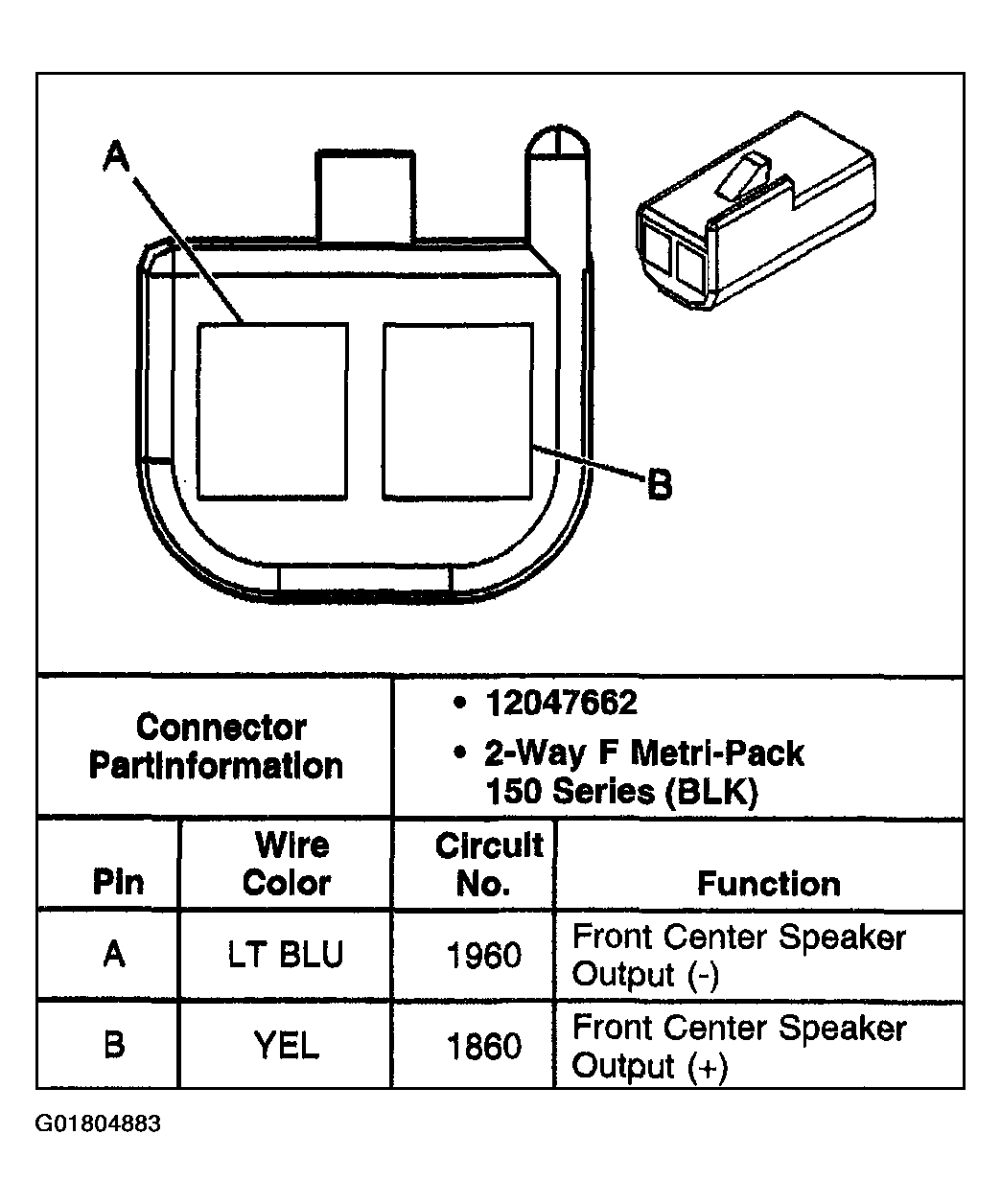

Fig 1: Speaker - Front I/P Midrange

G01804883

Courtesy of GENERAL MOTORS CORP.
