Night Vision Camera Connector End View (Design 1)

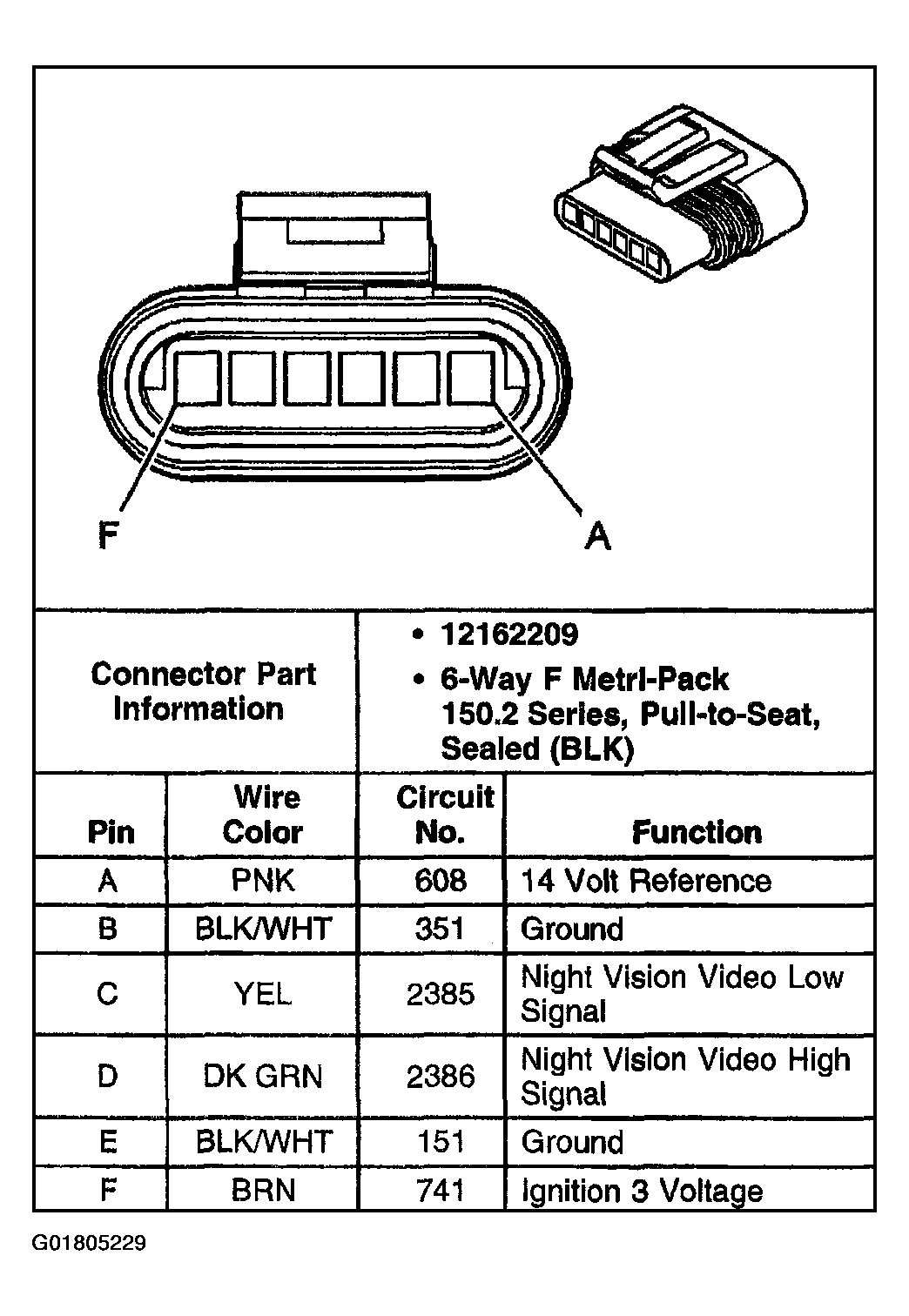

Fig 1: Night Vision Camera (Design 1)

G01805229

Courtesy of GENERAL MOTORS CORP.
