Information Center Telltale Assembly Connector End View

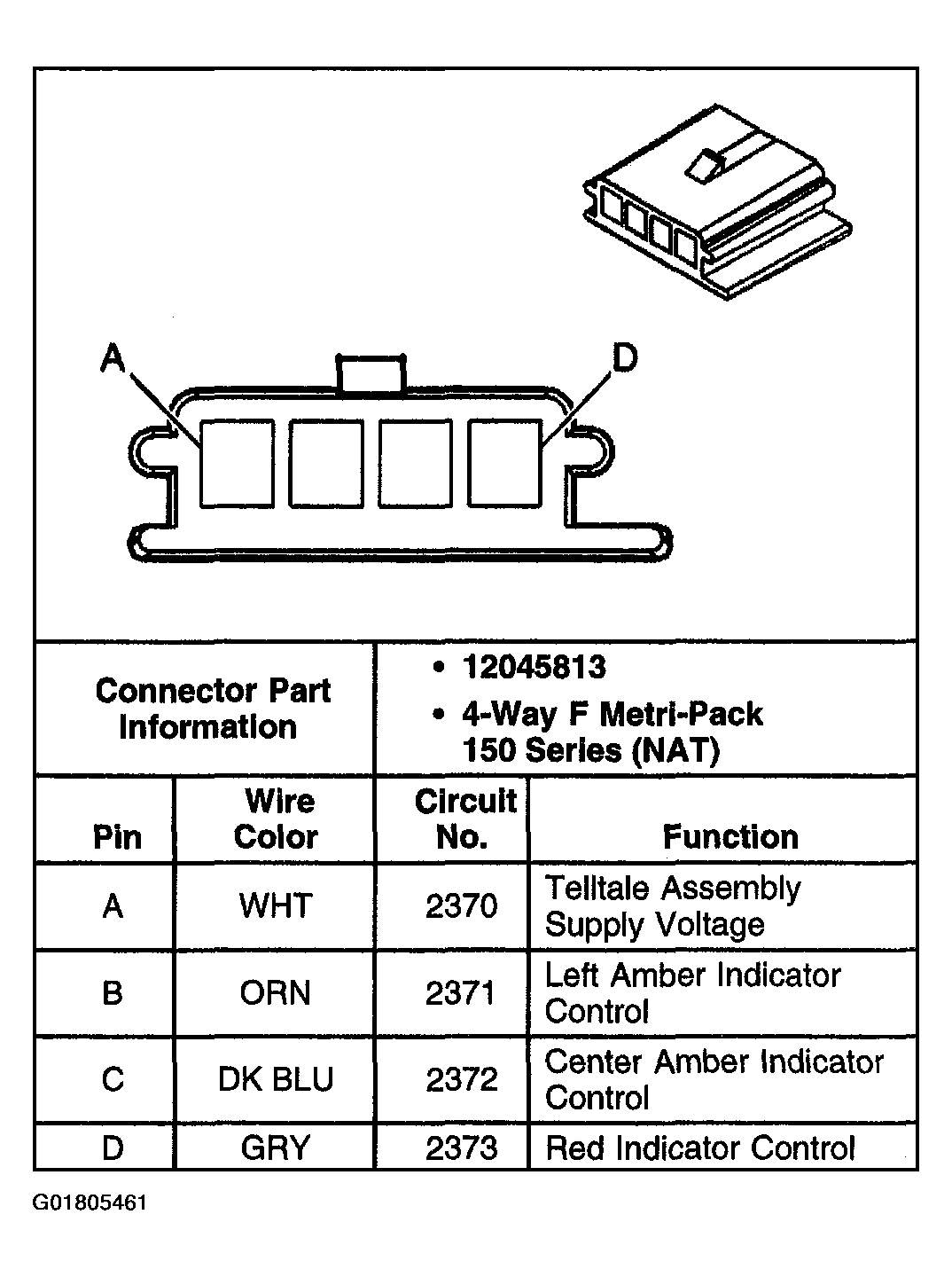

Fig 1: Information Center Telltale Assembly

G01805461

Courtesy of GENERAL MOTORS CORP.
