IP Compartment Lamp Switch Connector End View

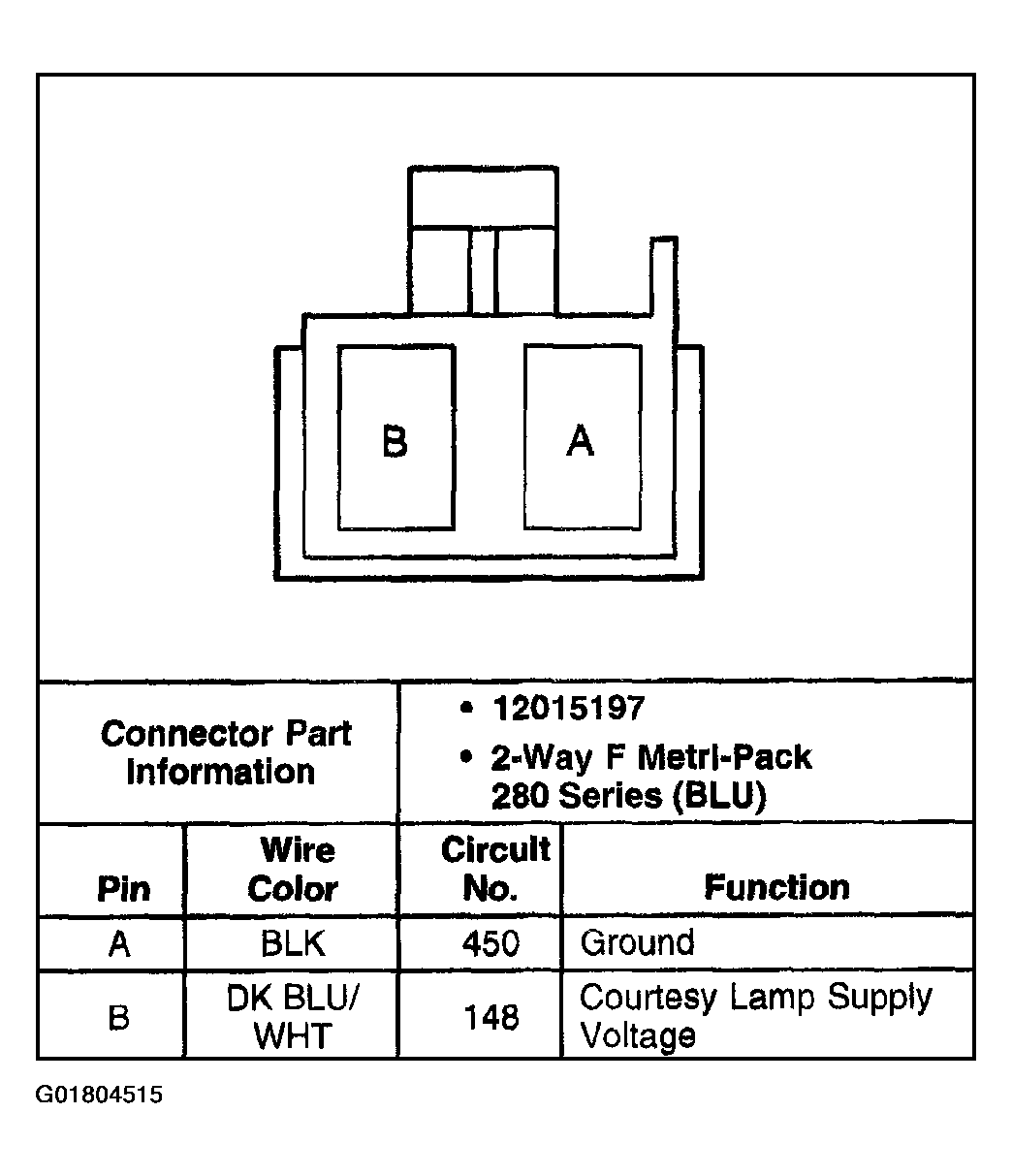

Fig 1: IP Compartment Lamp Switch

G01804515

Courtesy of GENERAL MOTORS CORP.
