Headlamp Switch Connector End View

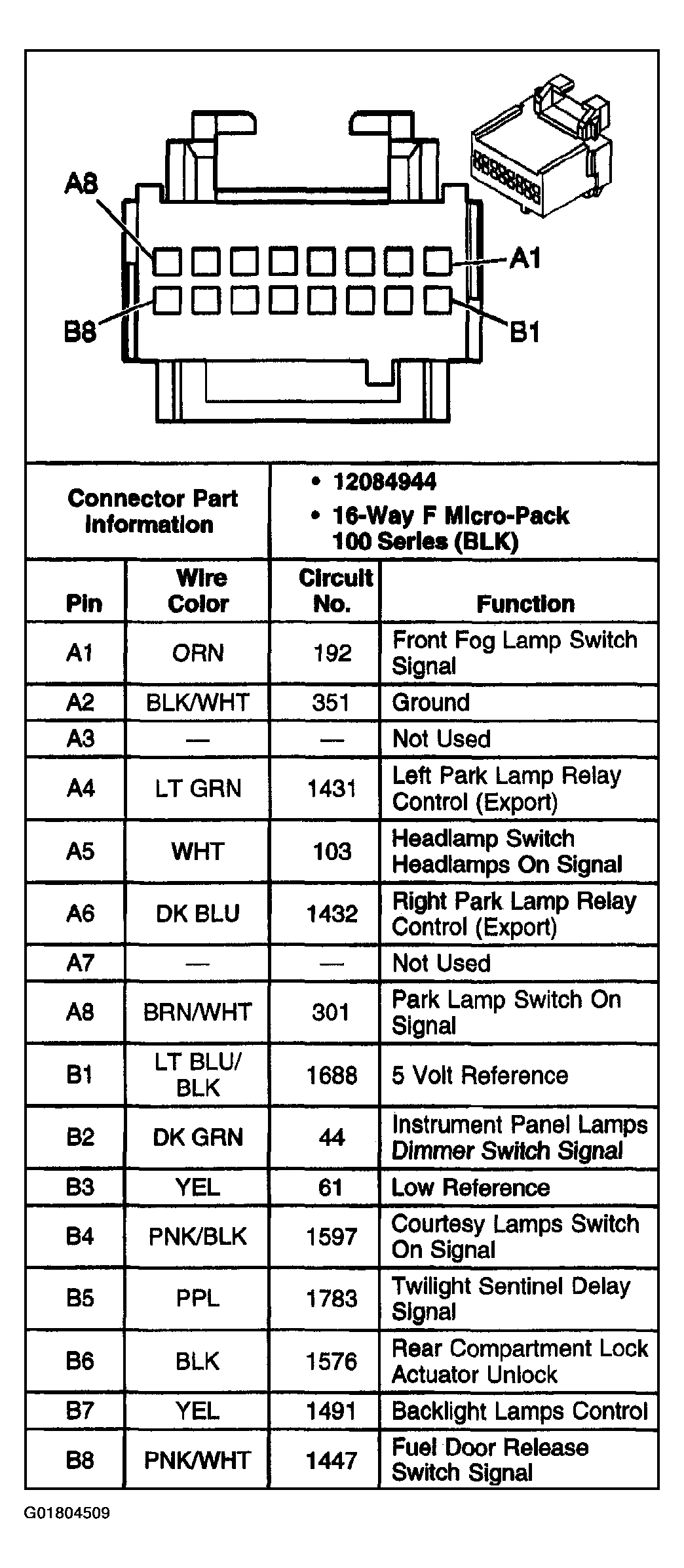

Fig 1: Headlamp Switch

G01804509

Courtesy of GENERAL MOTORS CORP.
