Installation Procedure

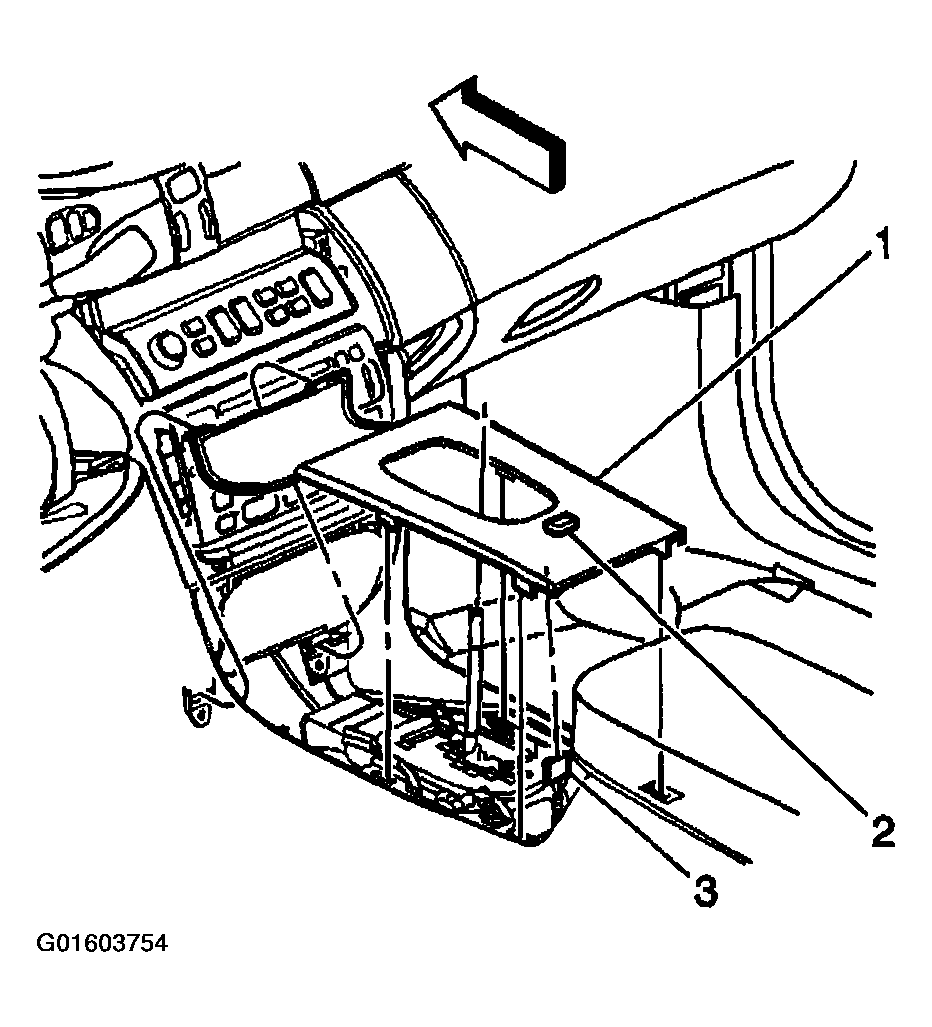

    Fig 1: Installing Traction Control Switch
    G01603754Courtesy of GENERAL MOTORS CORP.
  1. Install the traction control switch (2).
  2. Install the traction control switch electrical connector (3).
  3. Install the center console trim plate (1). Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE .
