Wheel Speed Sensor (WSS) - RF

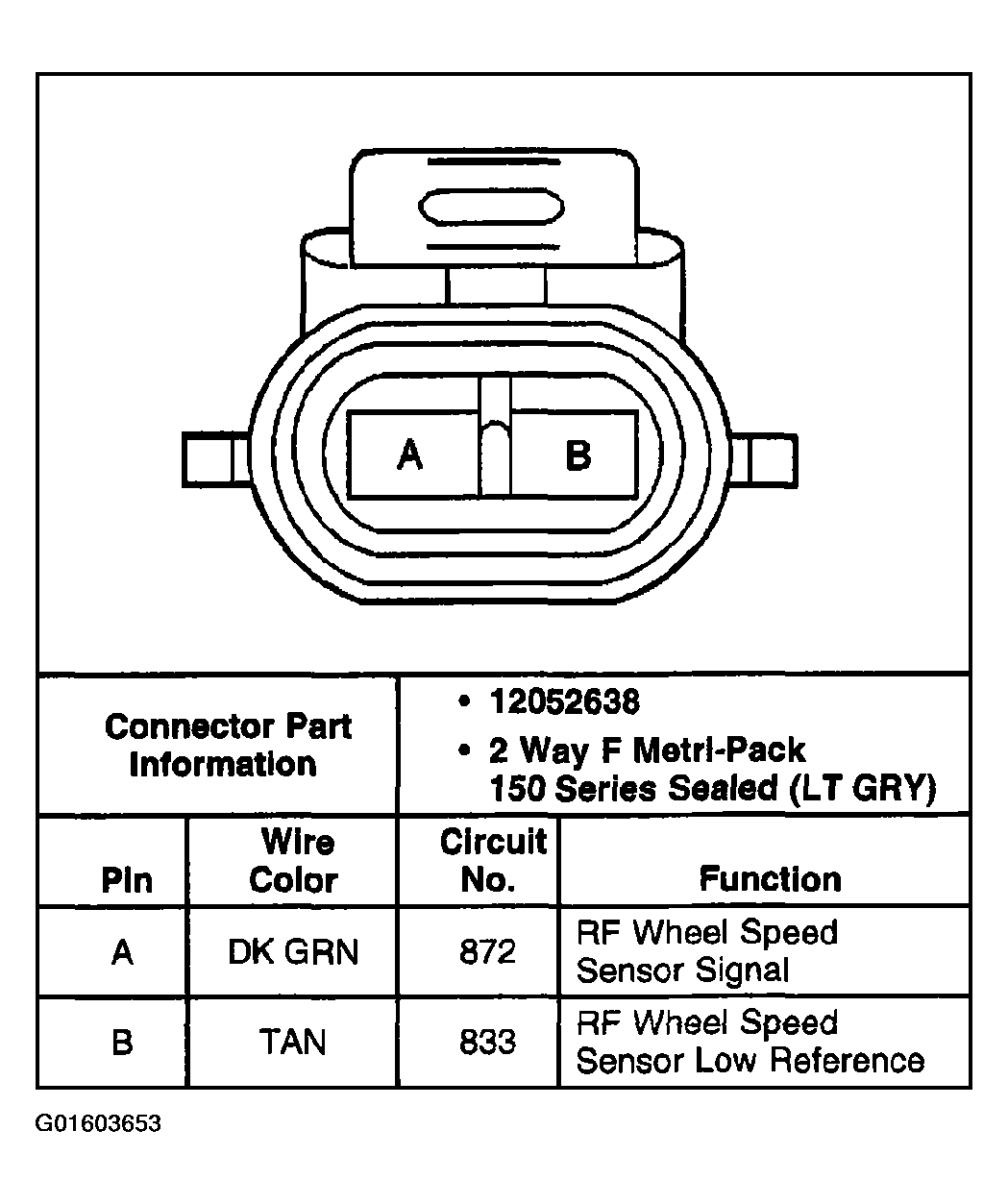

Fig 1: Wheel Speed Sensor (WSS) - RF Connector End View

G01603653

Courtesy of GENERAL MOTORS CORP.
