Wheel Speed Sensor (WSS) - LF

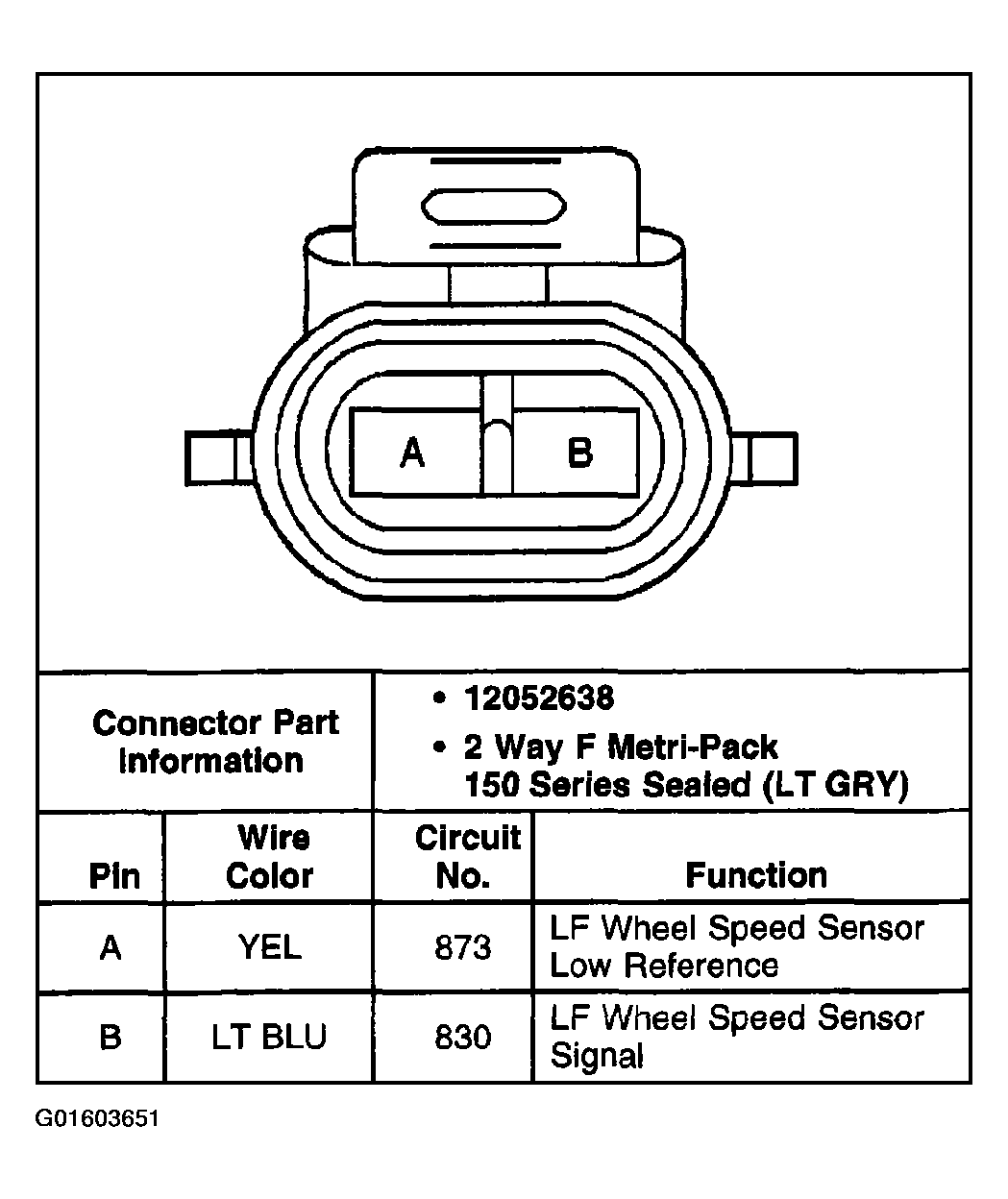

Fig 1: Wheel Speed Sensor (WSS) - LF Connector End View

G01603651

Courtesy of GENERAL MOTORS CORP.
