Installation Procedure

  1. Snap the recliner sensor to the recliner motor.
  2. Slide the recliner shaft back through the recliner sensor and the recliner motor.

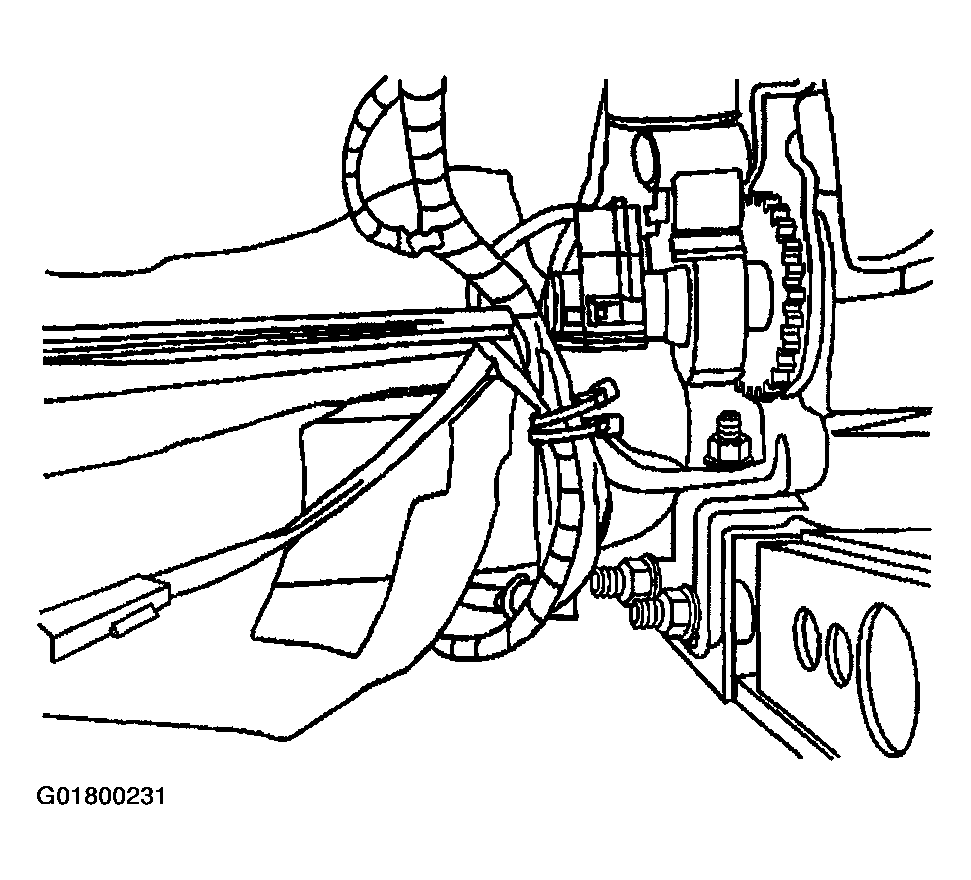

    Fig 1: Sliding Recliner Shaft Through Recliner Sensor & Motor
    G01800231Courtesy of GENERAL MOTORS CORP.
  3. Install the retaining clip to the recliner shaft.
  4. Connect the recliner motor electrical connector.
  5. Install the seat back trim cover. Refer to Seat Back Trim Replacement - Front .

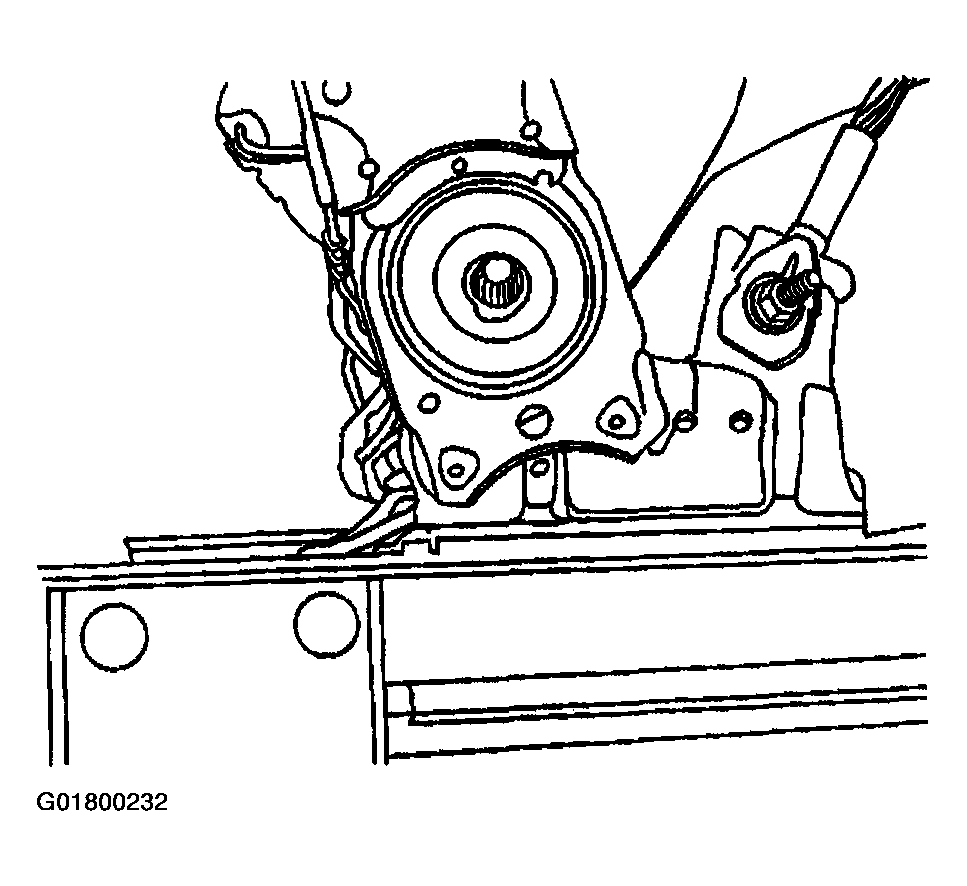

    Fig 2: Installing Retaining Clip To Recliner Shaft & Connecting Recliner Motor Electrical Connector
    G01800232Courtesy of GENERAL MOTORS CORP.
  6. Install the lower seat belt retractor trim cover (2).
  7. Install the push pin fastener (1)
  8. Install the front bucket seat. Refer to Seat Replacement - Bucket .

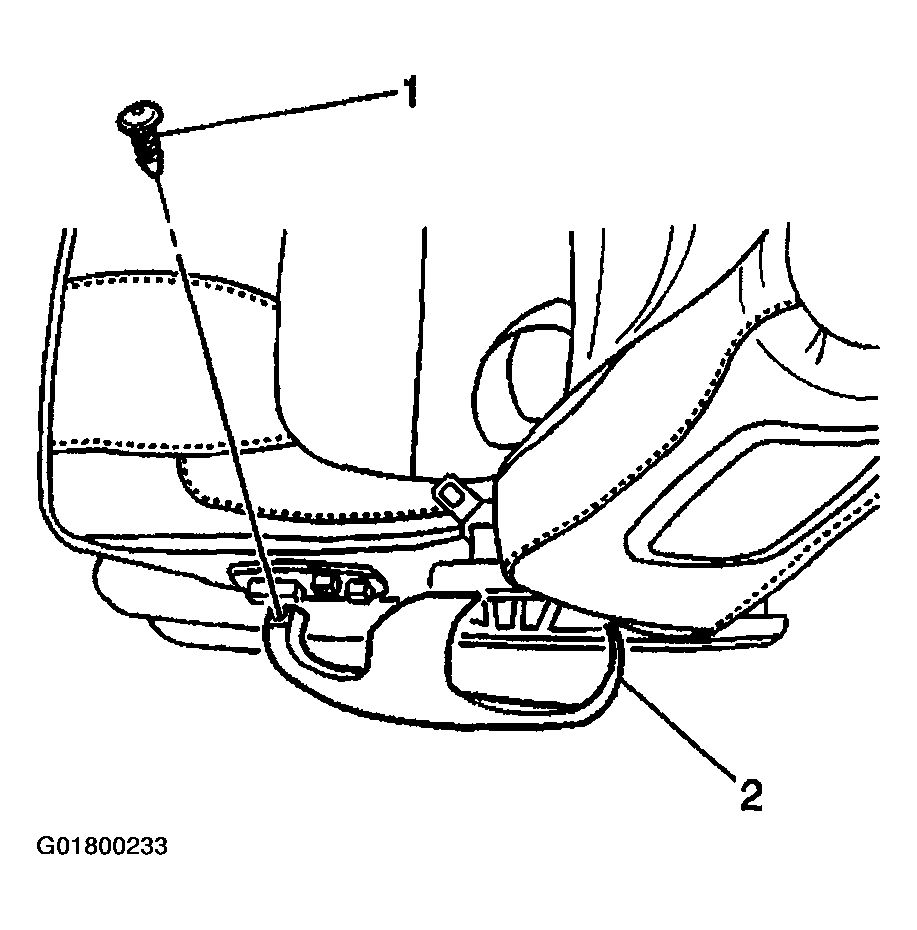

    Fig 3: Installing Lower Seat Belt Retractor Trim Cover & Push Pin Fastener
    G01800233Courtesy of GENERAL MOTORS CORP.
