Power Seat Systems Connector End Views

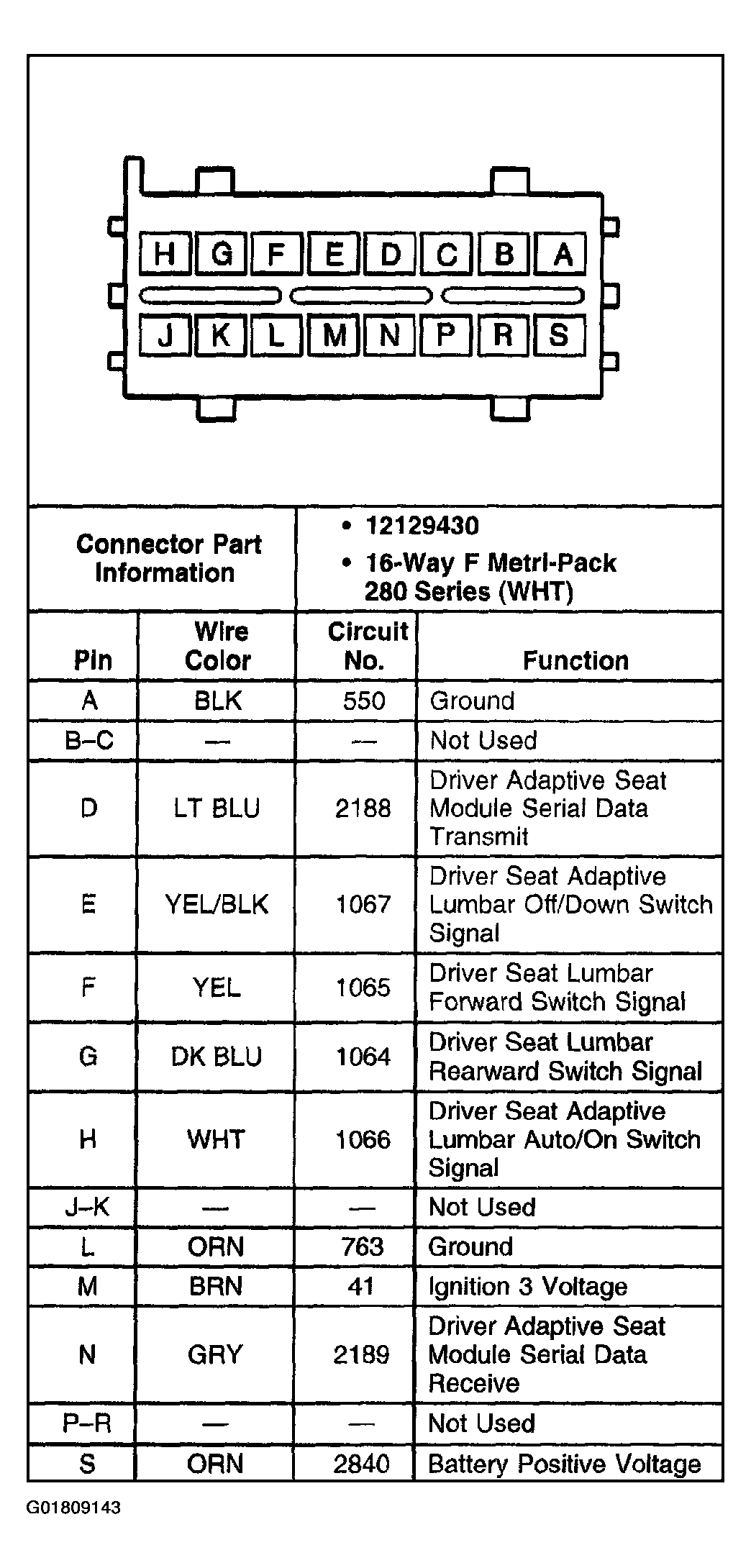

Fig 1: Adaptive Seat Lumbar Module - Driver C1 (w/AC9)

G01809143

Courtesy of GENERAL MOTORS CORP.

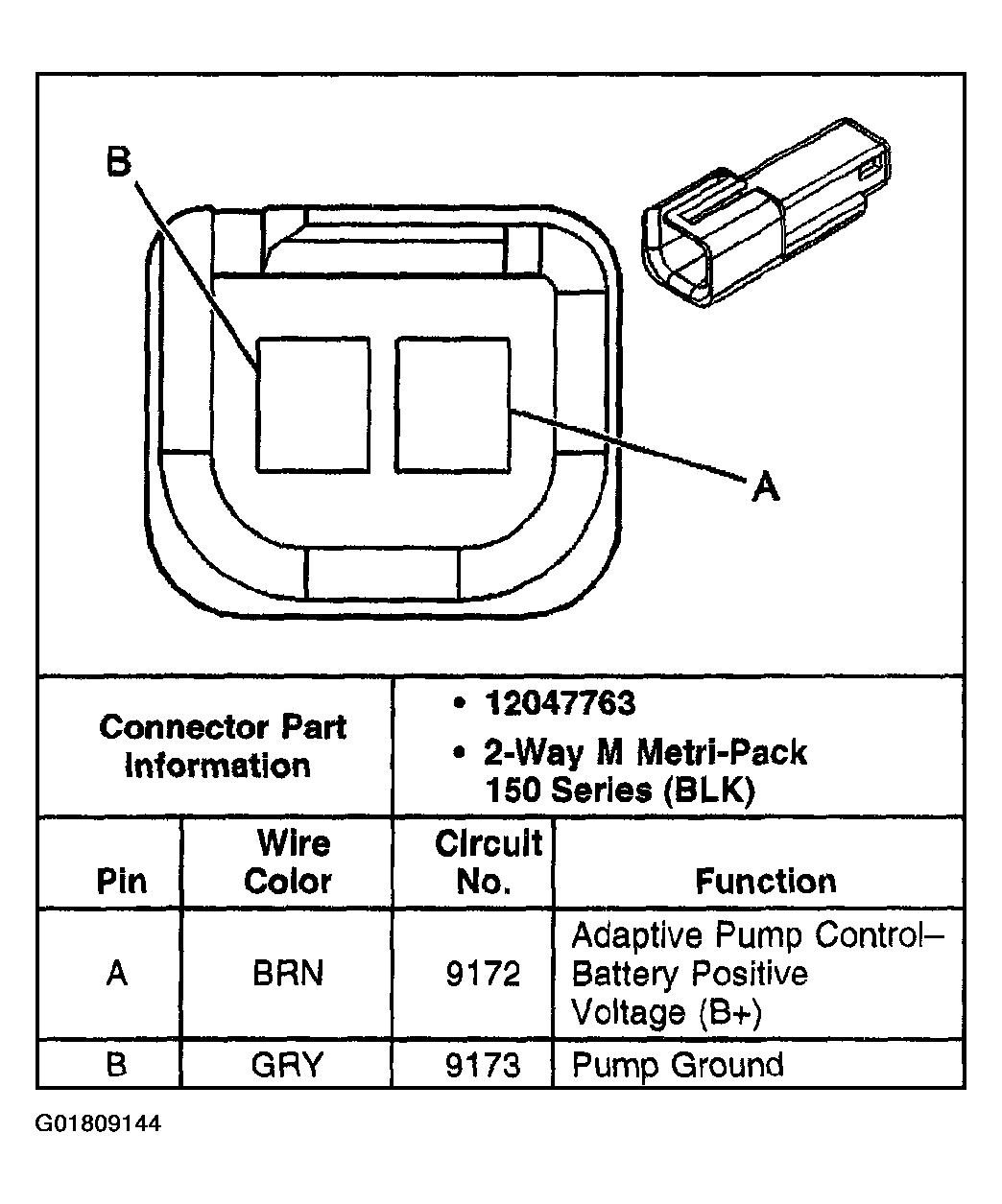

Fig 2: Adaptive Seat Lumbar Module - Driver C2 (w/AC9)

G01809144

Courtesy of GENERAL MOTORS CORP.

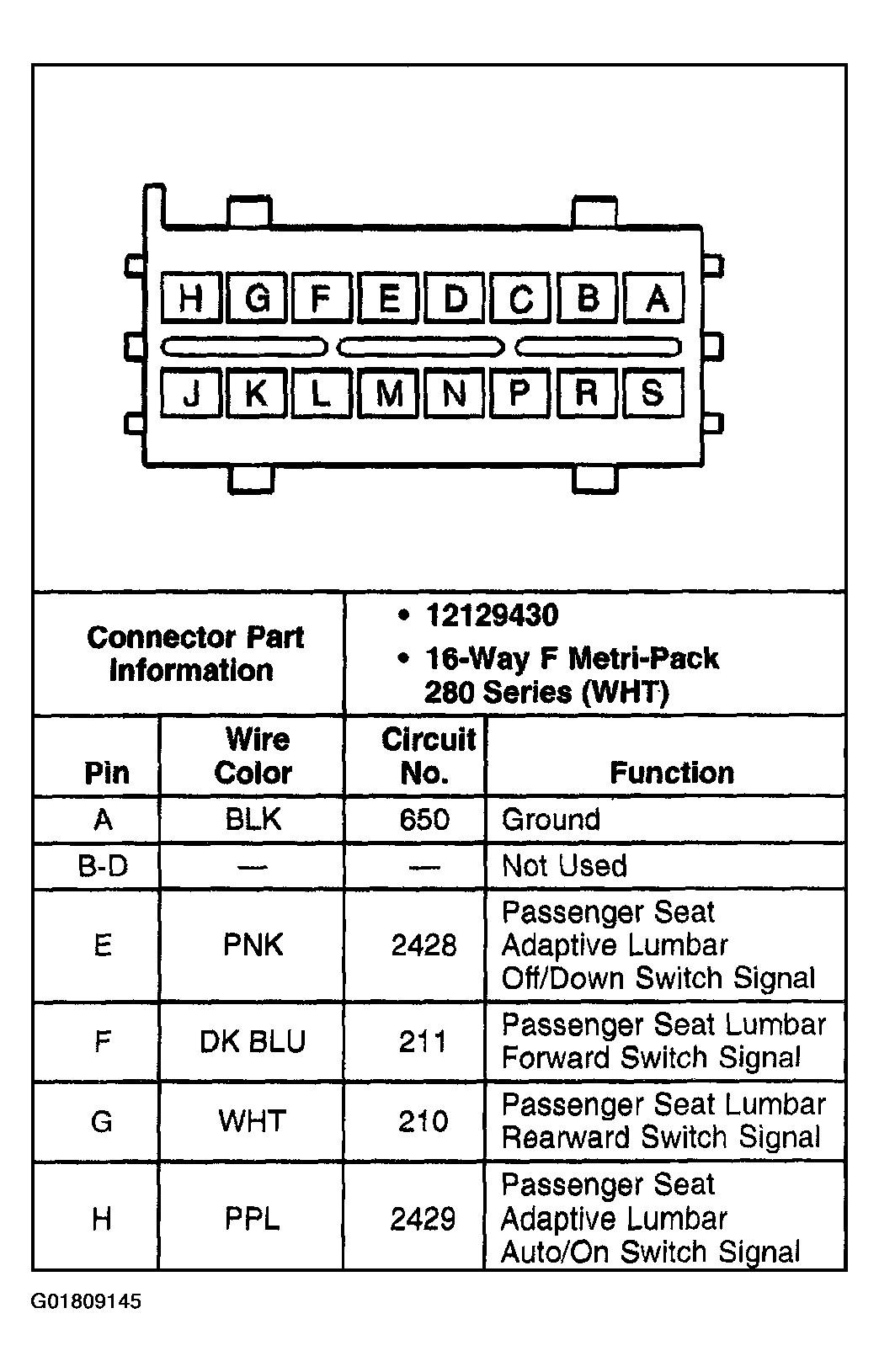

Fig 3: Adaptive Seat Lumbar Module - Front Passenger C1 (w/AC9) (1 Of 2)

G01809145

Courtesy of GENERAL MOTORS CORP.

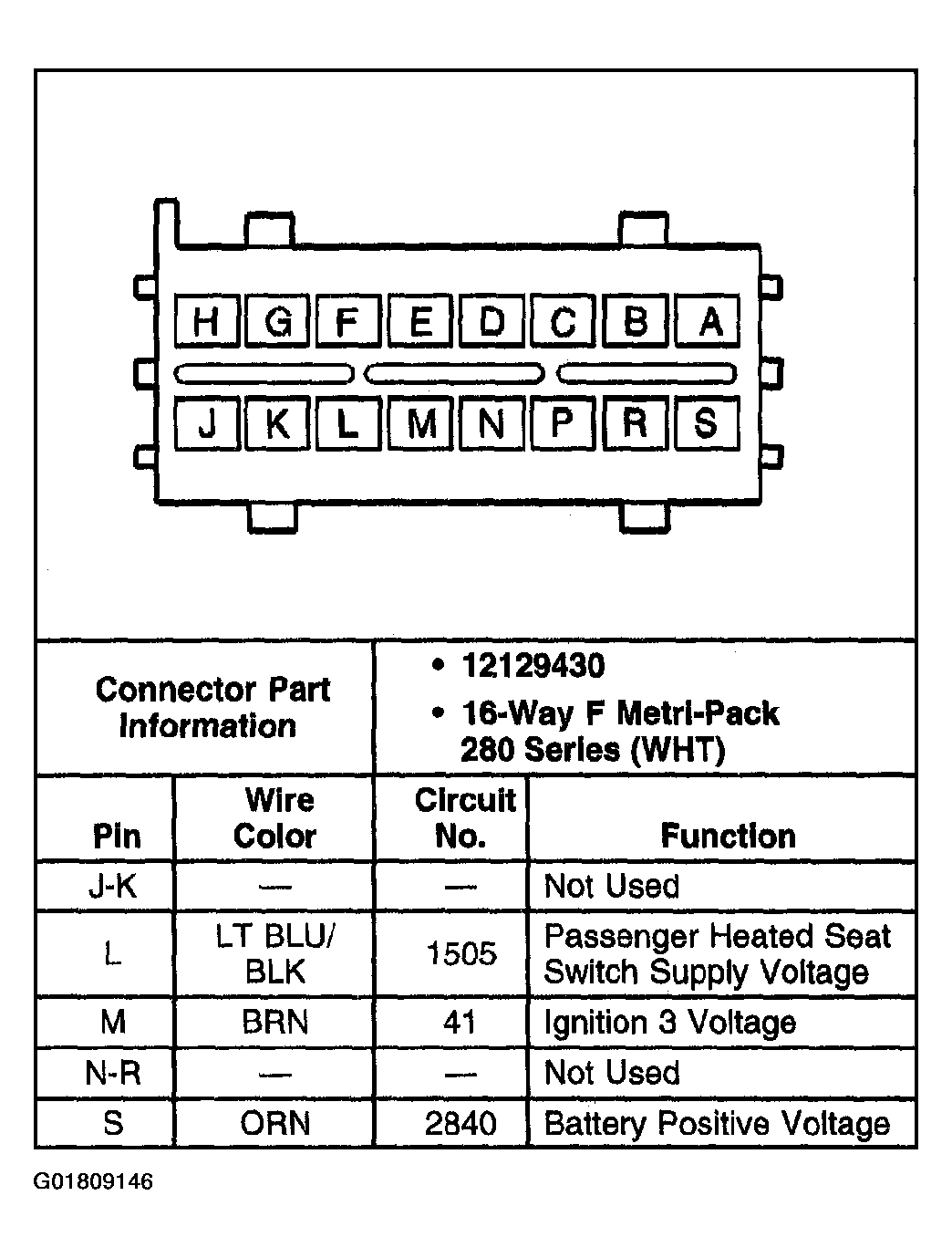

Fig 4: Adaptive Seat Lumbar Module - Front Passenger C1 (w/AC9) (2 Of 2)

G01809146

Courtesy of GENERAL MOTORS CORP.

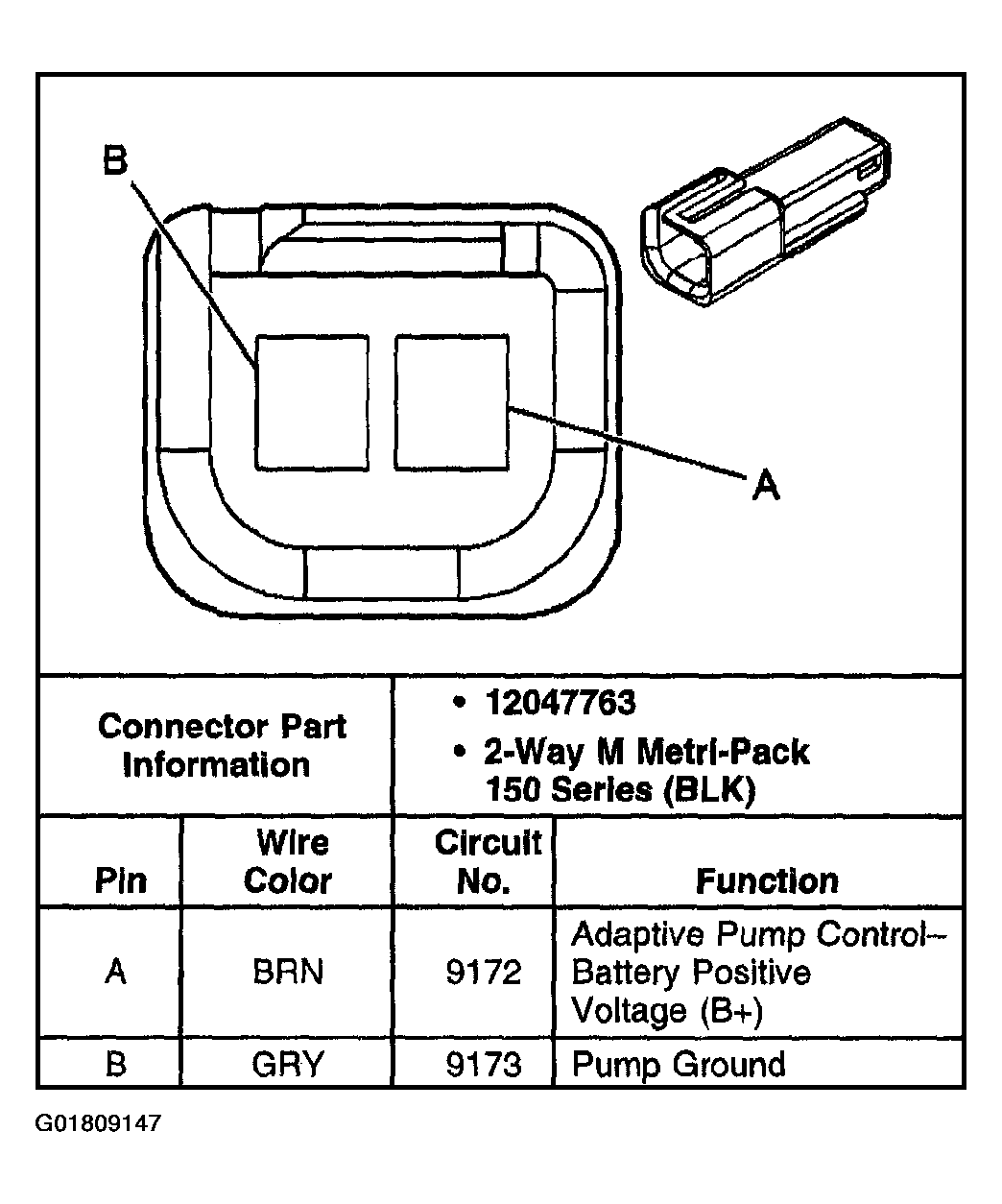

Fig 5: Adaptive Seat Lumbar Module - Front Passenger C2 (w/AC9)

G01809147

Courtesy of GENERAL MOTORS CORP.

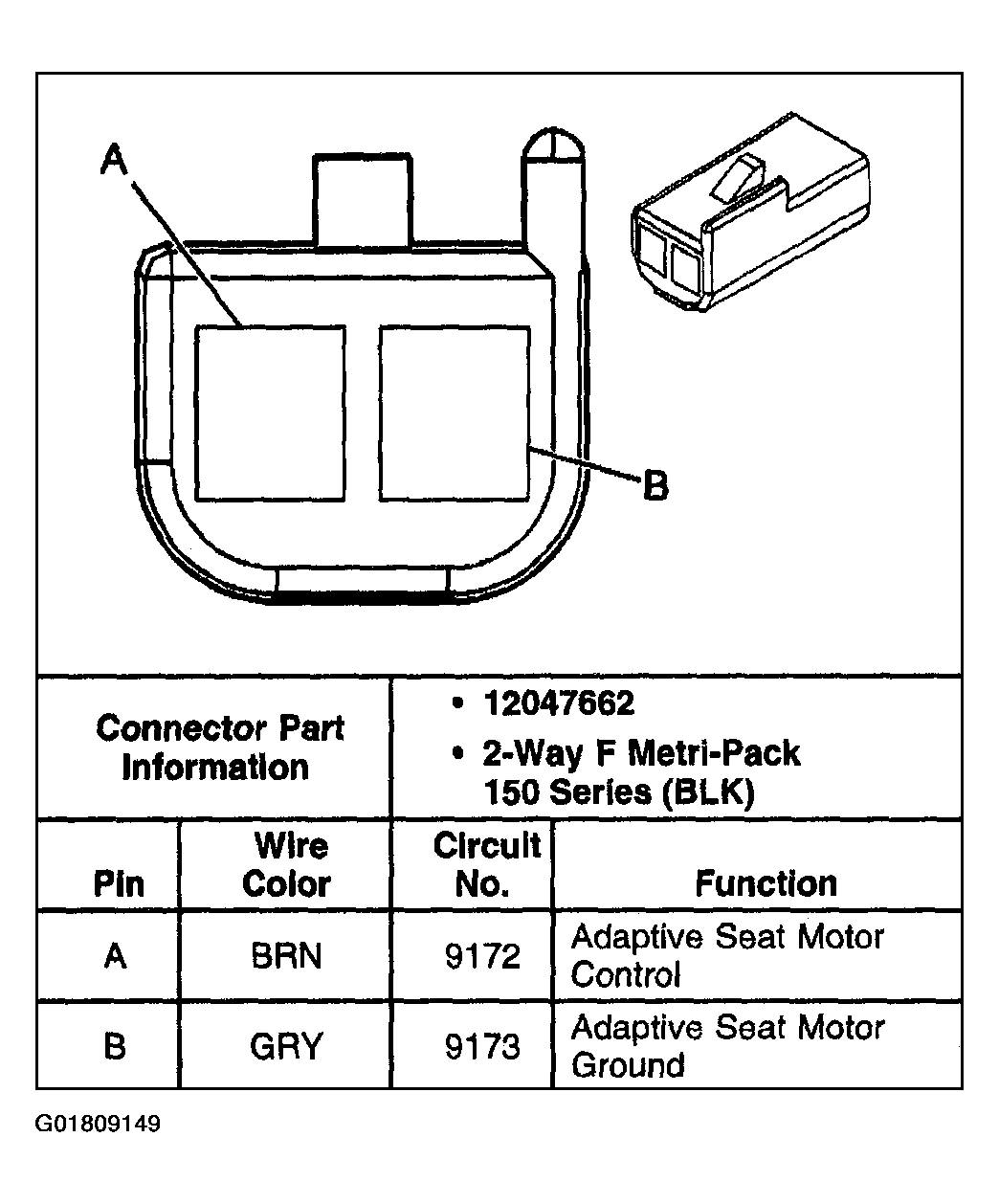

Fig 6: Adaptive Seat Lumbar Pump Motor - Front Passenger (w/AC9)

G01809149

Courtesy of GENERAL MOTORS CORP.

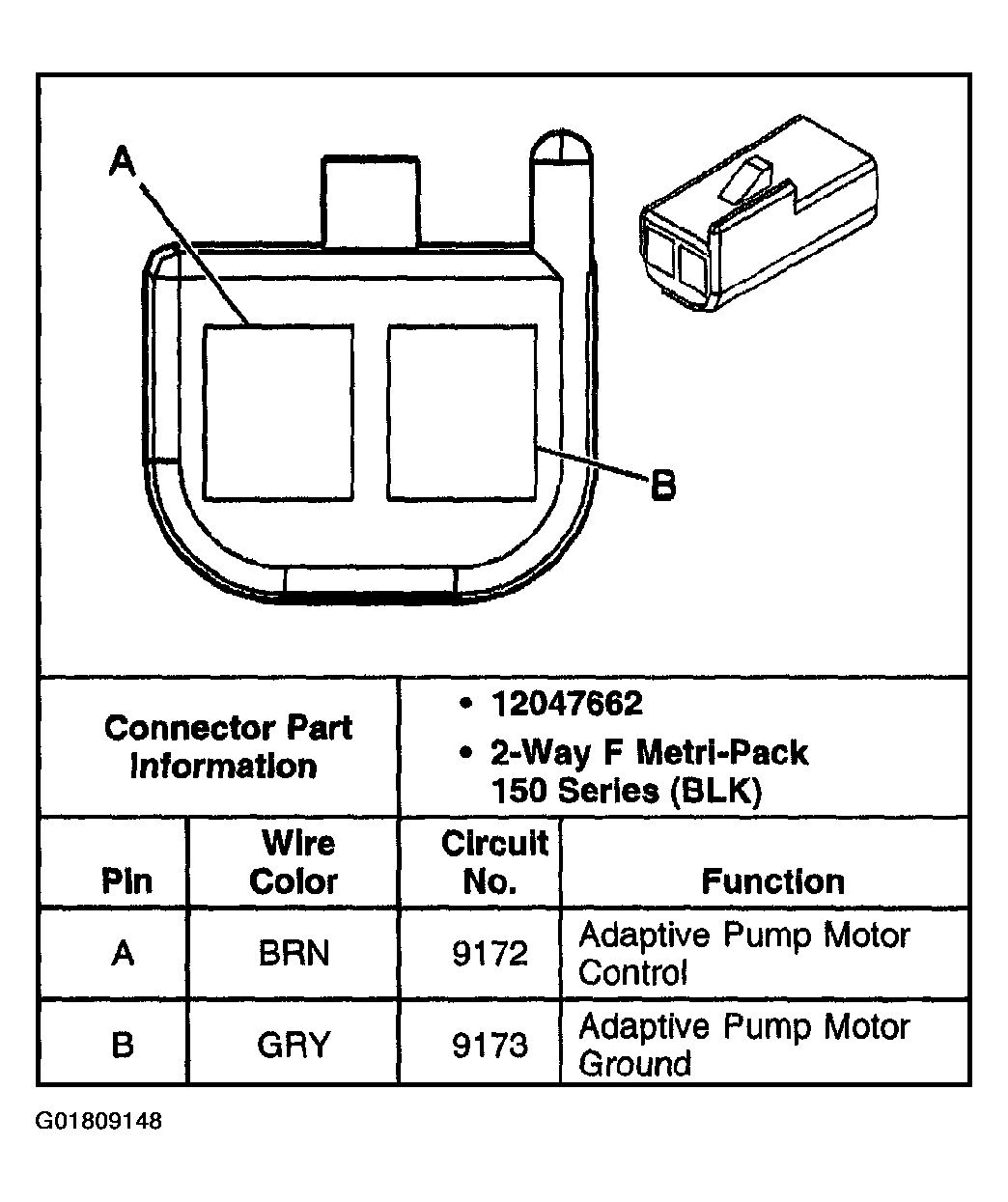

Fig 7: Adaptive Seat Lumbar Pump Motor - Driver (w/AC9)

G01809148

Courtesy of GENERAL MOTORS CORP.

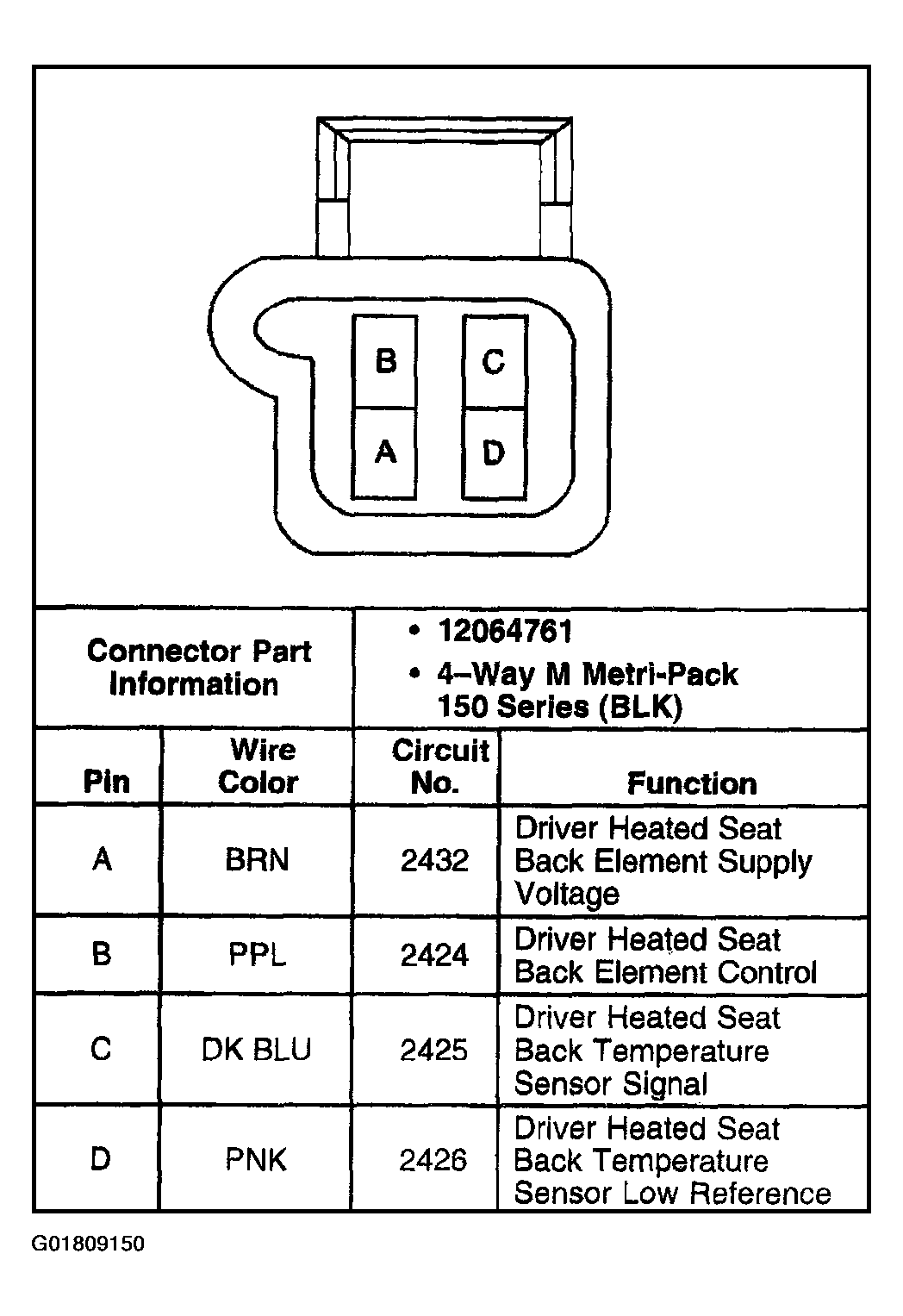

Fig 8: Heated Seat Back Element - Driver

G01809150

Courtesy of GENERAL MOTORS CORP.

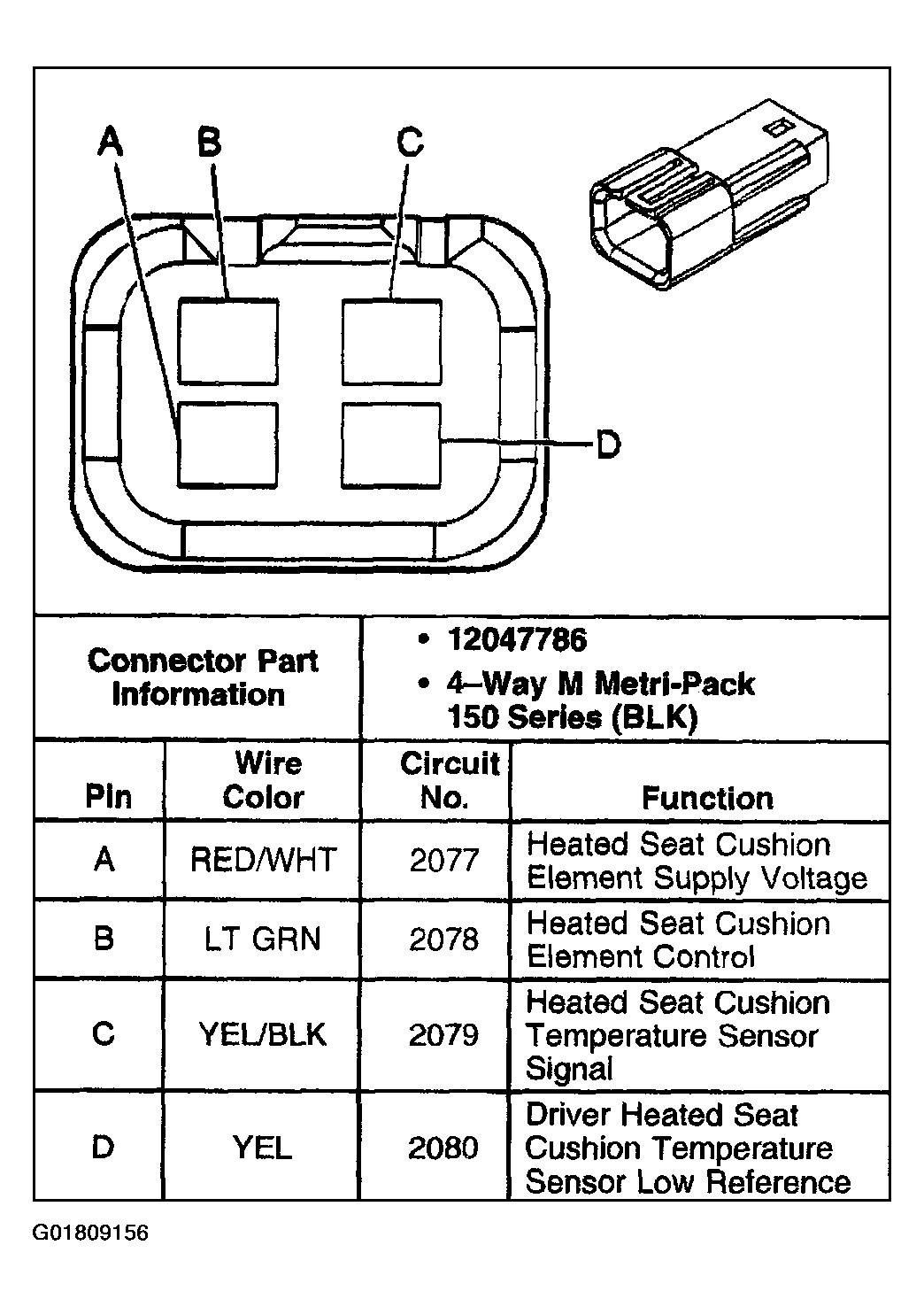

Fig 9: Heated Seat Cushion Element - Driver

G01809156

Courtesy of GENERAL MOTORS CORP.

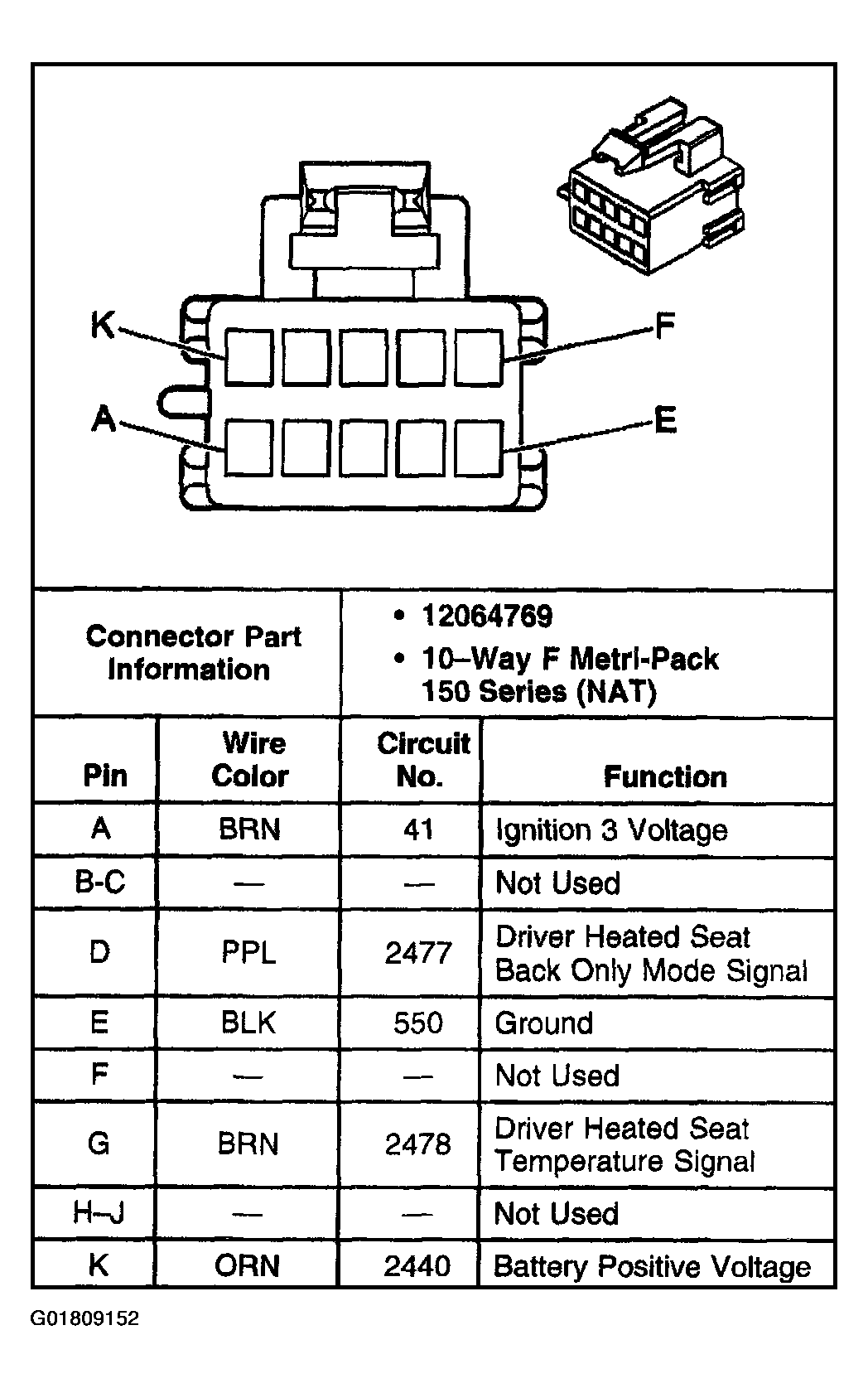

Fig 10: Heated Seat Module - Driver C1

G01809152

Courtesy of GENERAL MOTORS CORP.

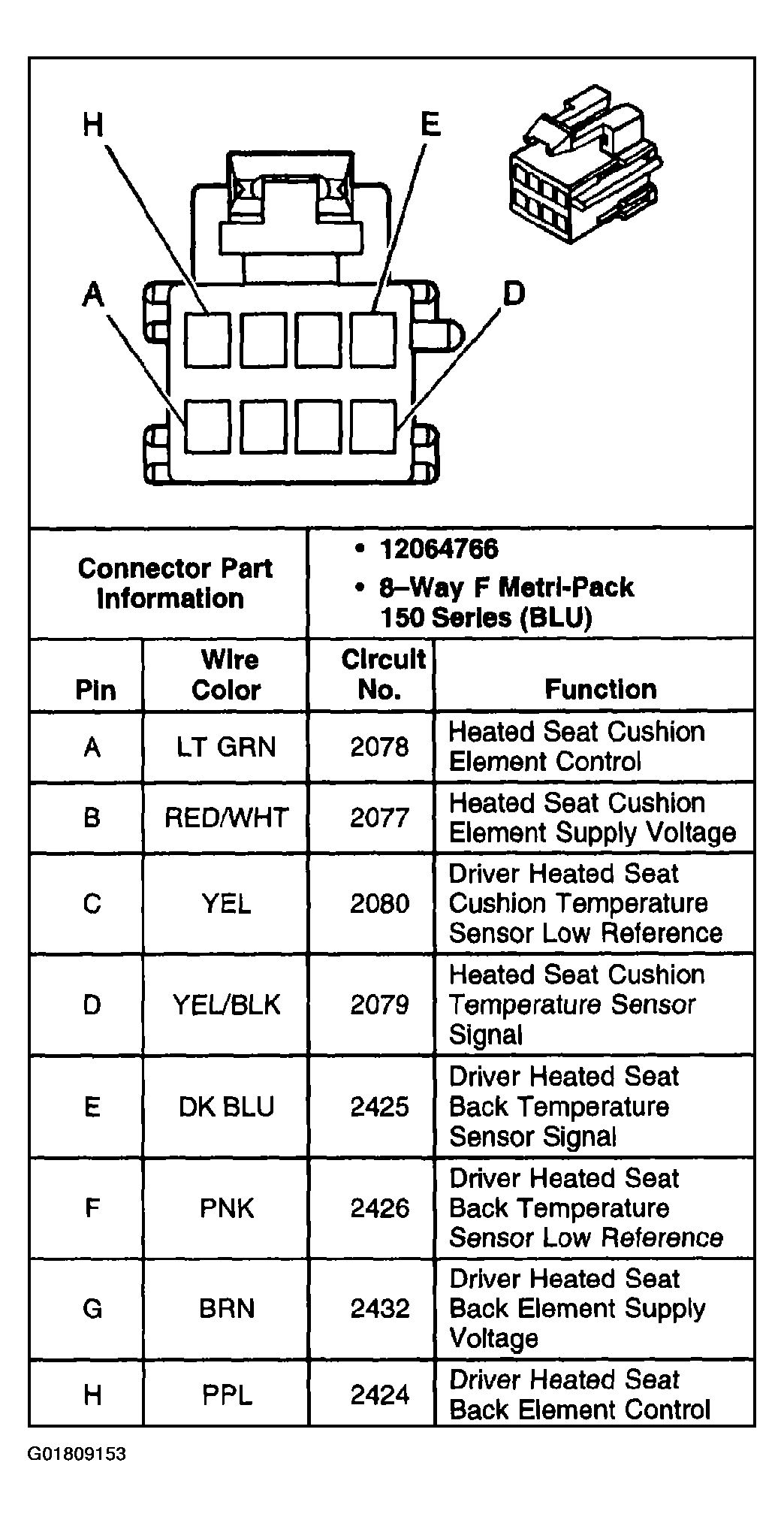

Fig 11: Heated Seat Module - Driver C2

G01809153

Courtesy of GENERAL MOTORS CORP.

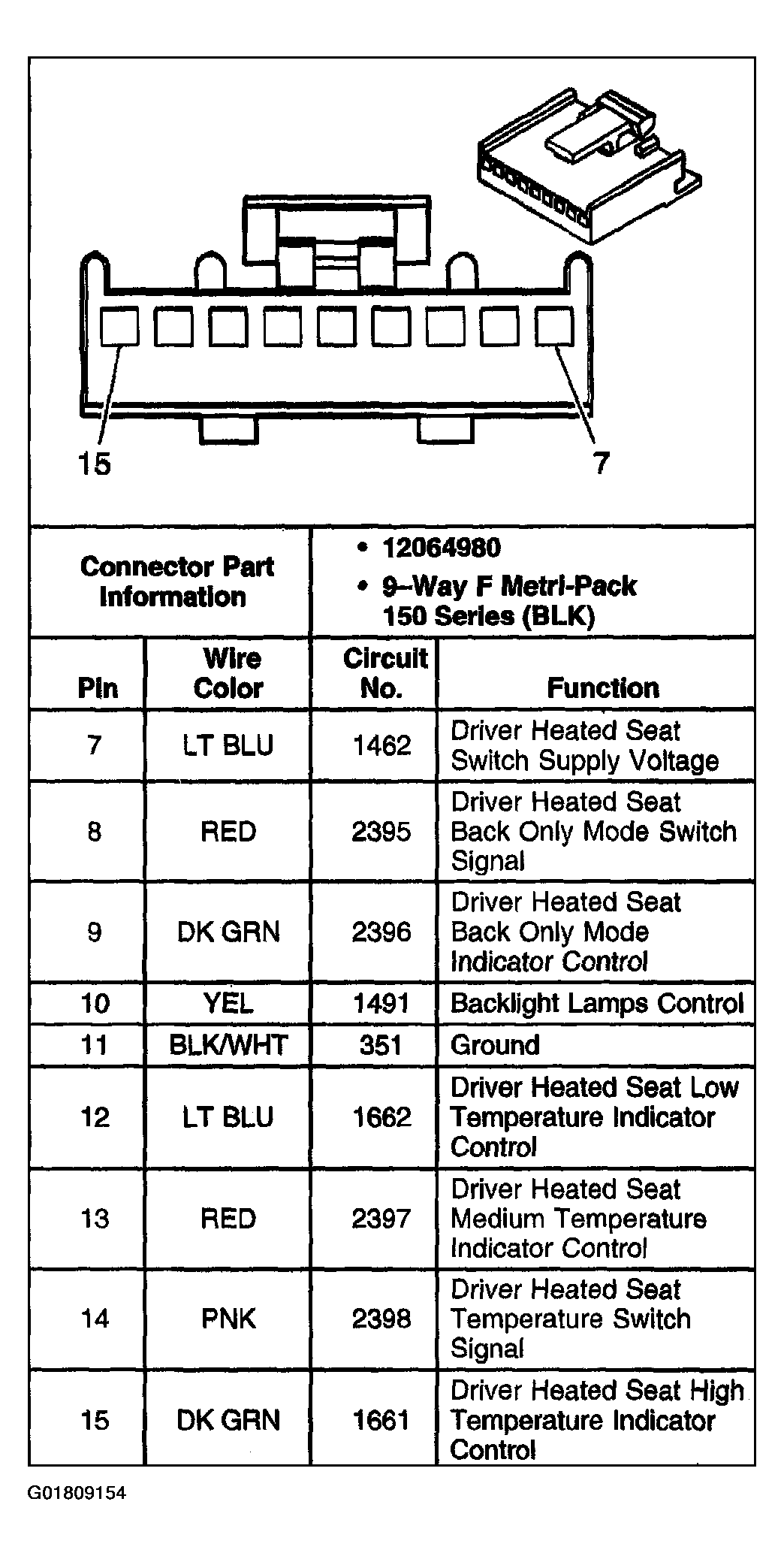

Fig 12: Heated Seat Switch - Driver

G01809154

Courtesy of GENERAL MOTORS CORP.

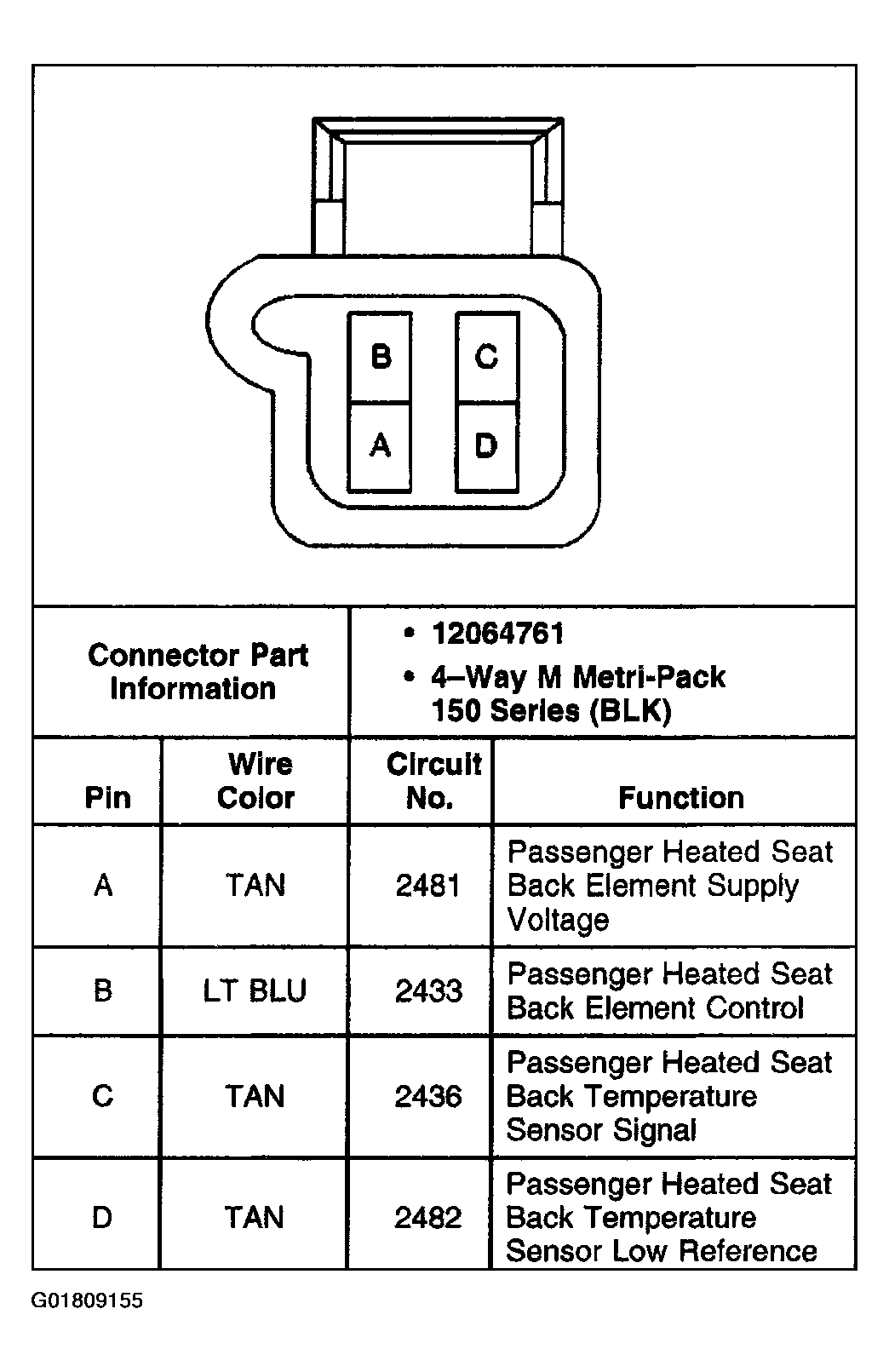

Fig 13: Heated Seat Back Element - Front Passenger

G01809155

Courtesy of GENERAL MOTORS CORP.

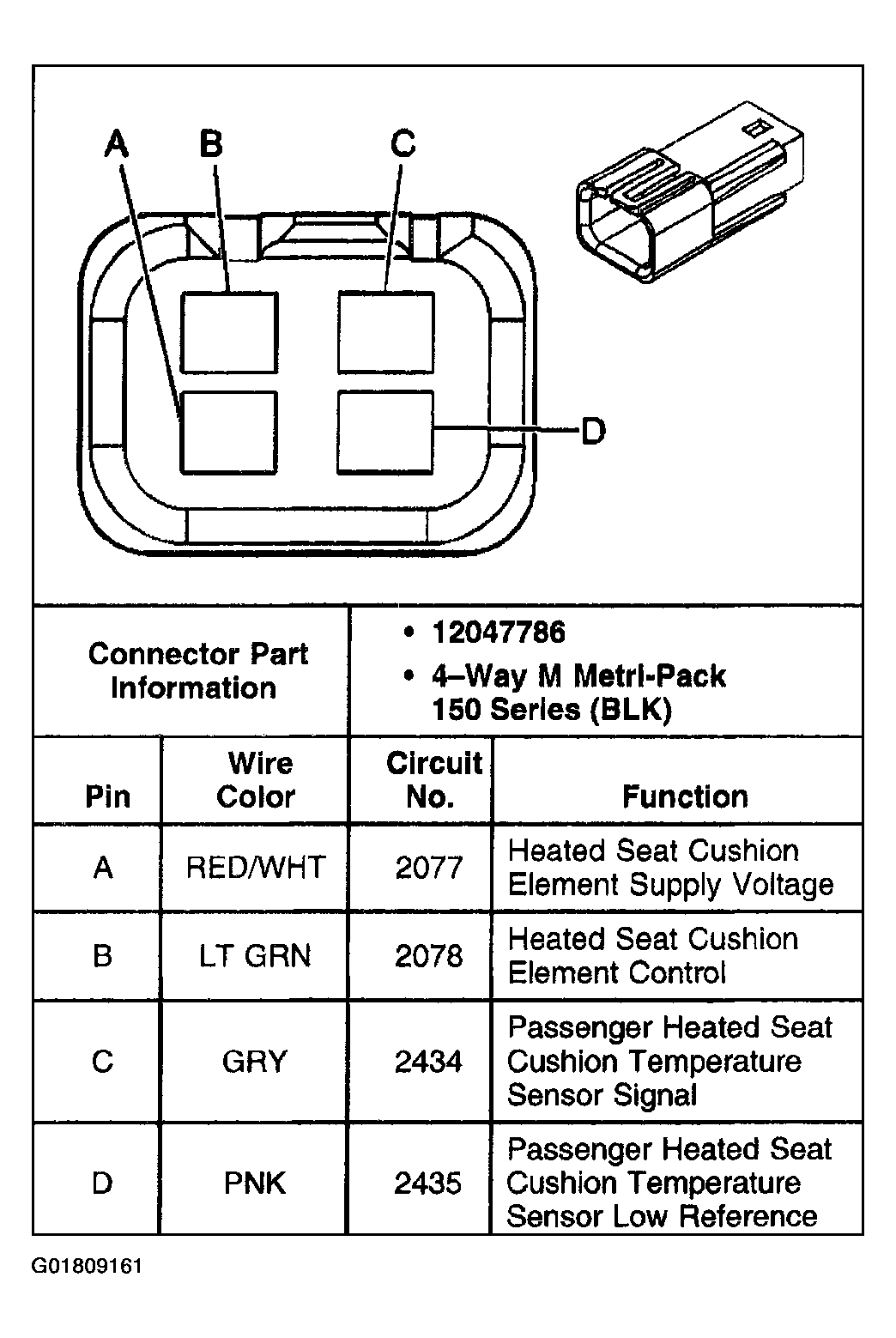

Fig 14: Heated Seat Cushion Element - Front Passenger

G01809161

Courtesy of GENERAL MOTORS CORP.

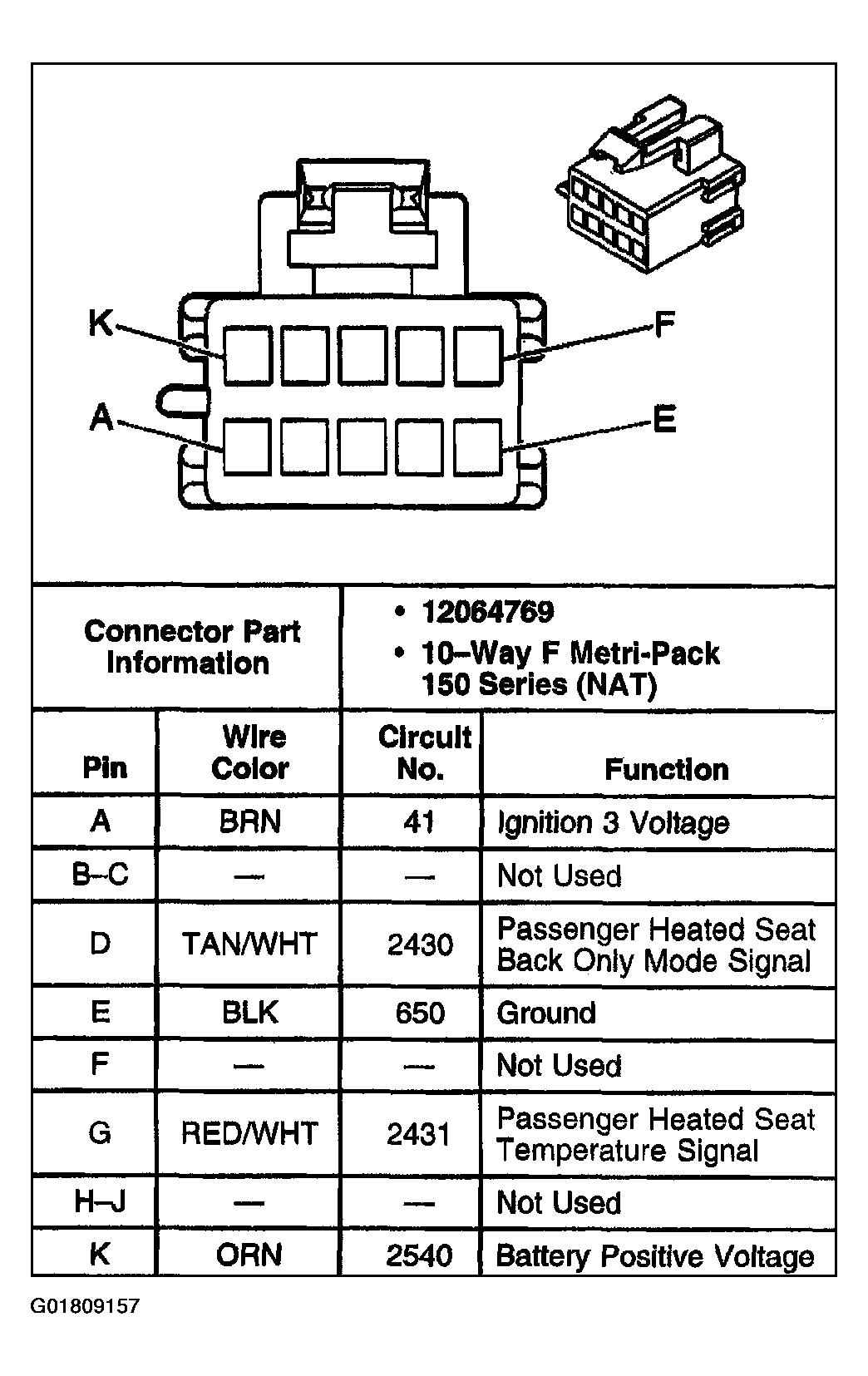

Fig 15: Heated Seat Module - Front Passenger C1

G01809157

Courtesy of GENERAL MOTORS CORP.

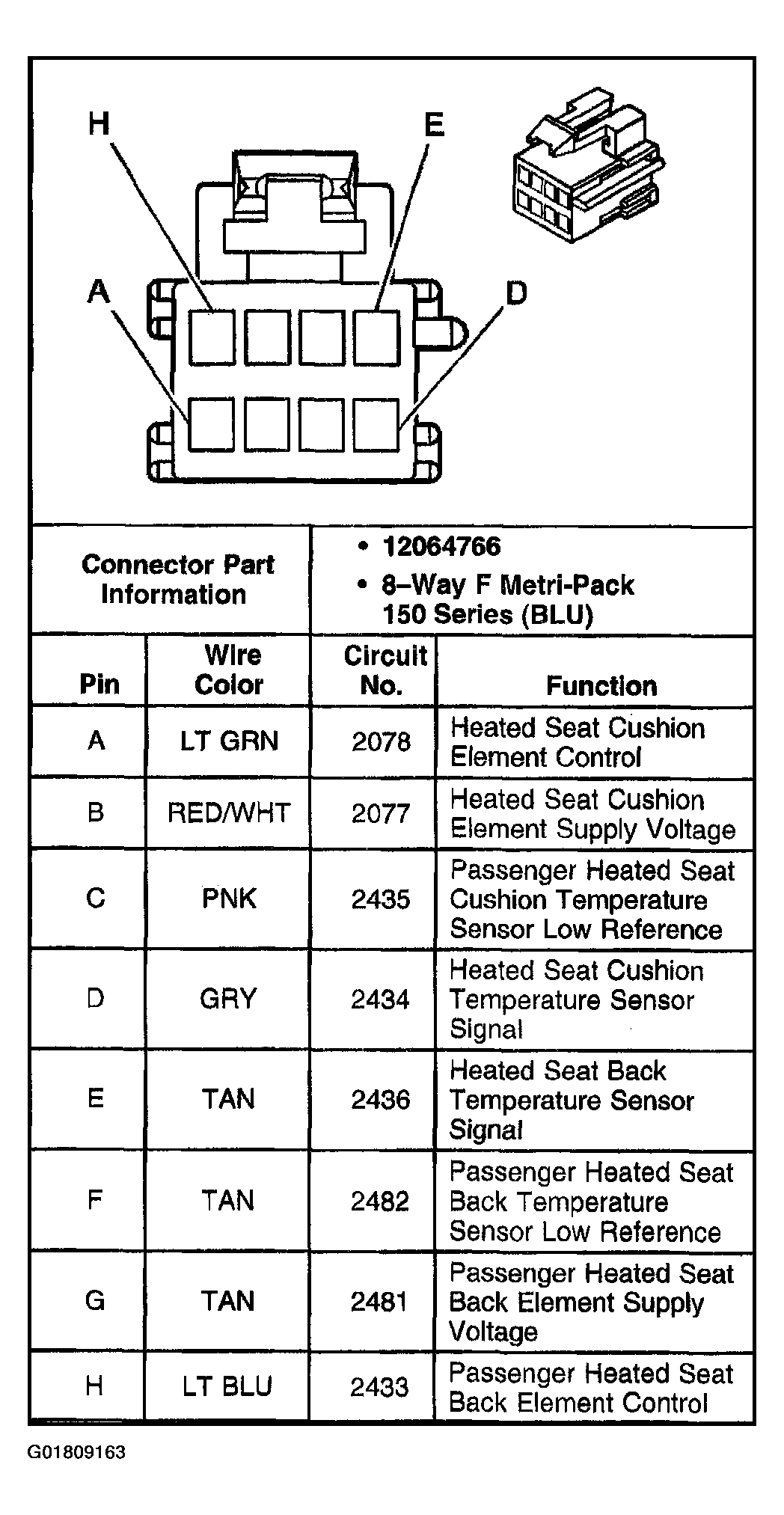

Fig 16: Heated Seat Module - Front Passenger C2

G01809163

Courtesy of GENERAL MOTORS CORP.

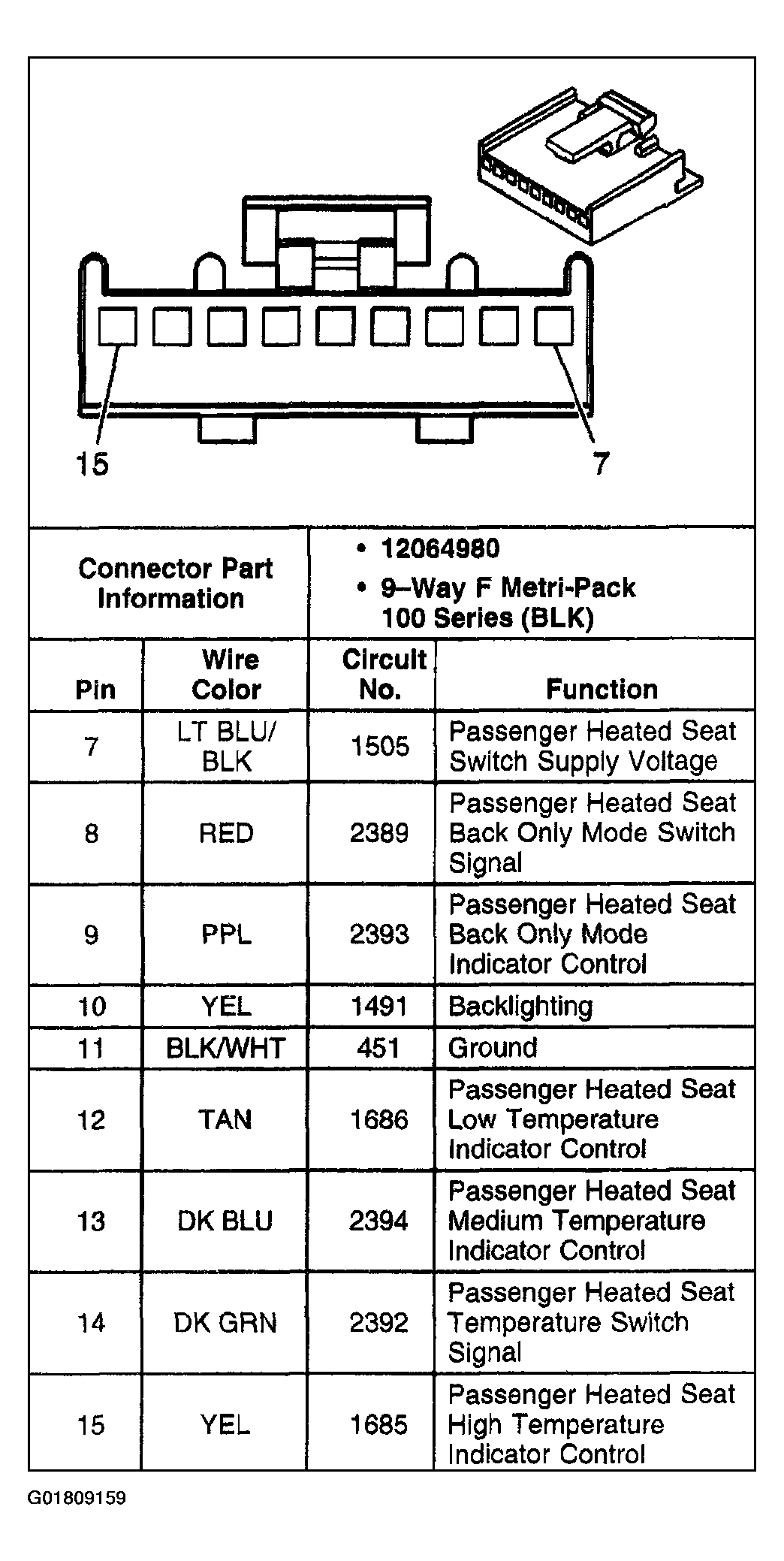

Fig 17: Heated Seat Switch - Front Passenger

G01809159

Courtesy of GENERAL MOTORS CORP.

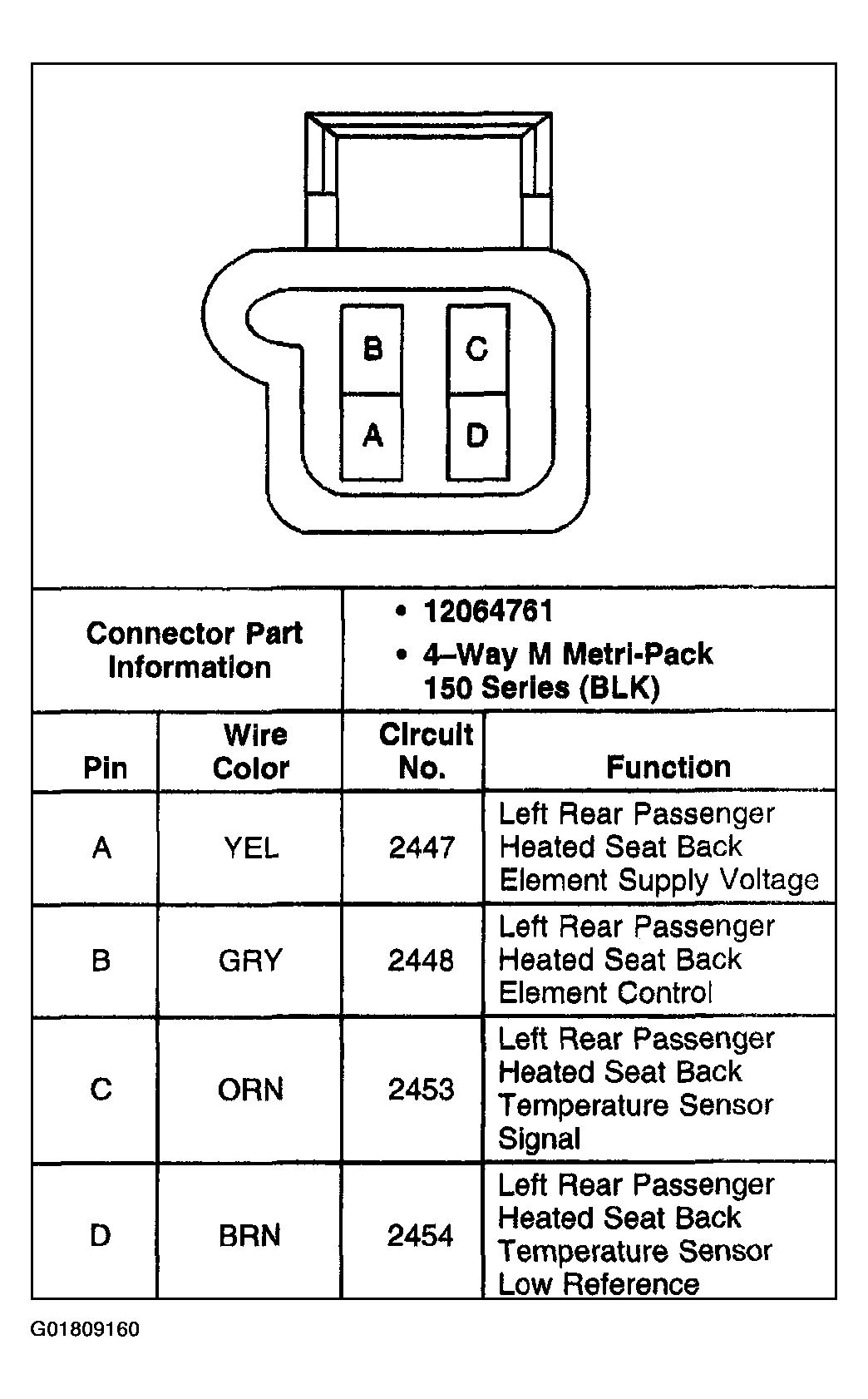

Fig 18: Heated Seat Back Element - LR

G01809160

Courtesy of GENERAL MOTORS CORP.

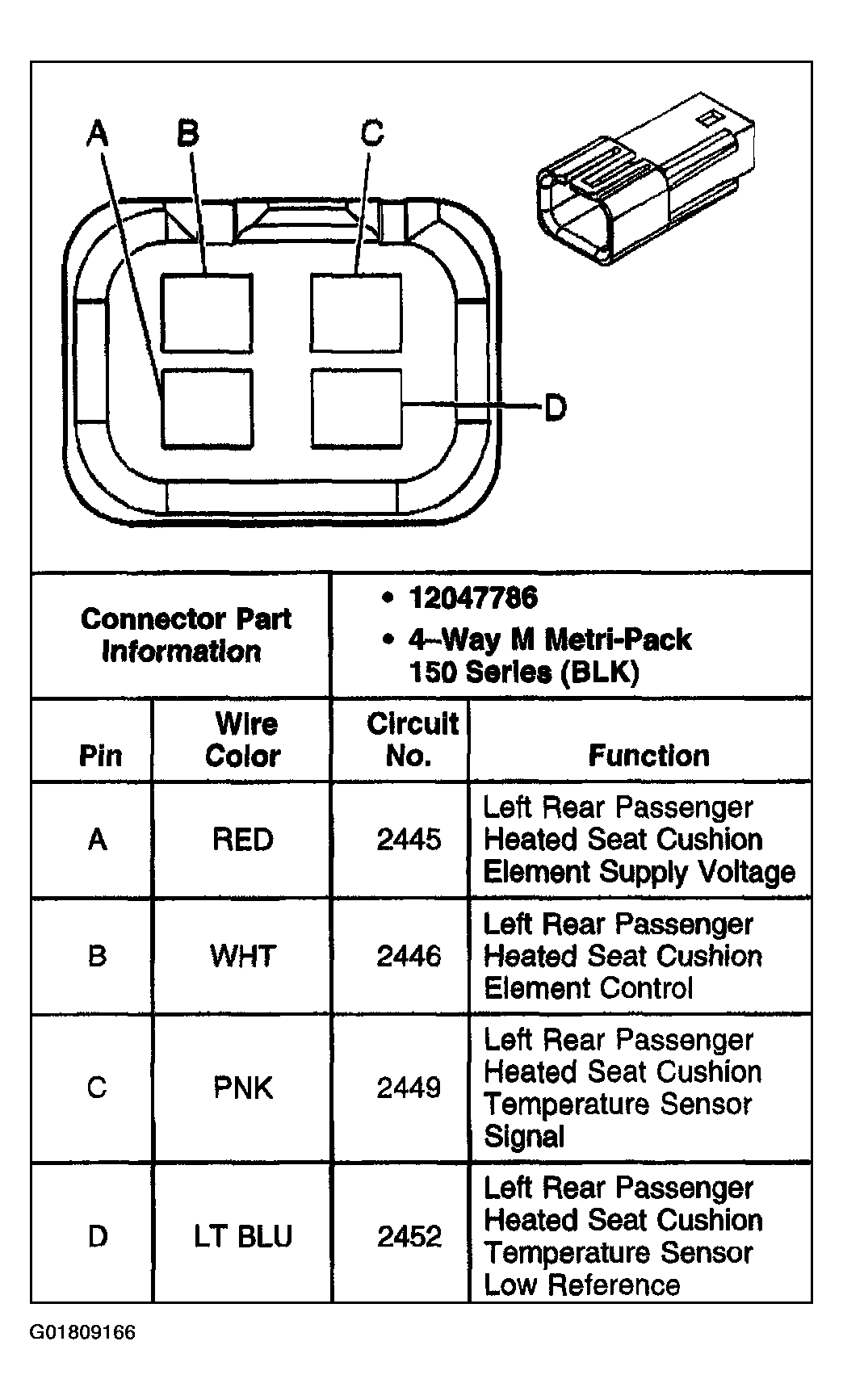

Fig 19: Heated Seat Cushion Element - LR

G01809166

Courtesy of GENERAL MOTORS CORP.

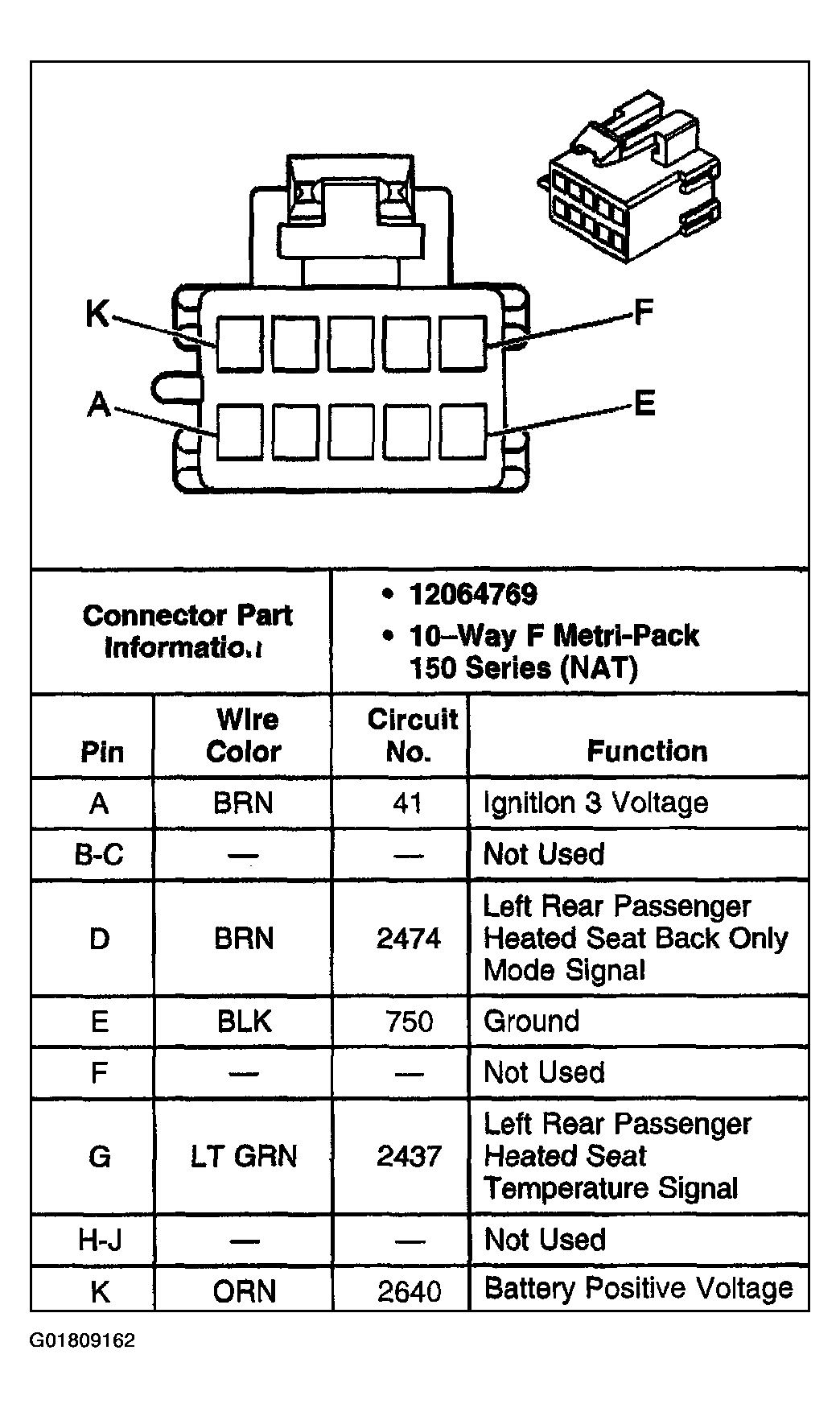

Fig 20: Heated Seat Module - LR C1

G01809162

Courtesy of GENERAL MOTORS CORP.

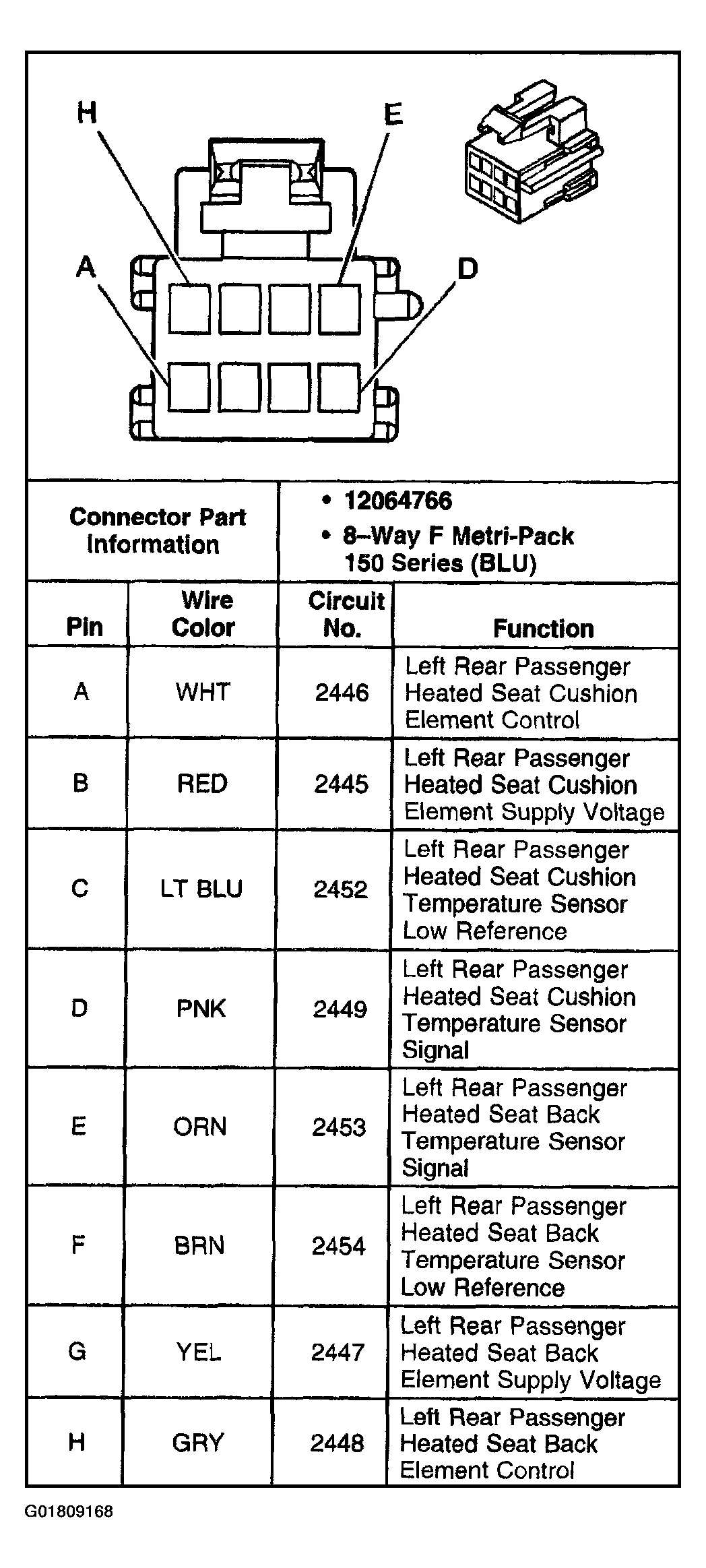

Fig 21: Heated Seat Module - LR C2

G01809168

Courtesy of GENERAL MOTORS CORP.

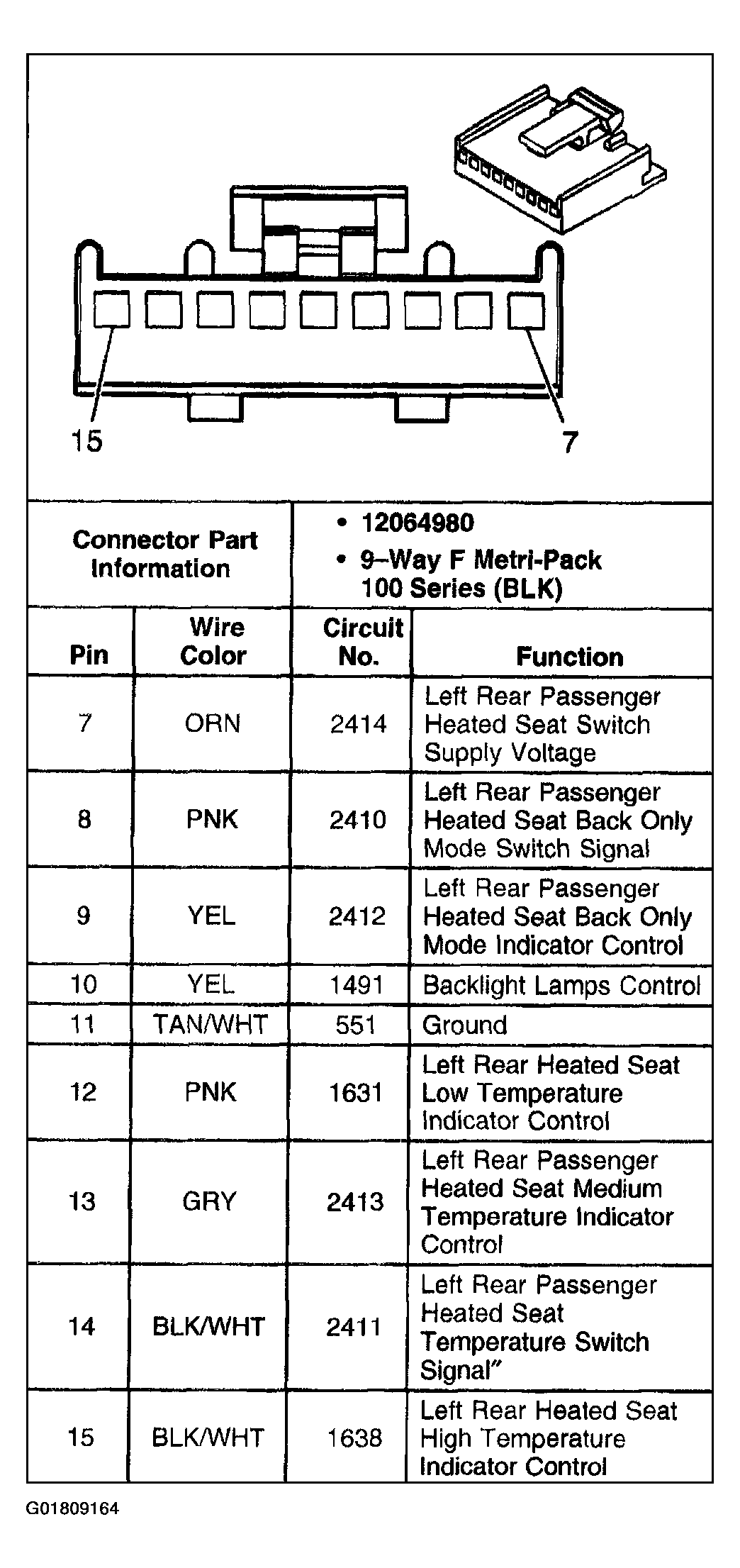

Fig 22: Heated Seat Switch - LR

G01809164

Courtesy of GENERAL MOTORS CORP.

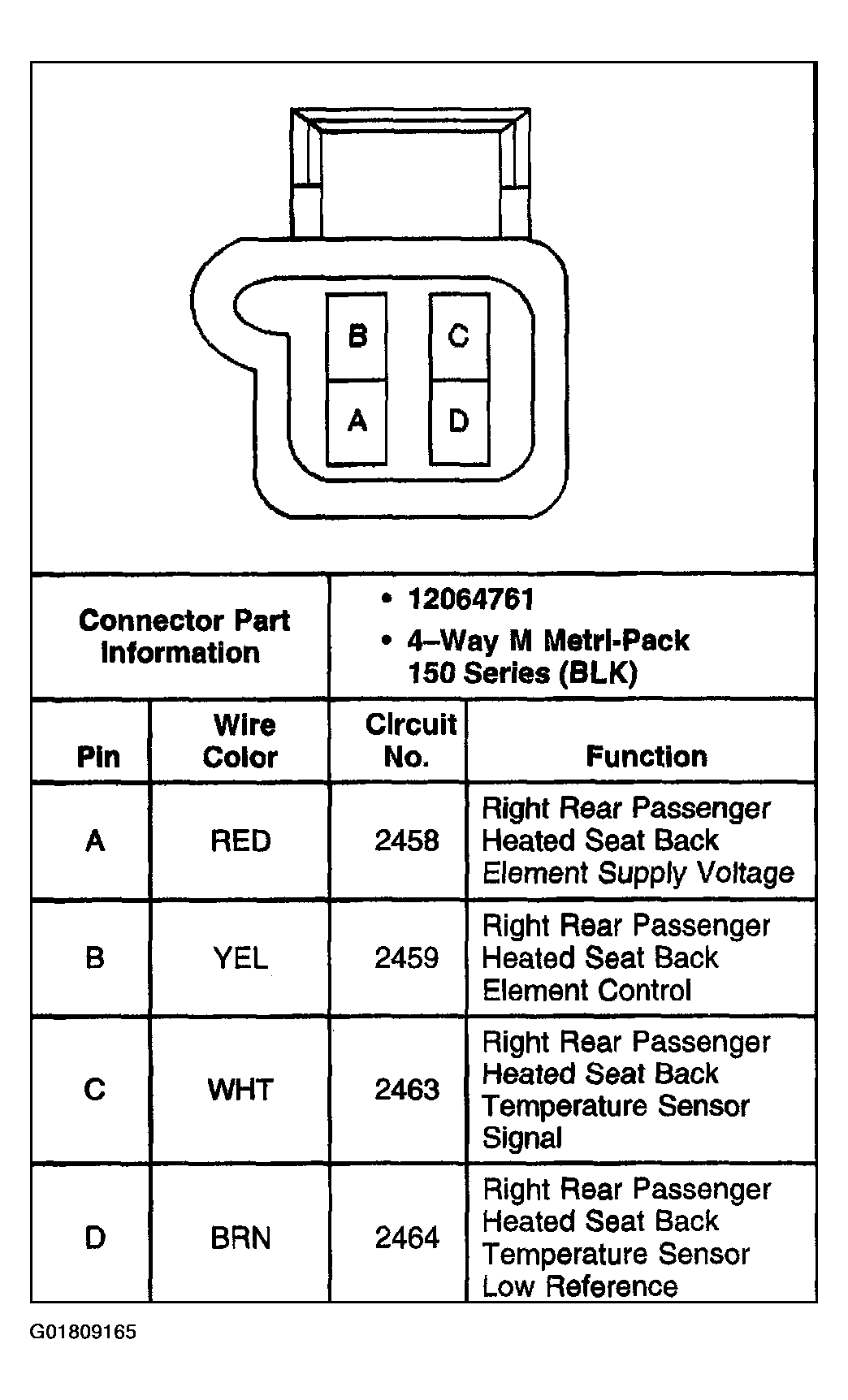

Fig 23: Heated Seat Back Element - RR

G01809165

Courtesy of GENERAL MOTORS CORP.

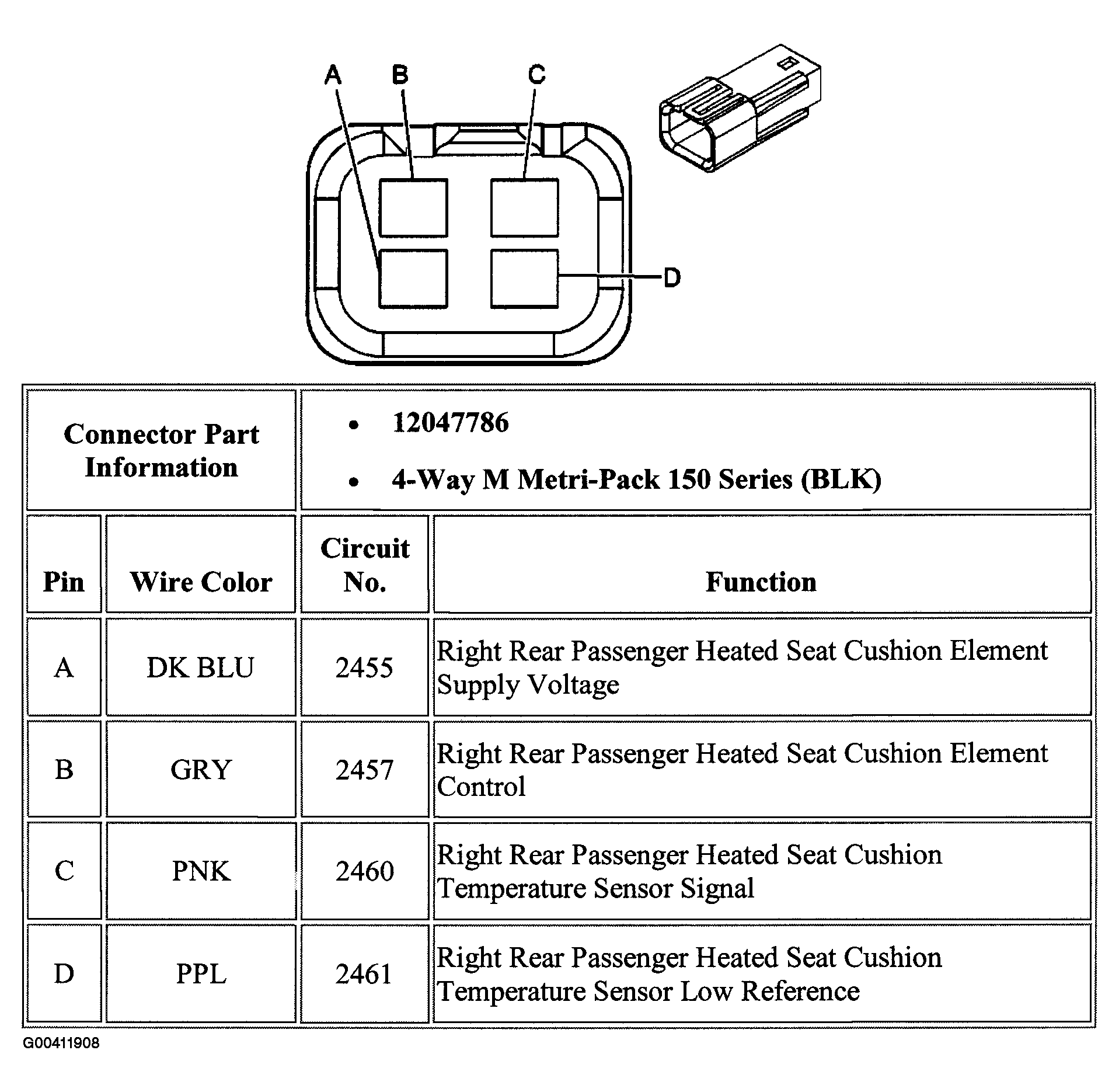

Fig 24: Heated Seat Cushion Element - RR

G00411908

Courtesy of GENERAL MOTORS CORP.

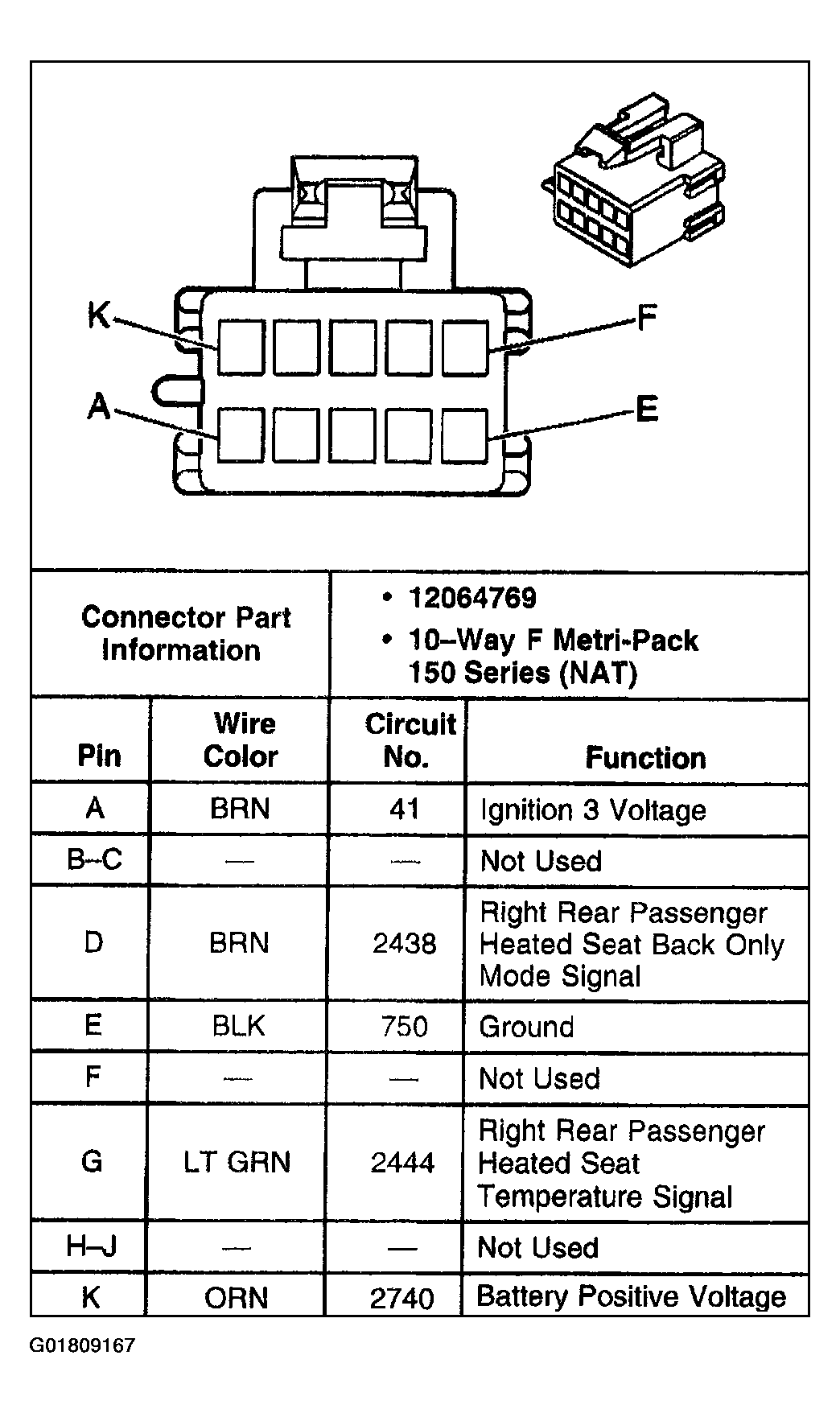

Fig 25: Heated Seat Module - RR C1

G01809167

Courtesy of GENERAL MOTORS CORP.

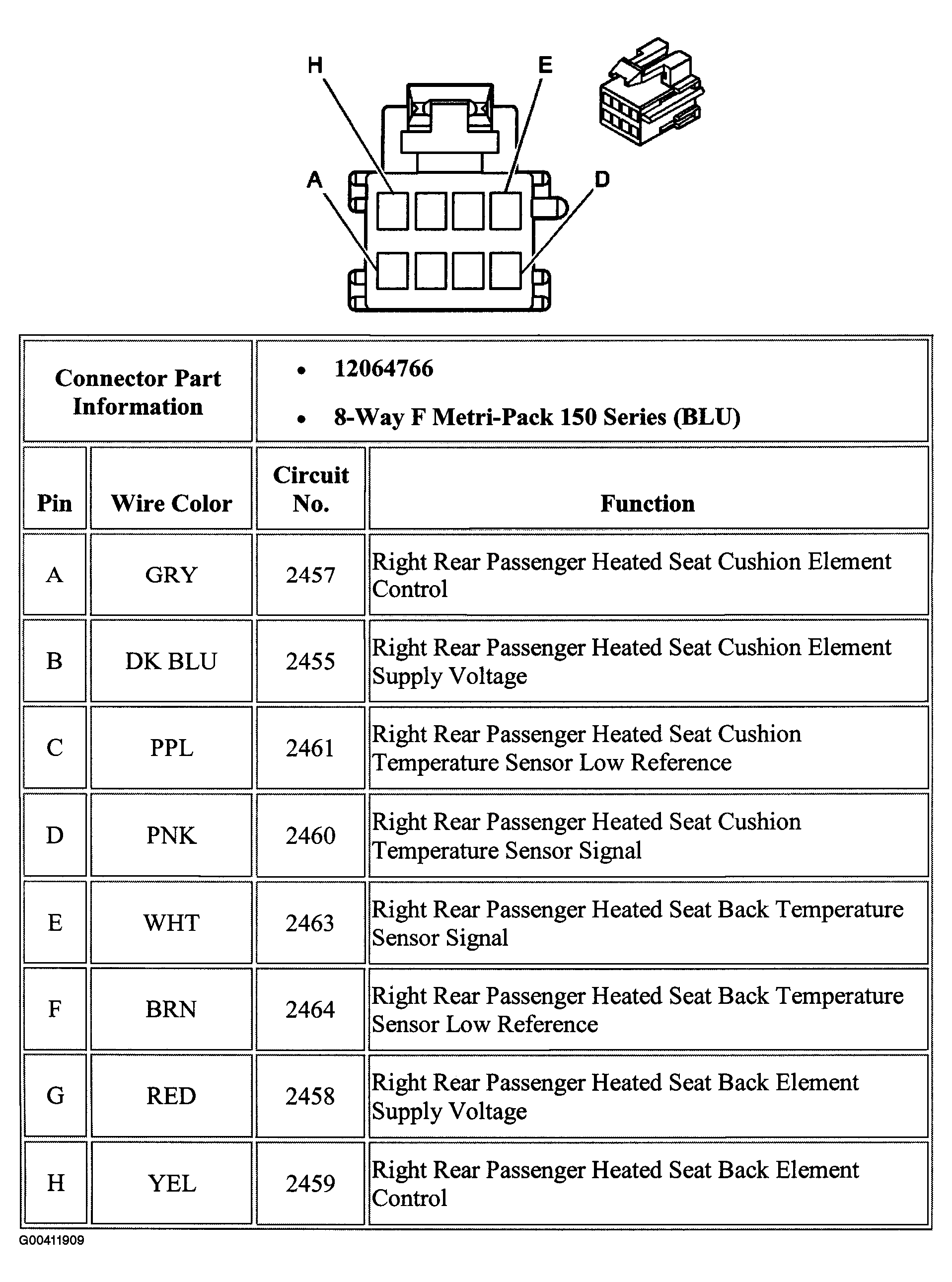

Fig 26: Heated Seat Module - RR C2

G00411909

Courtesy of GENERAL MOTORS CORP.

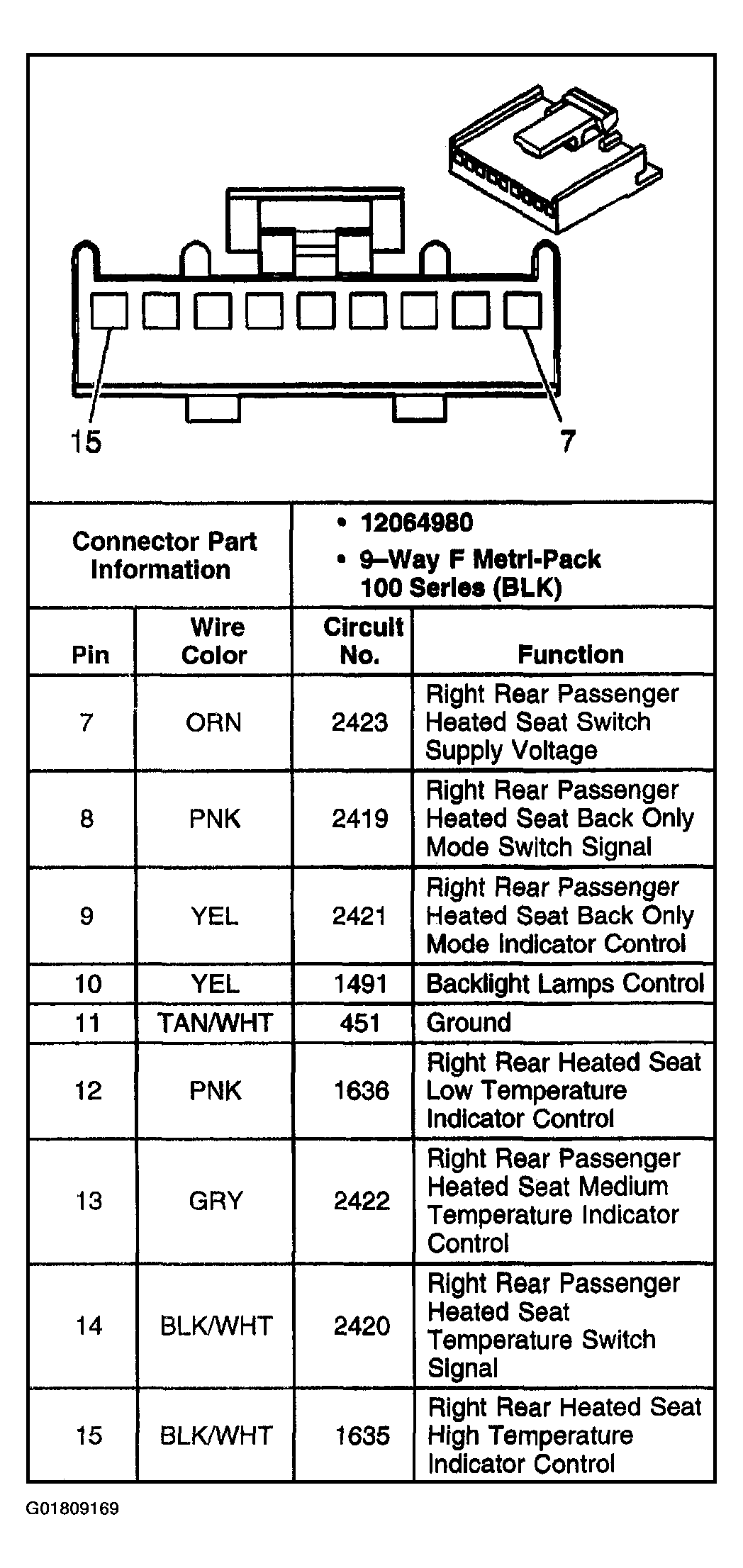

Fig 27: Heated Seat Switch - RR

G01809169

Courtesy of GENERAL MOTORS CORP.

Fig 28: Memory/Personalization Function Switch

G01809170

Courtesy of GENERAL MOTORS CORP.

Fig 29: Memory Seat Module (MSM) C1

G01809171

Courtesy of GENERAL MOTORS CORP.

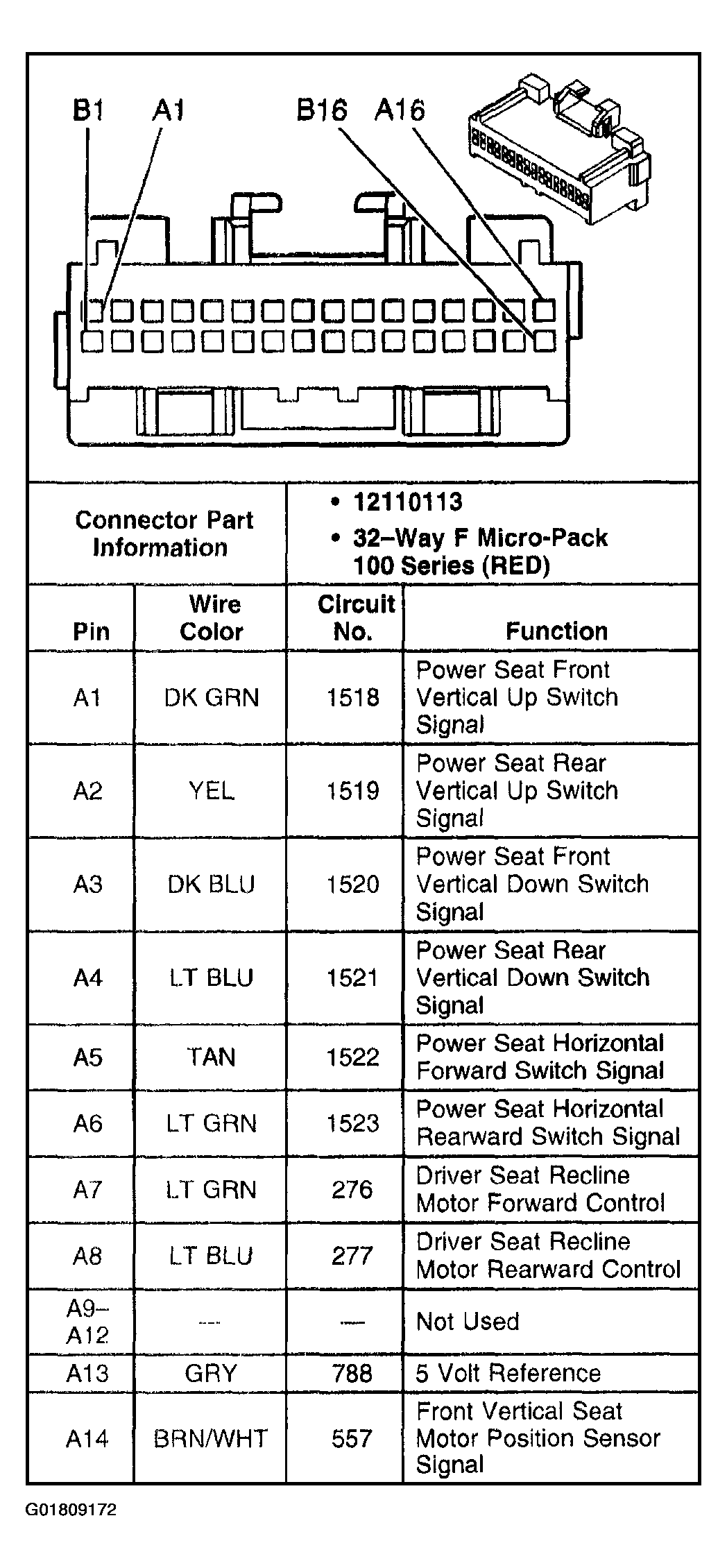

Fig 30: Memory Seat Module (MSM) C2 (w/AC9) (1 Of 2)

G01809172

Courtesy of GENERAL MOTORS CORP.

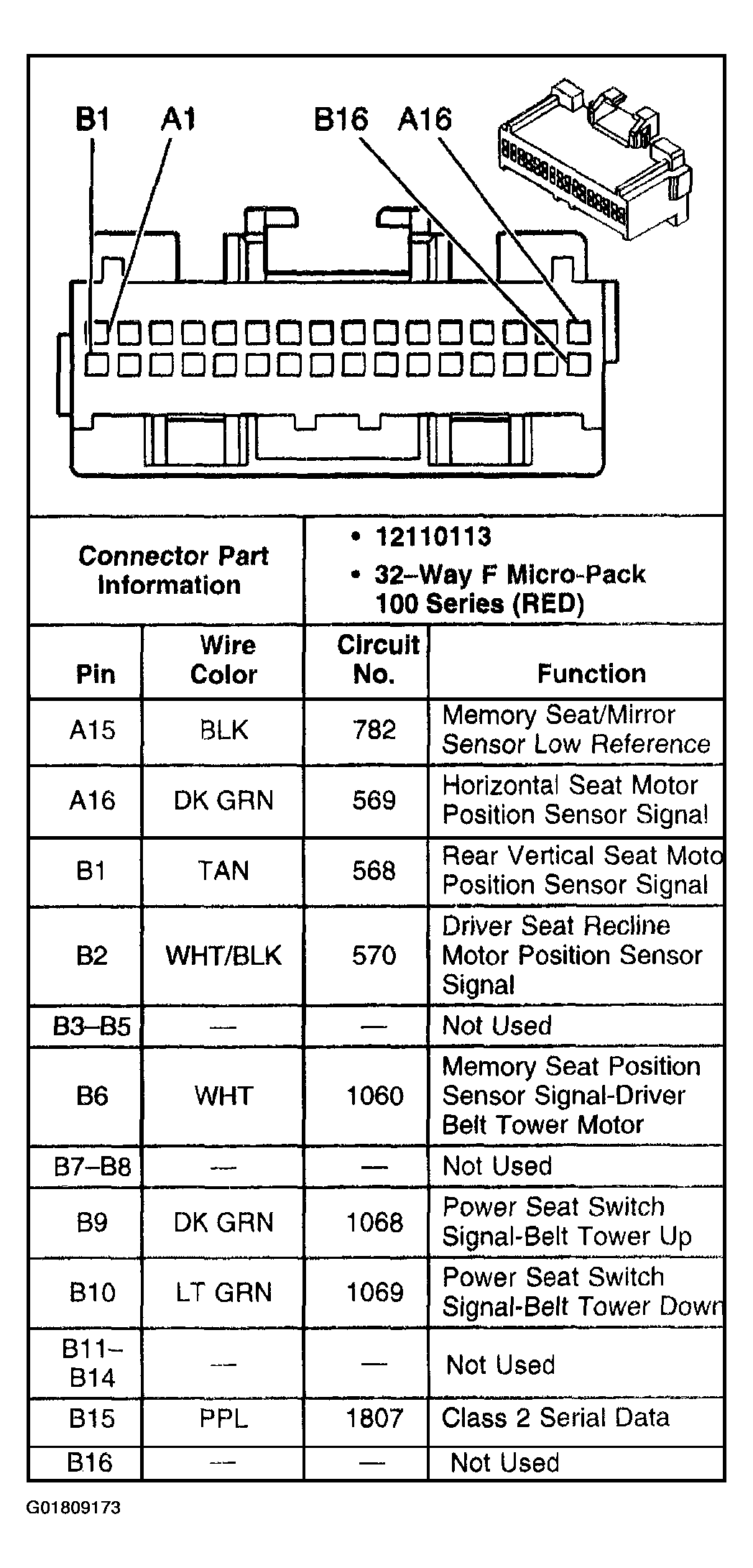

Fig 31: Memory Seat Module (MSM) C2 (w/AC9) (2 Of 2)

G01809173

Courtesy of GENERAL MOTORS CORP.

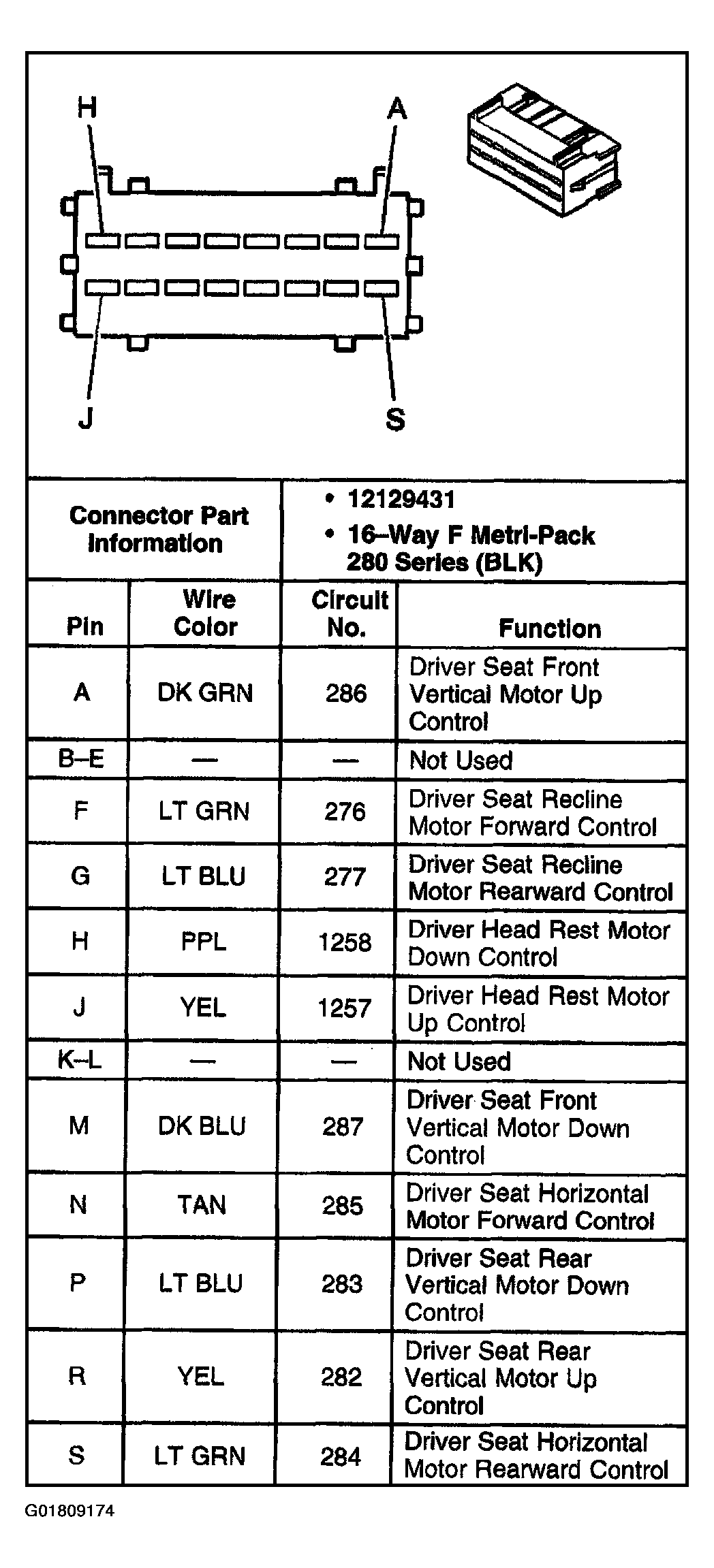

Fig 32: Memory Seat Module (MSM) C3 (w/AC9)

G01809174

Courtesy of GENERAL MOTORS CORP.

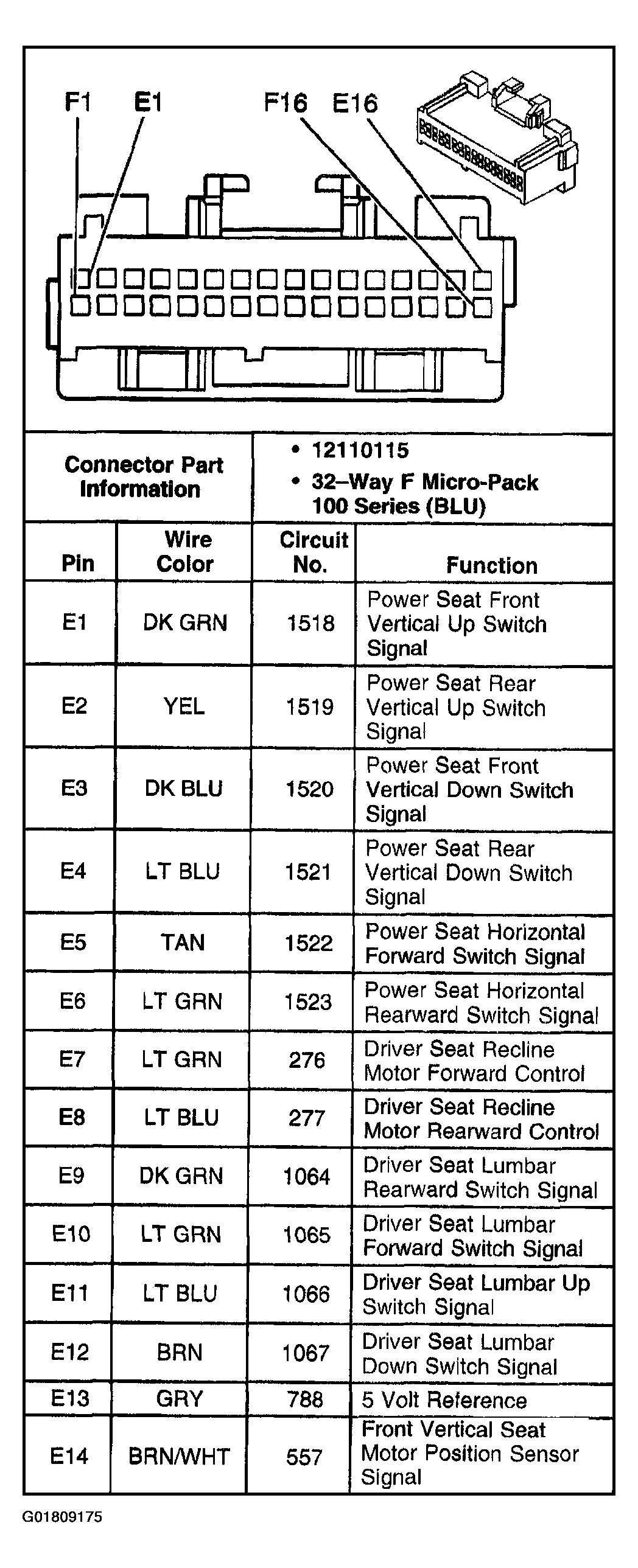

Fig 33: Memory Seat Module (MSM) C2 (AL2) (1 Of 2)

G01809175

Courtesy of GENERAL MOTORS CORP.

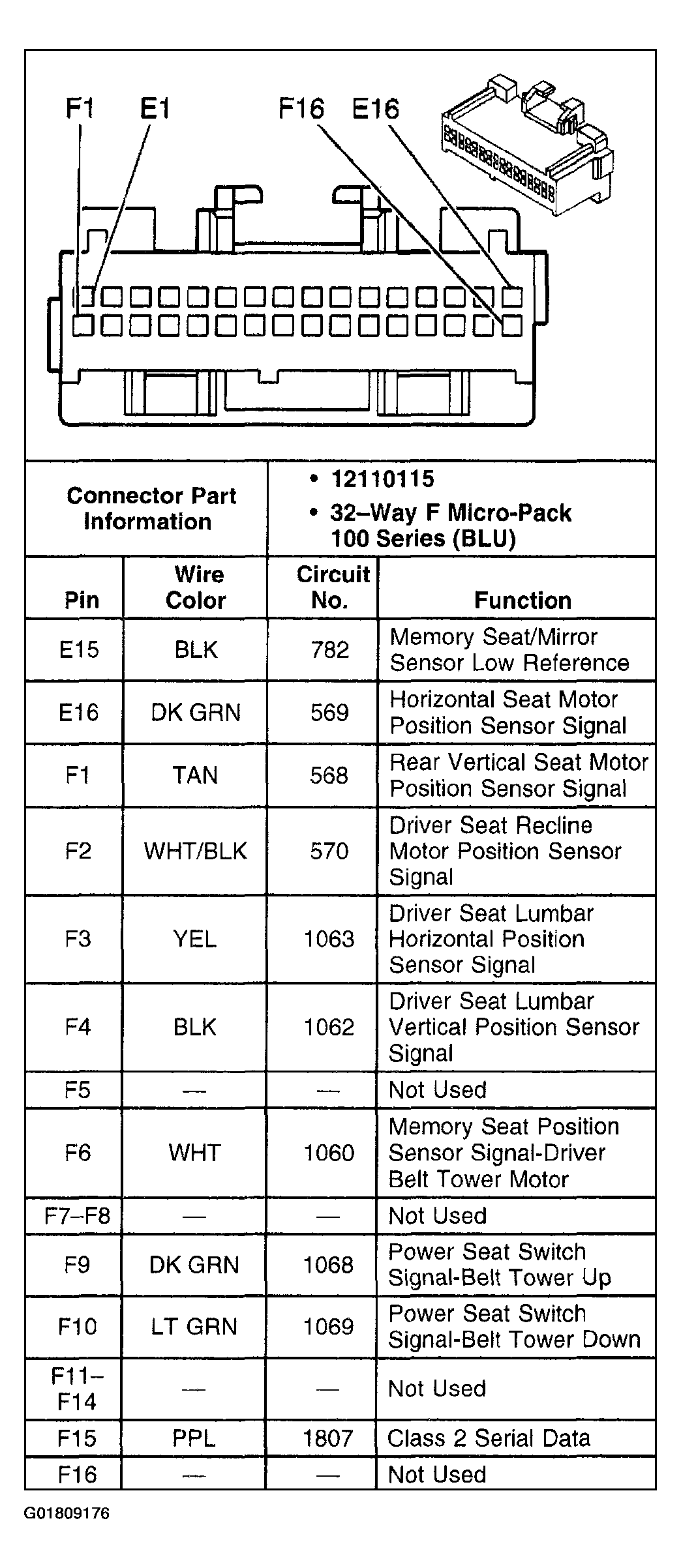

Fig 34: Memory Seat Module (MSM) C2 (AL2) (2 Of 2)

G01809176

Courtesy of GENERAL MOTORS CORP.

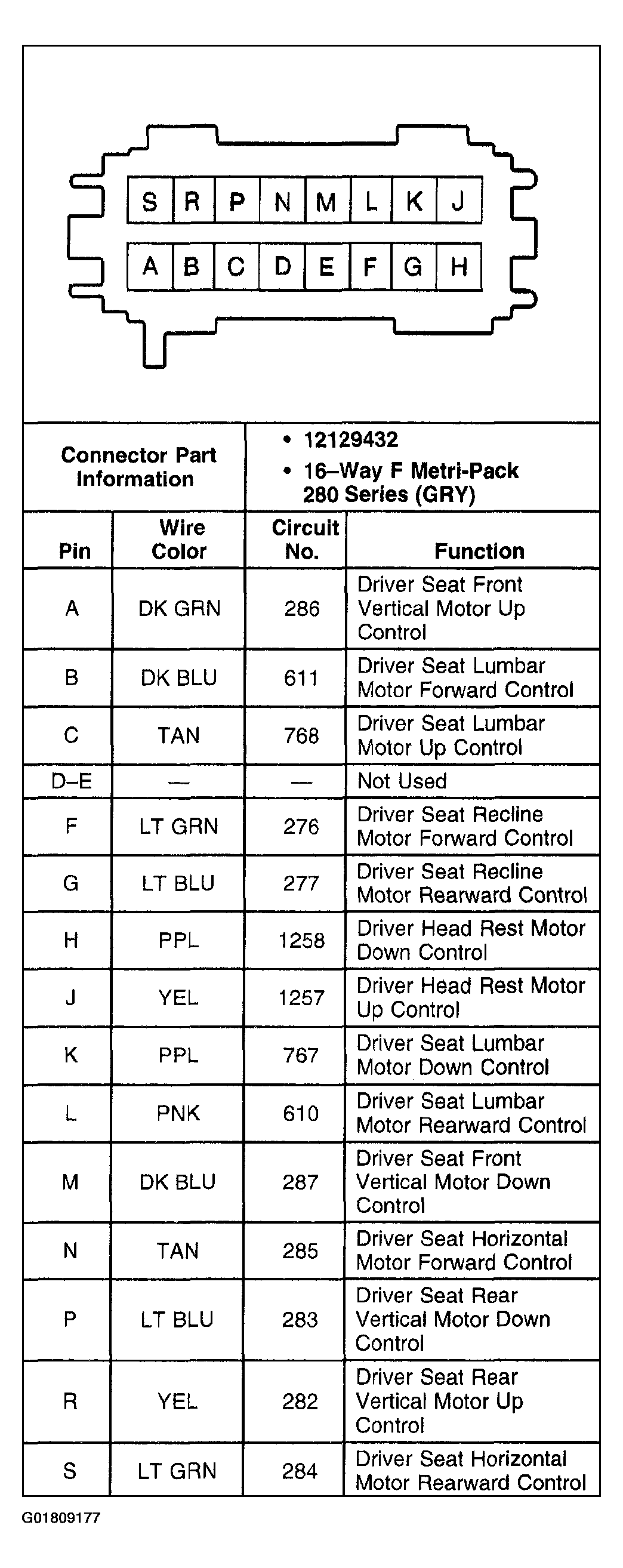

Fig 35: Memory Seat Module (MSM) C3 (AL2)

G01809177

Courtesy of GENERAL MOTORS CORP.

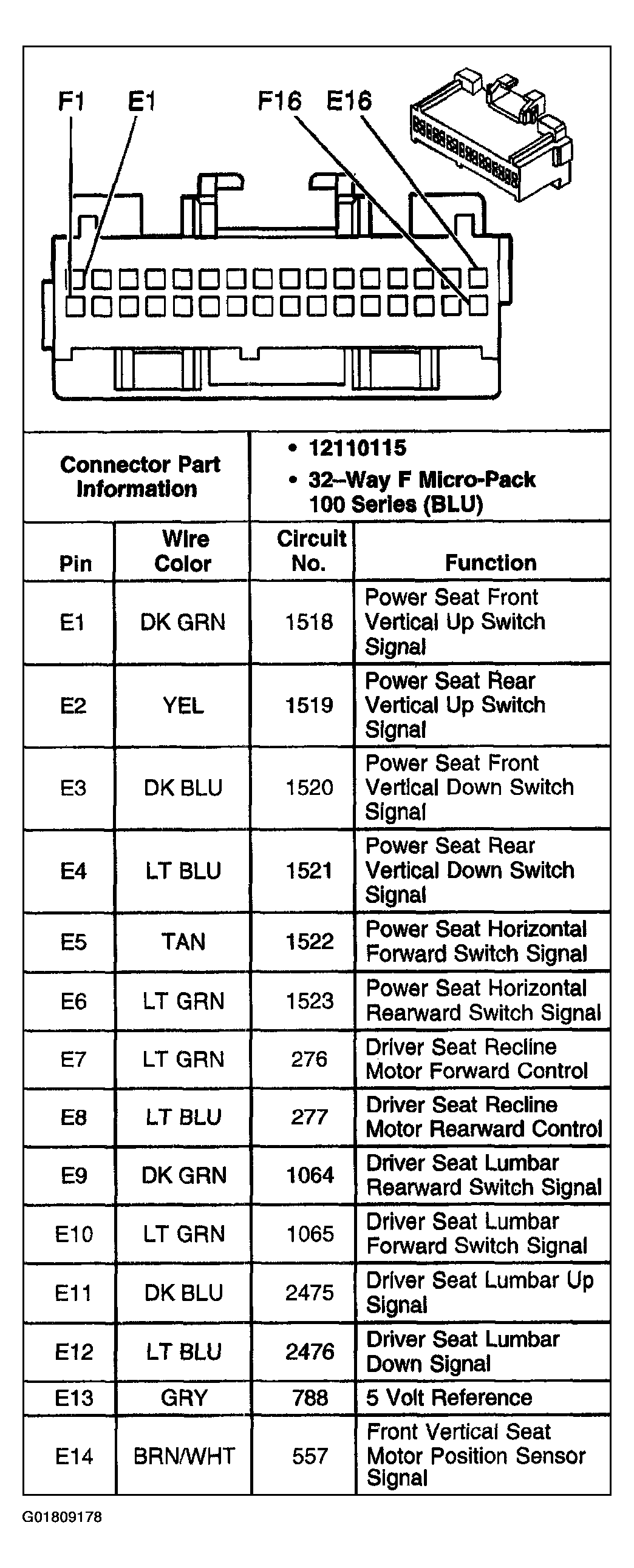

Fig 36: Memory Seat Module (MSM) C2 (AM3) (1 Of 2)

G01809178

Courtesy of GENERAL MOTORS CORP.

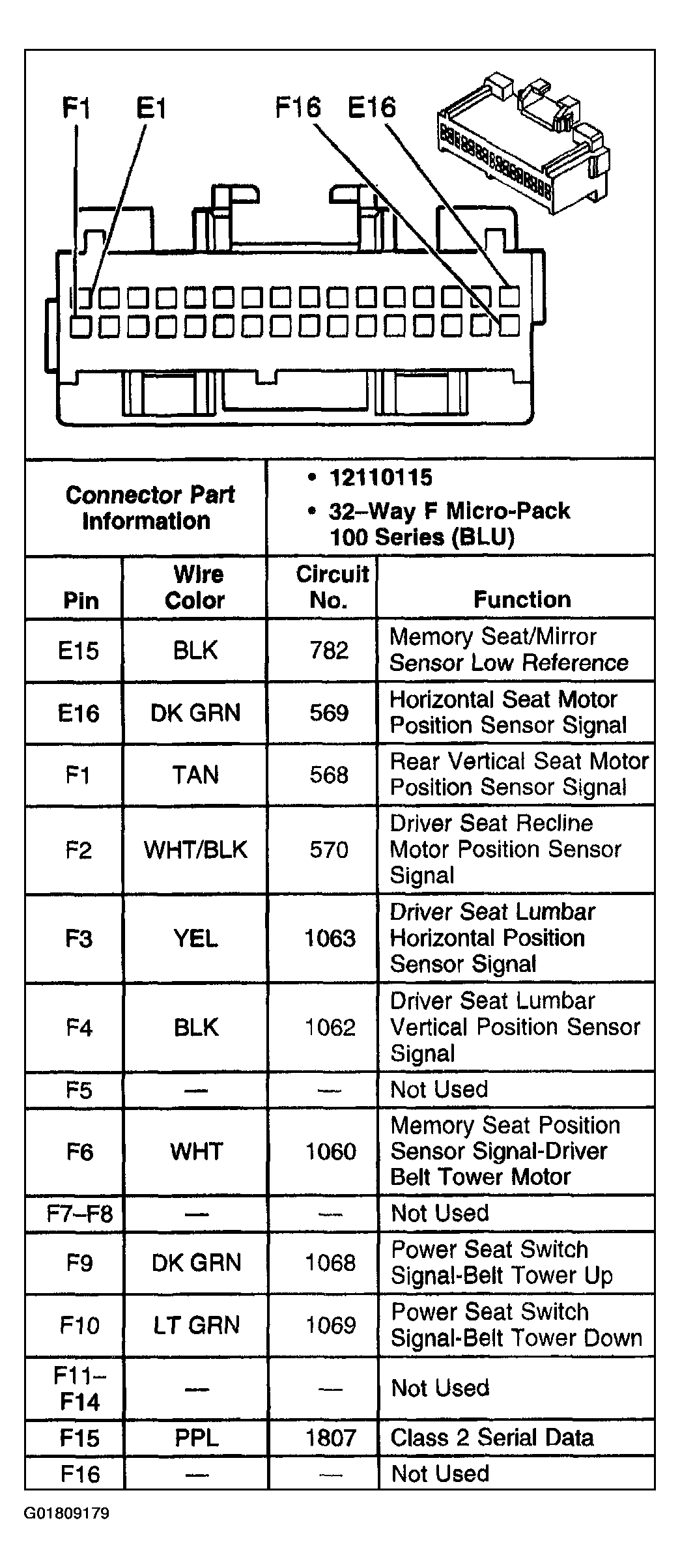

Fig 37: Memory Seat Module (MSM) C2 (AM3) (2 Of 2)

G01809179

Courtesy of GENERAL MOTORS CORP.

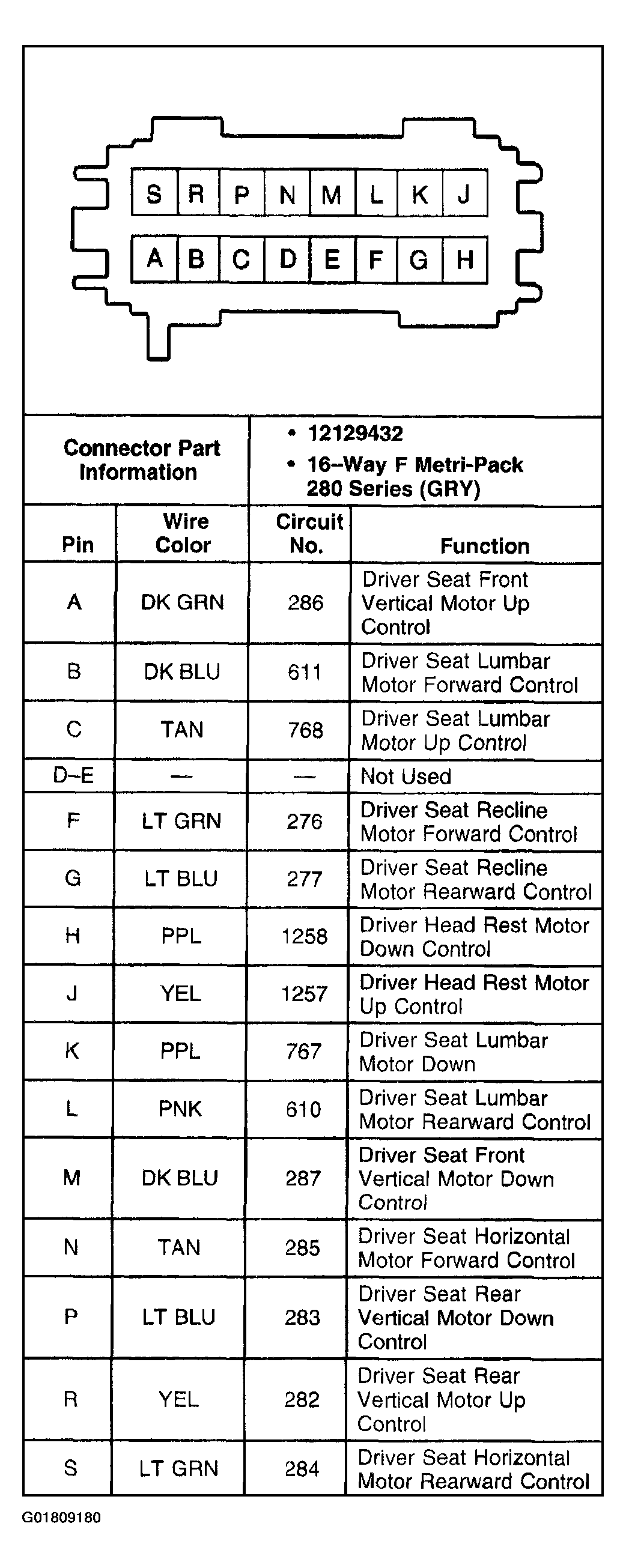

Fig 38: Memory Seat Module (MSM) C3 (AM3)

G01809180

Courtesy of GENERAL MOTORS CORP.

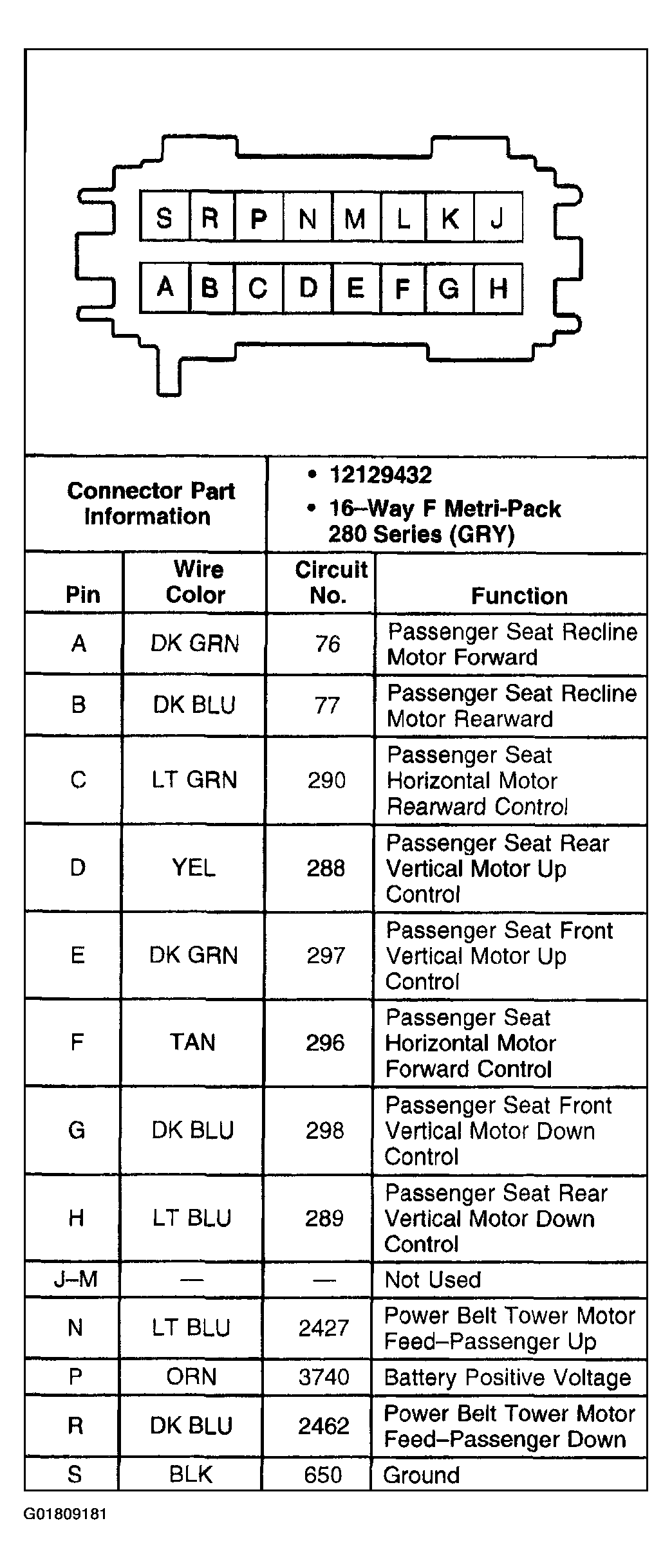

Fig 39: Power Seat Switch - Front Passenger

G01809181

Courtesy of GENERAL MOTORS CORP.

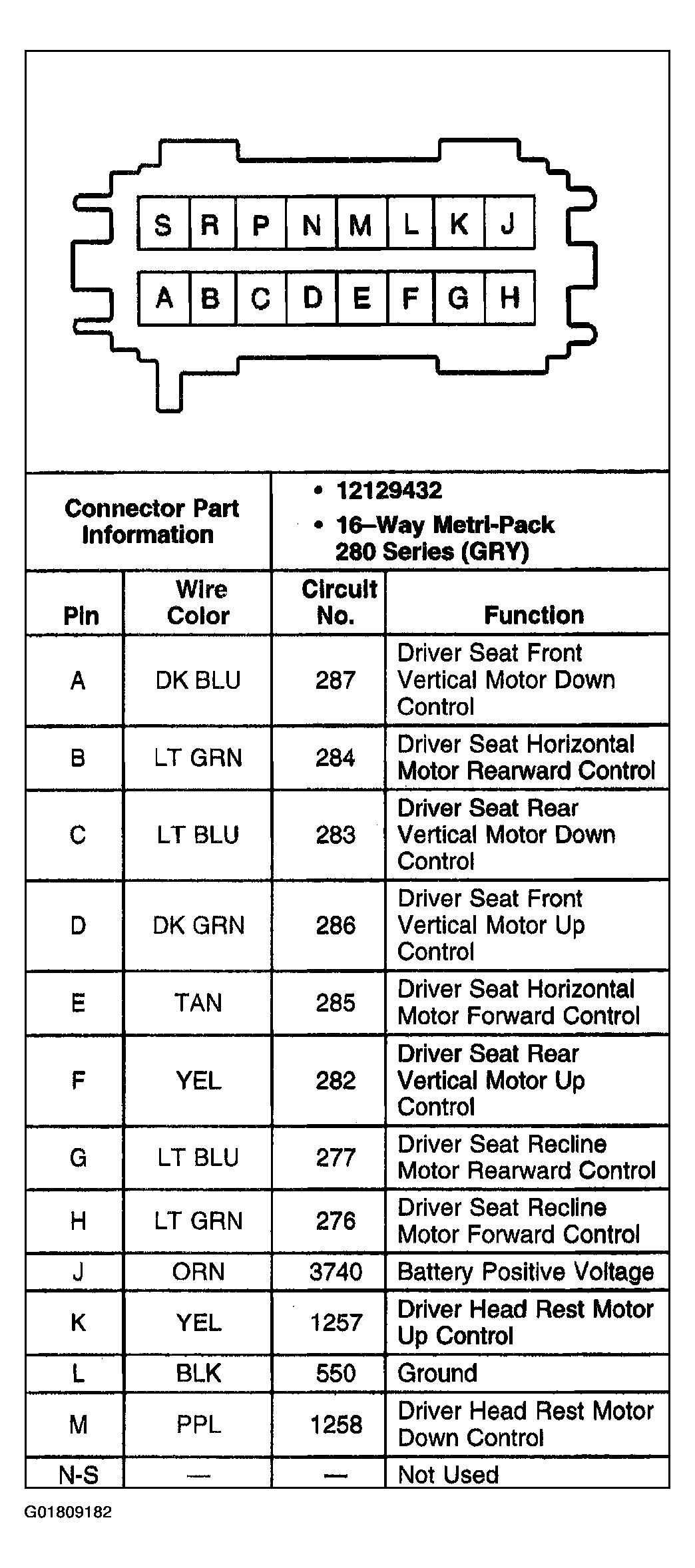

Fig 40: Seat Adjuster Switch - Driver (w/AN3)

G01809182

Courtesy of GENERAL MOTORS CORP.

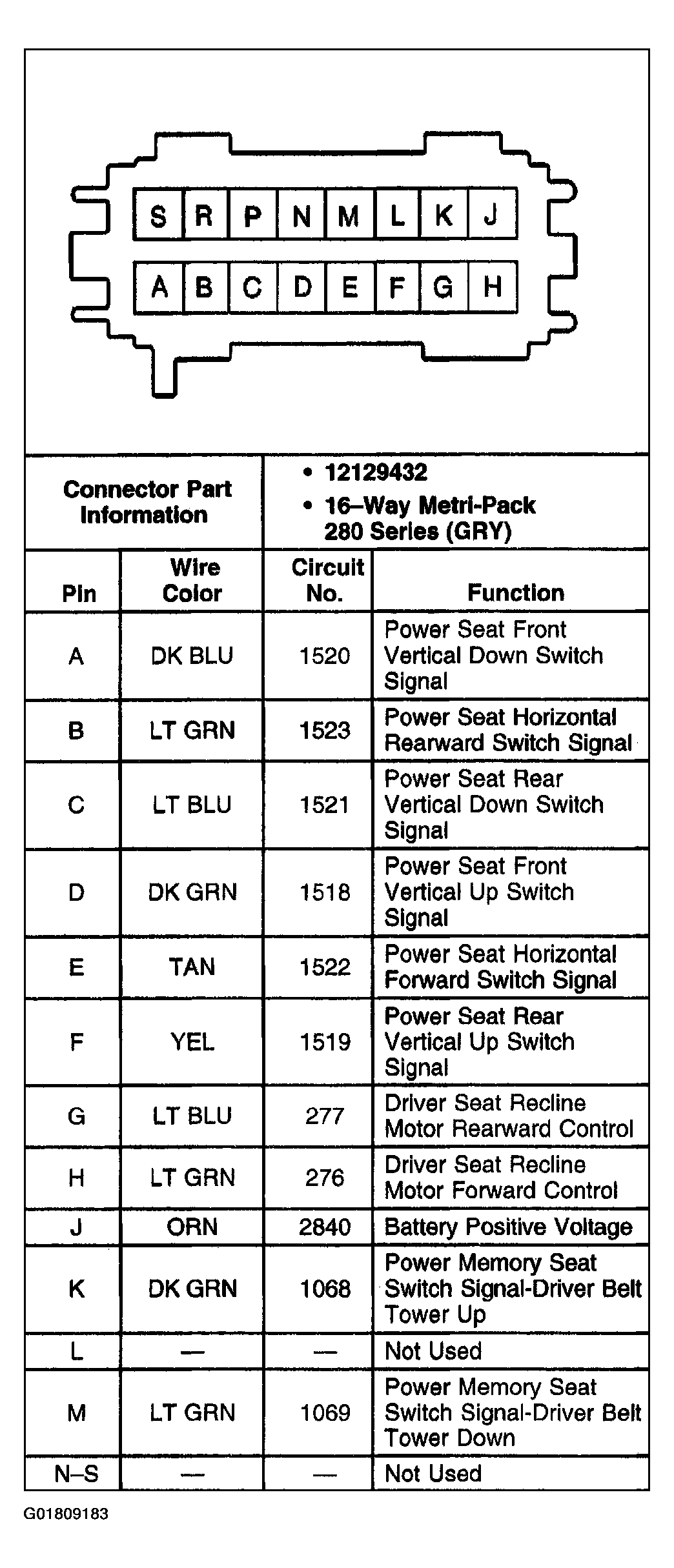

Fig 41: Seat Adjuster Switch - Driver (A45 with AL2, AC9, or AM3)

G01809183

Courtesy of GENERAL MOTORS CORP.

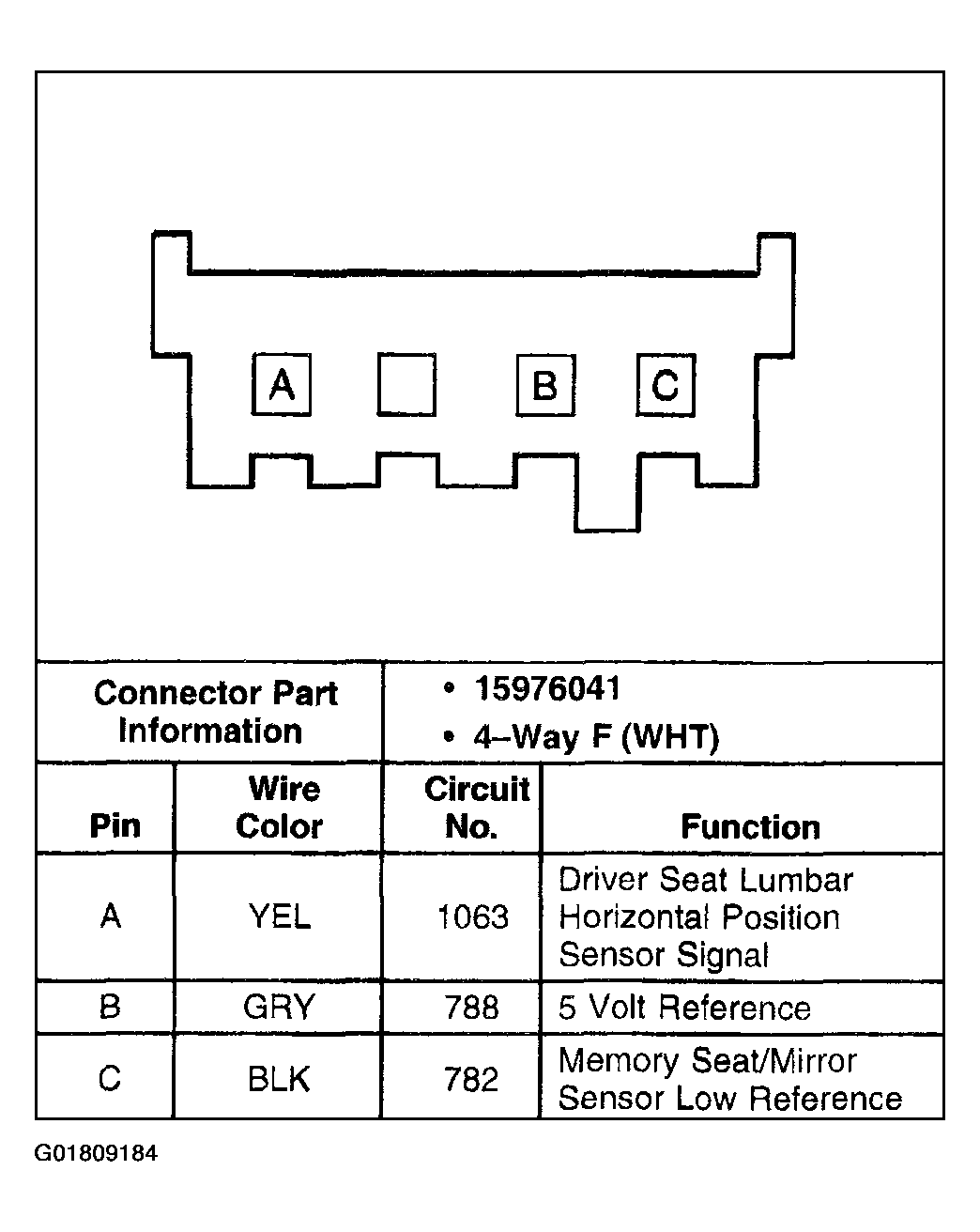

Fig 42: Seat Lumbar Horizontal Position Sensor - Driver (w/AM3)

G01809184

Courtesy of GENERAL MOTORS CORP.

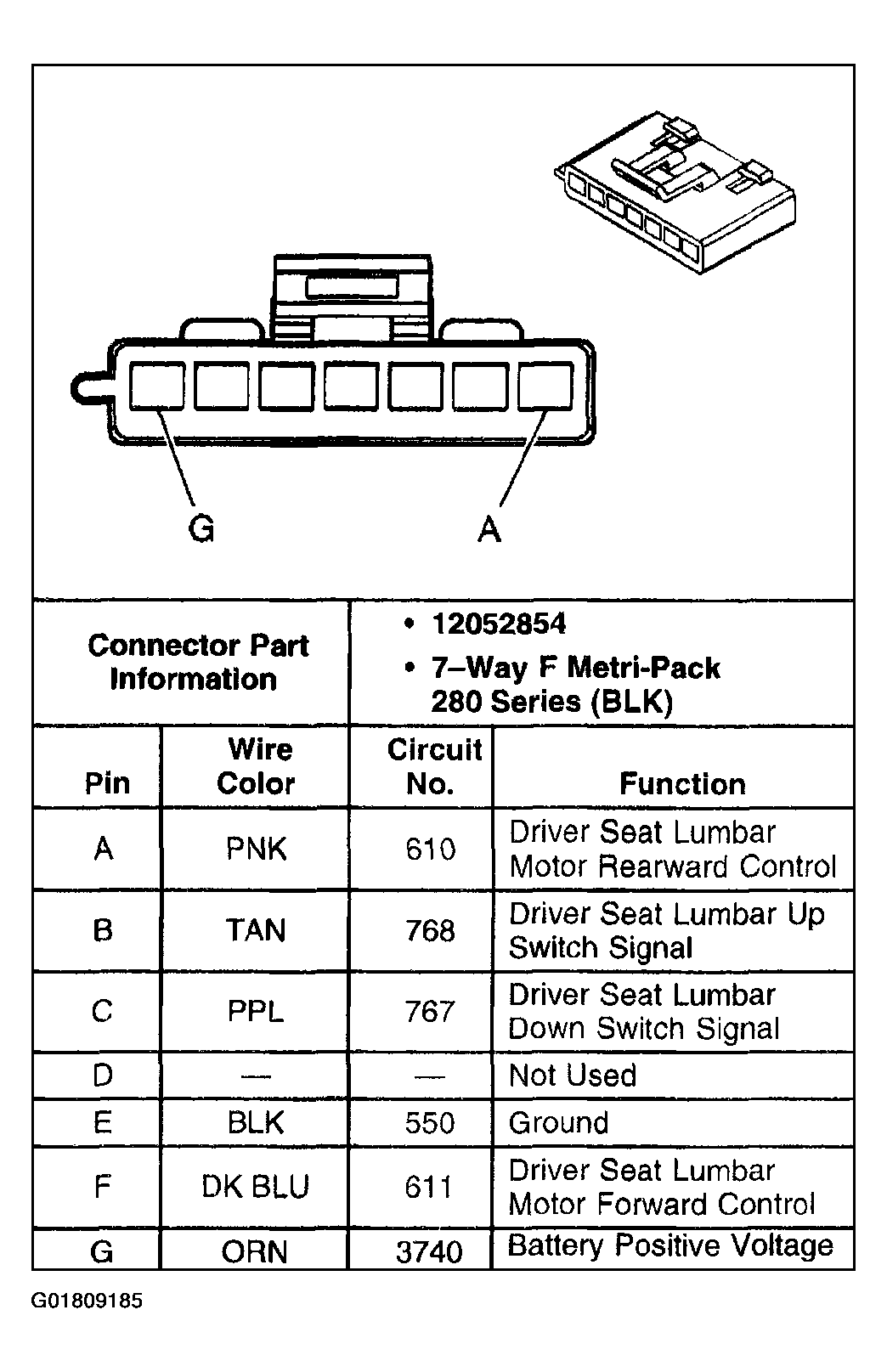

Fig 43: Seat Lumbar Switch - Driver (AL2 or AM3)

G01809185

Courtesy of GENERAL MOTORS CORP.

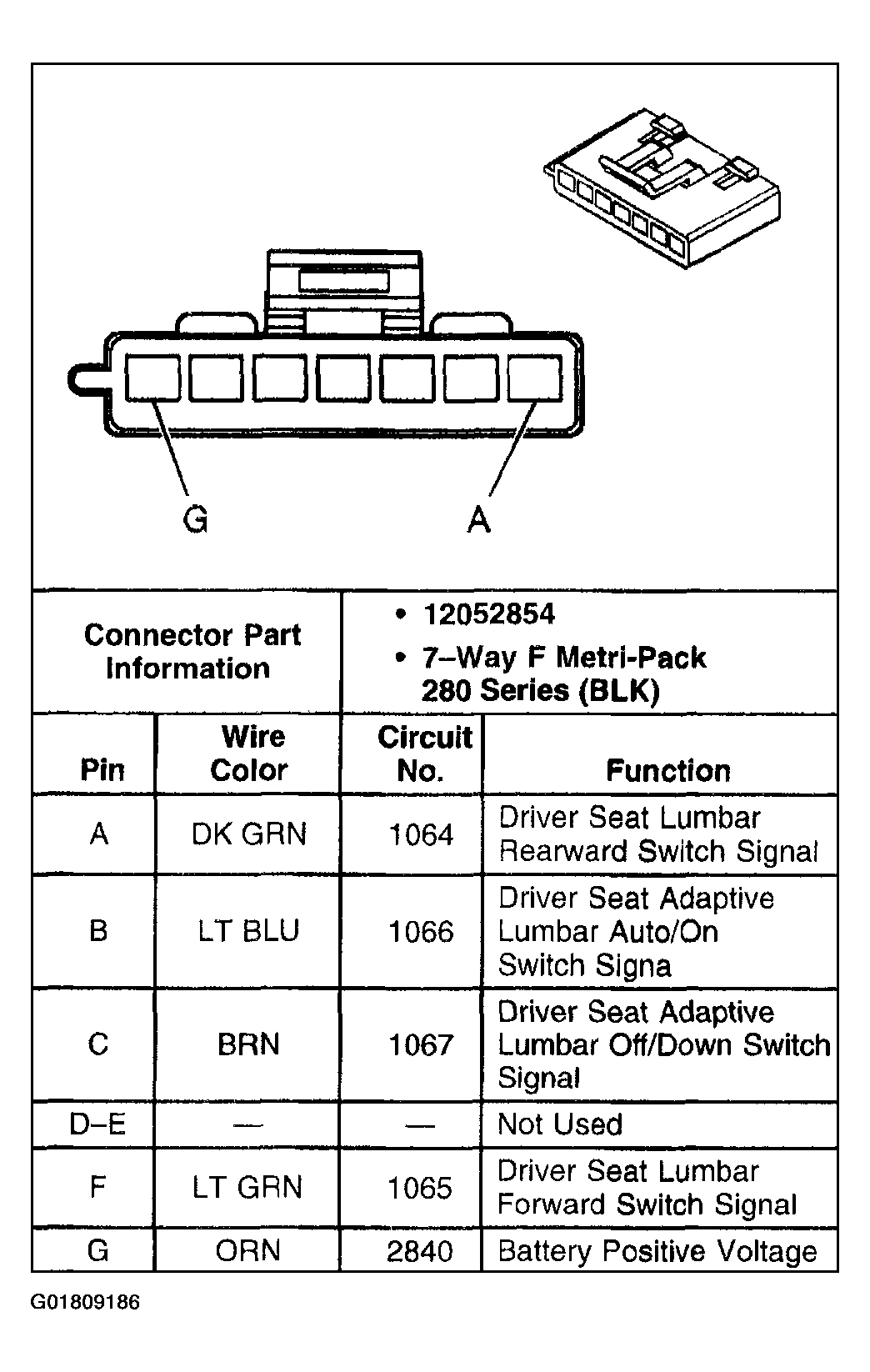

Fig 44: Seat Lumbar Switch - Driver (A45 with AC9, AL2, or AM3)

G01809186

Courtesy of GENERAL MOTORS CORP.

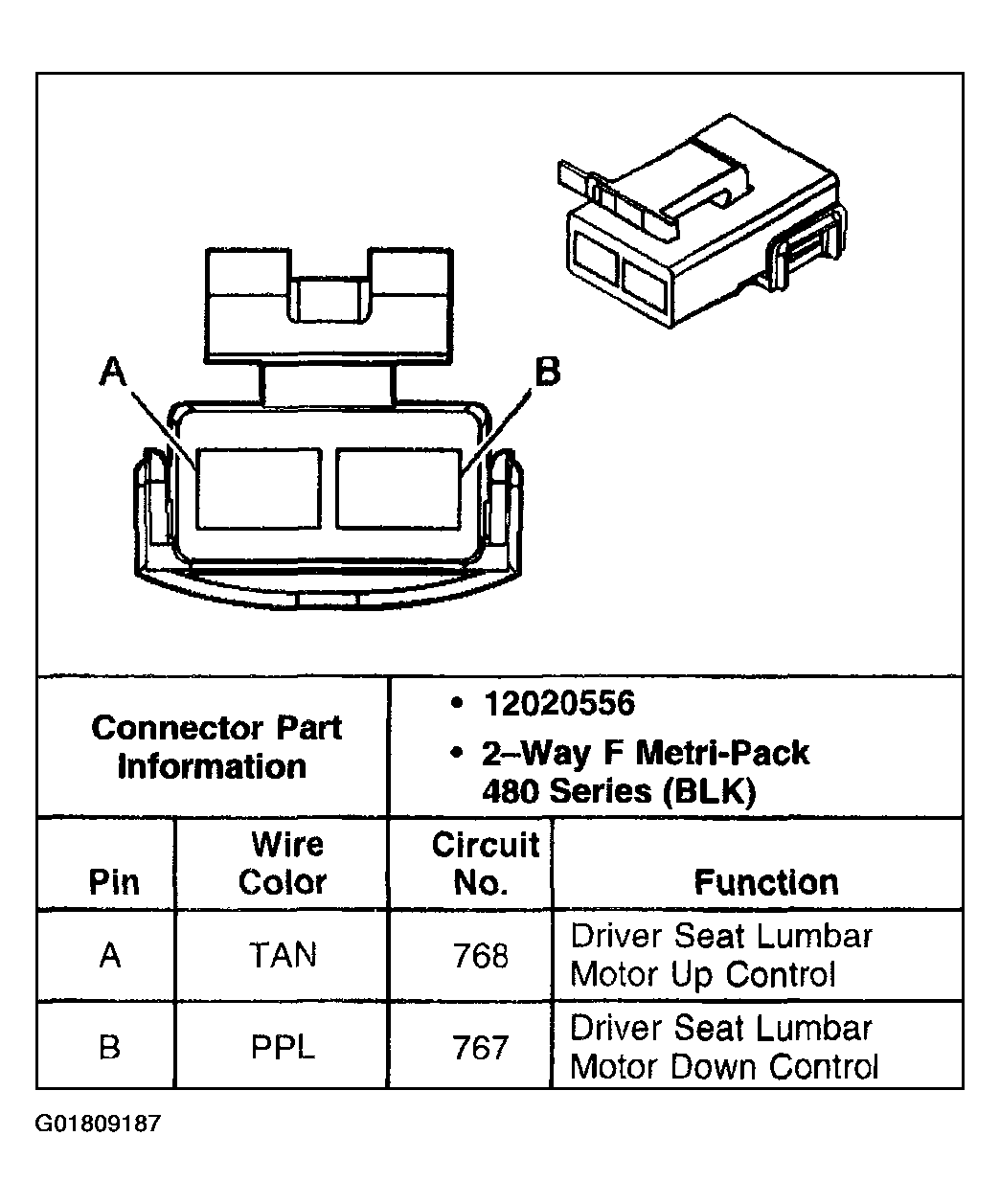

Fig 45: Seat Lumbar Vertical Motor - Driver

G01809187

Courtesy of GENERAL MOTORS CORP.

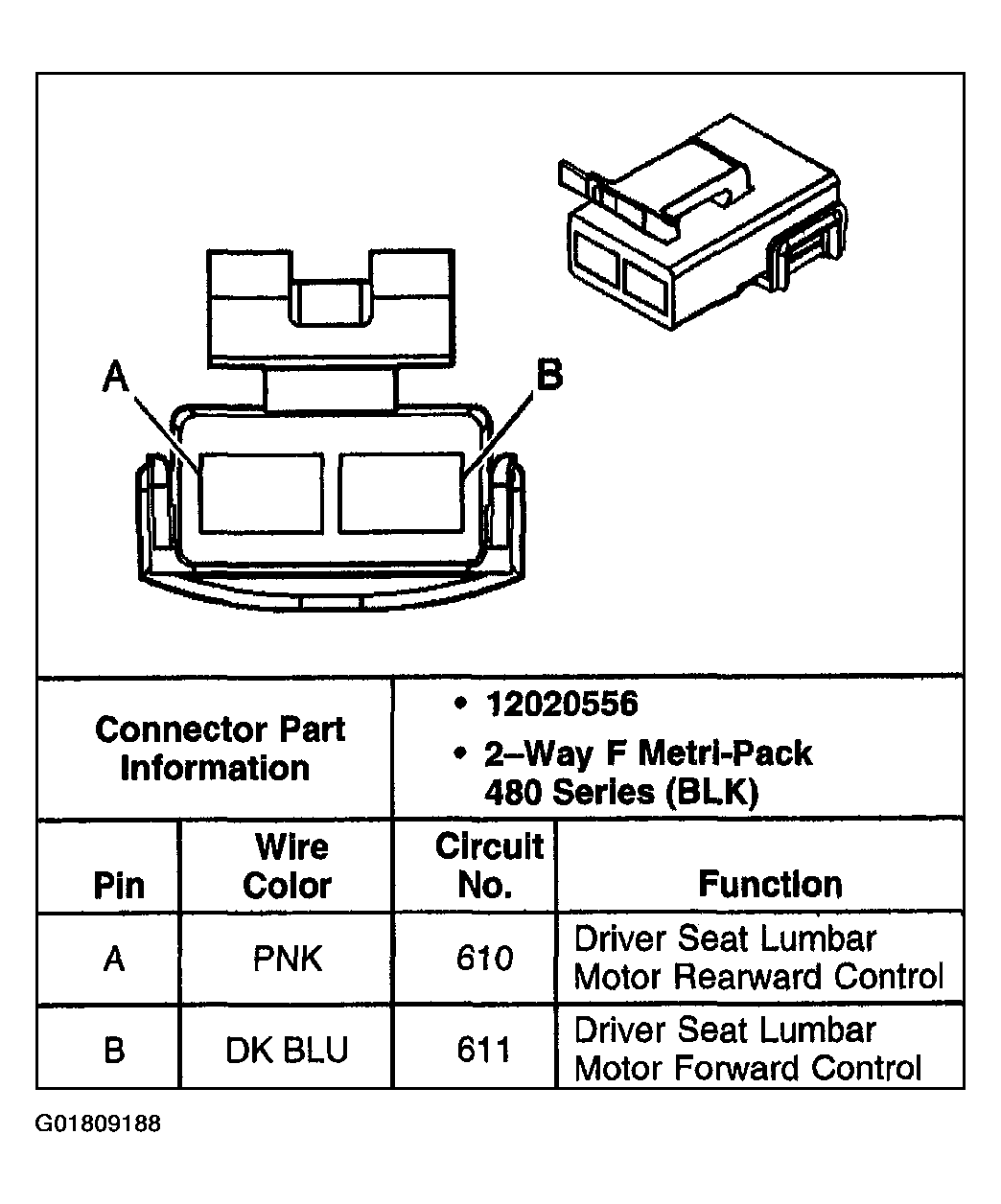

Fig 46: Seat Lumbar Horizontal Motor - Driver

G01809188

Courtesy of GENERAL MOTORS CORP.

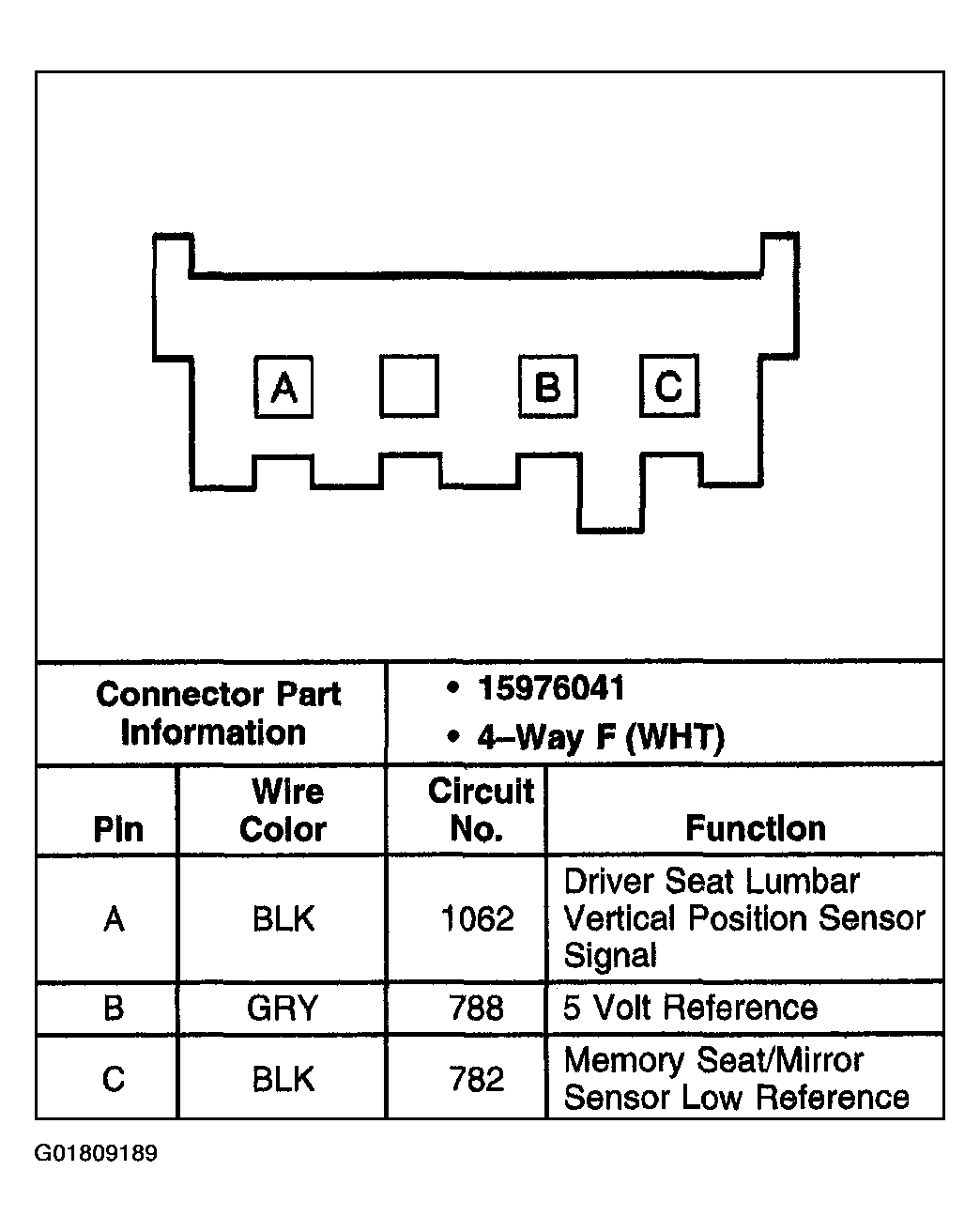

Fig 47: Seat Lumbar Vertical Position Sensor - Driver (w/AM3)

G01809189

Courtesy of GENERAL MOTORS CORP.

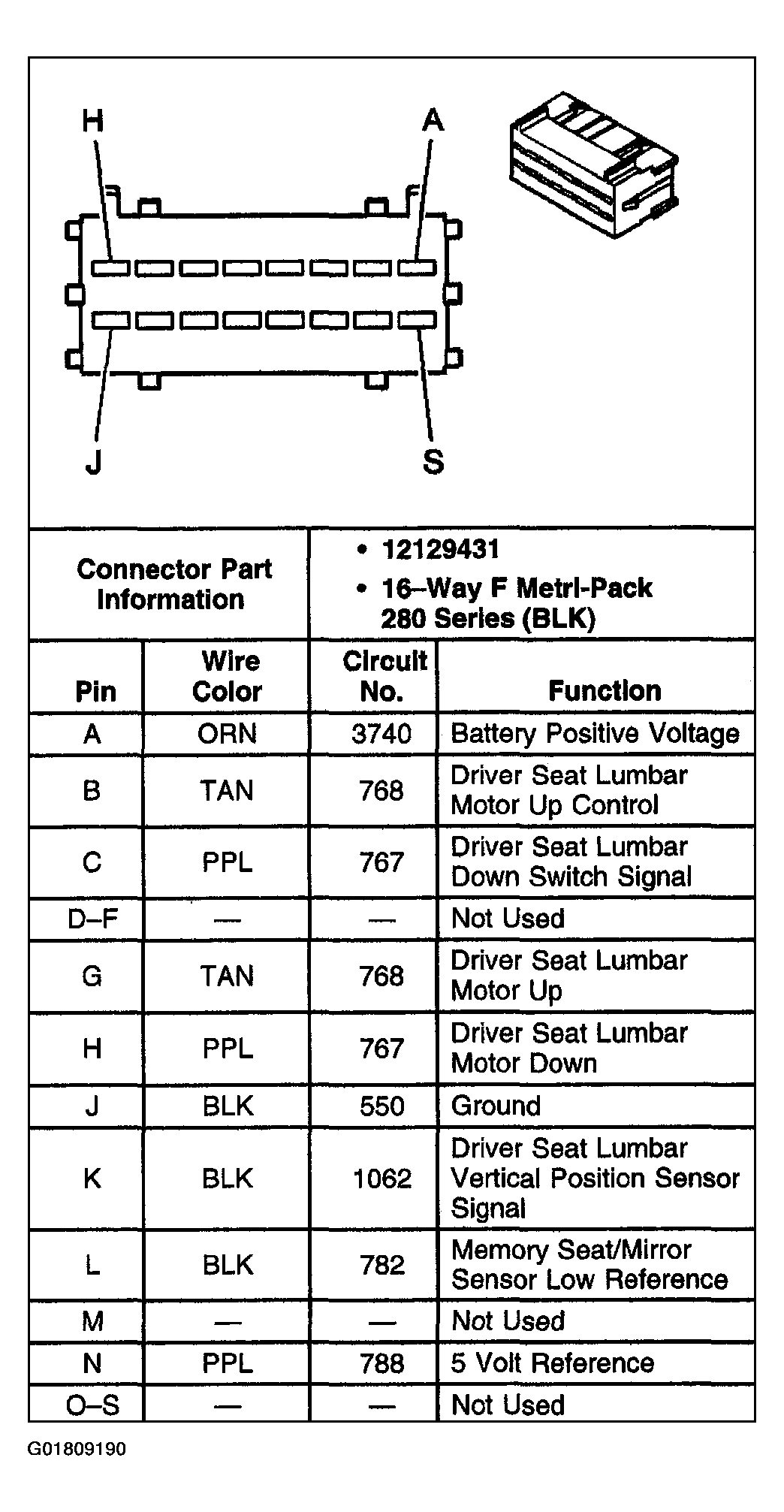

Fig 48: Seat Massage Module - Driver

G01809190

Courtesy of GENERAL MOTORS CORP.

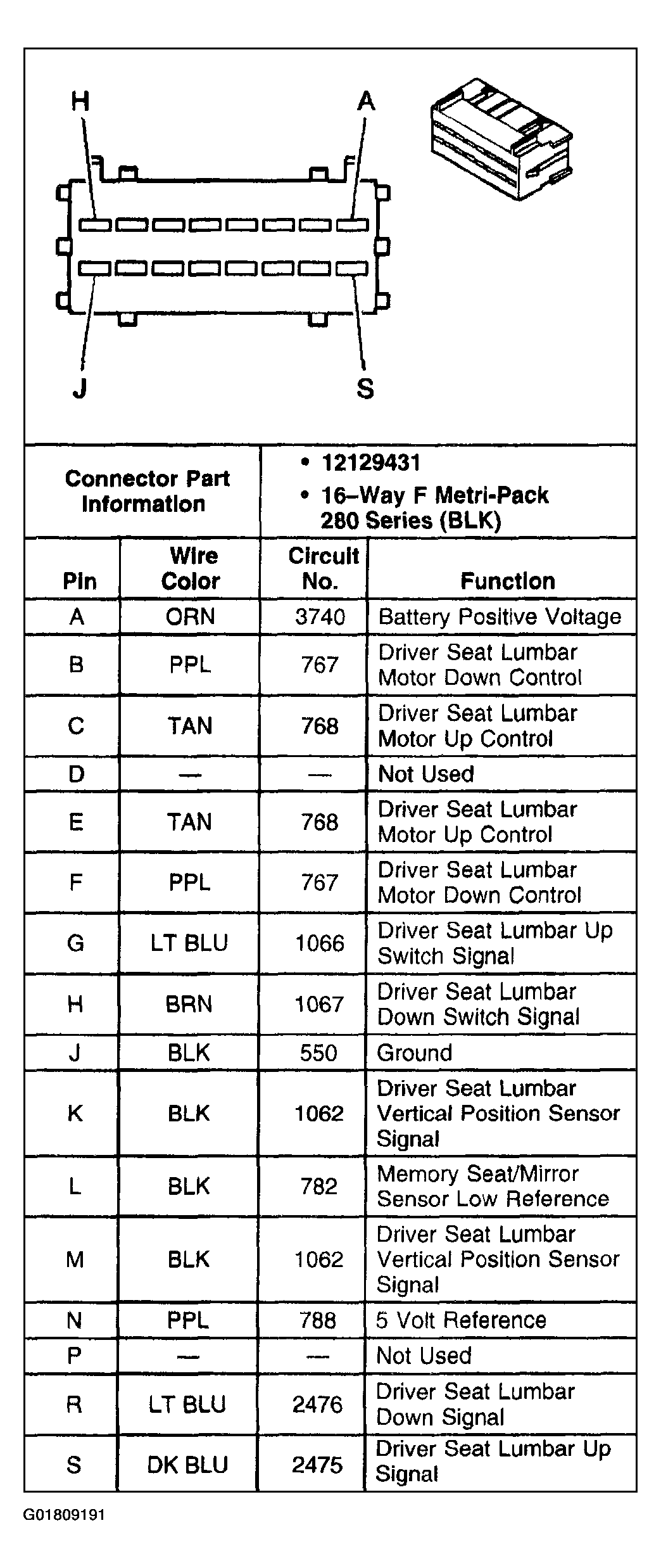

Fig 49: Seat Massage Module - Driver (w/A45)

G01809191

Courtesy of GENERAL MOTORS CORP.

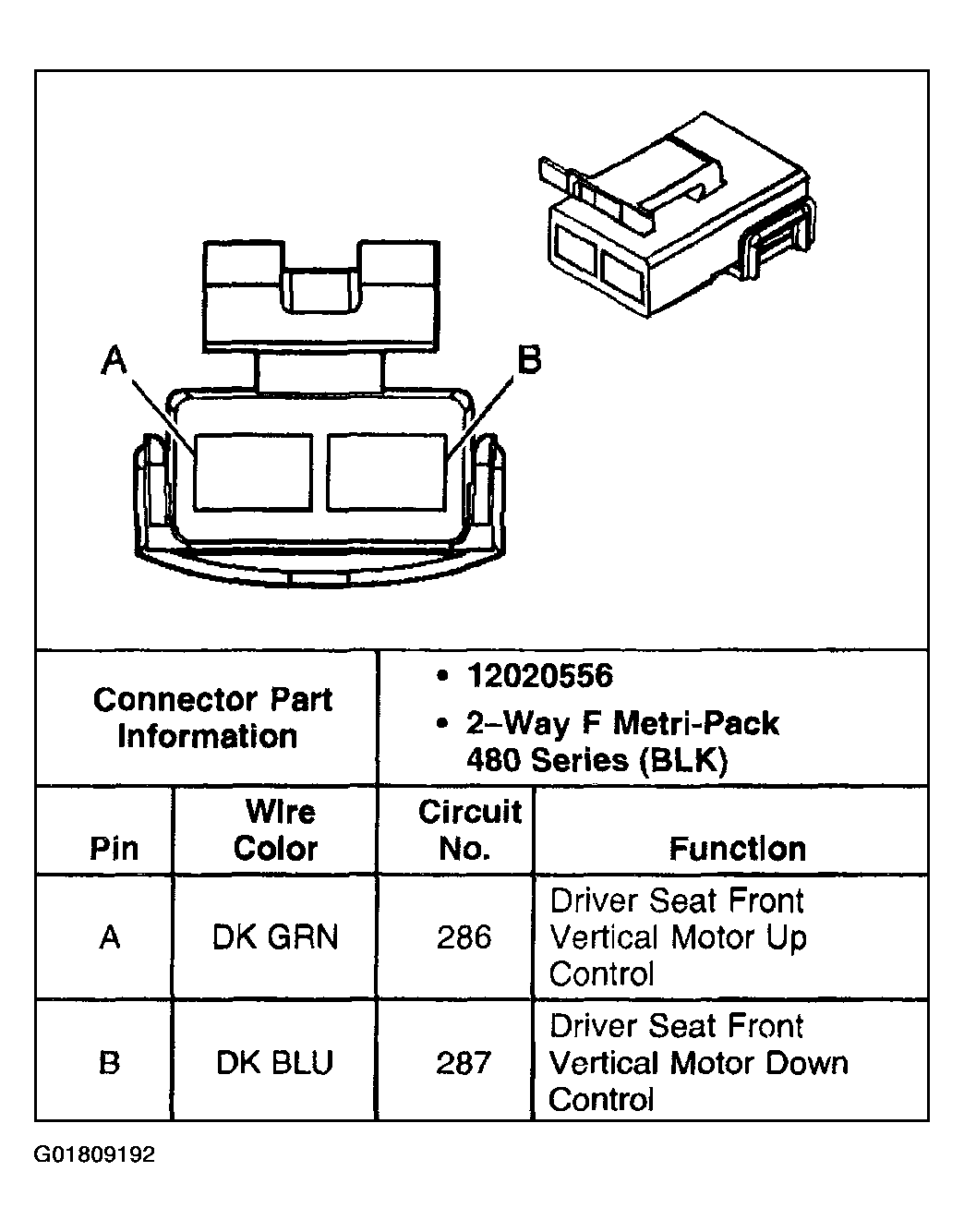

Fig 50: Seat Front Vertical Motor - Driver

G01809192

Courtesy of GENERAL MOTORS CORP.

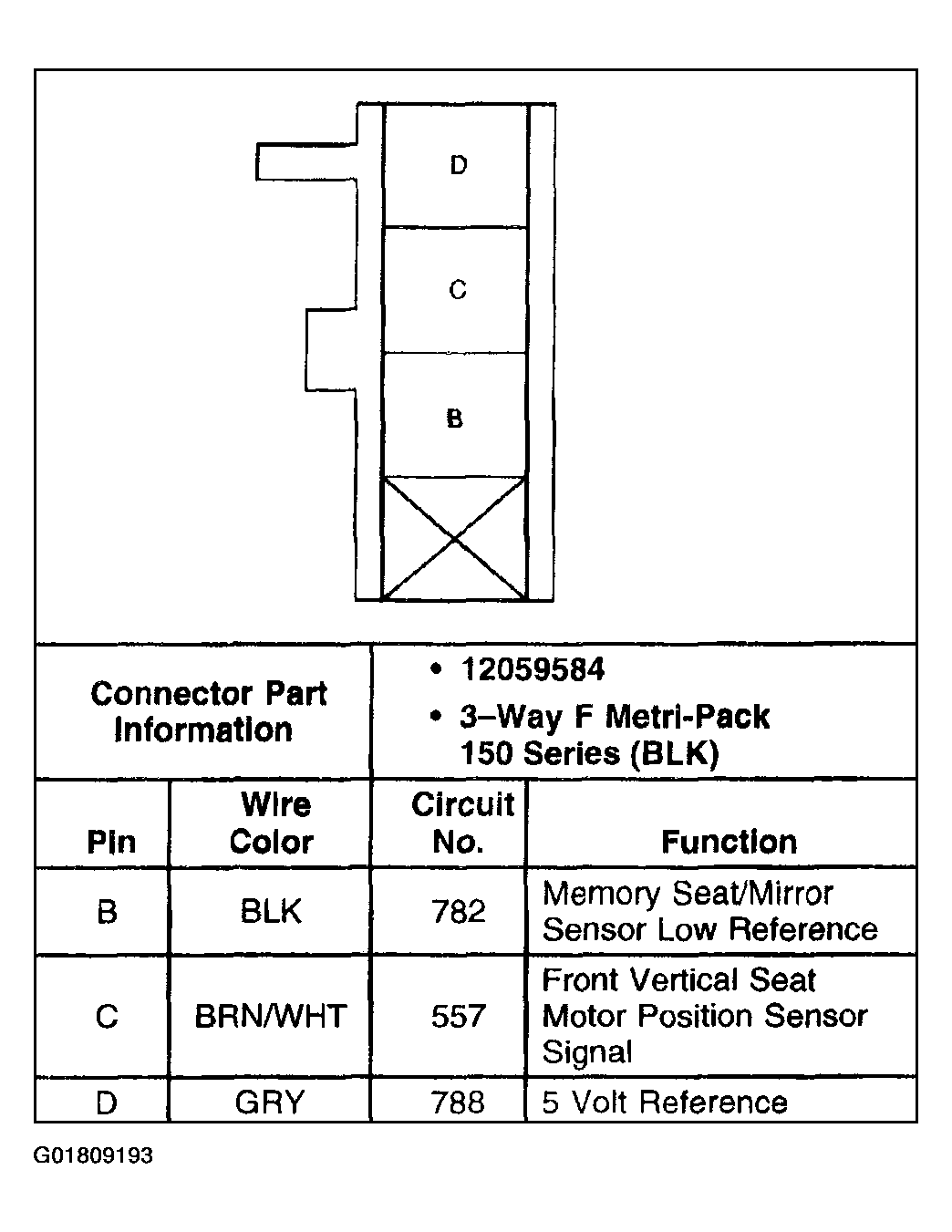

Fig 51: Seat Front Vertical Position Sensor - Driver

G01809193

Courtesy of GENERAL MOTORS CORP.

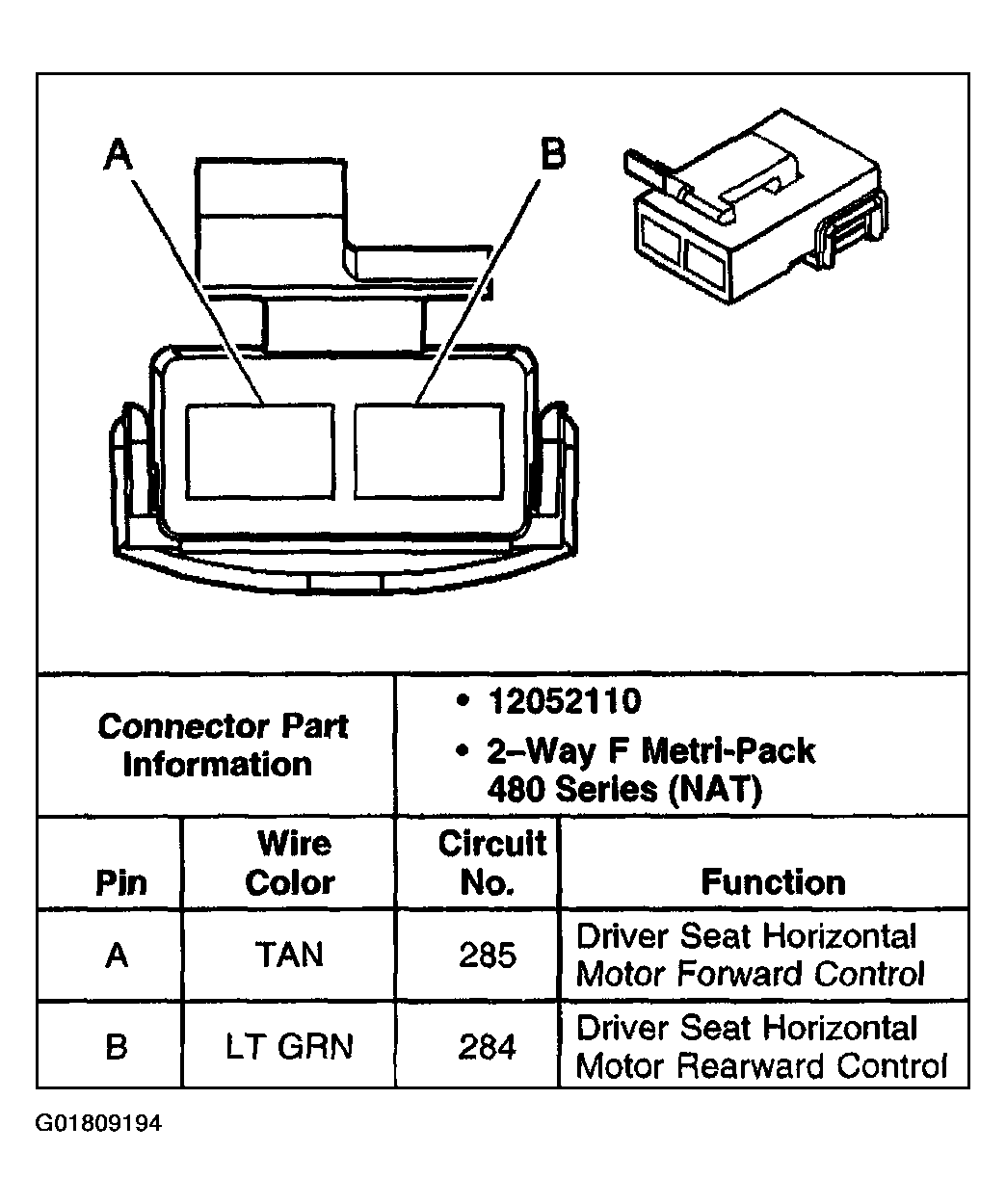

Fig 52: Seat Horizontal Motor - Driver

G01809194

Courtesy of GENERAL MOTORS CORP.

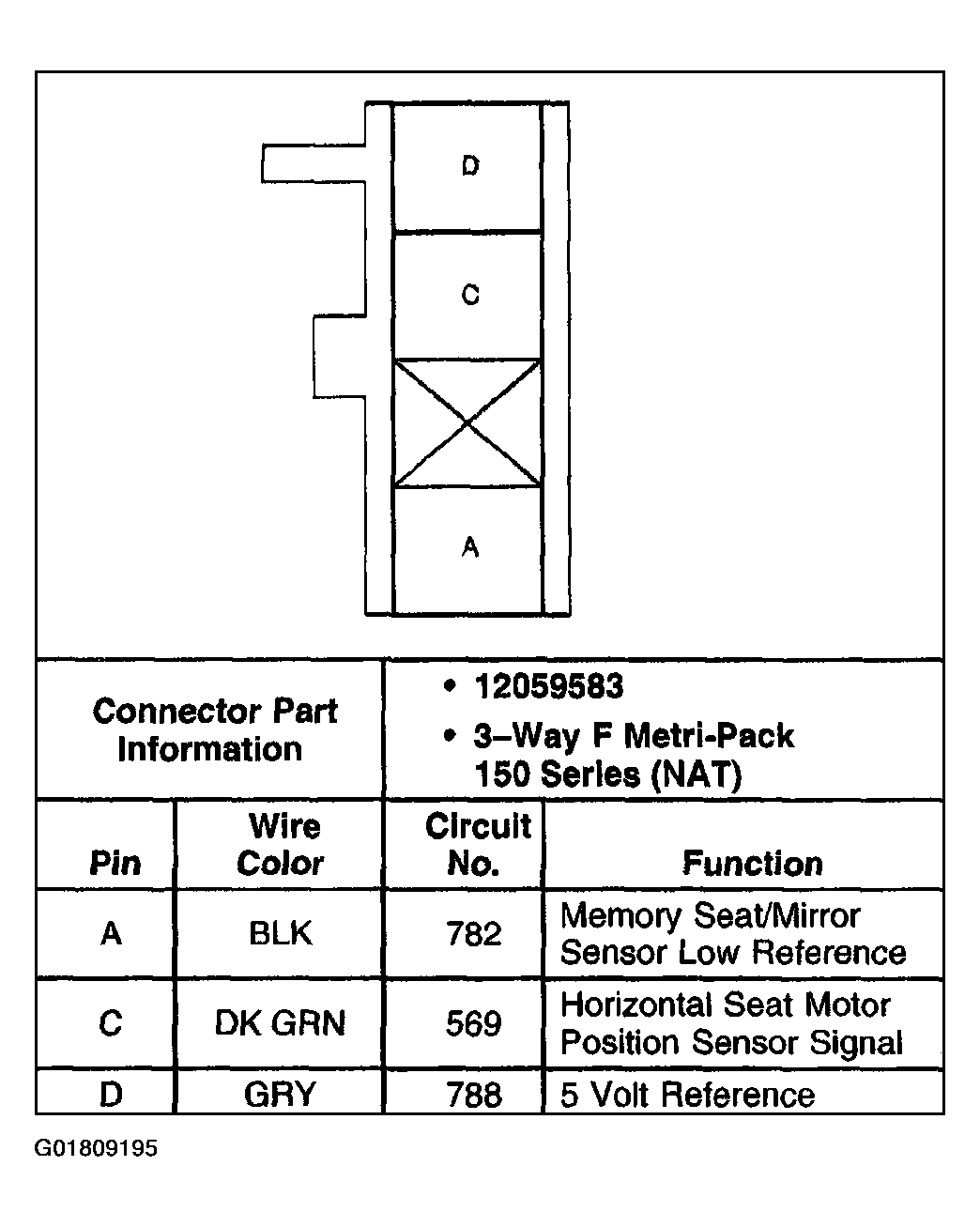

Fig 53: Seat Horizontal Position Sensor - Driver

G01809195

Courtesy of GENERAL MOTORS CORP.

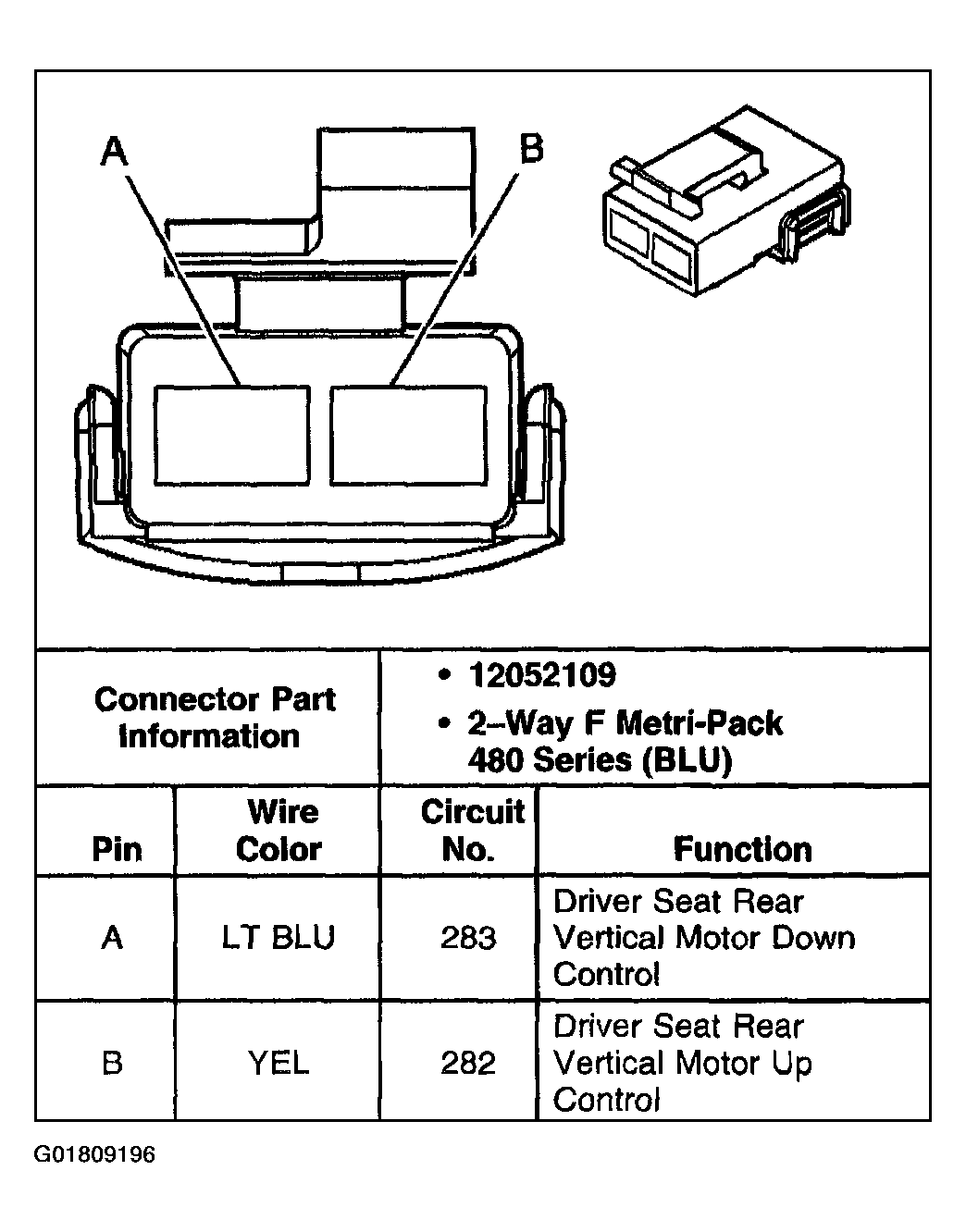

Fig 54: Seat Rear Vertical Motor - Driver

G01809196

Courtesy of GENERAL MOTORS CORP.

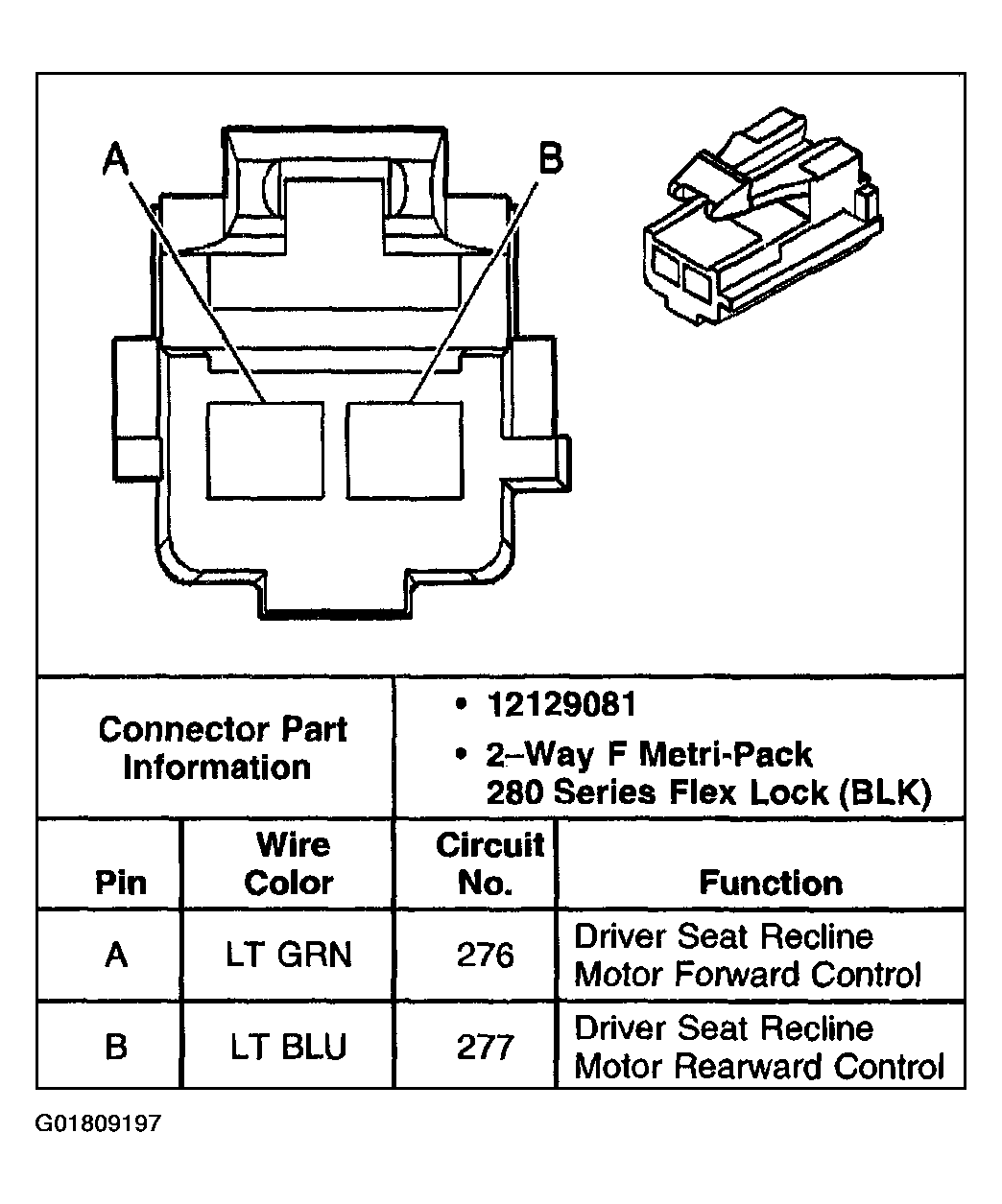

Fig 55: Seat Recline Motor - Driver

G01809197

Courtesy of GENERAL MOTORS CORP.

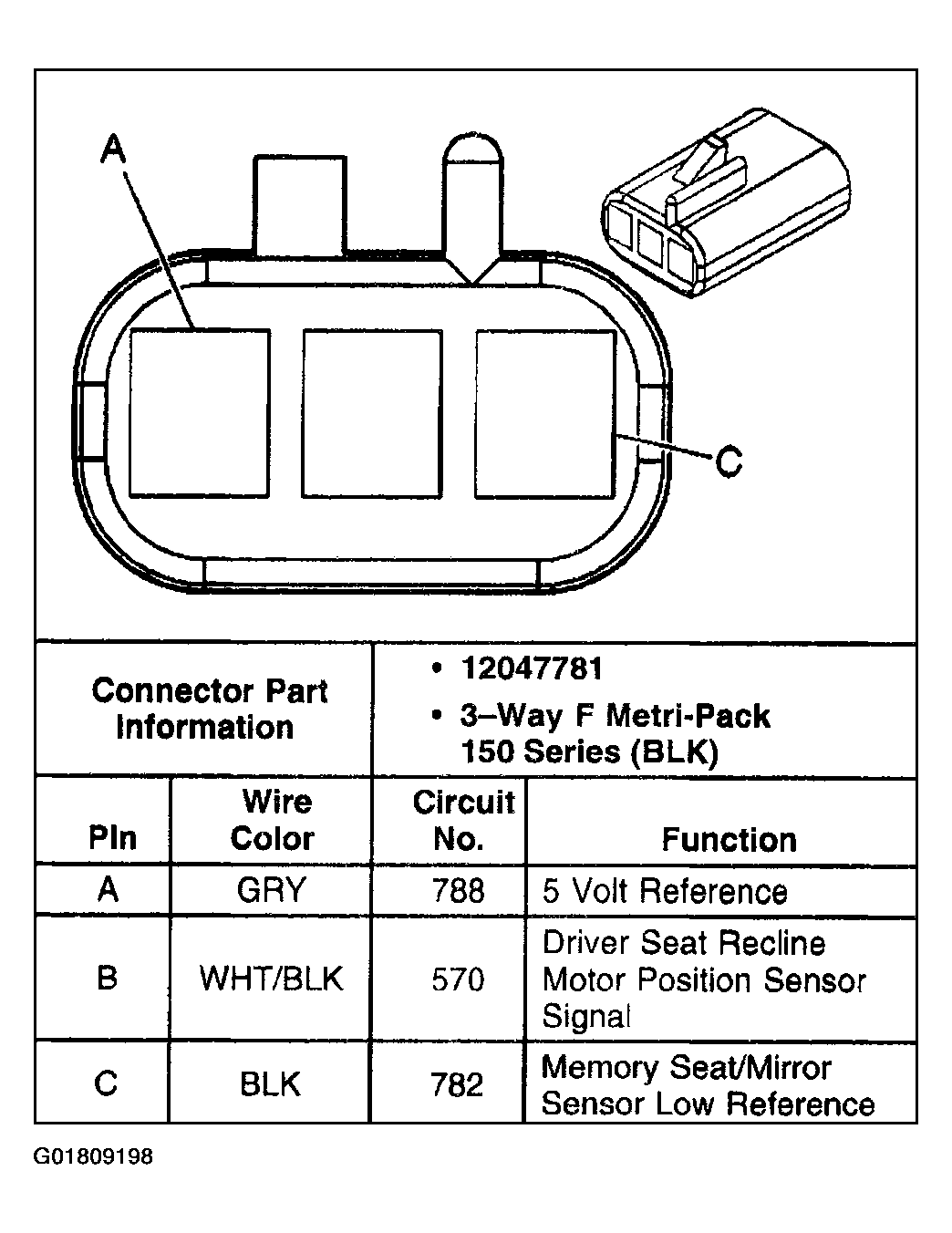

Fig 56: Seat Recline Position Sensor - Driver

G01809198

Courtesy of GENERAL MOTORS CORP.

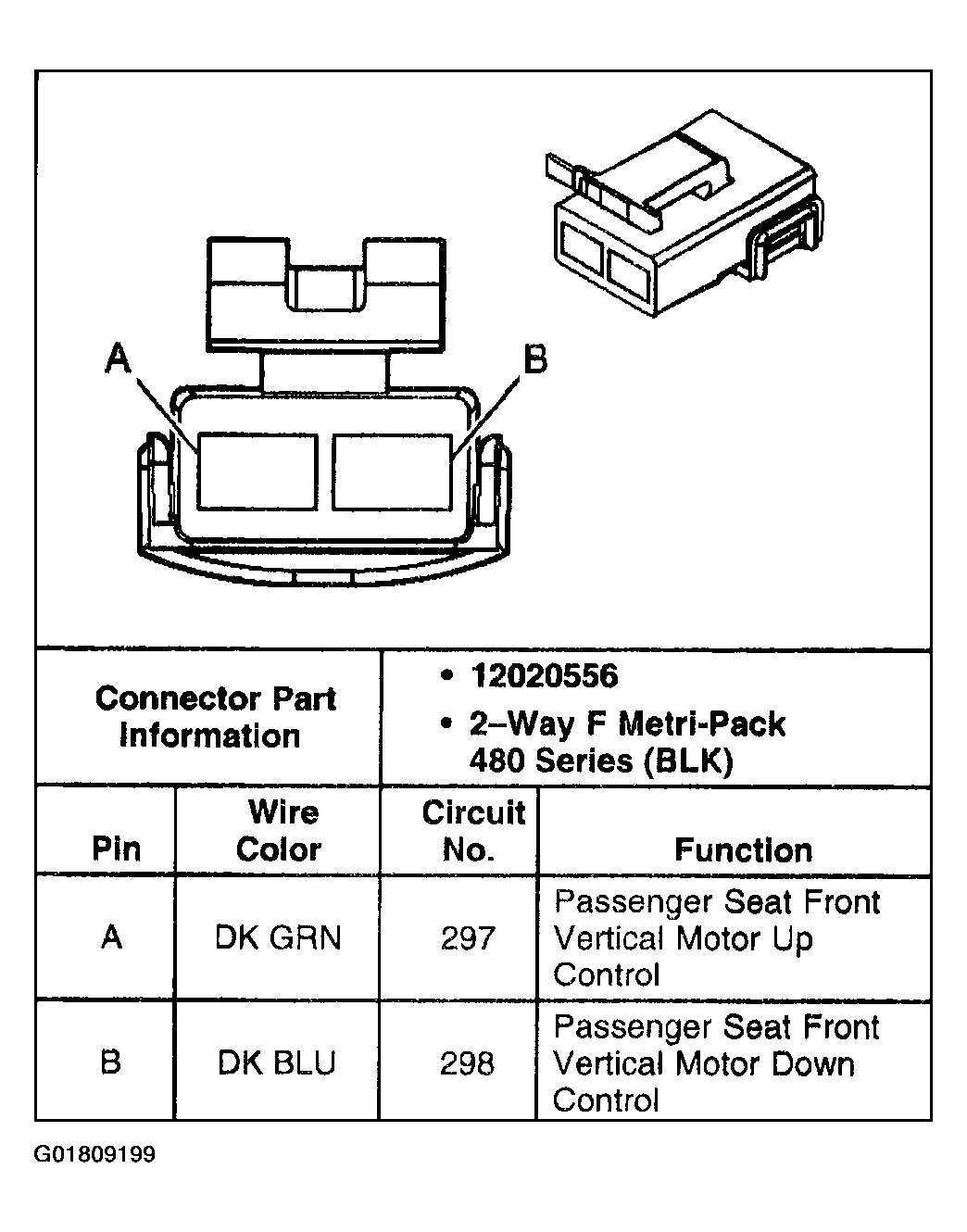

Fig 57: Seat Front Vertical Motor - Front Passenger

G01809199

Courtesy of GENERAL MOTORS CORP.

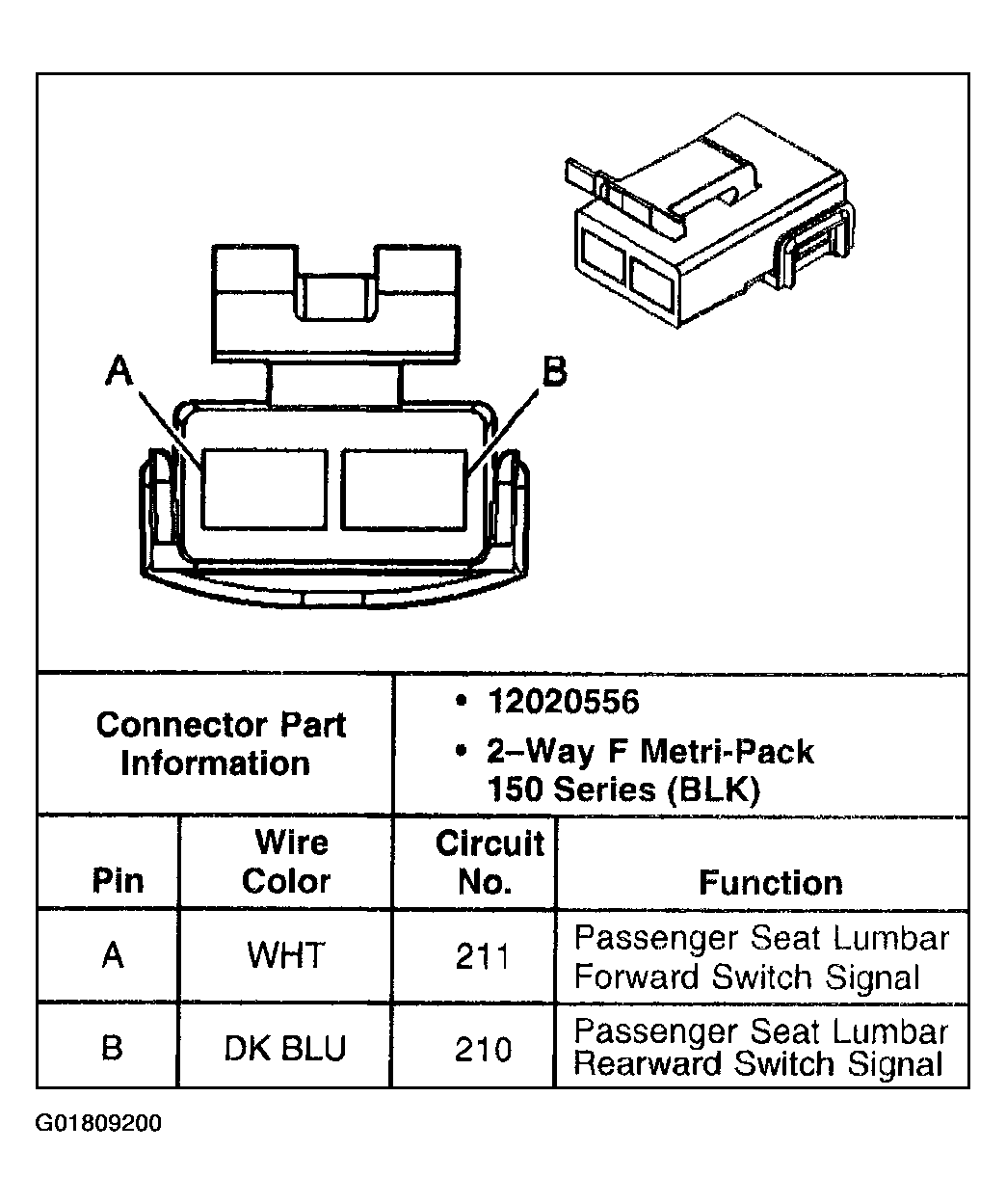

Fig 58: Seat Lumbar Horizontal Motor - Front Passenger

G01809200

Courtesy of GENERAL MOTORS CORP.

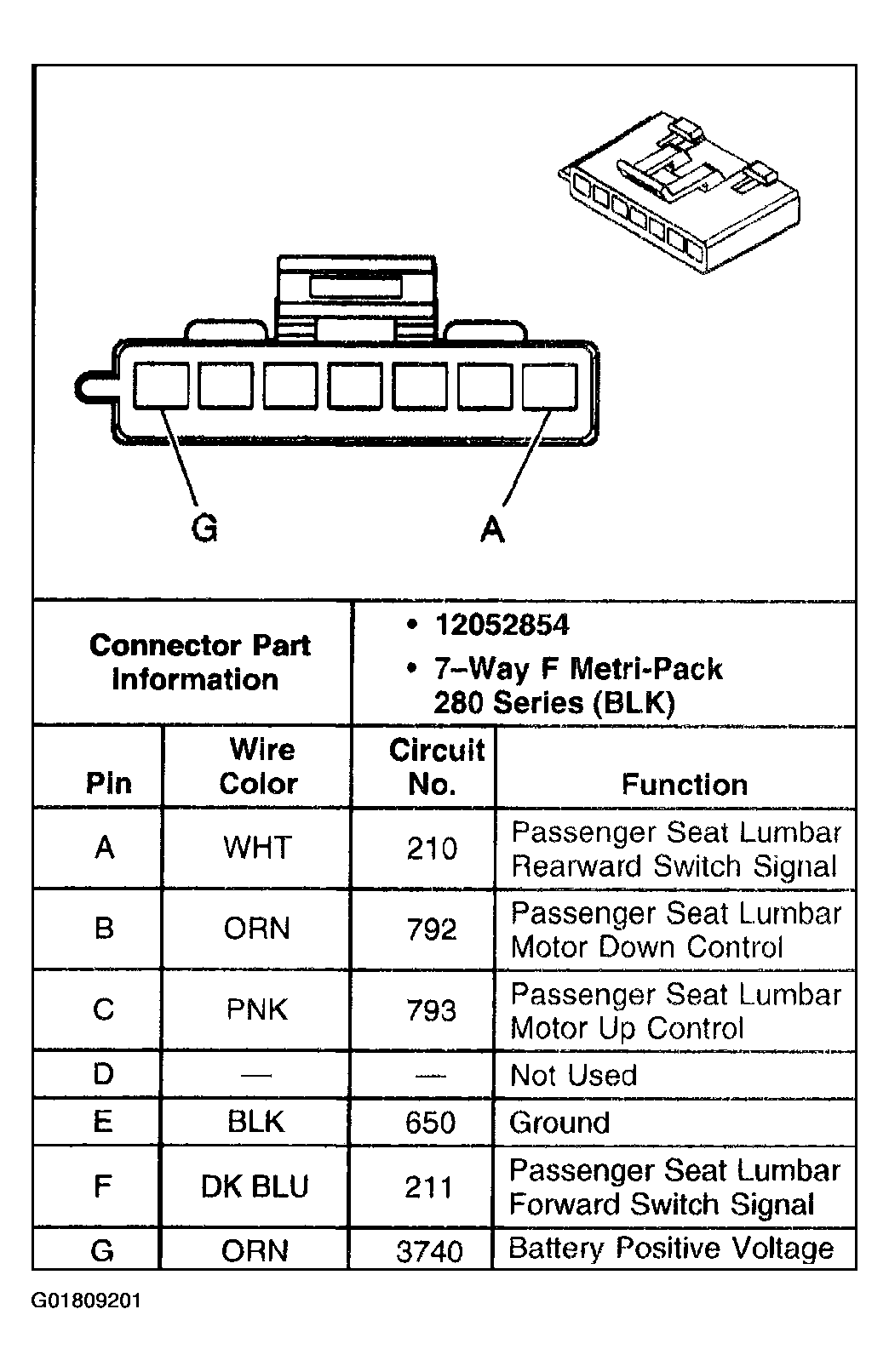

Fig 59: Seat Lumbar Switch - Front Passenger (AL2)

G01809201

Courtesy of GENERAL MOTORS CORP.

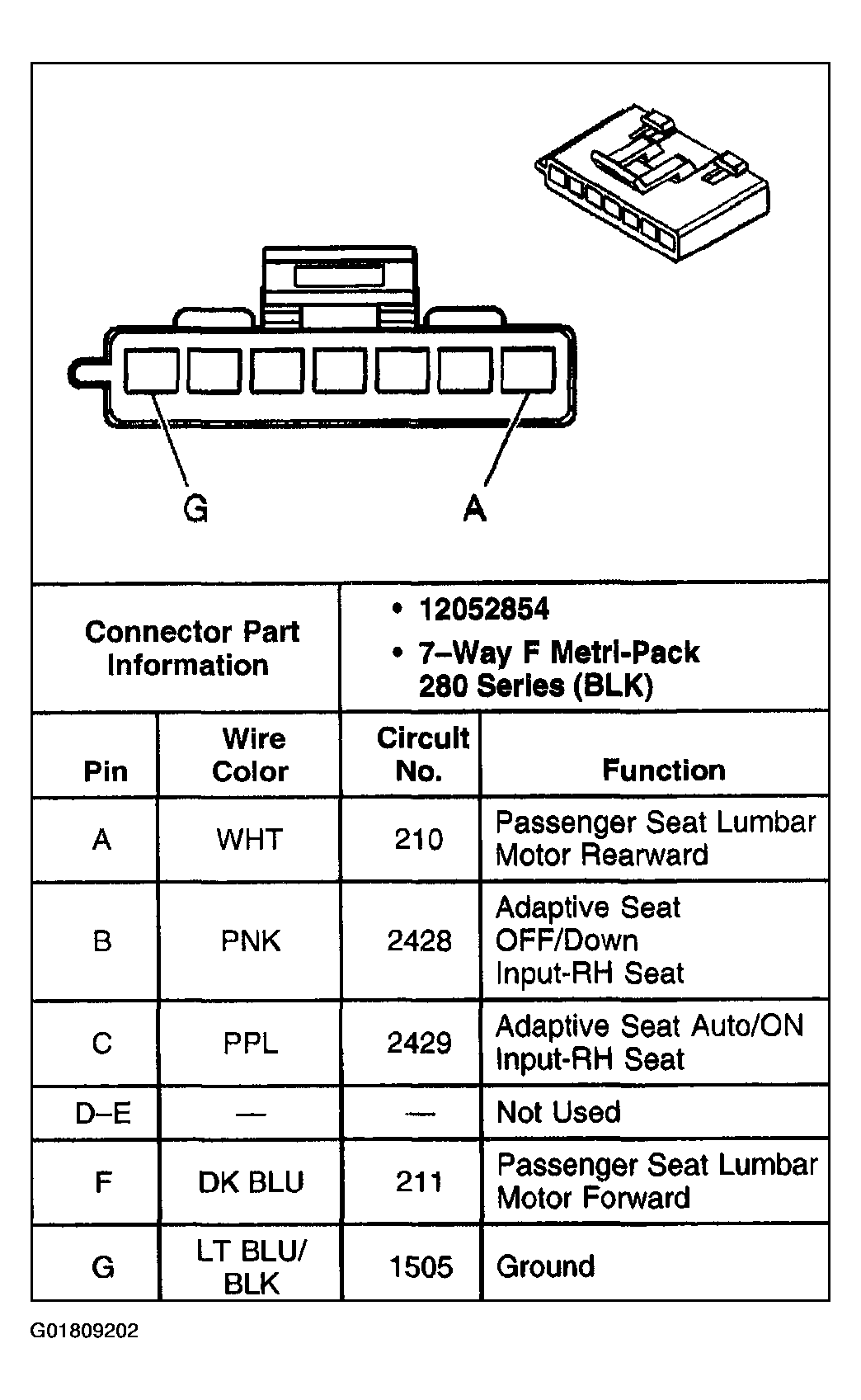

Fig 60: Seat Lumbar Switch - Front Passenger (AC9)

G01809202

Courtesy of GENERAL MOTORS CORP.

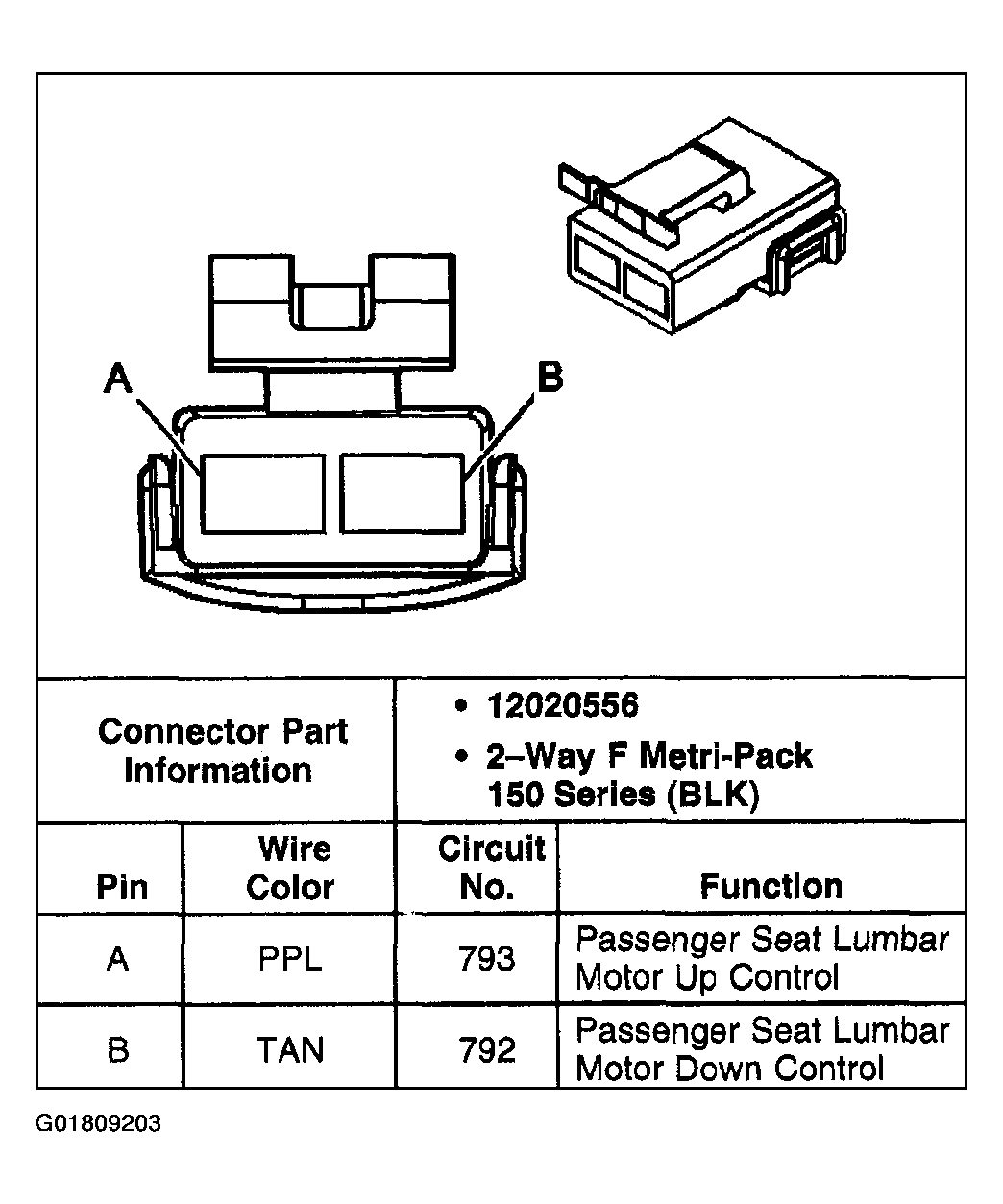

Fig 61: Seat Lumbar Vertical Motor - Front Passenger

G01809203

Courtesy of GENERAL MOTORS CORP.

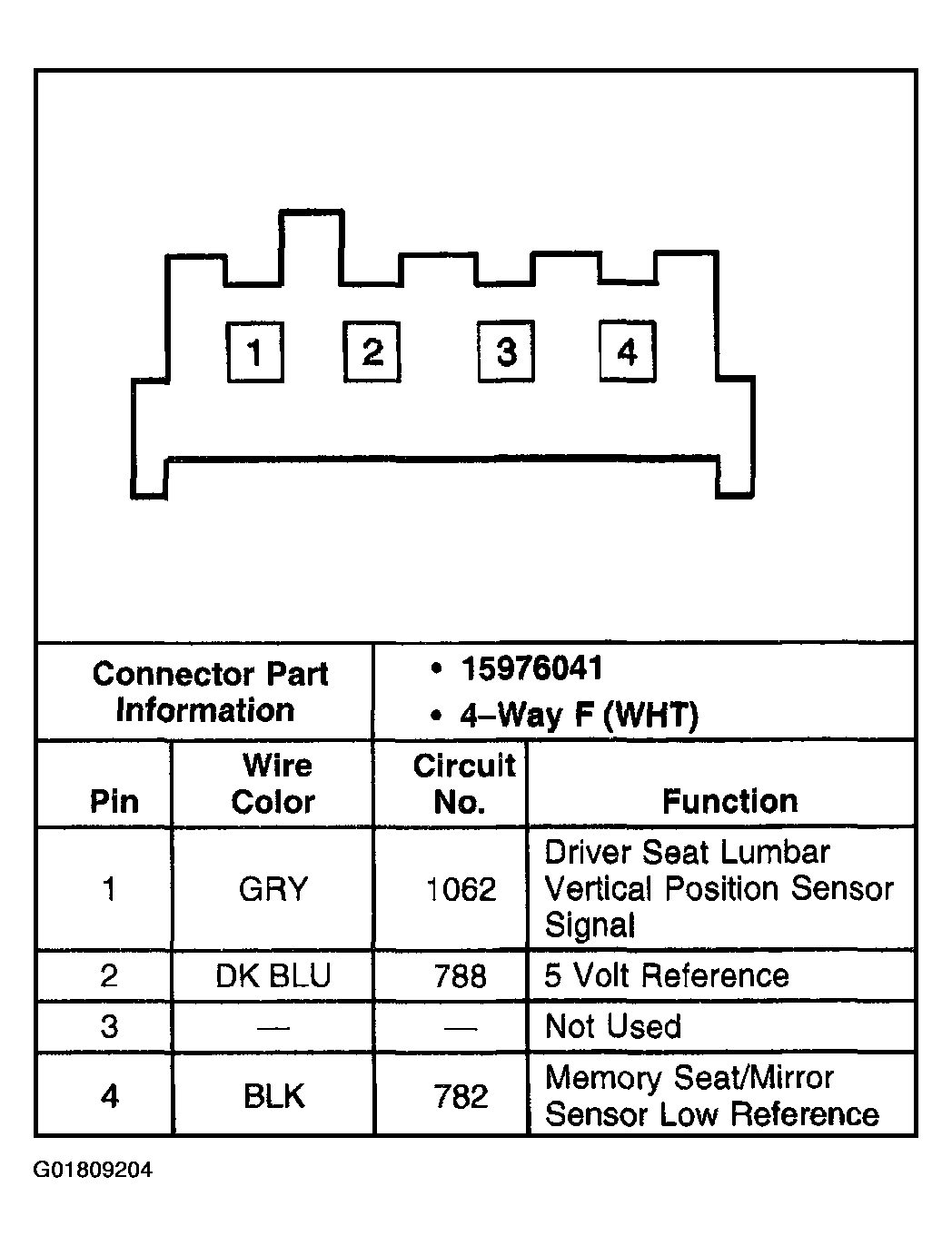

Fig 62: Seat Lumbar Vertical Position Sensor - Front Passenger

G01809204

Courtesy of GENERAL MOTORS CORP.

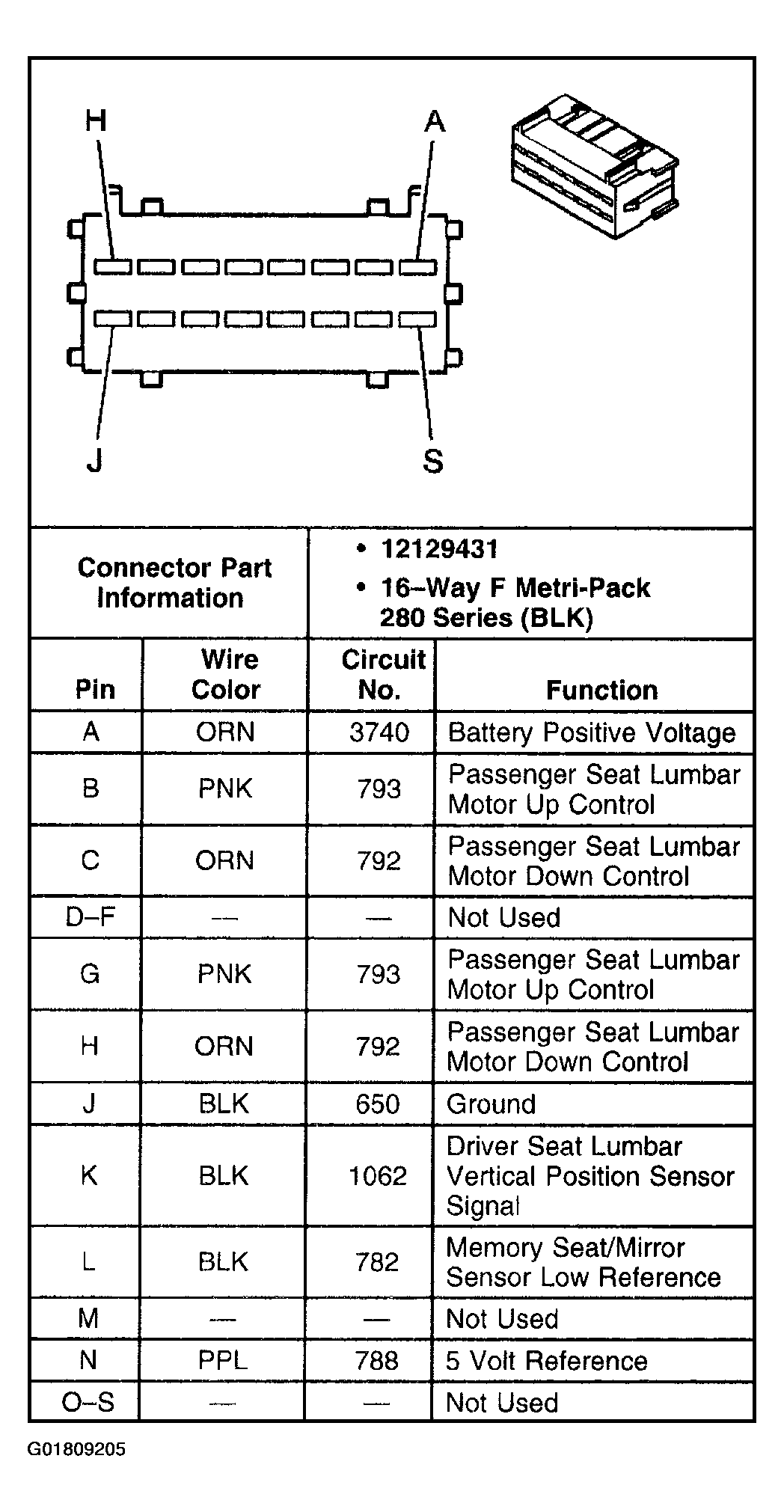

Fig 63: Seat Massage Module - Front Passenger (AM3)

G01809205

Courtesy of GENERAL MOTORS CORP.

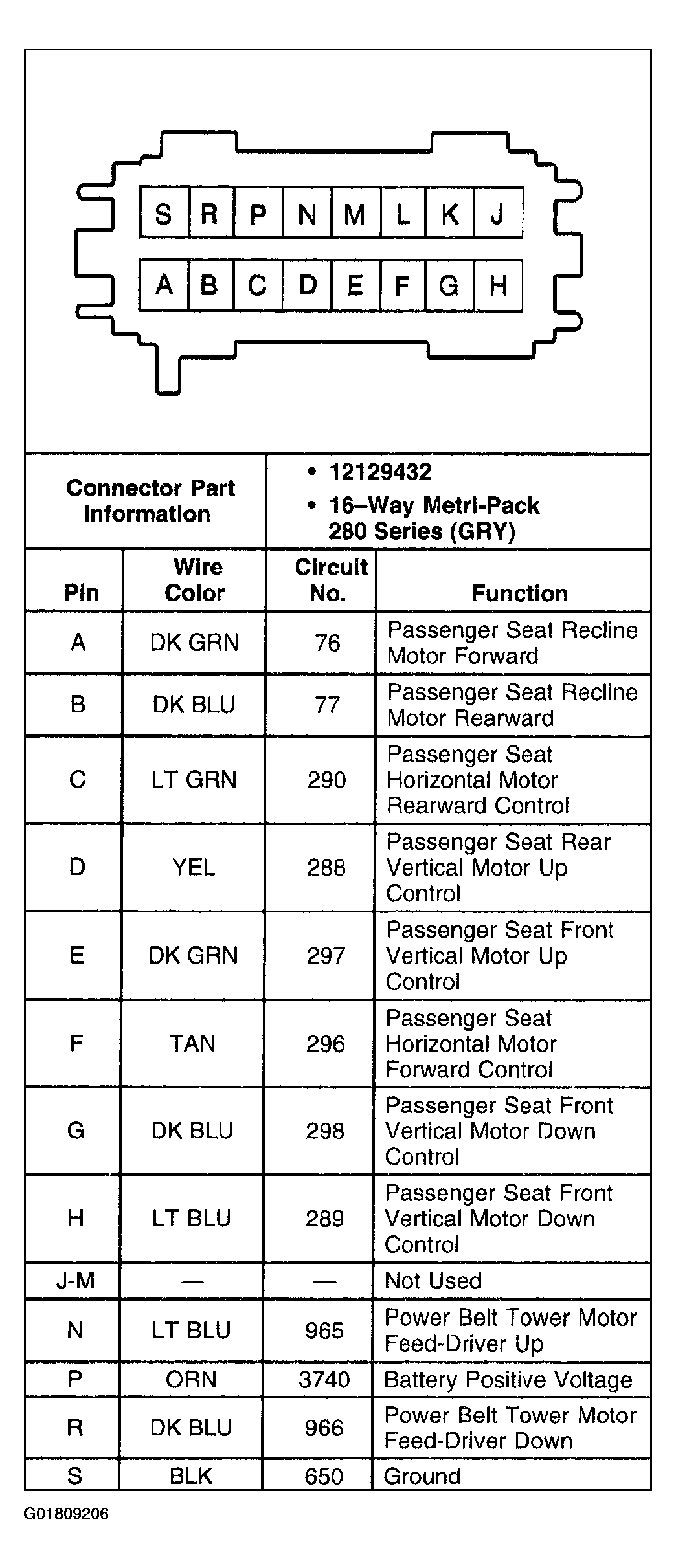

Fig 64: Seat Adjuster Switch - Front Passenger

G01809206

Courtesy of GENERAL MOTORS CORP.

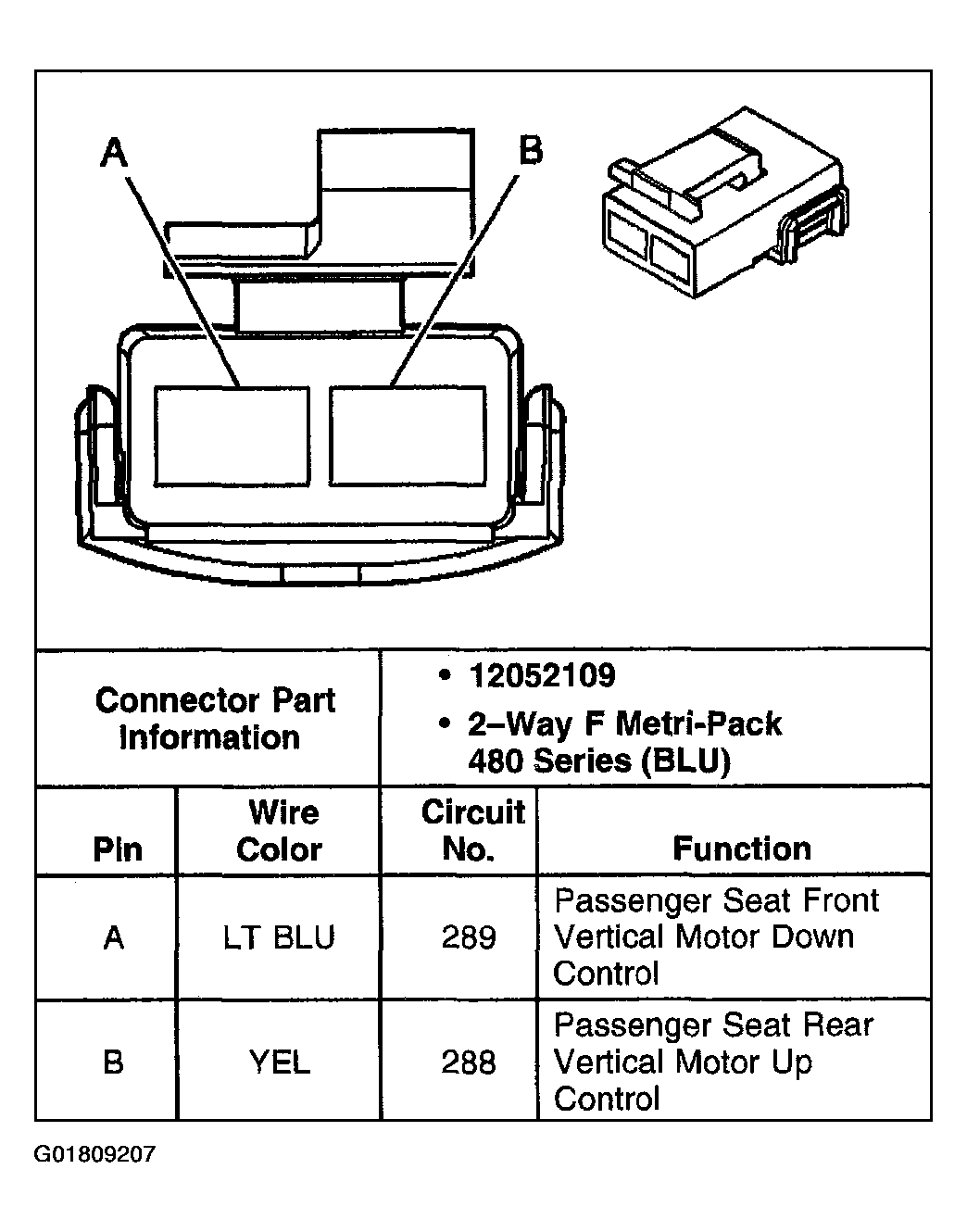

Fig 65: Seat Rear Vertical Motor - Front Passenger

G01809207

Courtesy of GENERAL MOTORS CORP.

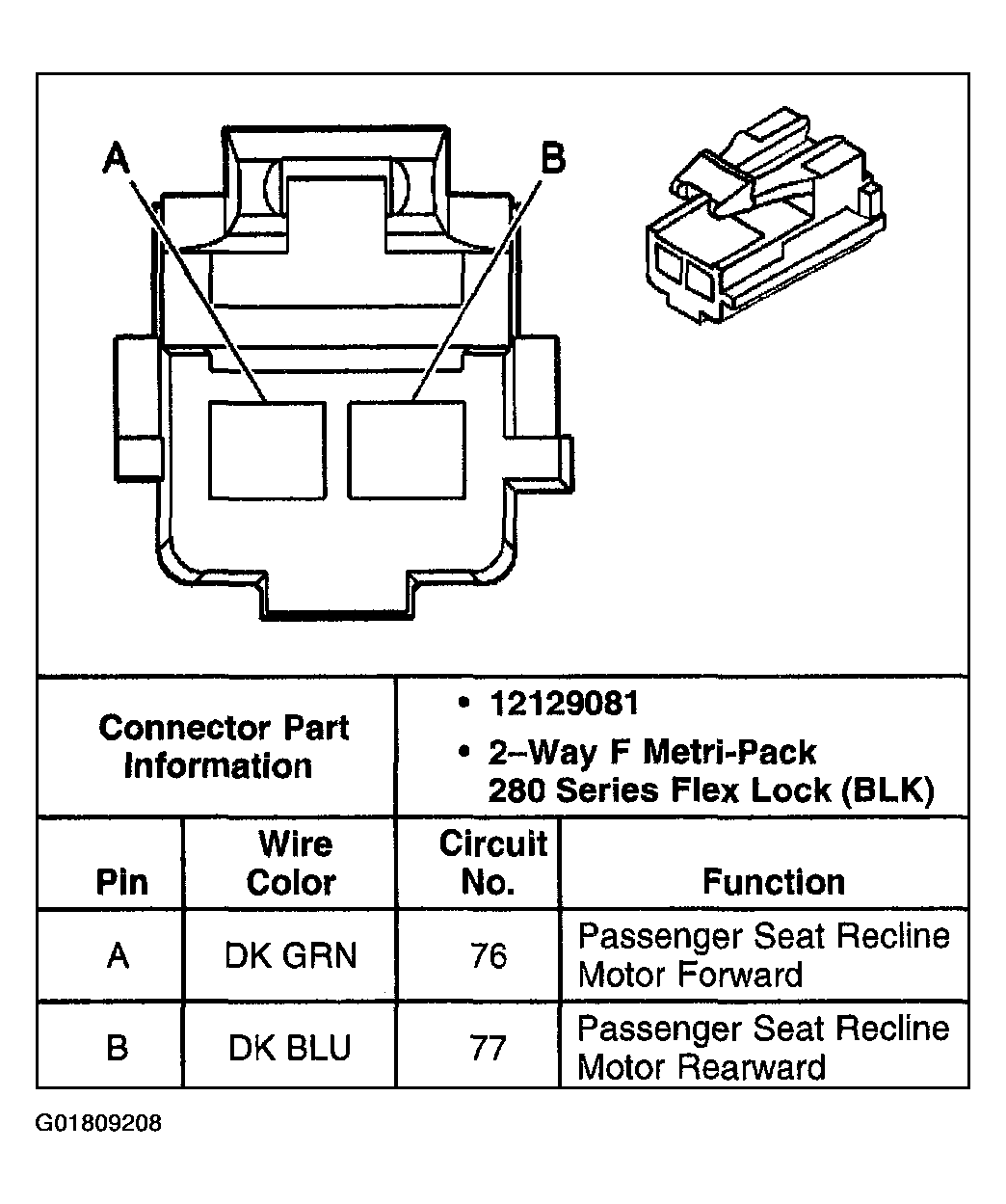

Fig 66: Seat Recline Motor - Front Passenger

G01809208

Courtesy of GENERAL MOTORS CORP.

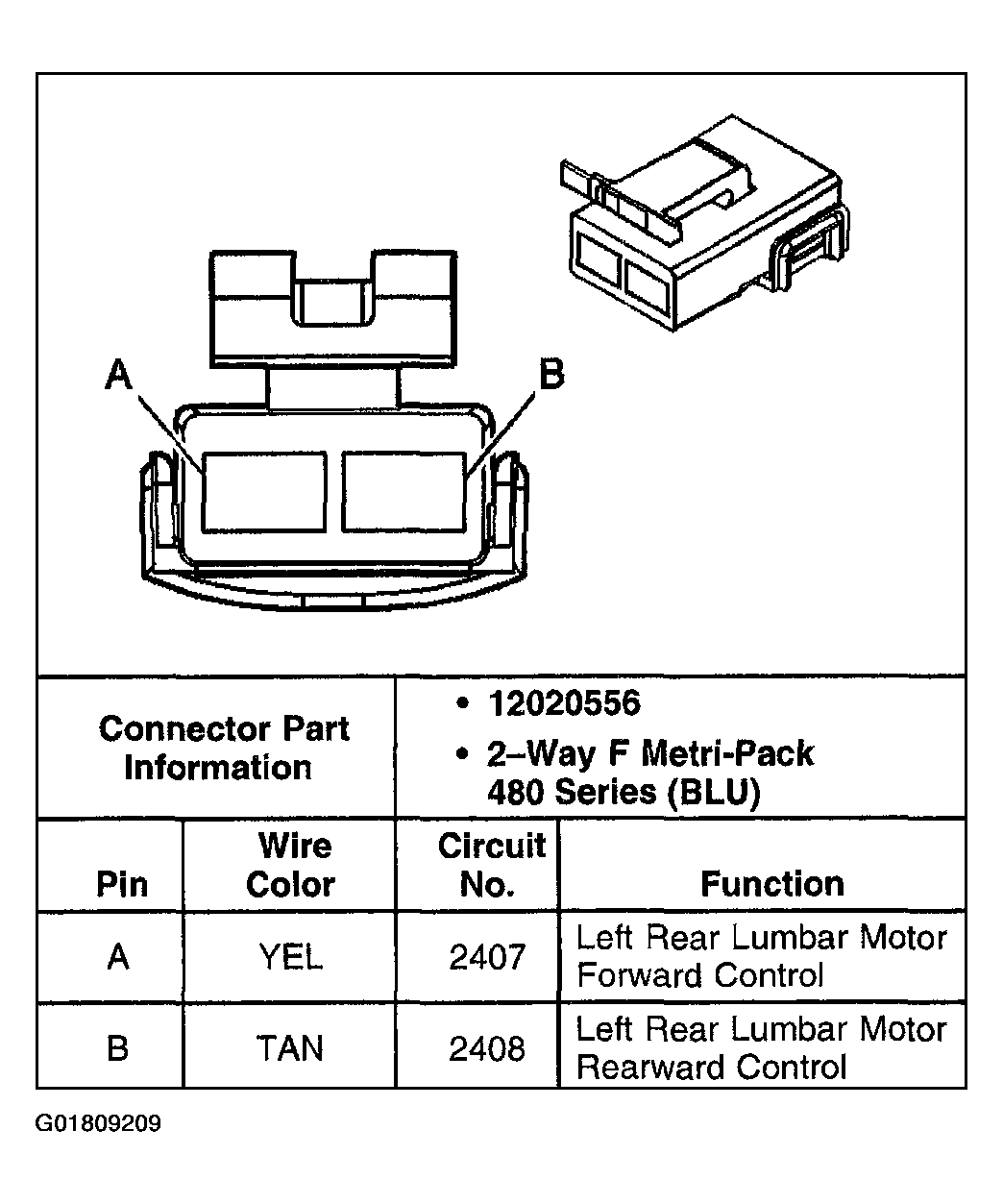

Fig 67: Seat Lumbar Horizontal Motor - LR

G01809209

Courtesy of GENERAL MOTORS CORP.

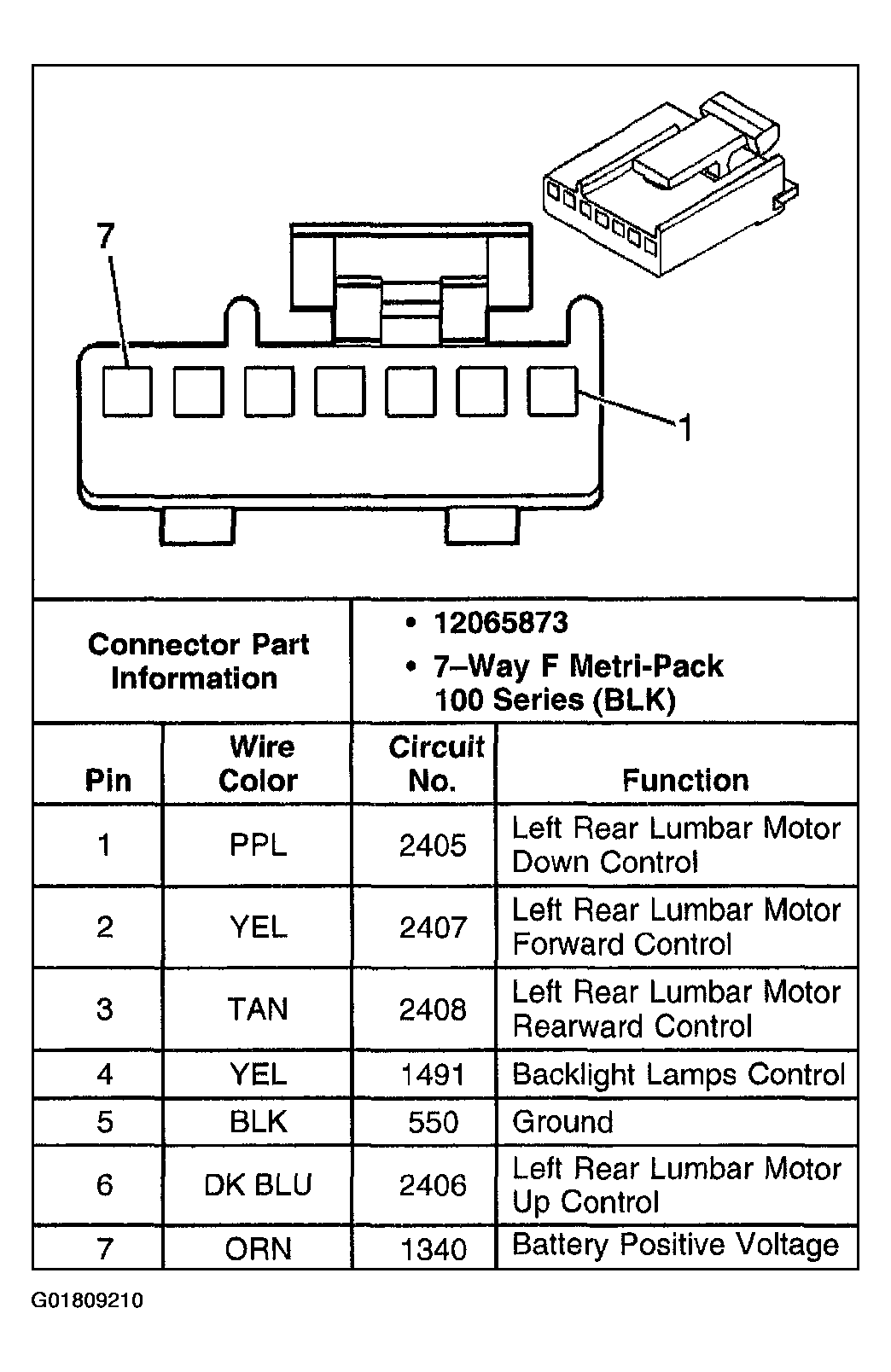

Fig 68: Seat Lumbar Switch - LR

G01809210

Courtesy of GENERAL MOTORS CORP.

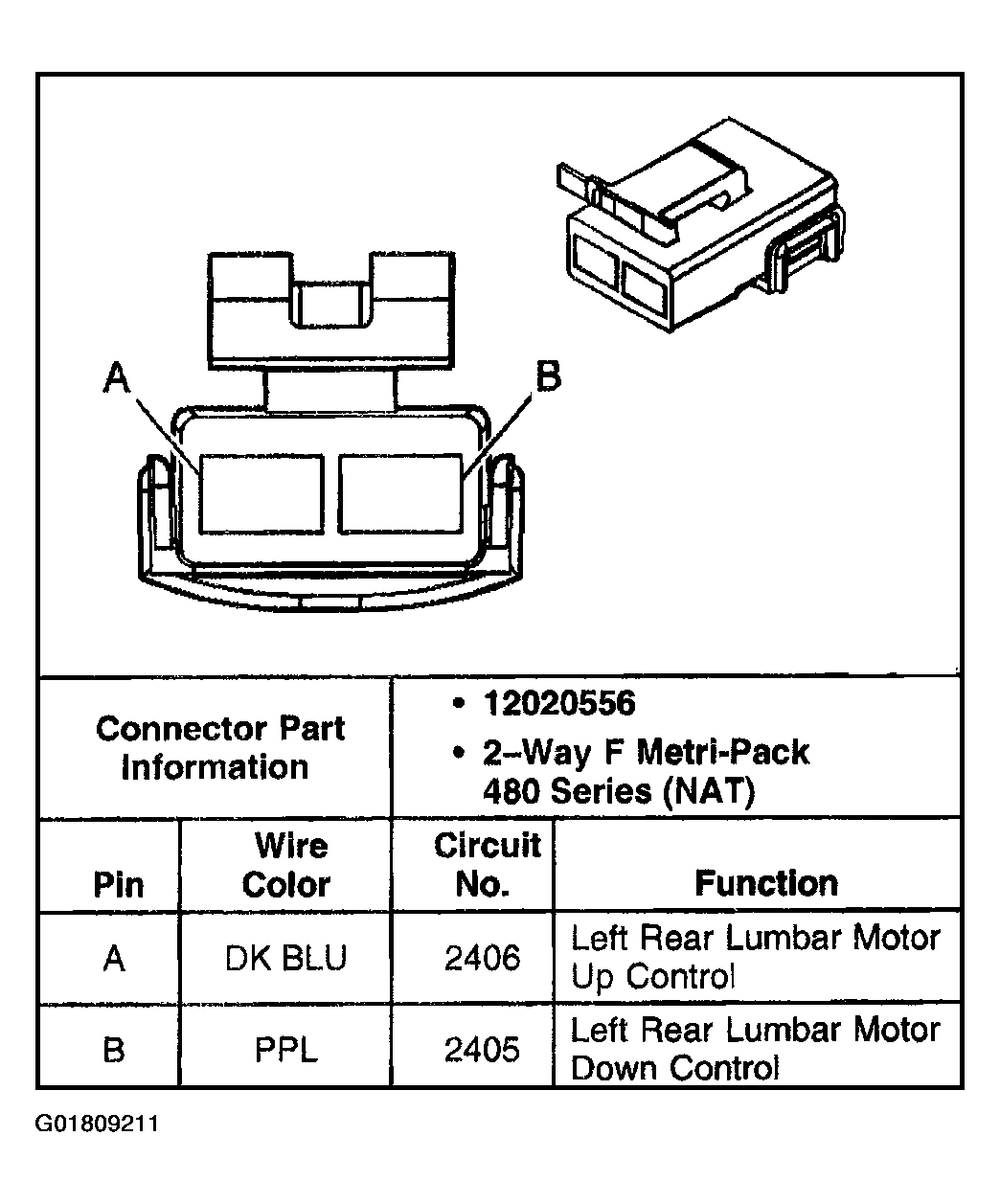

Fig 69: Seat Lumbar Vertical Motor - LR

G01809211

Courtesy of GENERAL MOTORS CORP.

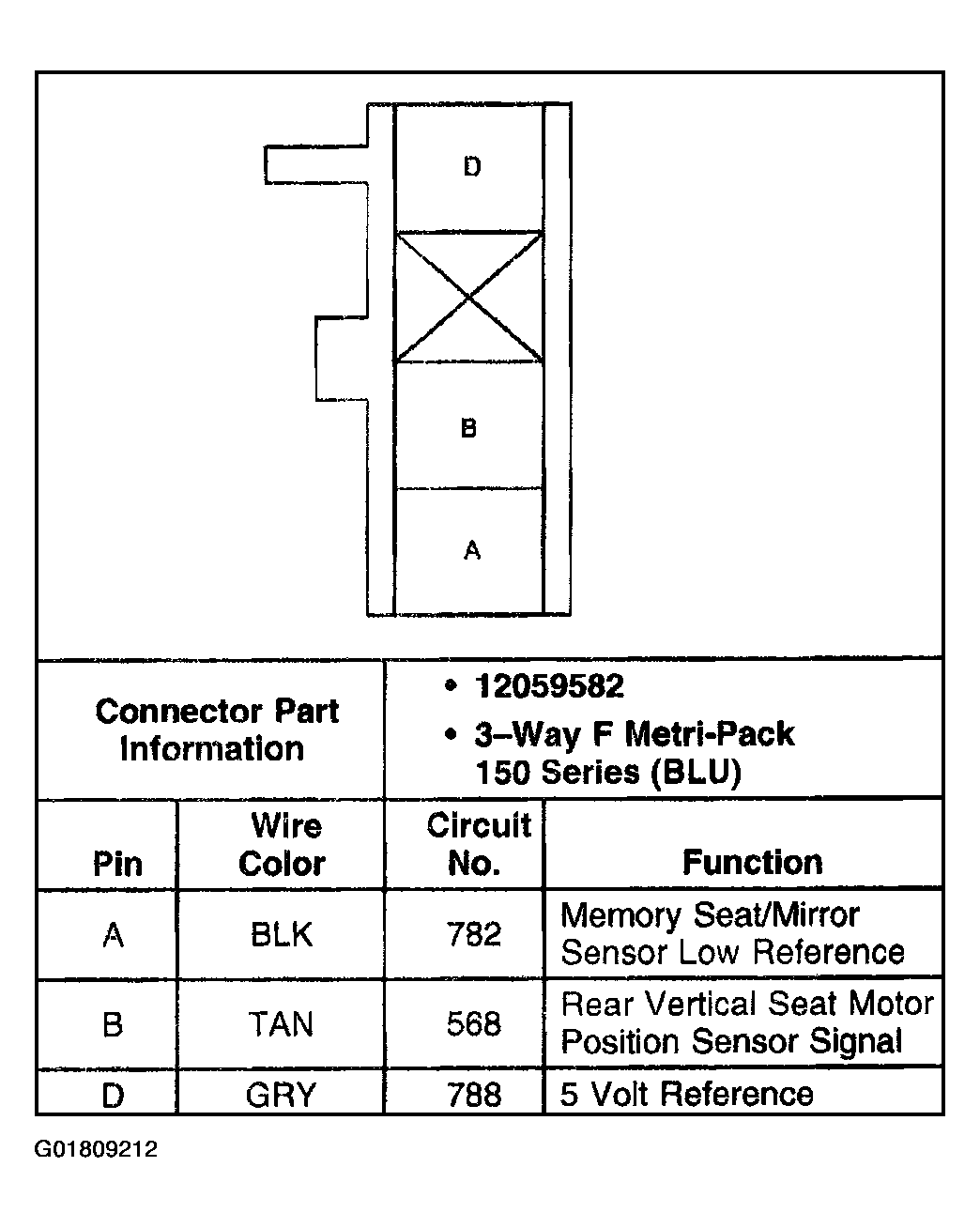

Fig 70: Seat Rear Vertical Position Sensor - LR

G01809212

Courtesy of GENERAL MOTORS CORP.

Fig 71: Seat Lumbar Horizontal Motor - RR

G01809213

Courtesy of GENERAL MOTORS CORP.

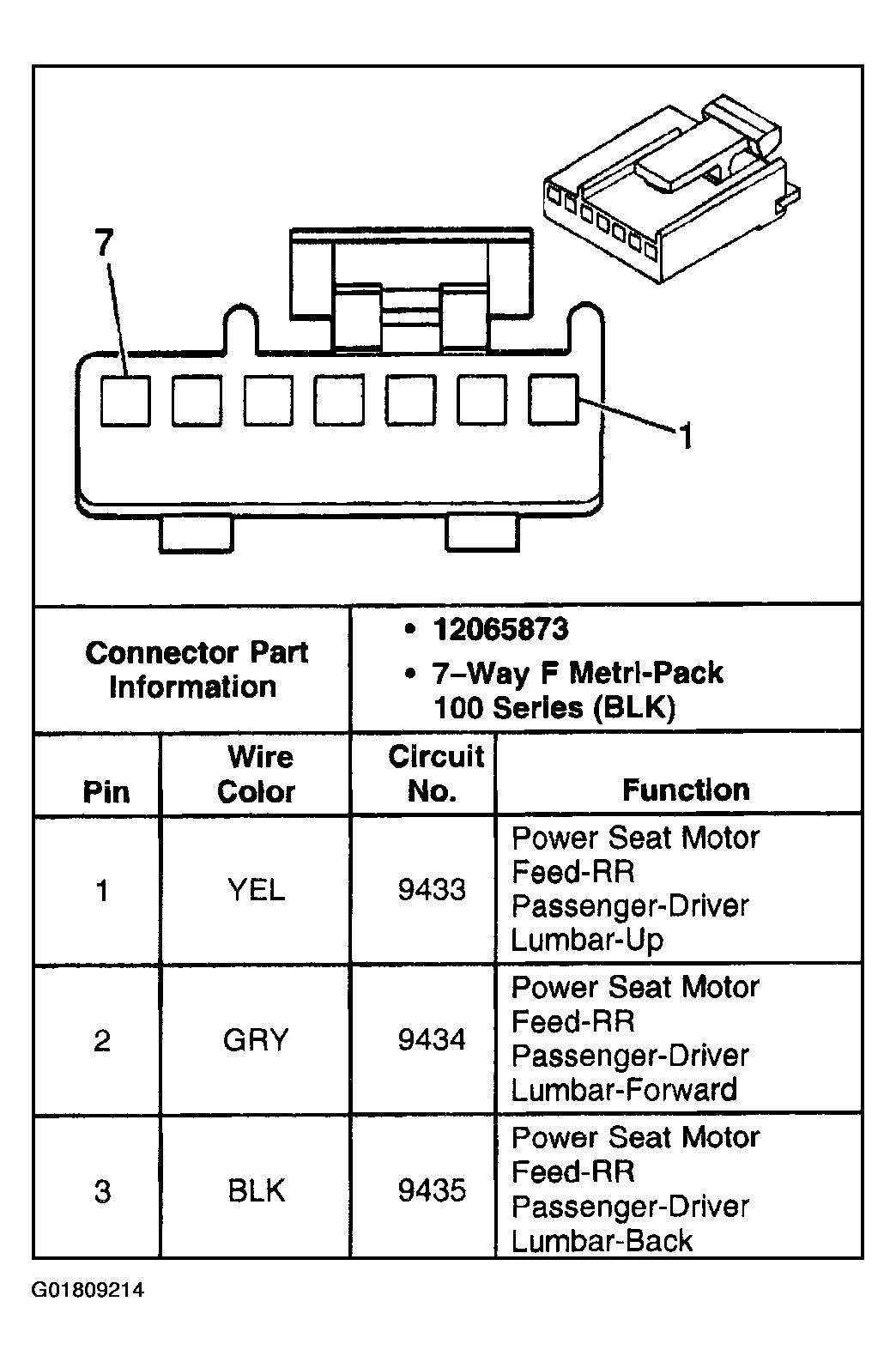

Fig 72: Seat Lumbar Switch - RR (1 Of 2)

G01809214

Courtesy of GENERAL MOTORS CORP.

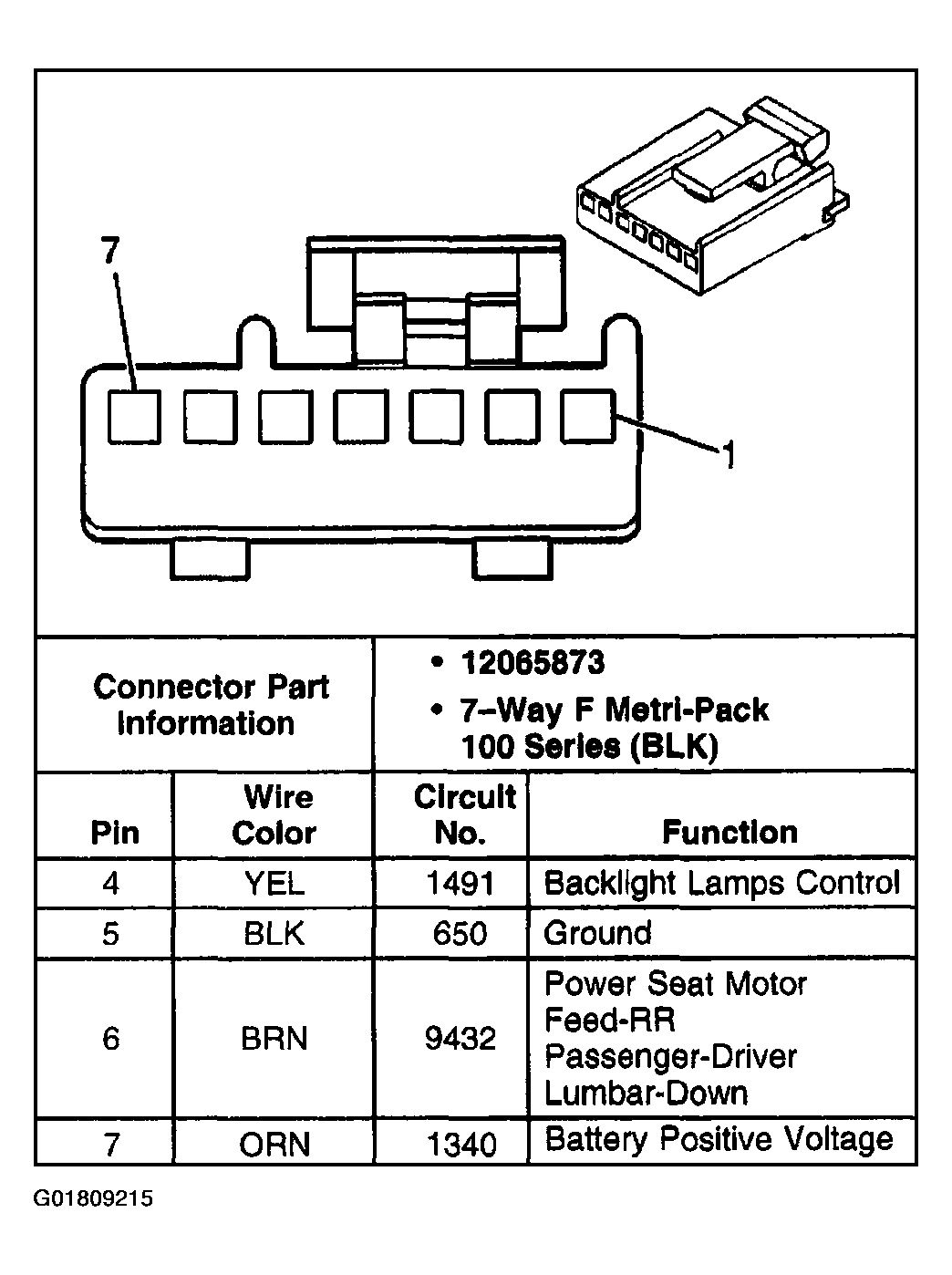

Fig 73: Seat Lumbar Switch - RR (2 Of 2)

G01809215

Courtesy of GENERAL MOTORS CORP.

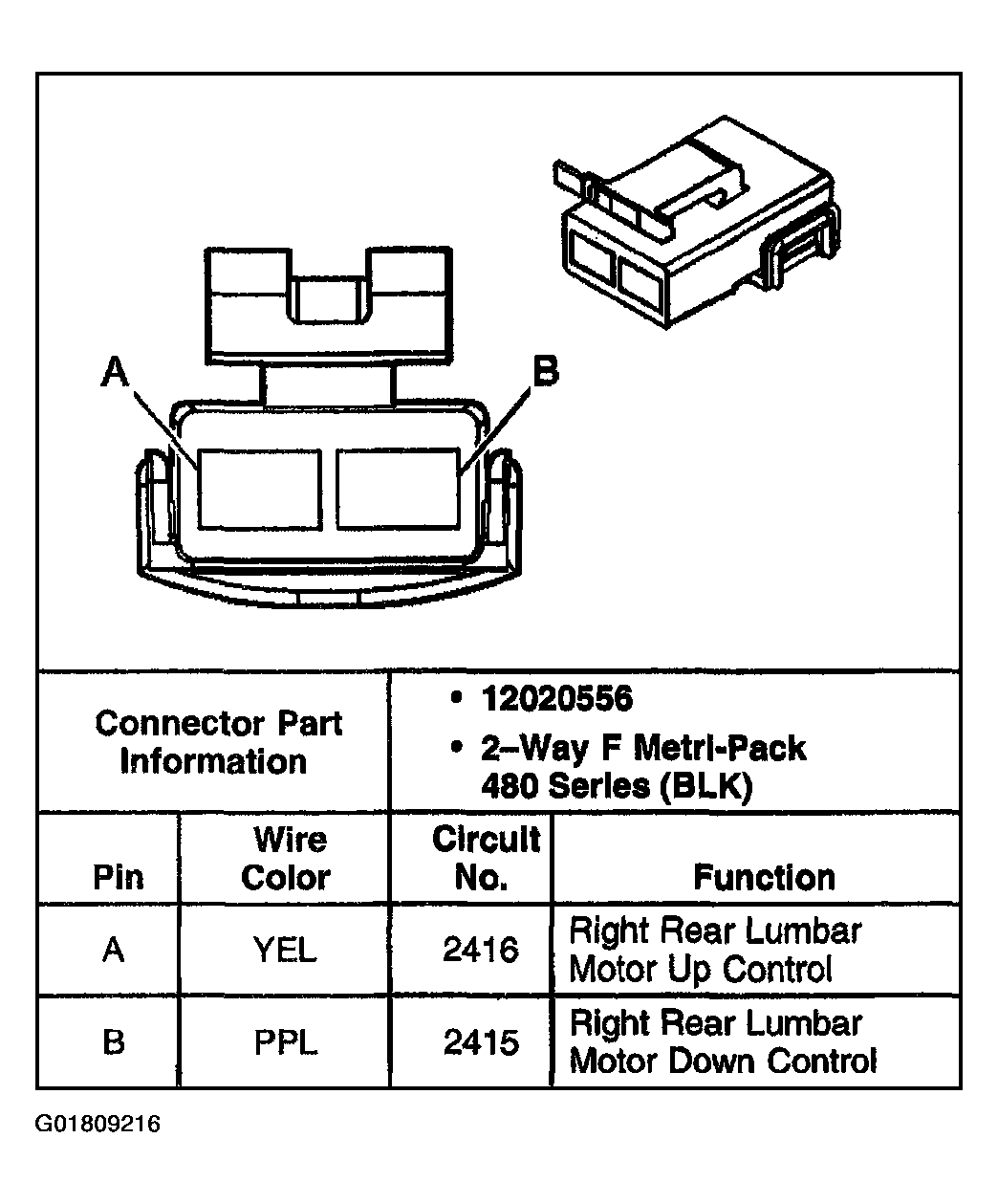

Fig 74: Seat Lumbar Vertical Motor - RR

G01809216

Courtesy of GENERAL MOTORS CORP.
