Removal & Installation

NOTE: Retainer clip must be fully disengaged before switch plate is removed. Damage to switch plate could result.

Insert a flat-bladed tool under rear edge of front window switch plate. See Fig 1 or Fig 2 . Push tool firmly towards switch plate, in order to disengage retainer. Lift up on rear of switch plate in order to remove switch assembly from door trim panel. Disconnect harness connectors. See Fig 3 or Fig 4 . Remove switch assembly. Remove appropriate switch from switch plate by disengaging side snap walls with small flat bladed tool. To install, reverse removal procedure.

Fig 1: Removing Driver Door Switch Assembly Retainer Clip

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Passenger Door Window Switch & Tool Insertion Location (Other Doors Similar)

Courtesy of GENERAL MOTORS CORP.

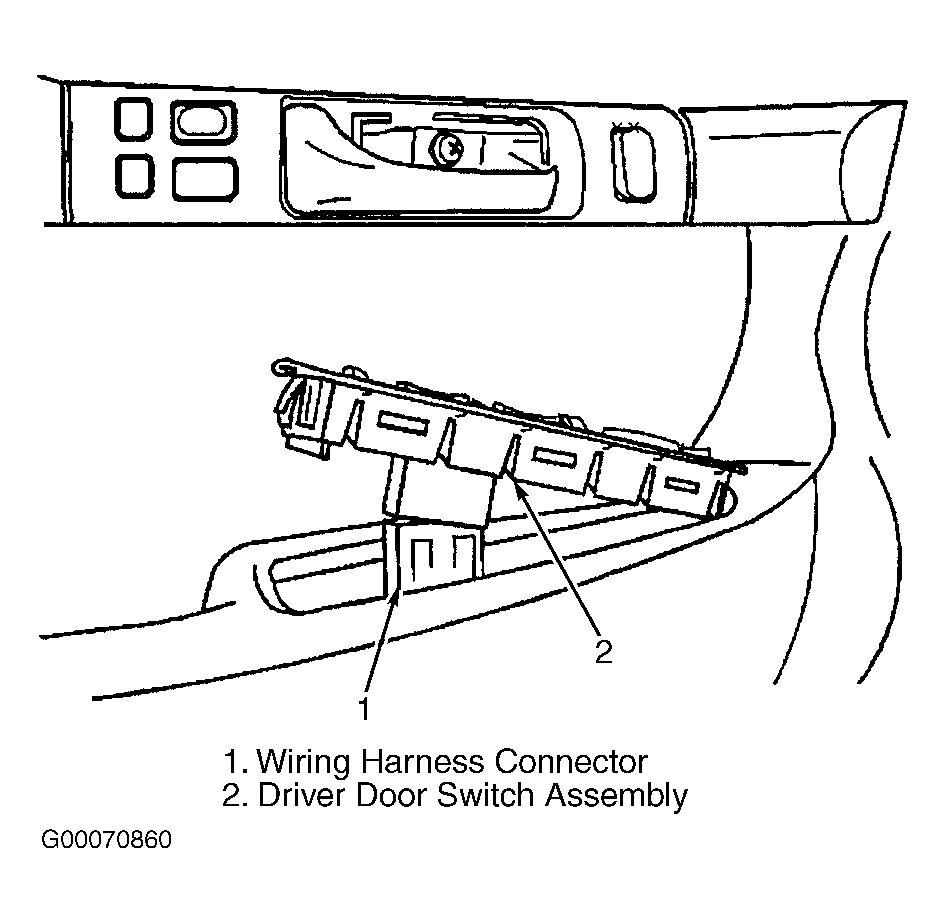

Fig 3: Removing Driver Door Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Passenger Window Switch Wiring Harness Connector Location (Other Doors Similar)

Courtesy of GENERAL MOTORS CORP.
