Installation Procedure

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat back frame to the seat back recliner hinge.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the recliner hinge bolts (1).

    Tighten

    Tighten the hinge bolts to 24 N.m (18 lb ft).

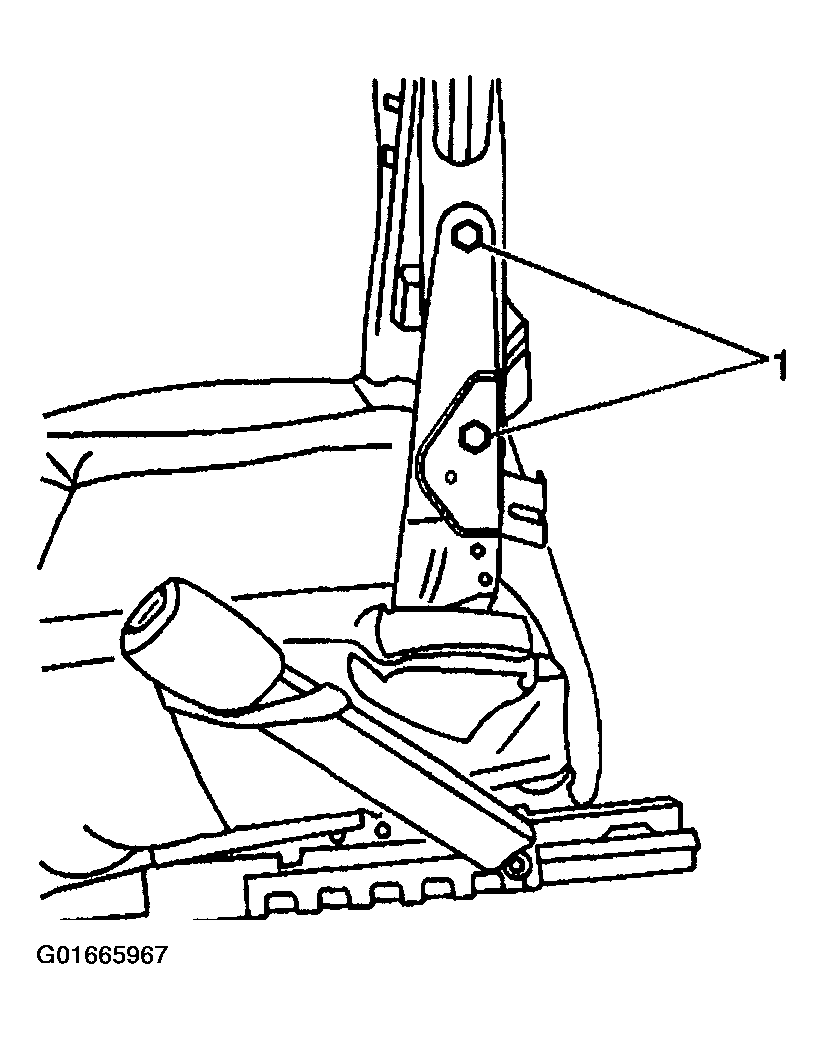

    Fig 1: Identifying Recliner Hinge Bolts
    G01665967Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors, if equipped with heated (KA1) or power lumbar seats (AL2).
  4. Install three new tie straps in order to secure the electrical harness (4) to the seat back frame (2).
  5. Secure the seat cushion cover by hooking the J-channel to the seat frame.
  6. Install the head restraint retainer guides to the new seat back frame.
  7. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement .
  8. With the aid of an assistant, install the seat. Refer to Seat Replacement - Bucket .
  9. Reposition the seat.

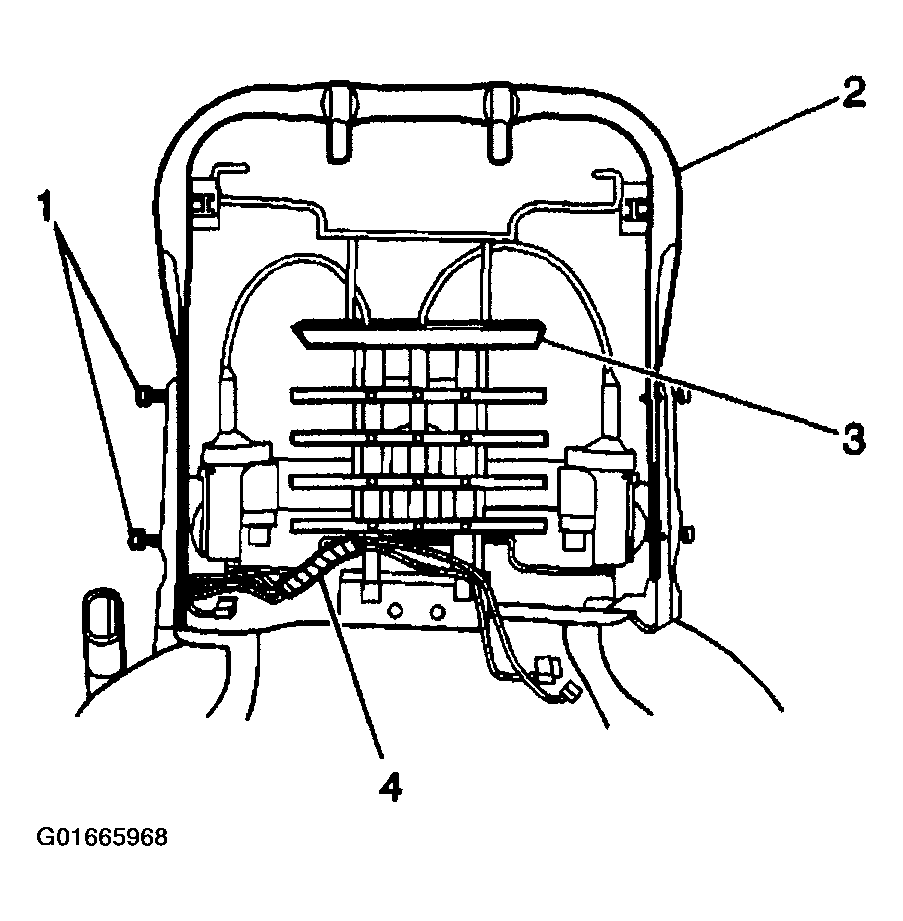

    Fig 2: View Of Seat Back Frame & Components
    G01665968Courtesy of GENERAL MOTORS CORP.
