Data Link Connector Schematics

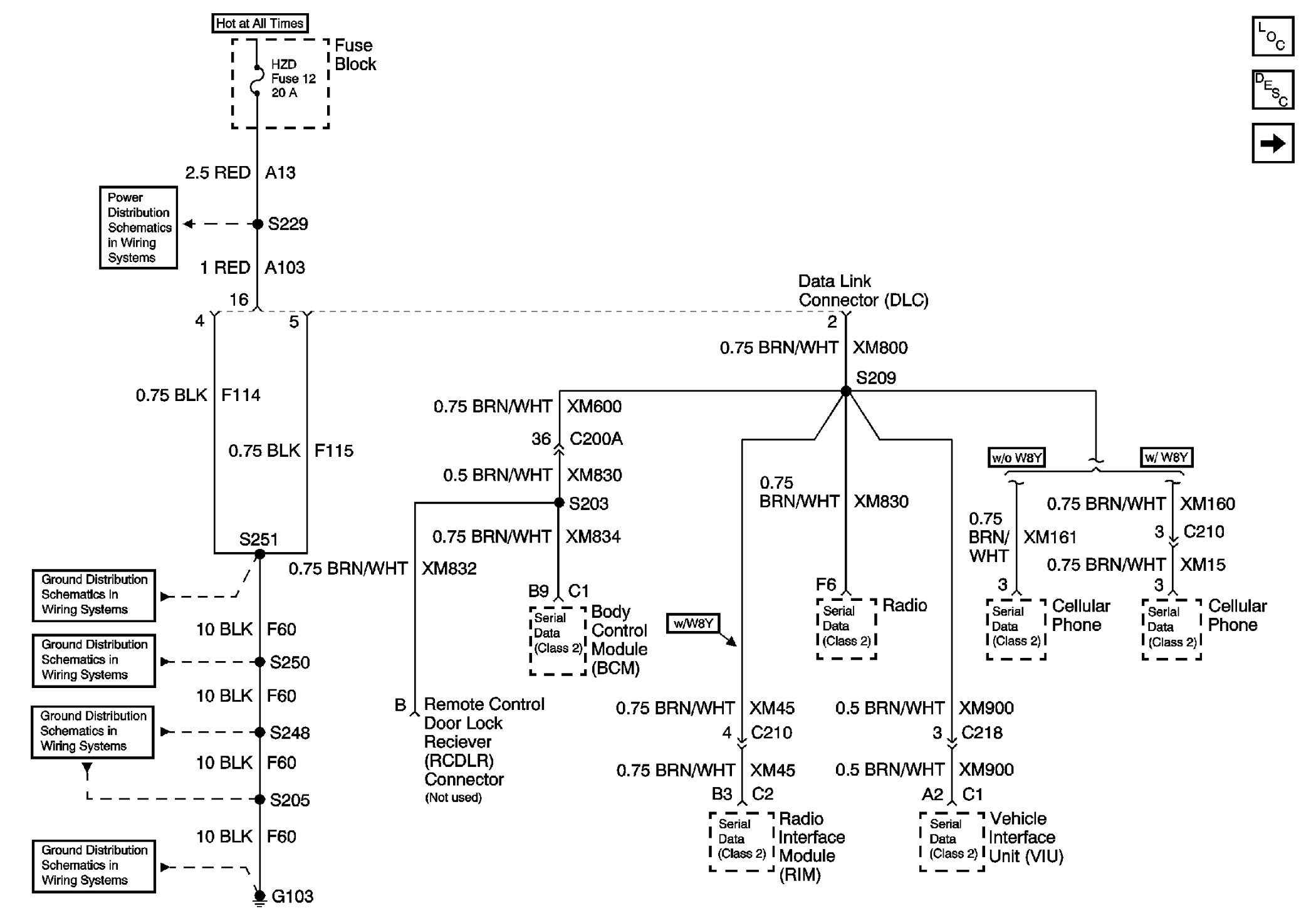

Fig 1: DLC Pins 4, 16, 5, and 2
GM603912Courtesy of GENERAL MOTORS CORP.

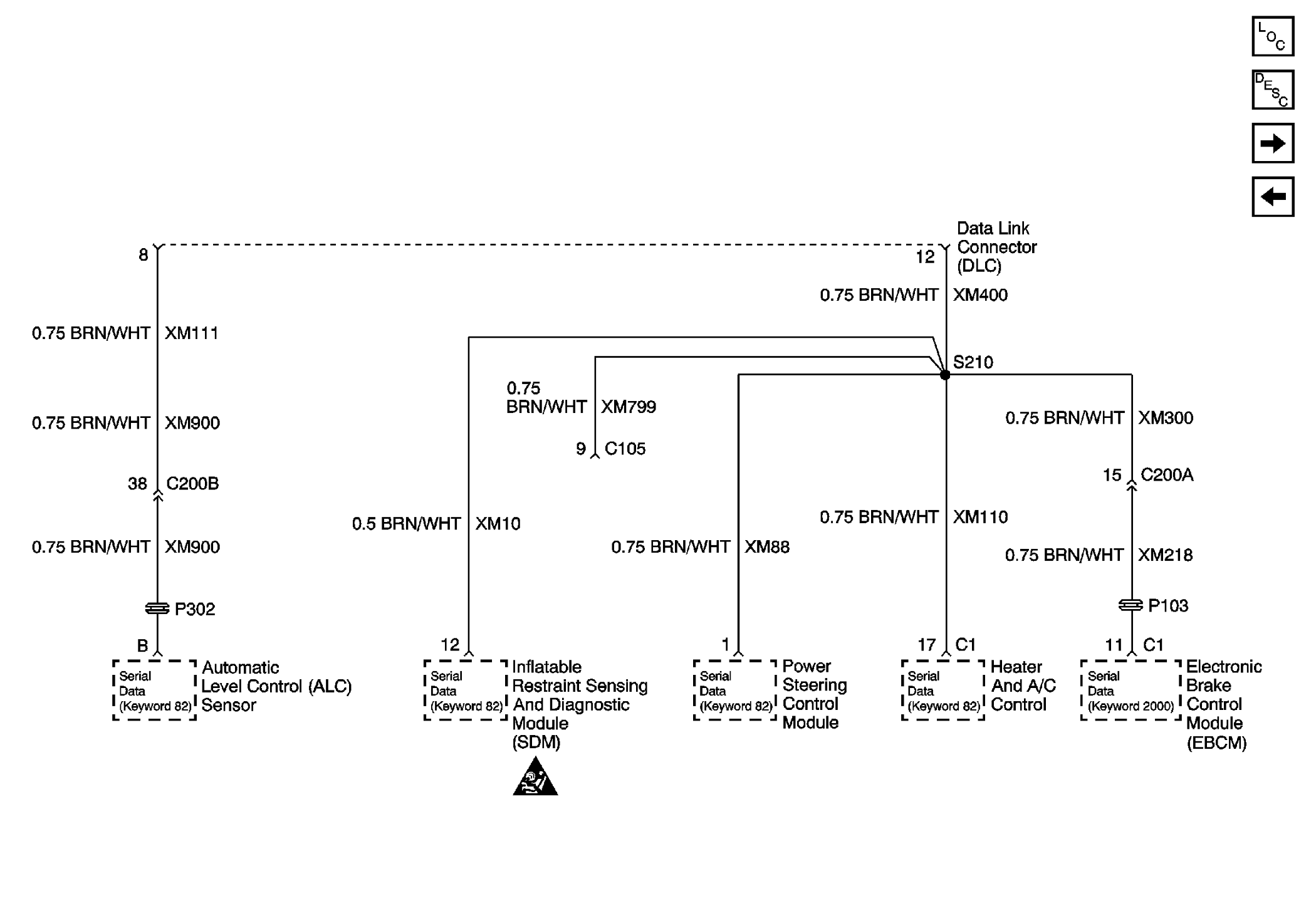

Fig 2: DLC Pins 8 and 12
GM603953Courtesy of GENERAL MOTORS CORP.

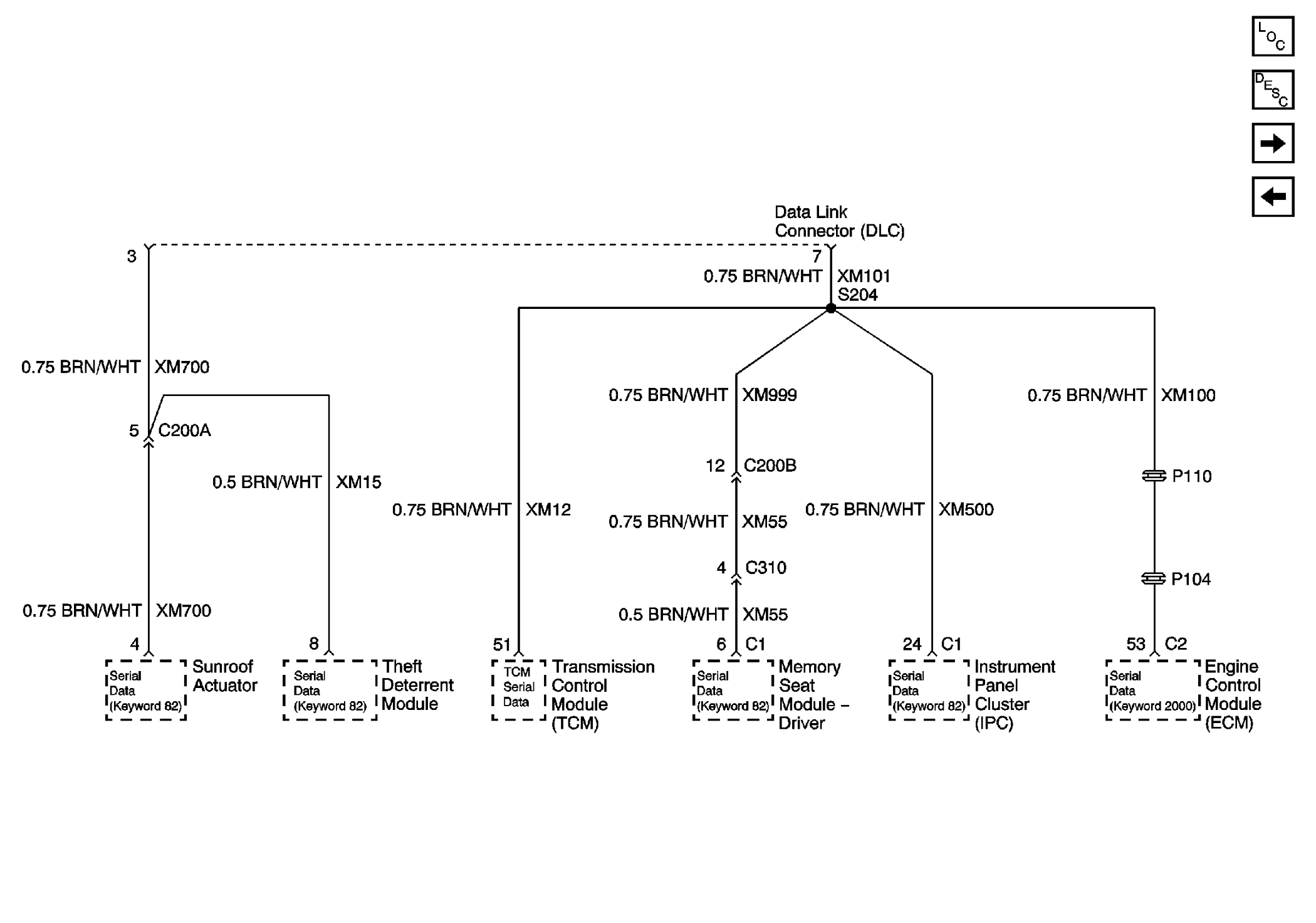

Fig 3: DLC Pins 3 and 7
GM603957Courtesy of GENERAL MOTORS CORP.

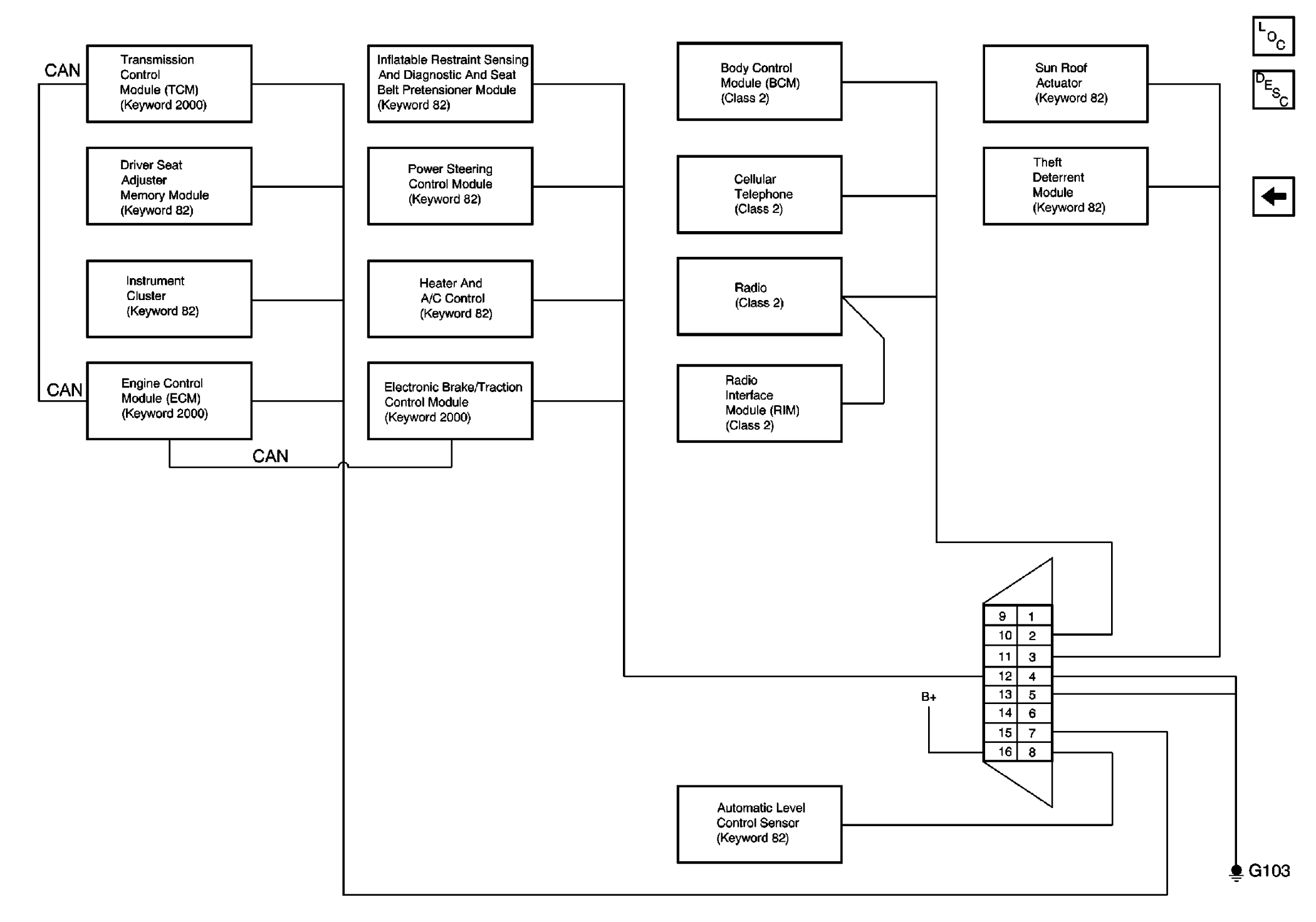

Fig 4: Overview of All Modules
GM603959Courtesy of GENERAL MOTORS CORP.
