DTC U2103: Fewer Controllers On Bus Than Programmed: Notes

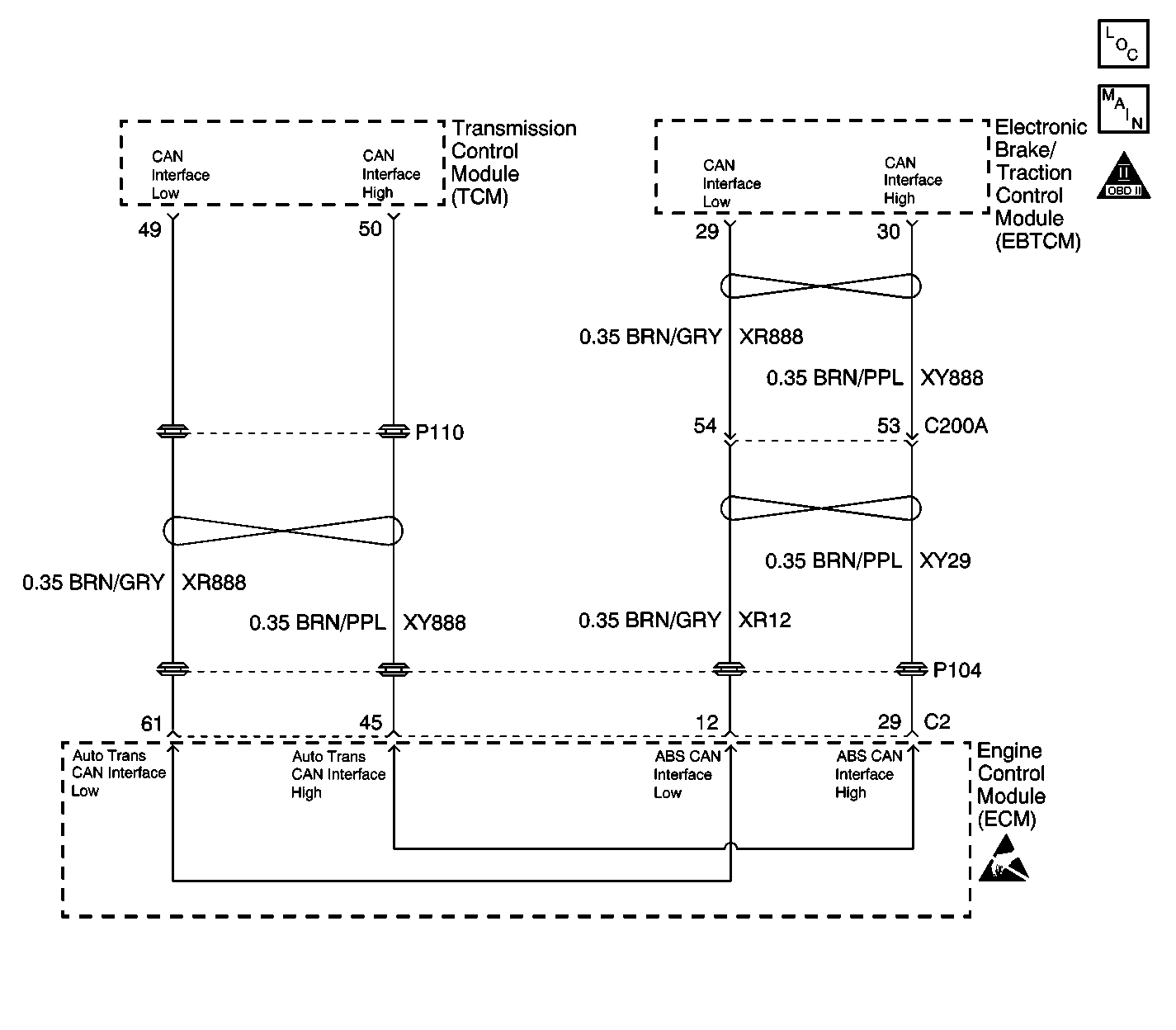

Fig 1: CAN Bus Communication Schematic

GM556741
