Home >> Cadillac >> 1999 >> Escalade >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Remote Keyless Entry Systems >> System Tests >> Test A: Courtesy Lights Inoperative With Transmitter

Test A: Courtesy Lights Inoperative With Transmitter

For test procedure, refer to illustration. See Fig 1 .

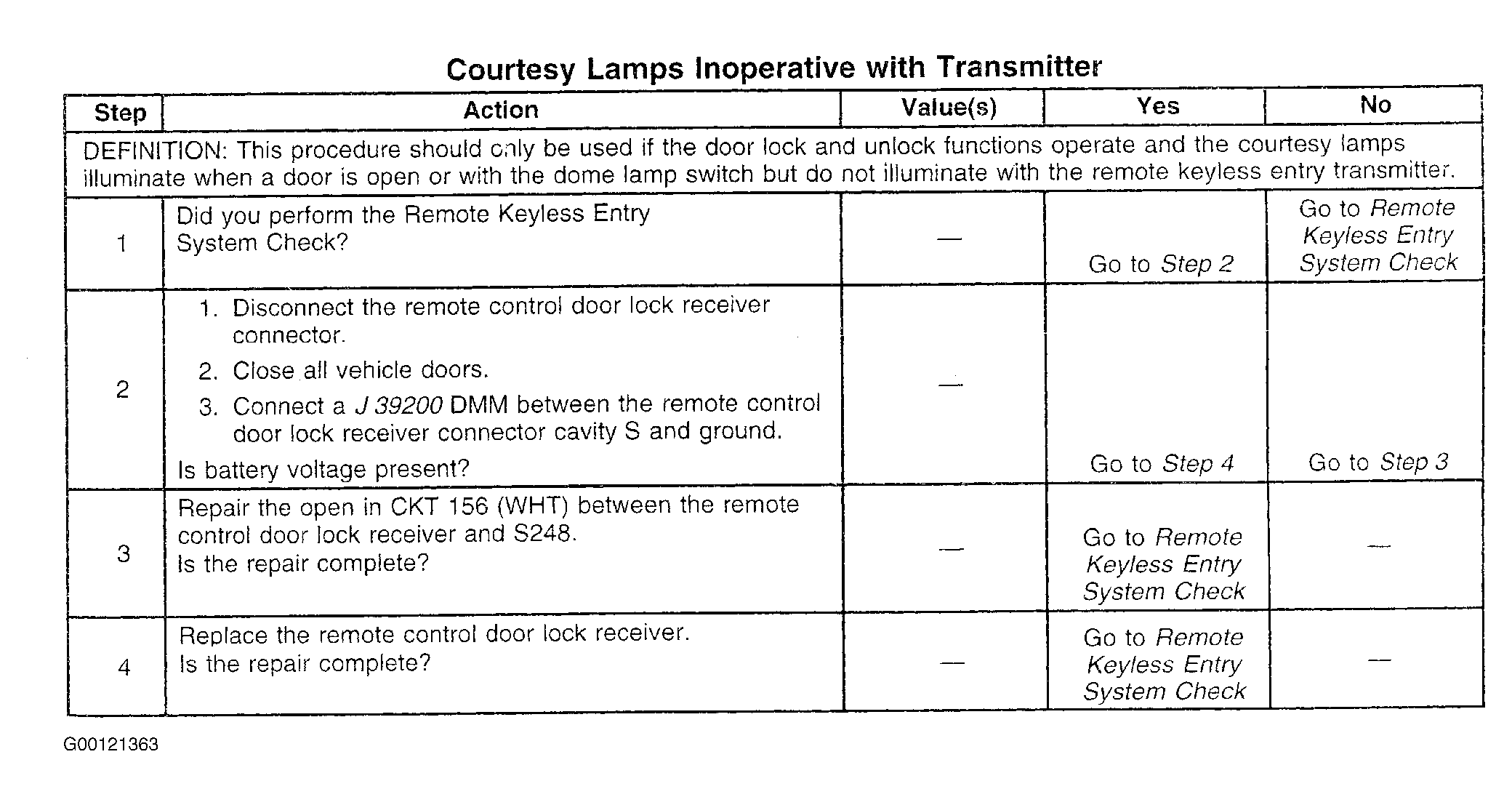

Fig 1: Test A: Courtesy Lights Inoperative With Transmitter

G00121363

Courtesy of GENERAL MOTORS CORP.
