Home >> Cadillac >> 1997 >> Catera >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Power Doors >> Outside Rear View Mirror - Without Memory (Left Hand)

Outside Rear View Mirror - Without Memory (Left Hand)

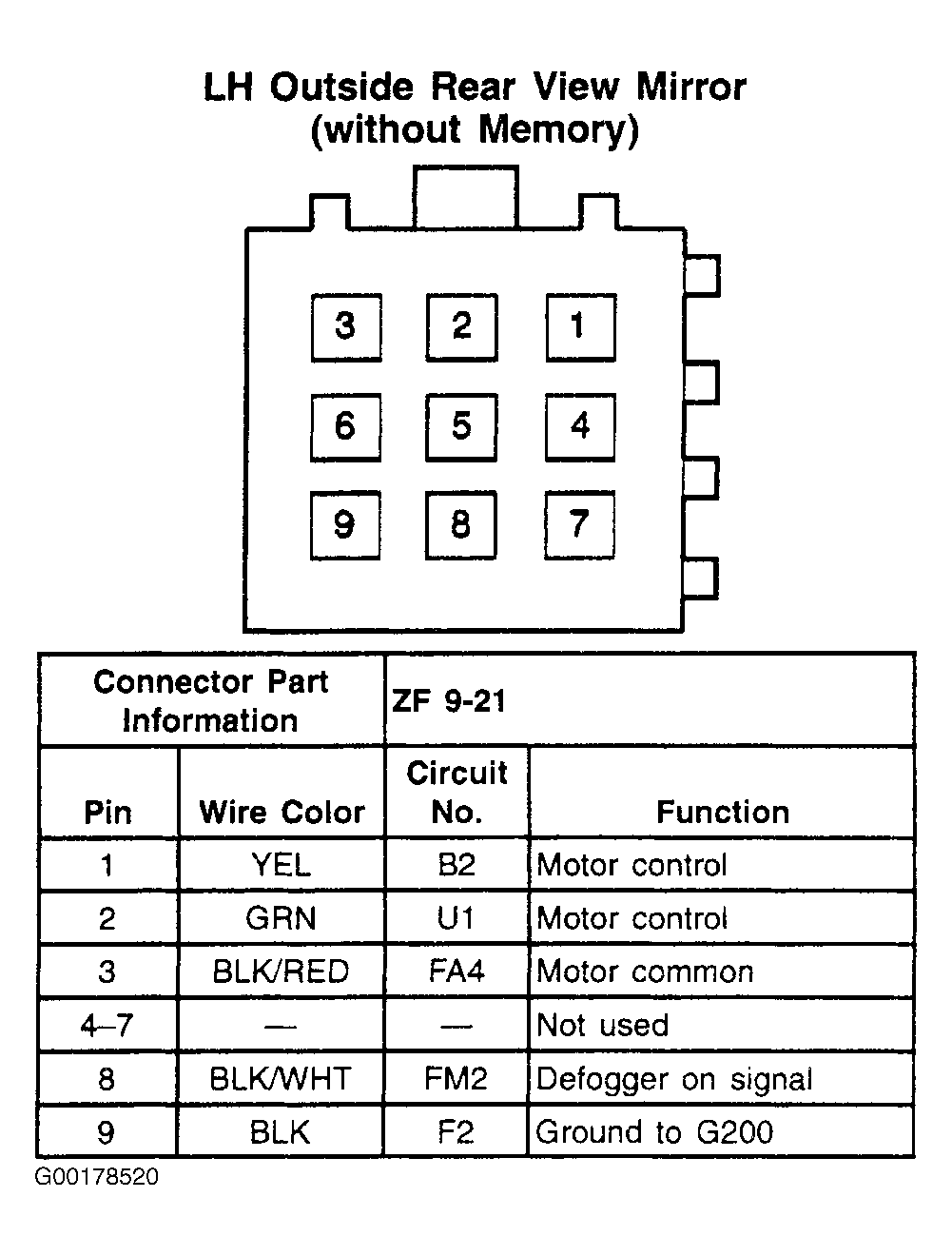

Fig 1: Outside Rear View Mirror (Without Memory) - 9-Pin Connector

G00178520

Courtesy of GENERAL MOTORS CORP.
