Removal & Installation

Remove rear seat. Disconnect wiring harness. Remove RFA receiver module from left side of electronics by board by pressing on locking tabs. See Fig 1 . To install, reverse removal procedure.

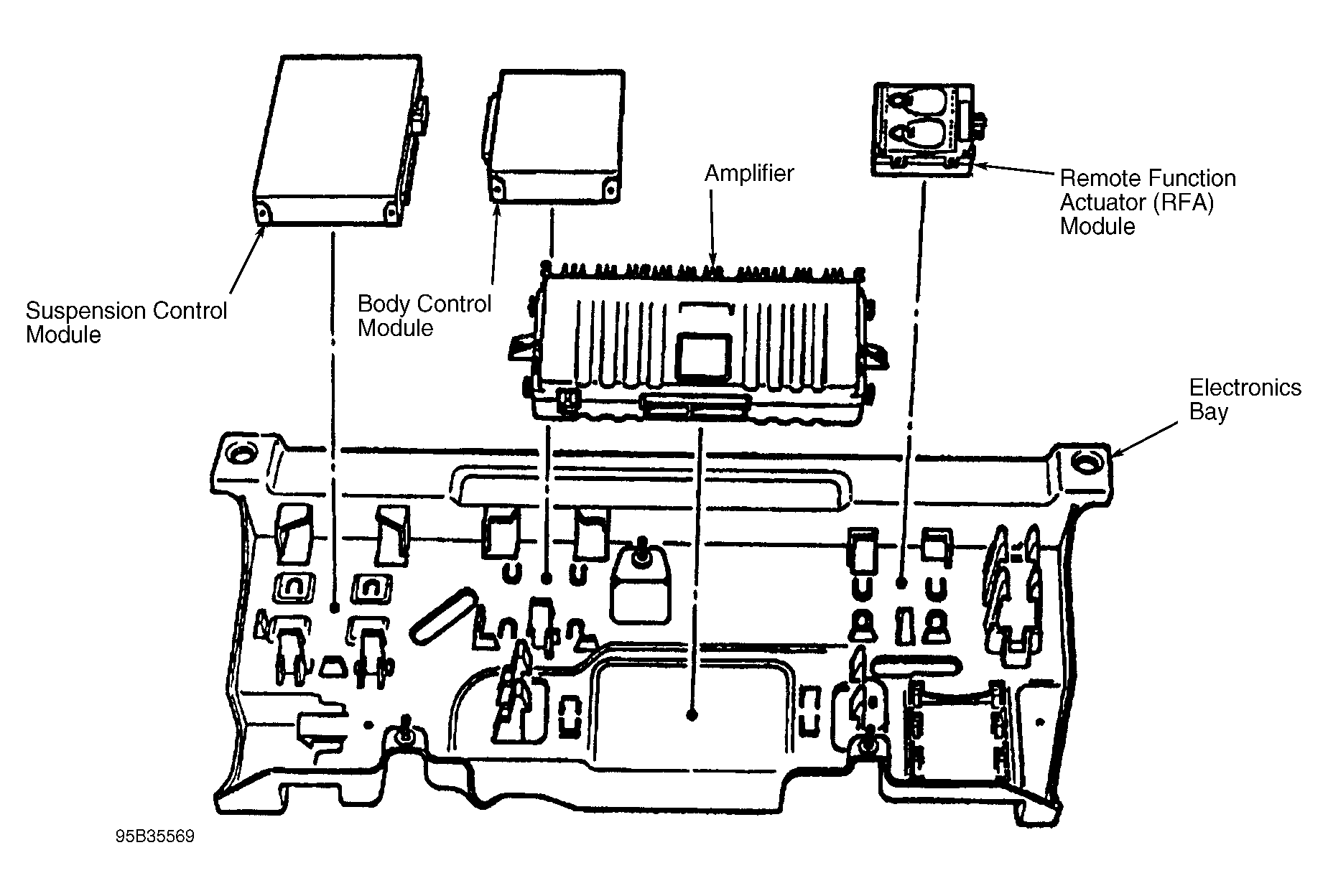

Fig 1: Removing RFA Receiver Module (Concours, DeVille & Seville)

Courtesy of GENERAL MOTORS CORP.
