Diagnostic Aids

Check all connections at the transmission. An open in ignition feed circuit can cause multiple codes to set.

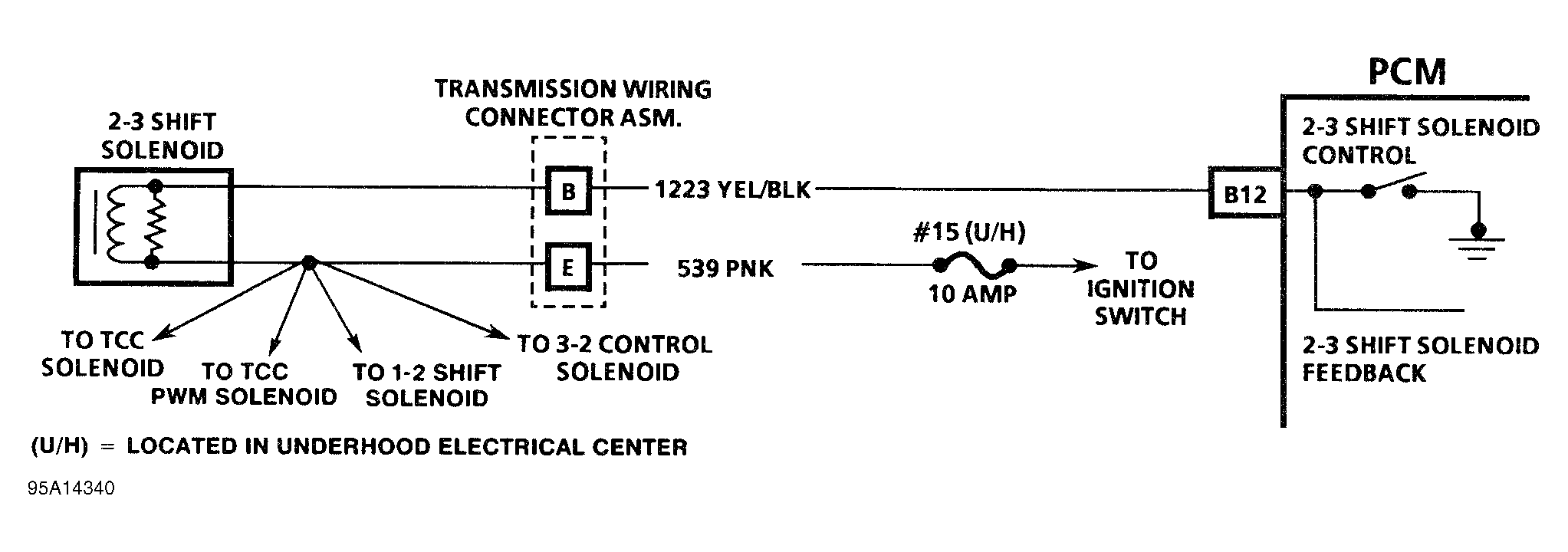

Fig 1: Code 81 Schematic (Fleetwood) 2-3 Shift Solenoid

Fig 2: Code 81 Diagnostic Flow Chart (Fleetwood) 2-3 Shift Solenoid
