Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

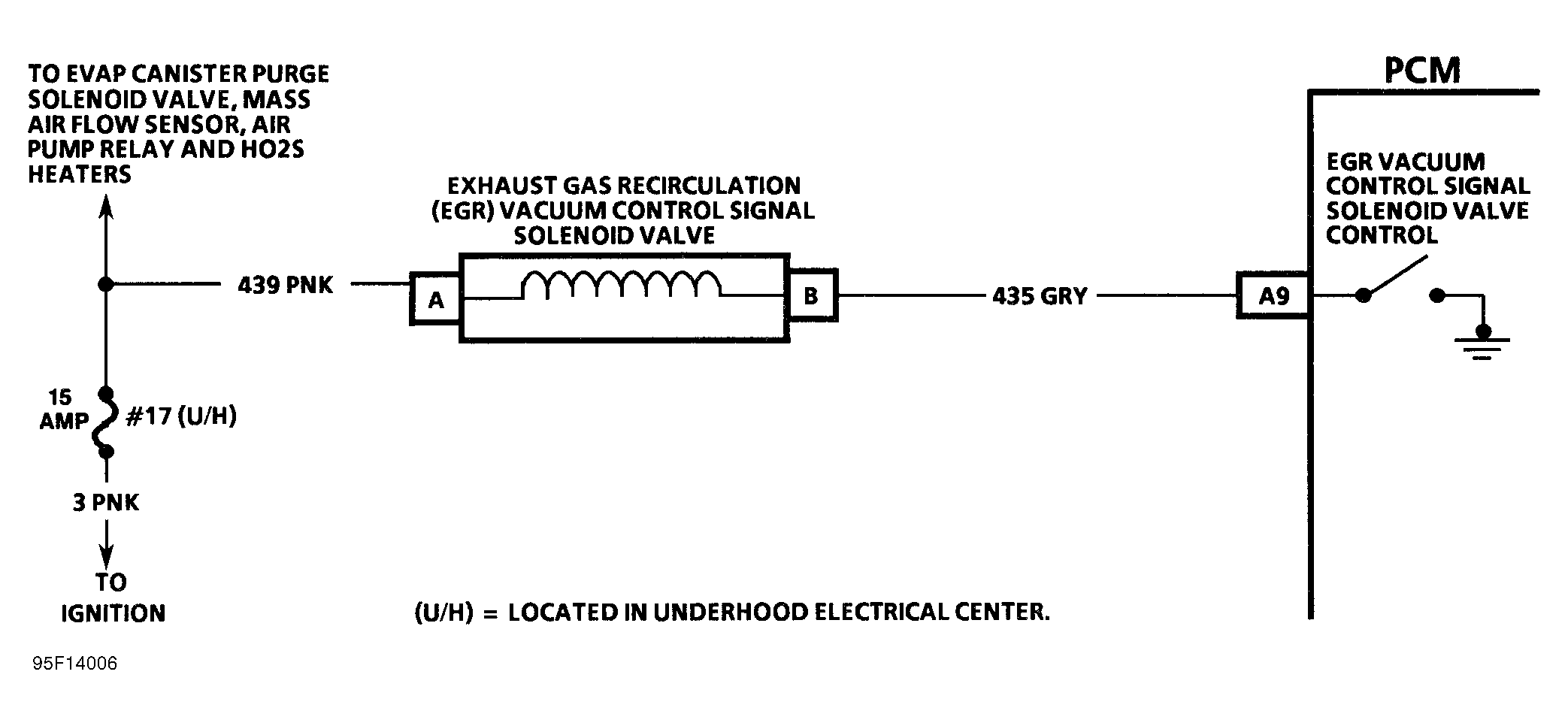

Fig 1: Code 27 Schematic (Fleetwood) EGR Solenoid Valve
G95F14006
Fig 2: Code 27 Diagnostic Flow Chart (Fleetwood) EGR Solenoid Valve
G95D14004
