Pcm Code P095 - Engine Stall Or Near Stall Detected

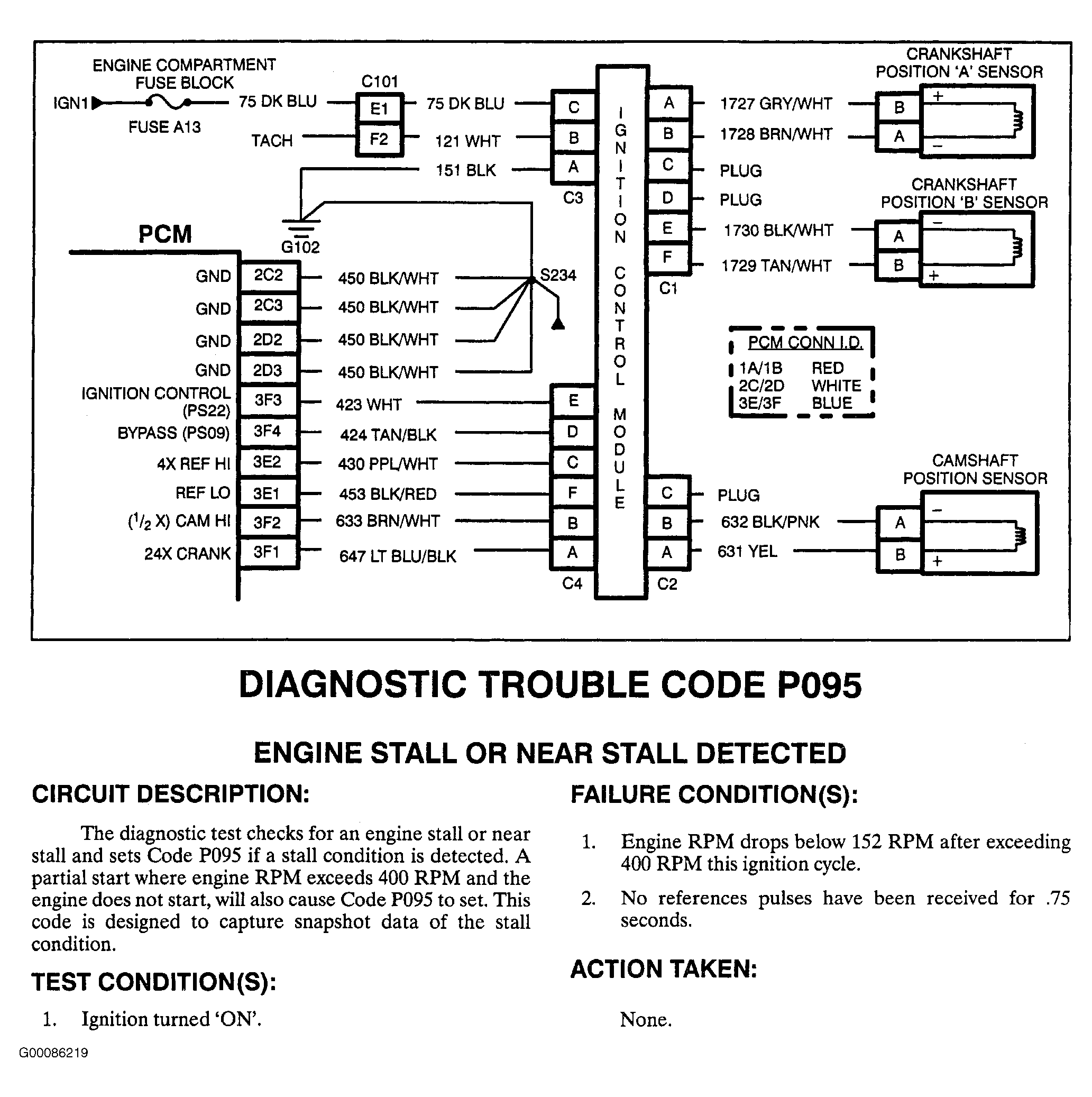

Fig 1: PCM Code P095 Schematic - (1 Of 2)

G00086219

Courtesy of GENERAL MOTORS CORP.

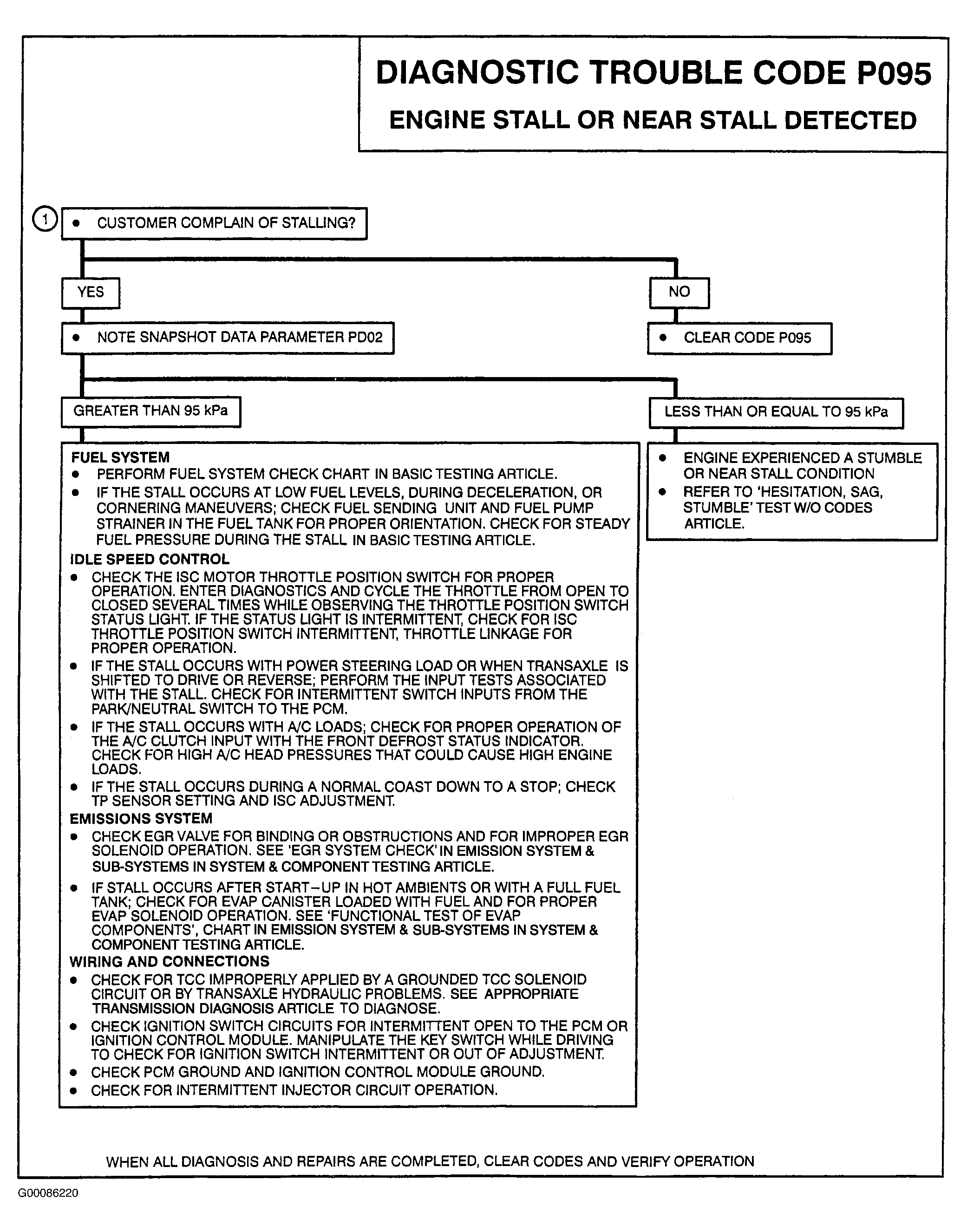

Fig 2: PCM Code P095 Flow Chart - (2 Of 2)

G00086220

Courtesy of GENERAL MOTORS CORP.
