Pcm Code P029 - Transaxle Shift "B" Solenoid Problem

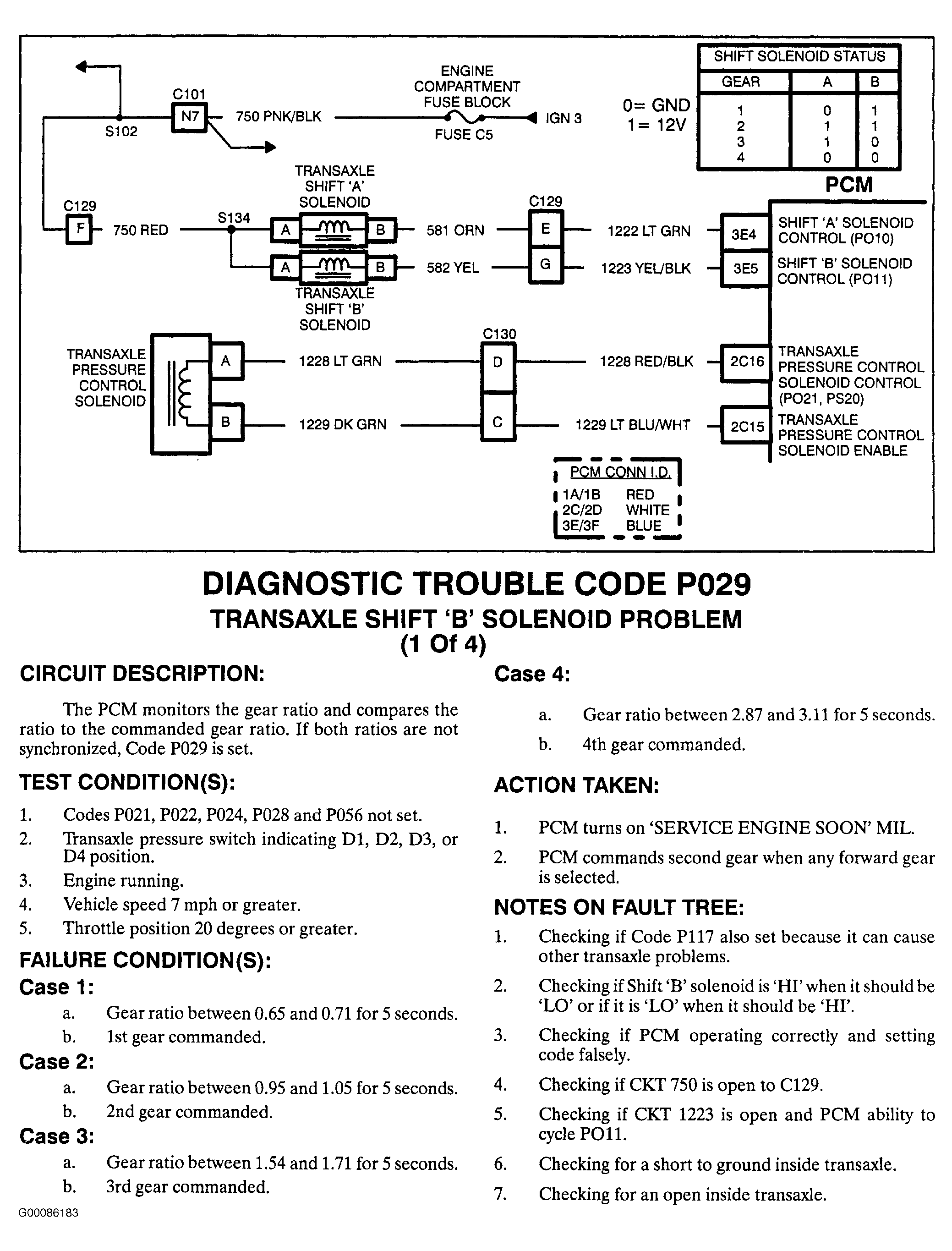

Fig 1: PCM Code P029 Schematic (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

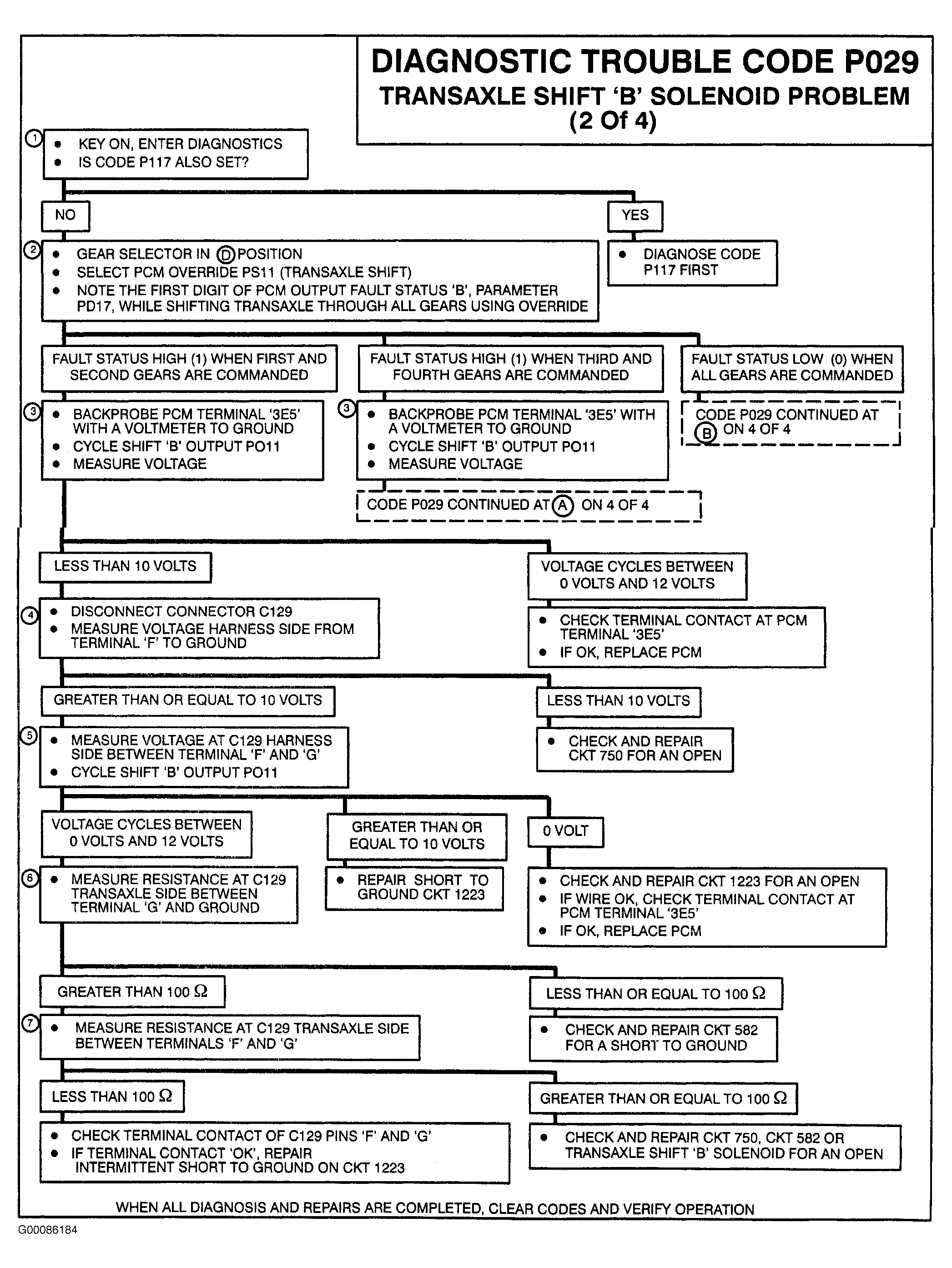

Fig 2: PCM Code P029 Flow Chart (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

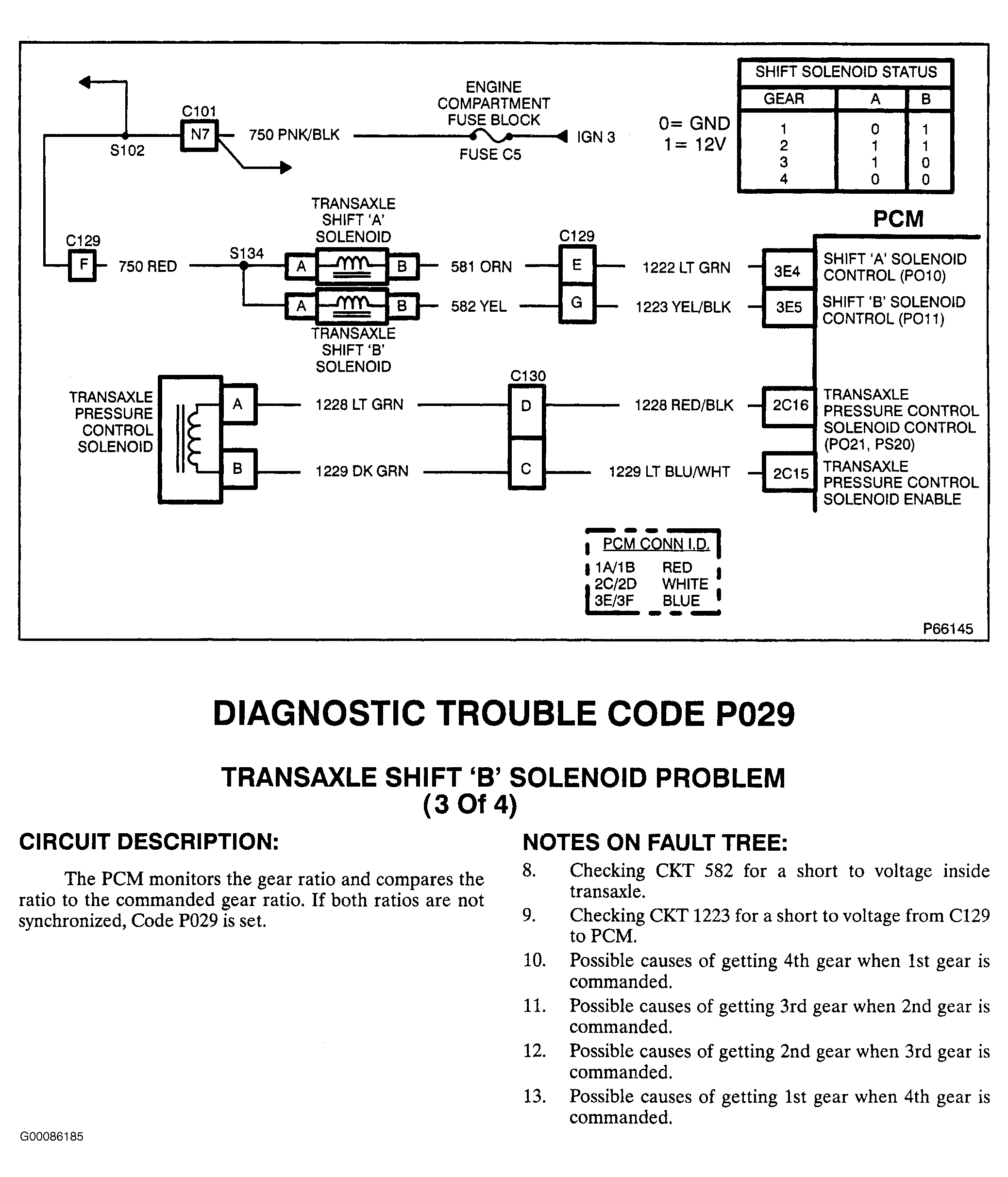

Fig 3: PCM Code P029 Schematic (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

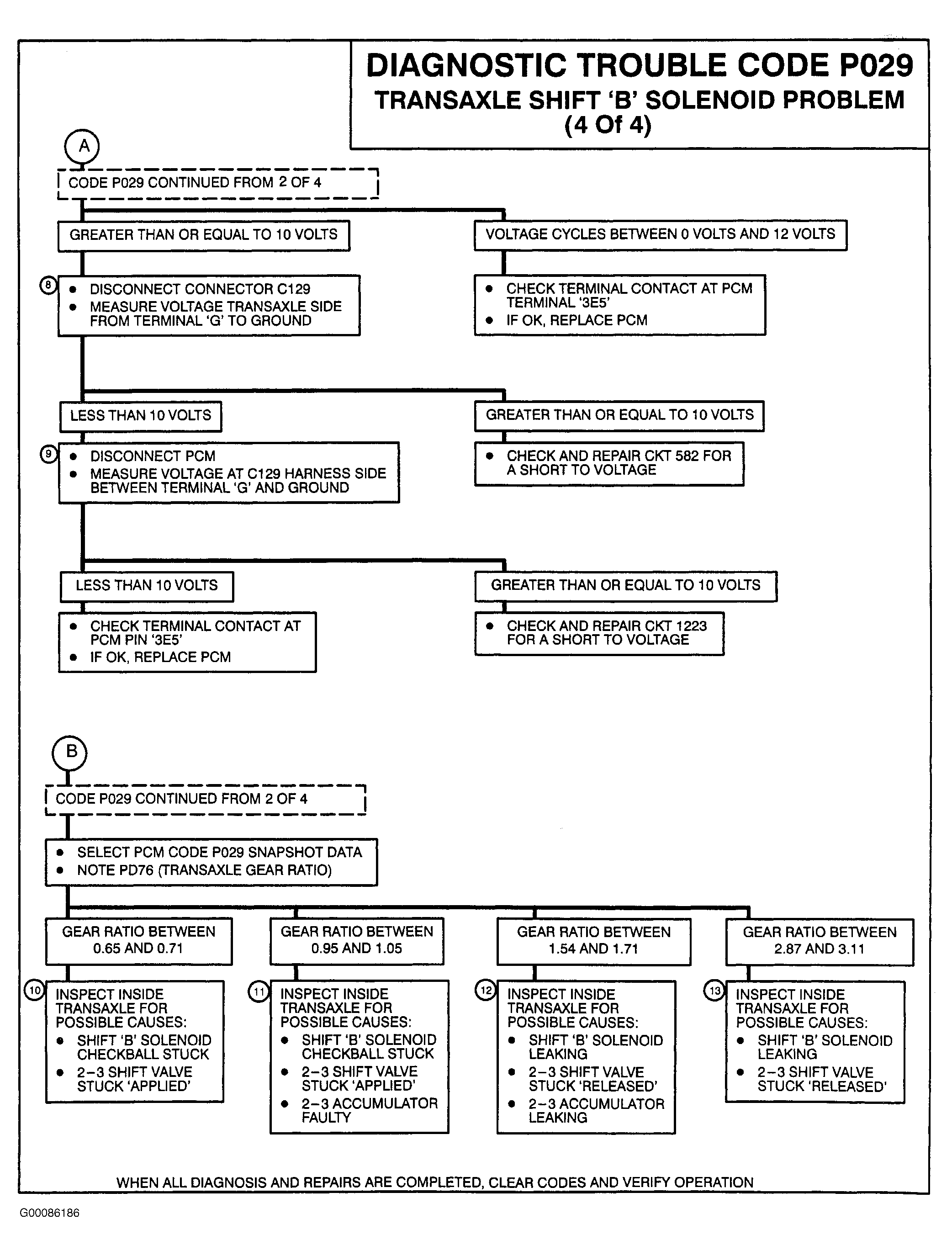

Fig 4: PCM Code P029 Flow Chart (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
