Functional Check Chart 1

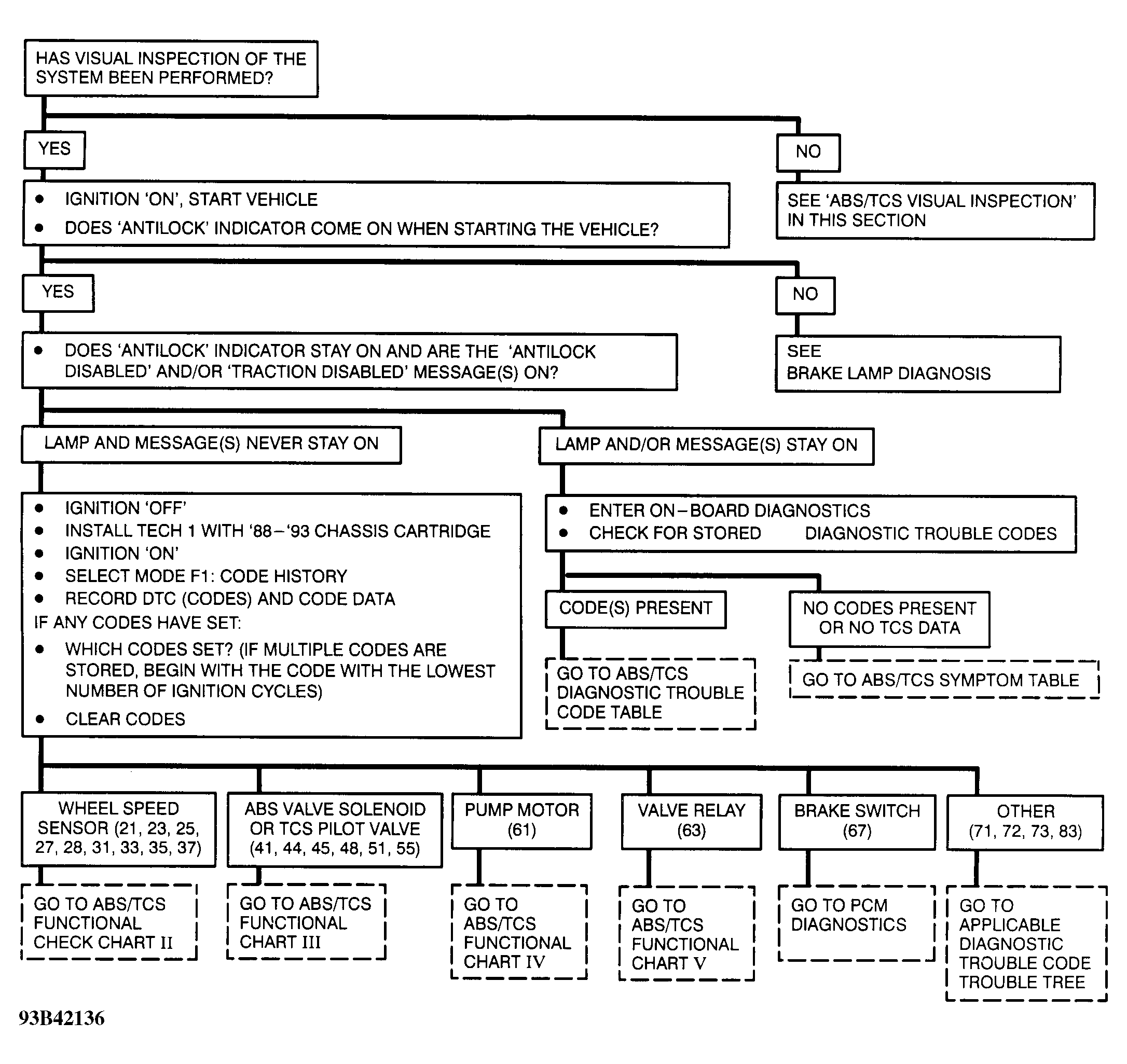

Fig 1: Chart 1 - Diagnostic Flowchart

G93B42136

Courtesy of GENERAL MOTORS CORP.
