Case Extension & Speed Sensor

Rotate transaxle so final drive case extension is in horizontal position with speed sensor facing up. Remove speed sensor bolt, speed sensor and "O" ring. See Fig 1 . Remove case extension bolts and case extension assembly.

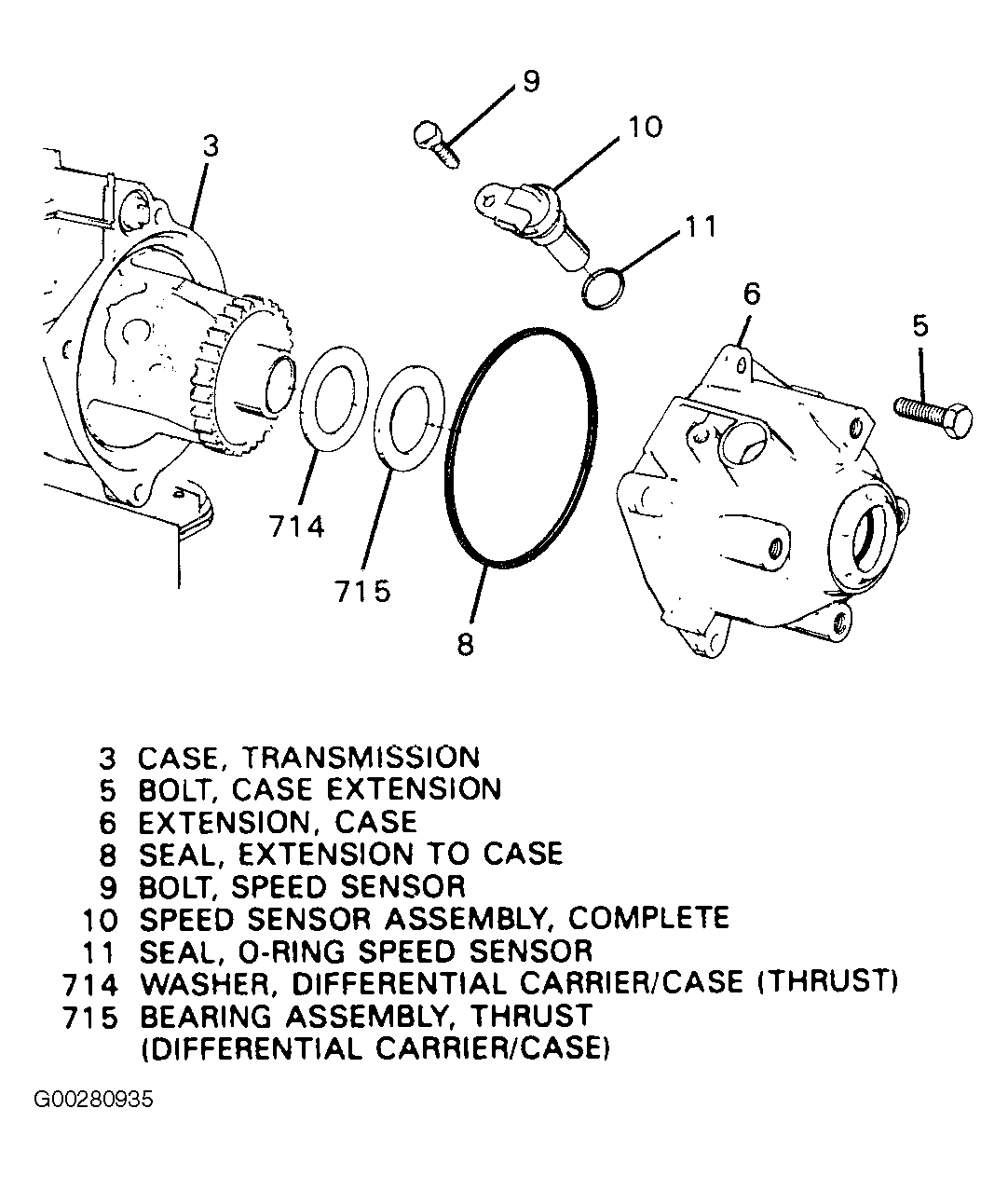

Fig 1: Exploded View Of Case Extension Assembly

Courtesy of GENERAL MOTORS CORP.
