Pcm Code E039, VCC Engagement Problem (1 Of 2): Action
PCM turns on SERVICE ENGINE SOON light and remains on for ignition cycle. VCC is disabled for ignition cycle.
NOTE:
Test number refers to number on diagnostic chart.

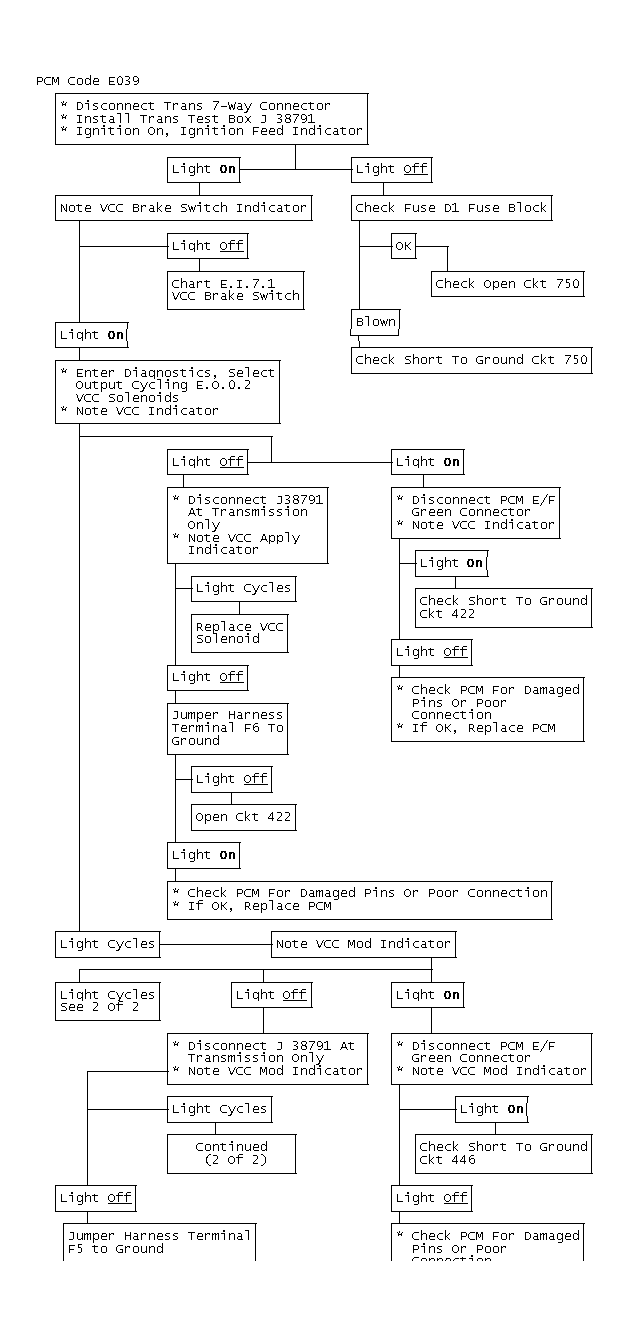

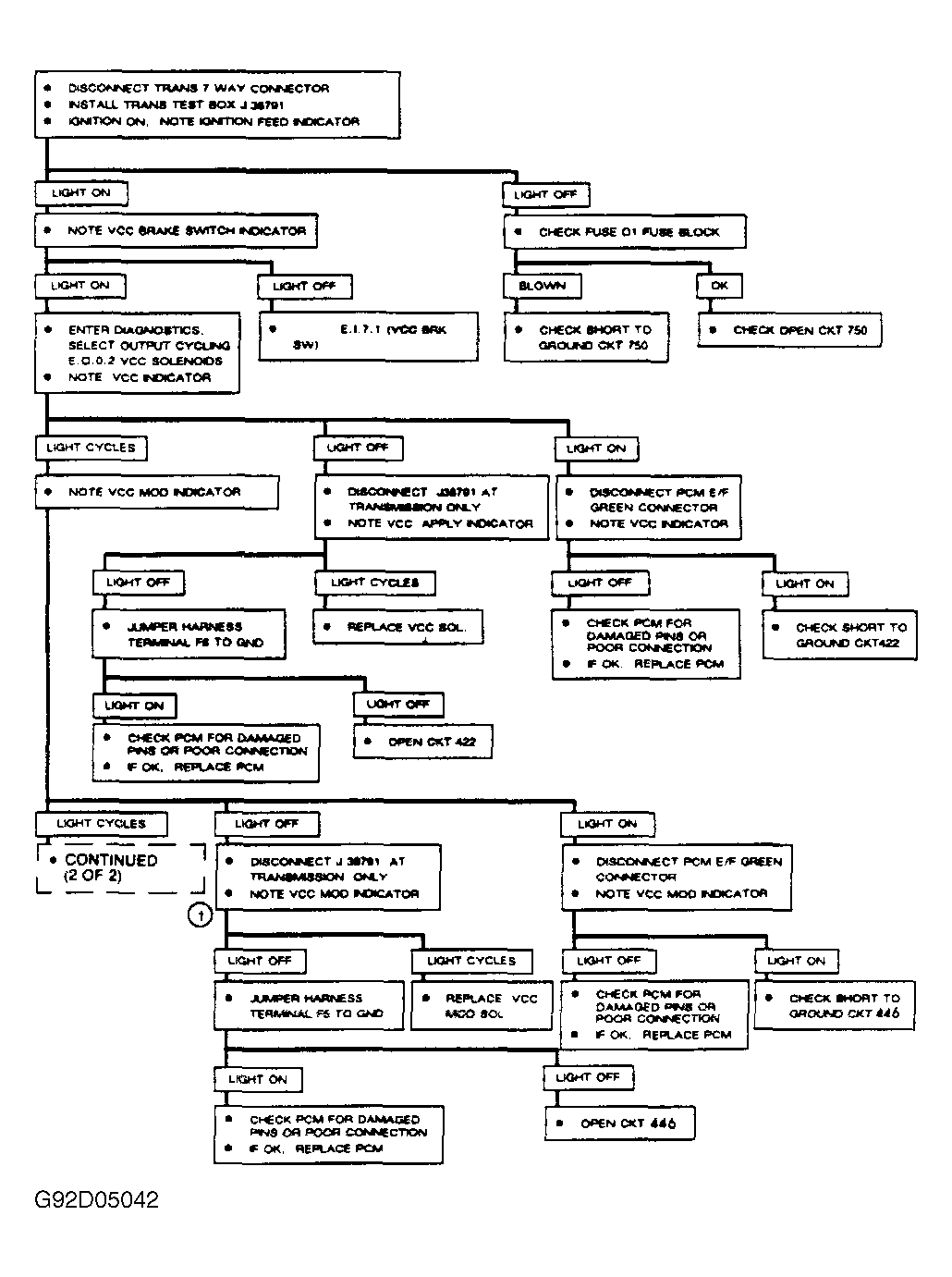

- Flow chart will test resistance of VCC solenoid and wiring inside transmission. Road test checks for proper transmission operation.
CODE E039 PCM VOLTAGE CHECK
| PCM Terminal | Condition 1 | Condition 2 |
|---|---|---|
| C4 | BRAKE APPLIED 0 to 0.3 Volts | BRAKE RELEASED Battery |
| F6 | VCC ON 0 to 0.3 Volts | VCC OFF Battery |
| F5 | VCC MOD ON 0 to 0.3 Volts | BRAKE RELEASED Battery |
RPM SLIP FAULT
| M P H | 3.33 FINAL DRIVE RATIO RPM NO SLIP | 3.33 FINAL DRIVE RATIO RPM FAULT | 2.97 FINAL DRIVE RATIO RPM NO SLIP | 2.97 FINAL DRIVE RATIO RPM FAULT |
|---|---|---|---|---|
| 40 | 1200 | 1550 | 1090 | 1450 |
| 48 | 1450 | 1850 | 1300 | 1700 |
| 56 | 1700 | 2125 | 1500 | 1950 |
| 64 | 1950 | 2375 | 1700 | 2175 |
| 72 | 2200 | 2650 | 2000 | 2500 |
| 80 | 2400 | 2850 | 2200 | 2675 |
