Pcm Code E80, Fuel System Rich: Action

PCM will set Code E80 and turn on SERVICE ENGINE SOON light.

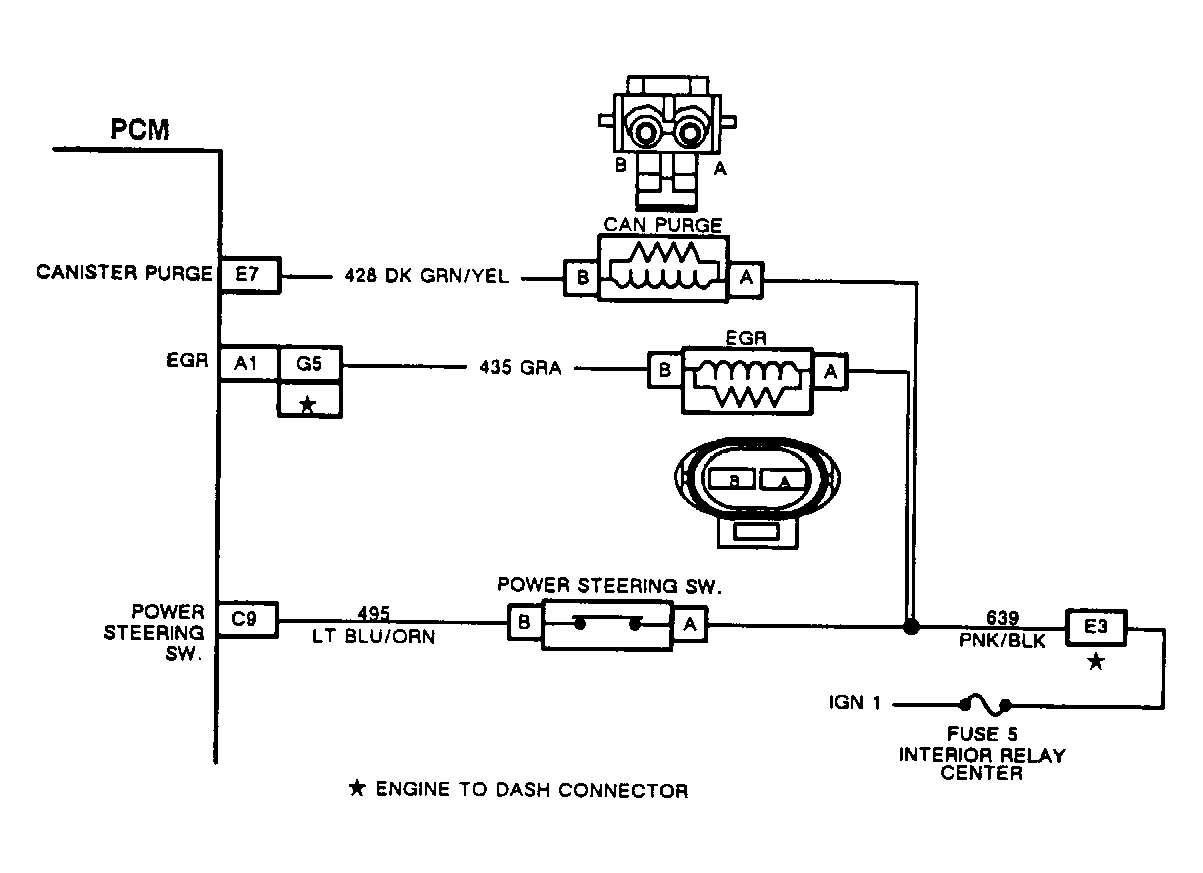

Fig 1: PCM Code E80, Schematic, Fuel System Rich

G91A07676

Courtesy of GENERAL MOTORS CORP.
