Note On Intermittents

Manipulate PCM connector, 56-pin engine-to-dash connector, servo connector and affected wiring. Note display for rapid change in servo position.

Fig 1: PCM Code E65, Schematic, Cruise Ctrl Servo Position Sensor Failure
G91E07720

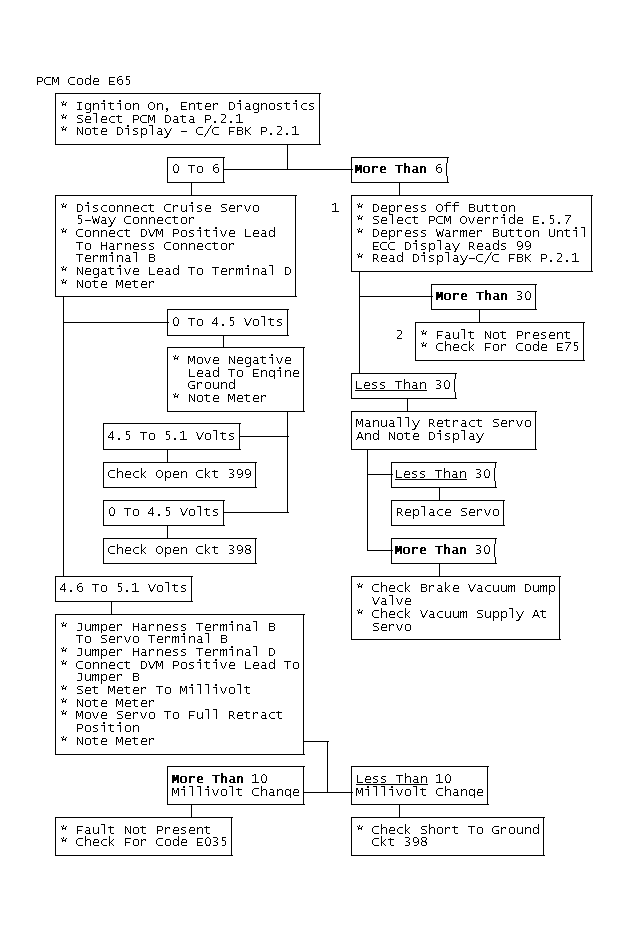

Fig 2: PCM Code E65, Flow Chart, Cruise Ctrl Servo Position Sensor Failure
G91I07722
Fig 3: PCM Code E65
GB0011328
