Note On Intermittents

If battery has been disconnected, PCM Code E52 will set. PCM keeps a running check on memory. If memory changes, PCM Code E52 resets.

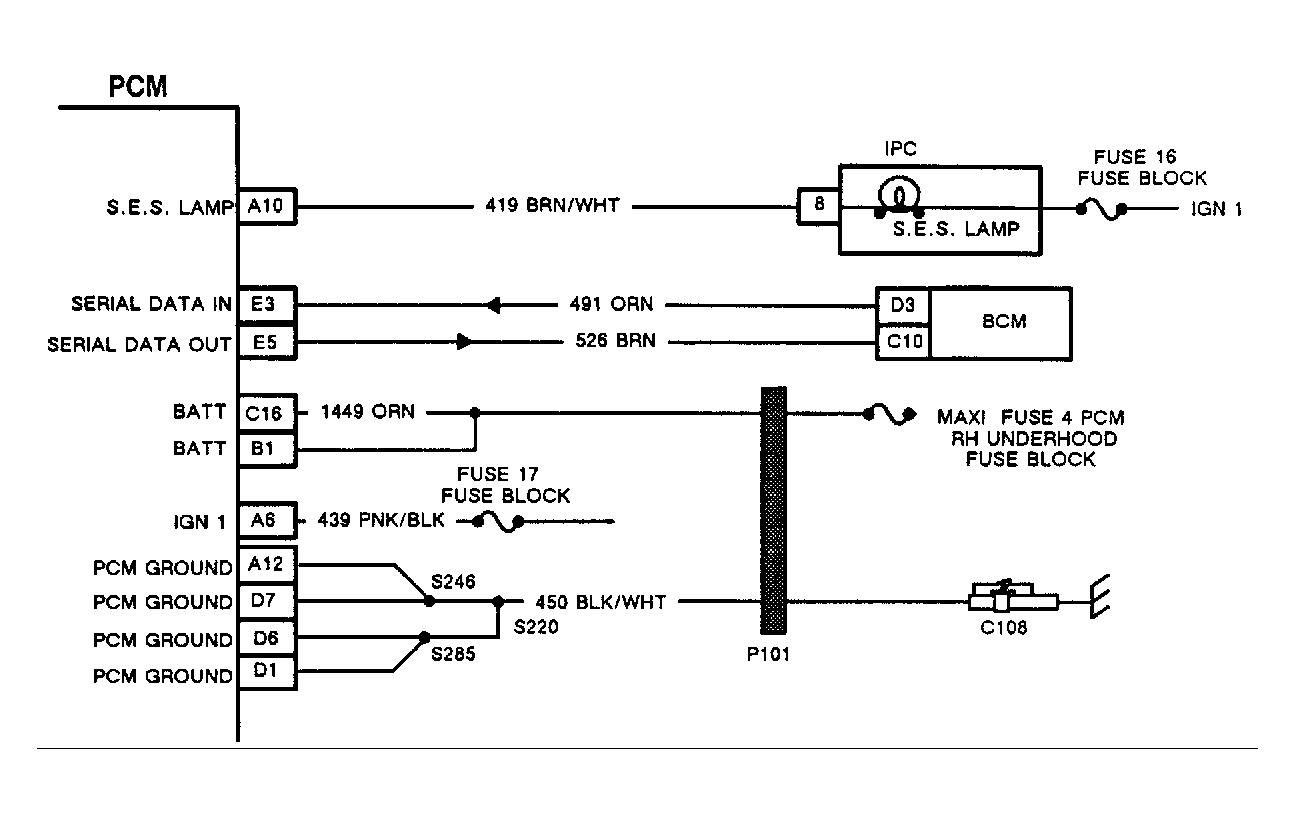

Fig 1: PCM Code E52, Schematic, PCM Memory Reset
G91I07661Courtesy of GENERAL MOTORS CORP.
