Note On Intermittents

If an intermittent Code B420 is being set, manipulate related wiring in output function and watch relays to cycle.

Fig 1: BCM Code B420, Schematic, Courtesy Light Relay Circuit

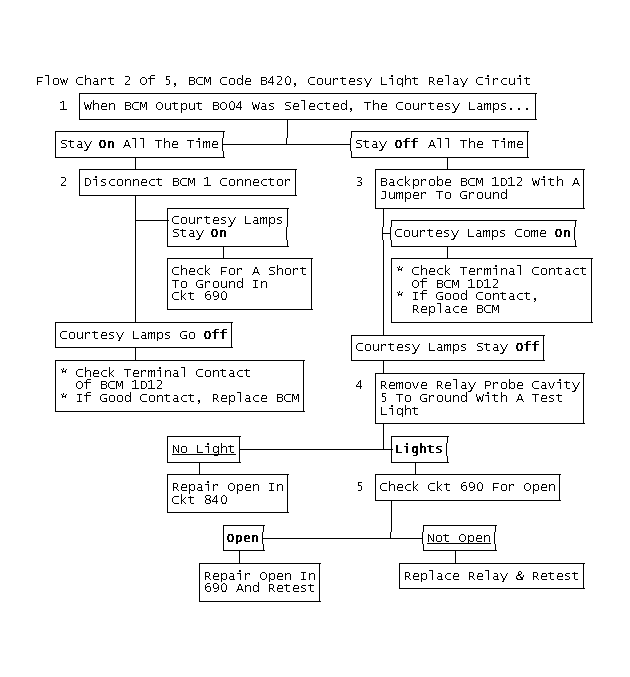

Fig 2: Flow Chart 2 Of 5, BCM Code B420, Courtesy Light Relay Circuit
