Test B: Heated Windshield Control Module Output Test

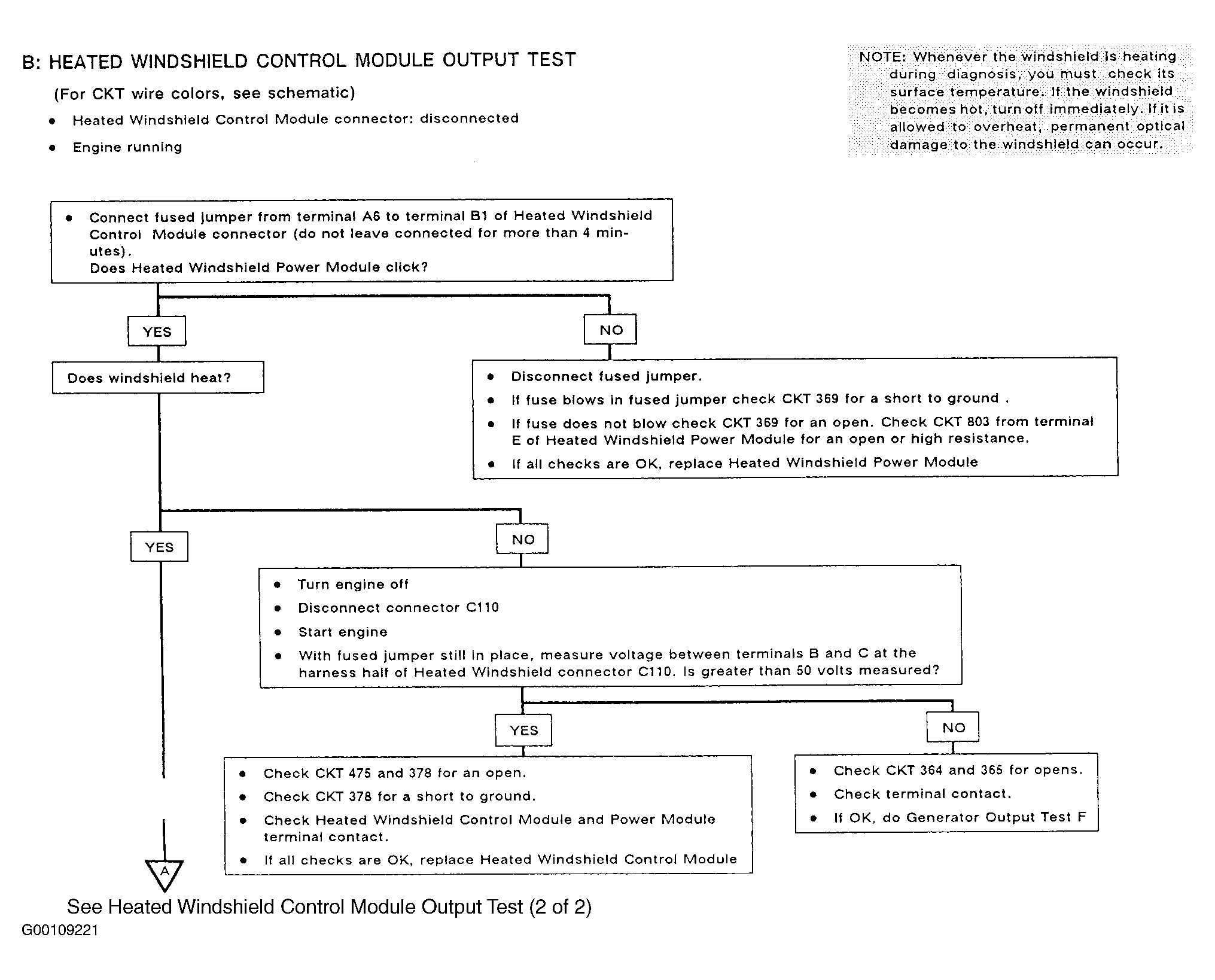

Fig 1: Test B: Heated Windshield Control Module Output Test (1 of 2)
G00109221Courtesy of GENERAL MOTORS CORP.

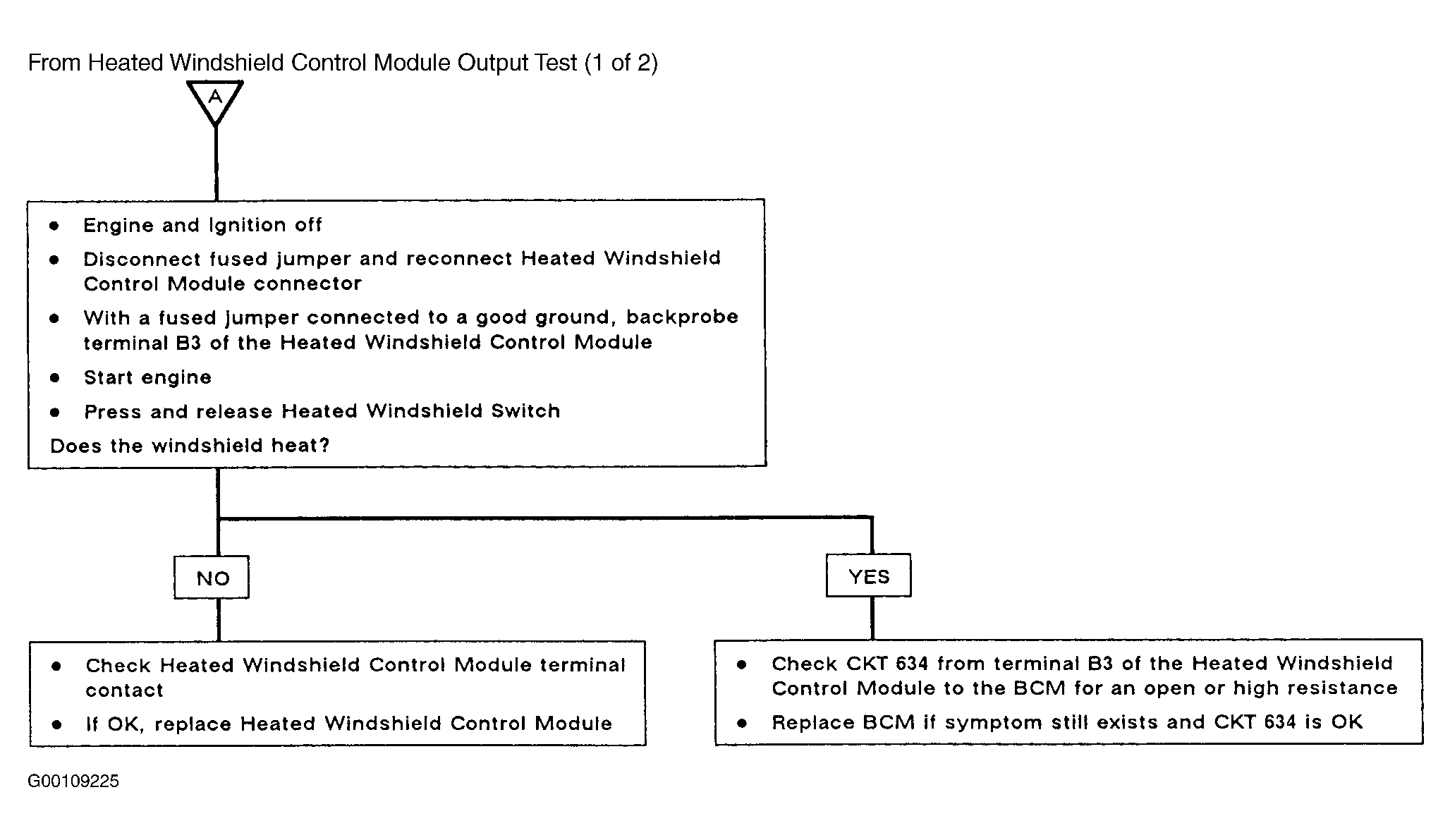

Fig 2: Test B: Heated Windshield Control Module Output Test (2 of 2)
G00109225Courtesy of GENERAL MOTORS CORP.
