Notes On Intermittents

With engine running, manipulate oxygen sensor, ECM wiring and connectors while observing ECM parameter ED07. If fault is induced, ED07 will jump below .37 volts, and "ECON" status light will go off. Manipulate circuit No. 413 ground to engine, and look for a loose ground eyelet or ground eyelet installed at wrong location. If lean engine operation is suspected, perform DFI SYSTEM CHECK. If oxygen sensor circuit seems to be okay, go to CHART A9 - OXYGEN SENSOR DIAGNOSIS.

Review snapshot data parameters stored with this code to verify failure. If failure is verified, check and repair intermittent wiring connections or sensor.

Fig 1: Schematic, Code EO44, Lean Exhaust Signal
G57245

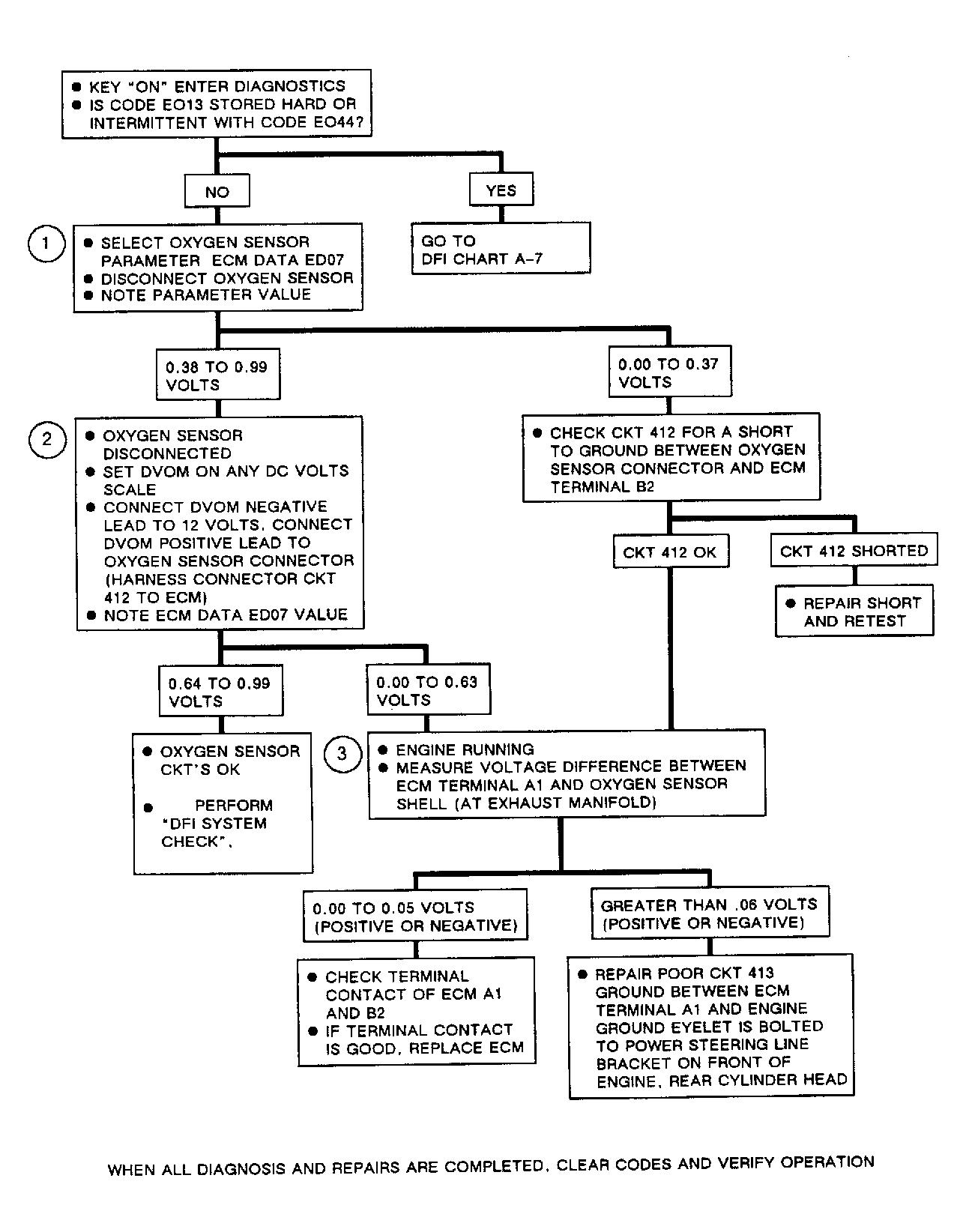

Fig 2: Flow Chart, Code EO44, Lean Exhaust Signal
G57347

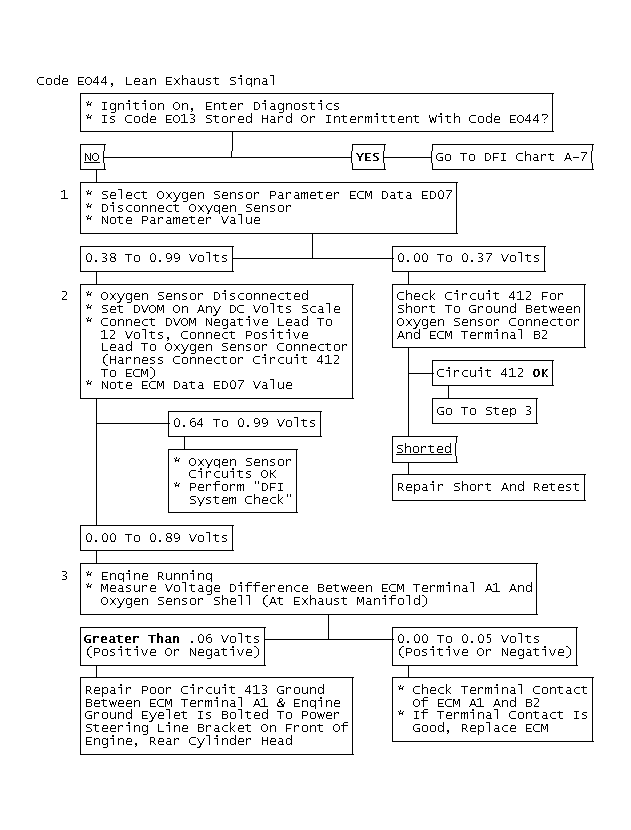

Fig 3: Flow Chart, Code EO44, Lean Exhaust Signal
GB0048543
