Publication date: 1988-06-16Reference number: T88-155
EXPERTEC TSB
TECHNICAL SERVICE BULLETIN
Reference Number(s): T88-155
MISLABELED CONNECTOR - MAY CAUSE DIAGNOSIS CONFUSION
Model(s): 1988 BROUGHAMS AND CIMARRONS
Bulletin No.: T88-155
Date: 06/16/1988
BULLETIN ILLUSTRATION LIST
MODELS AFFECTED

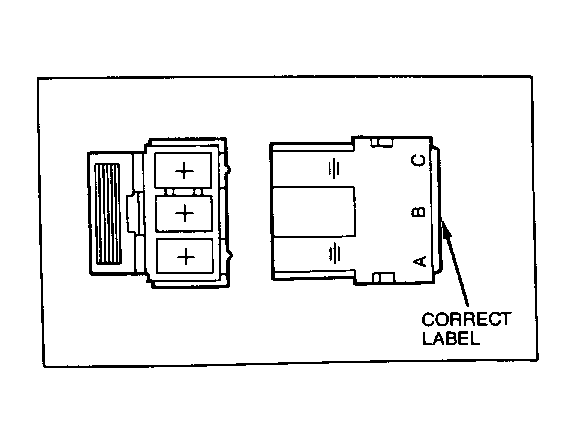

Some 1988 Cadillac Broughams and Cimarrons may have a Vehicle Speed Sensor Buffer which is improperly labeled. The connector will work properly but could cause confusion if electrical troubleshooting is necessary. Fig. Fig 1 shows a properly labeled connector. The improperly labeled connectors have the "A" and "C" reversed. All Service Manual terminal call-outs use the labeling as shown in Fig. Fig 1 .
