Tests For Improper Displays (BI21 Displays LO With Brake Fluid Level Full)

This condition may also set code B480. See ANTI-LOCK -- BOSCH III -- ALLANTE article in BRAKES.

NOTE: For circuit identification, see Fig 1.

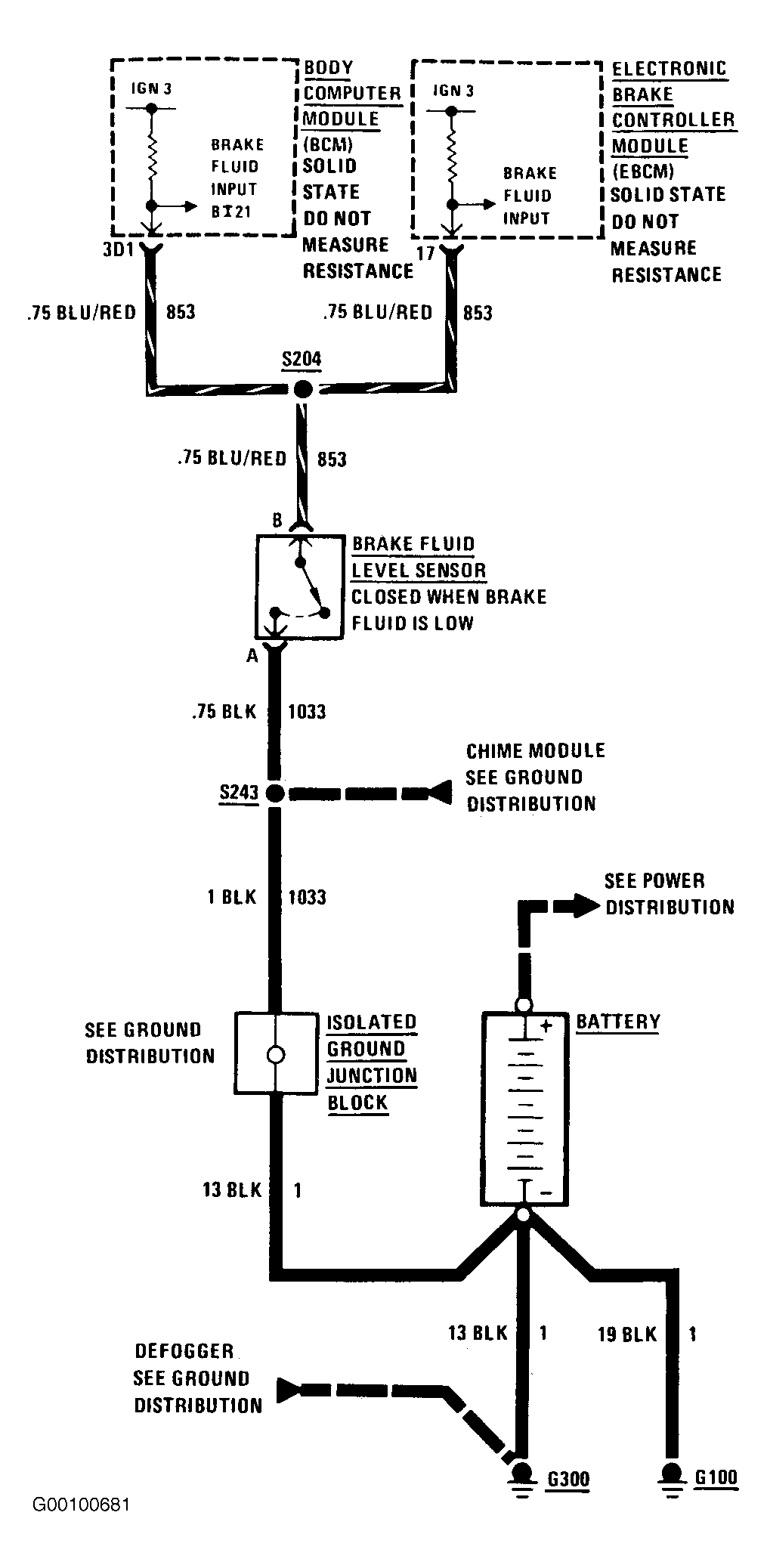

Fig 1: Identifying BI21: Brake Fluid Level Circuit

Courtesy of GENERAL MOTORS CORP.
